SKU #: ZON-D42N MPN #: ZOND42N

Zone Offroad 4" Suspension System 13-18 Ram 1500

$1,458.65

Get 1458 points in loyalty rewards

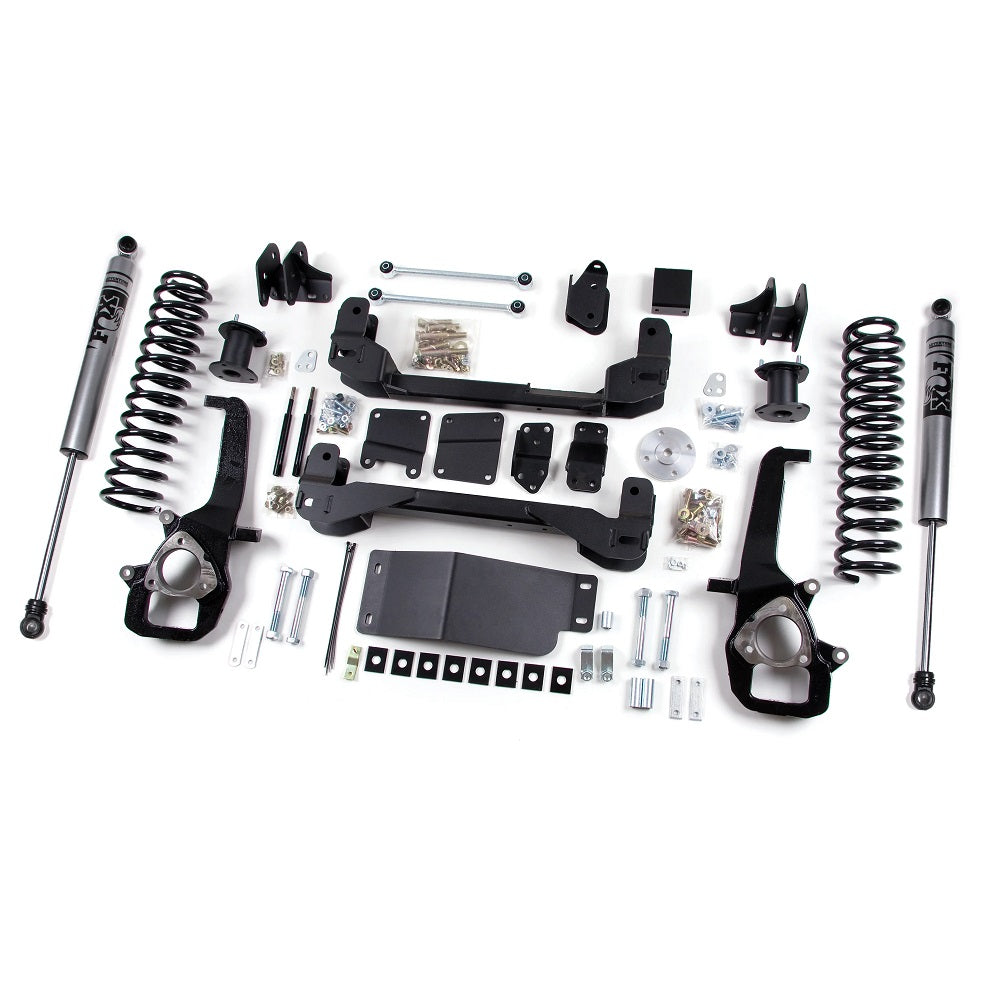

Zone Offroad 4" Suspension System for 13-18 Ram 1500

Description

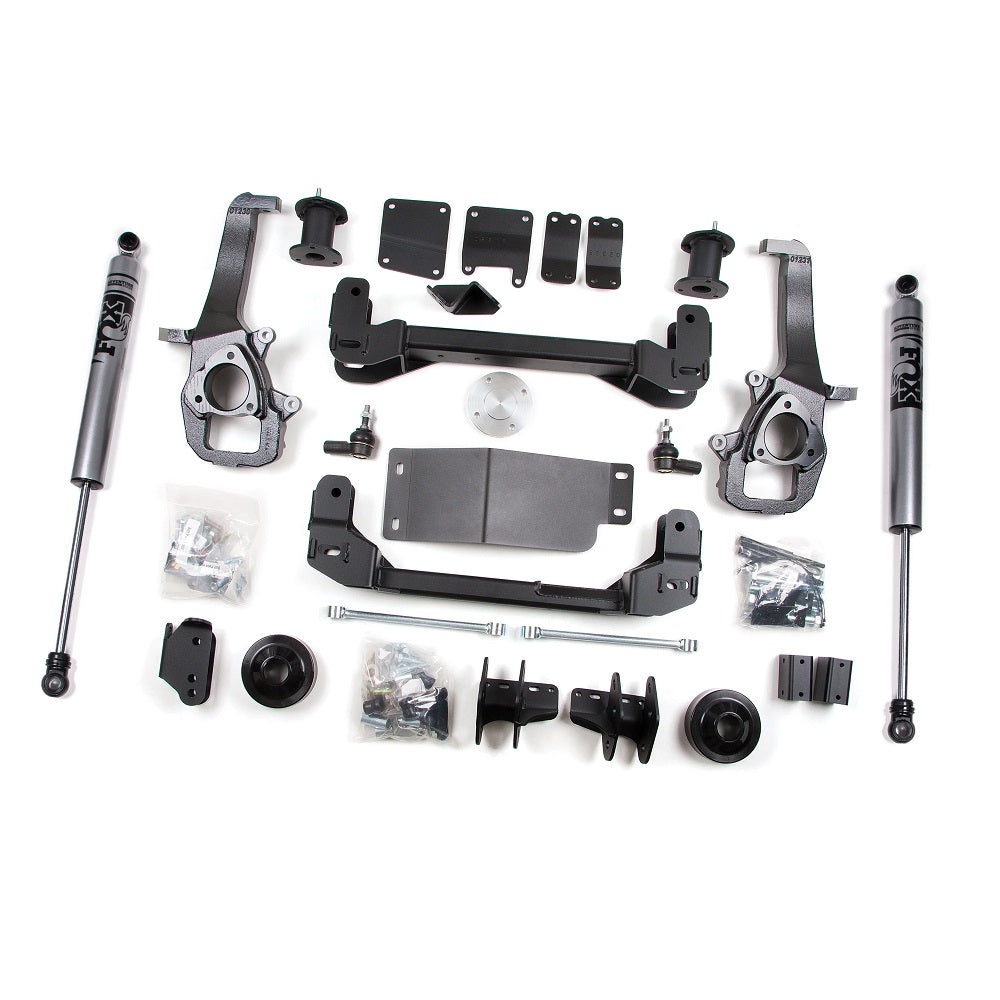

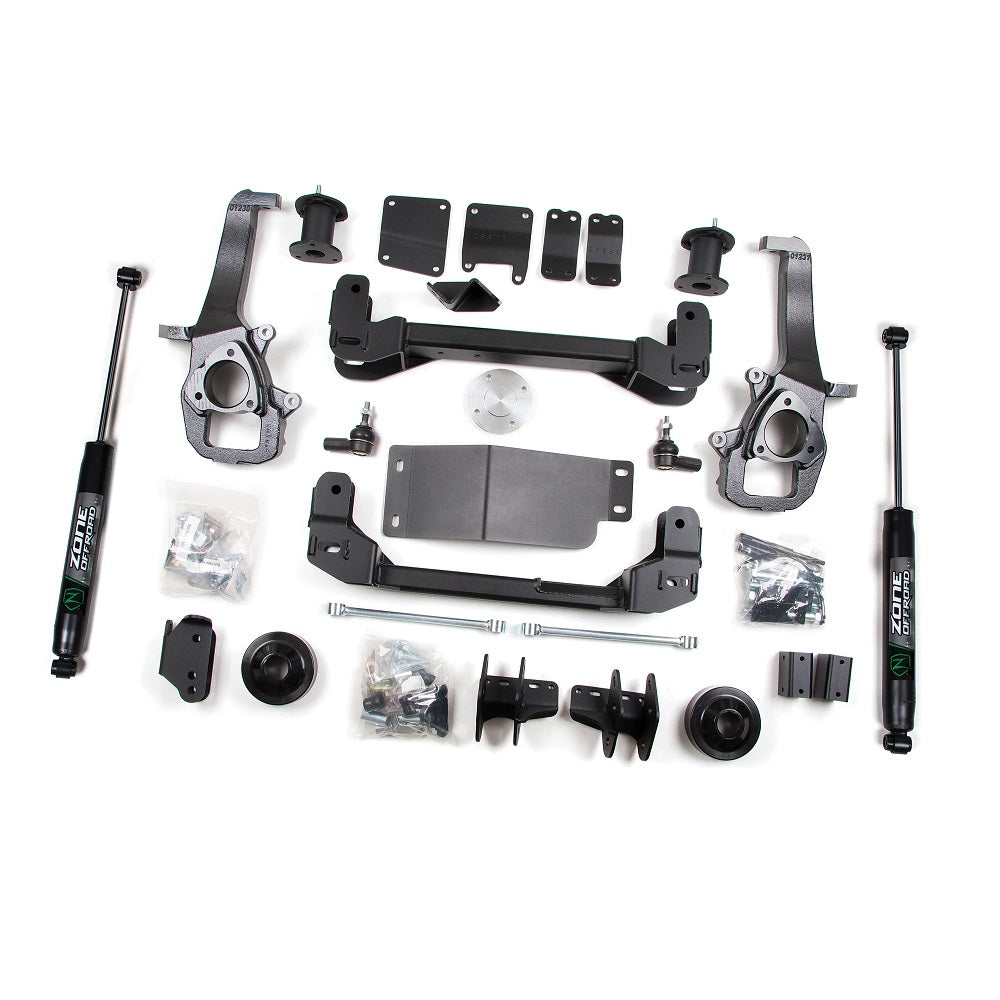

Bring your Ram to new heights with this complete 4" lift kit from Zone Offroad! The main components of this Zone Offroad 4" Suspension Lift Kit System are front and rear crossmembers, strut spacers, and sway bar links that work together with the new extended steering knuckles and replacement tie rod ends. These components are designed to maintain proper handling characteristics and work with the factory traction control system. Unique to this system from the 2009-2011 models is an updated differential relocation system specifically designed for the newer front differential housing. A differential skid plate is included for added strength and protection for trips off the beaten path. Since many of the vehicles tested by Zone Offroad had a significant tail high stance from the factory, this 4" lift kit system comes standard with 2" rear coil spacers to help level the vehicle. Zone Offroad also offers a 3" rear lift coils depending on your desired stance. It's best to measure your truck before ordering to determine how much rear lift is needed to give your truck the attitude you intend to. Both the 2 and 3 inch rear lift systems include upper control arm relocation brackets to avoid unwanted pinion movement under load. Make your Ram stand out with a brand new, quality, yet affordable 4" suspension lift from Zone Offroad and be glad you did! Rear Shock Options - We offer this kit with several shock options: Nitro Series Shocks: Zone Nitro Series shock absorber offers stock-like control and performance with fully displaced valving for improved compression and extension travel. This vehicle specific valving is pressurized with 50 psi nitrogen gas; this gas charge ensures split second response and reduced aeration. Combine these features with the special Fluon-banded piston and this shock is built to perform! Fox Adventure Series Shocks: Built specifically to compliment your Zone lift kit, FOX's proven damping technology provides a comfortable on-road ride and predictable off-road handling in a variety of conditions. Their monotube design uses an internal floating piston (IFP) to separate the shock oil from the high-pressure, nitrogen-charged gas chamber, preventing oil aeration for fade-free performance in rough terrain. Important Notes Does NOT work with all wheel drive (AWD) models. Will NOT fit adjustable air suspension (air-ride) equipped models. Does not fit eco-diesel models. Front drive shaft WILL fail prematurely. Stock 17" wheels CAN NOT be re-installed. Stock 20" can be re-installed with factory tire.

Select Rear Lift

Select Rear Shocks

Choose add-ons

Add Zone Offroad Heavy Duty Upper Control Arm Kit 14-23 Ram 3.0L EcoDiesel 1500 +$509.95

Enter your zip and we'll see if installation is available.

Request quotes from local installers at checkout
Compare options and choose the best fit for your install

Free Customer Loyalty Program

No Salesmen, Just Enthusiasts

Bring your Ram to new heights with this complete 4" lift kit from Zone Offroad! The main components of this Zone Offroad 4" Suspension Lift Kit System are front and rear crossmembers, strut spacers, and sway bar links that work together with the new extended steering knuckles and replacement tie rod ends. These components are designed to maintain proper handling characteristics and work with the factory traction control system. Unique to this system from the 2009-2011 models is an updated differential relocation system specifically designed for the newer front differential housing. A differential skid plate is included for added strength and protection for trips off the beaten path.

Since many of the vehicles tested by Zone Offroad had a significant tail high stance from the factory, this 4" lift kit system comes standard with 2" rear coil spacers to help level the vehicle. Zone Offroad also offers a 3" rear lift coils depending on your desired stance. It's best to measure your truck before ordering to determine how much rear lift is needed to give your truck the attitude you intend to. Both the 2 and 3 inch rear lift systems include upper control arm relocation brackets to avoid unwanted pinion movement under load.

Make your Ram stand out with a brand new, quality, yet affordable 4" suspension lift from Zone Offroad and be glad you did!

Rear Shock Options - We offer this kit with several shock options:

Nitro Series Shocks: Zone Nitro Series shock absorber offers stock-like control and performance with fully displaced valving for improved compression and extension travel. This vehicle specific valving is pressurized with 50 psi nitrogen gas; this gas charge ensures split second response and reduced aeration. Combine these features with the special Fluon-banded piston and this shock is built to perform!
Fox Adventure Series Shocks: Built specifically to compliment your Zone lift kit, FOX's proven damping technology provides a comfortable on-road ride and predictable off-road handling in a variety of conditions. Their monotube design uses an internal floating piston (IFP) to separate the shock oil from the high-pressure, nitrogen-charged gas chamber, preventing oil aeration for fade-free performance in rough terrain.

Important Notes

Does NOT work with all wheel drive (AWD) models.
Will NOT fit adjustable air suspension (air-ride) equipped models.
Does not fit eco-diesel models. Front drive shaft WILL fail prematurely.
Stock 17" wheels CAN NOT be re-installed.
Stock 20" can be re-installed with factory tire.

Manuals and Guides

INSTALL INSTRUCTIONS

Vehicle Fitment

2013-2018 Ram 1500 4x4

WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov

Features And Benefits

Corrects suspension, steering, and drive-line geometry for great on-road handling and improved off-road performance.
Heavy-duty differential skid slate improves offroad protection.
High-strength, CNC machined, replacement steering knuckles improve strength while correcting steering angles.
Multiple rear lift heights available to achieve desired stance (see important notes). Top-mount strut spacers set ride height, maintain ride quality, and are easy to install.

Recommended Tires & Wheels

35 x 12.5 with 17 x 9 and 4.5 in. Backspace
35 x 12.5 with 18 x 9 and 5 in. Backspace
35 x 12.5 with 20 x 9 and 5 in. Backspace

About Zone Offroad Suspension

Zone Offroad Products was developed to bring you quality offroad products at the BEST VALUE in the industry.

Zone is an engineering & manufacturing division of Sport Truck USA, the same parent company that has brought you BDS and JKS, with over 20 years of experience serving offroad enthusiasts. And we will be the first to tell you that Zone's first intention when designing and building a suspension system is not to be the lowest price, thus cutting corners wherever possible, rather about building a complete system that will perform superbly, but at a price point nearly anyone can afford.

Zone offers numerous systems for nearly every application to perfectly suit the stance you're after whether it be a simple 2" leveling kit or a complete 8" suspension system. Browse through our selection of Zone Offroad, and as always, if you don't see what you're looking for or having trouble determining which kit is right for you, do not hesitate to give us a call and we would be happy to assist.
