What are the specifications of the Zone Offroad 8" Suspension System 09-13 Ram 2500 / 09-12 Ram 3500?

8" lift; 1/4" steel brackets; 37" tires; 50 psi nitrogen gas charge

Are there any important fitment notes for the Zone Offroad 8" Suspension System 09-13 Ram 2500 / 09-12 Ram 3500?

2-piece rear driveshaft requires carrier bearing drop kit D5505. Will NOT fit dually applications. Rear axle diameter will be 3.5" or 4" — measure before ordering. Minor trimming may be required with some tire/wheel combinations; a front bumper spacer kit (D5801) is available if needed. Lift springs are designed for diesel models only. Does NOT fit Ram 3500 with radius arms.

SKU #: ZON-D36 MPN #: D36N

Zone Offroad 8" Suspension System 09-13 Ram 2500 / 09-12 Ram 3500

Name: Zone Offroad 8" Suspension System 09-13 Ram 2500 / 09-12 Ram 3500
Brand: Zone Offroad Suspension
Price: 1345.55 USD
Availability: InStock

$1,345.55

Get 1345 points in loyalty rewards

Zone Offroad 8" Suspension System for 09-13 Ram 2500 and for 09-12 Ram 3500

Description Overview

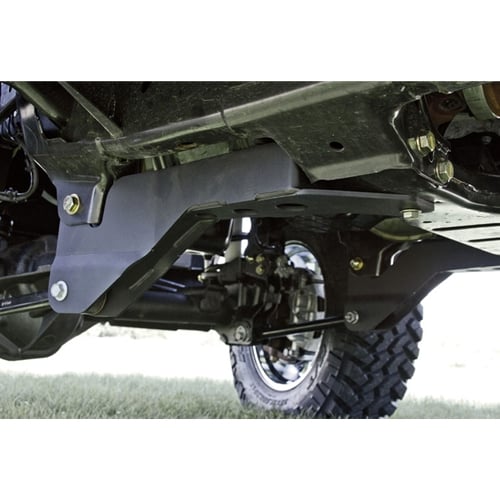

Bring your Ram to new heights with this massive 8" suspension system from Zone! This Zone Offroad 8" suspension system is performance packed and budget friendly for those looking to get 37" tires under their HD Dodge truck. The lift uses a unique control arm relocation design. Both the stock upper and lower arms are relocated to relieve angles, properly position the front axle and provide good caster and front pinion angle settings. The 1/4" steel constructed relocation brackets mount directly to stock locations and only require a few new holes to be drilled for extra support. No cutting of the frame or axle mounts is required. Stock alignment adjustability is retained. Stock control arm angles are maintained to provide a great ride, handling and control. In addition to the control arm brackets, all the necessary additional components are included. Full-length coil springs, dropped pitman arm, track bar relocation, sway bar relocation and bump stops are included. The rear kits feature new lift blocks and u-bolts. A rear carrier bearing drop kit is available also for trucks featuring a stock 2-piece rear driveshaft. Shocks: Nitro Series Shocks: Zone Nitro Series shock absorber offers stock-like control and performance with fully displaced valving for improved compression and extension travel. This vehicle specific valving is pressurized with 50 psi nitrogen gas; this gas charge ensures split second response and reduced aeration. Combine these features with the special Fluon-banded piston and this shock is built to perform!

Choose add-ons

Add Zone Offroad Carrier Bearing Drop Kit 03-13 Ram 2500 / 03-12 Ram 3500 +$29.95

Enter your zip and we'll see if installation is available.

Request quotes from local installers at checkout
Compare options and choose the best fit for your install

Free Customer Loyalty Program

No Salesmen, Just Enthusiasts

An 8" suspension lift system from Zone Offroad using a control arm relocation design, built to allow 37" tires while retaining stock alignment adjustability.

Fits: 2009-2013 Dodge Ram 6.7L Cummins 2500 4x4|2009-2012 Dodge Ram 6.7L Cummins 3500 4x4
Brand: Zone Offroad Suspension
Best for: Running 37-inch tires with a lifted stance
Key features: Relocates stock upper and lower control arms to relieve angles and set proper caster/pinion
1/4" steel relocation brackets mount to stock locations
No frame or axle mount cutting required
Retains stock alignment adjustability and control arm angles for ride quality

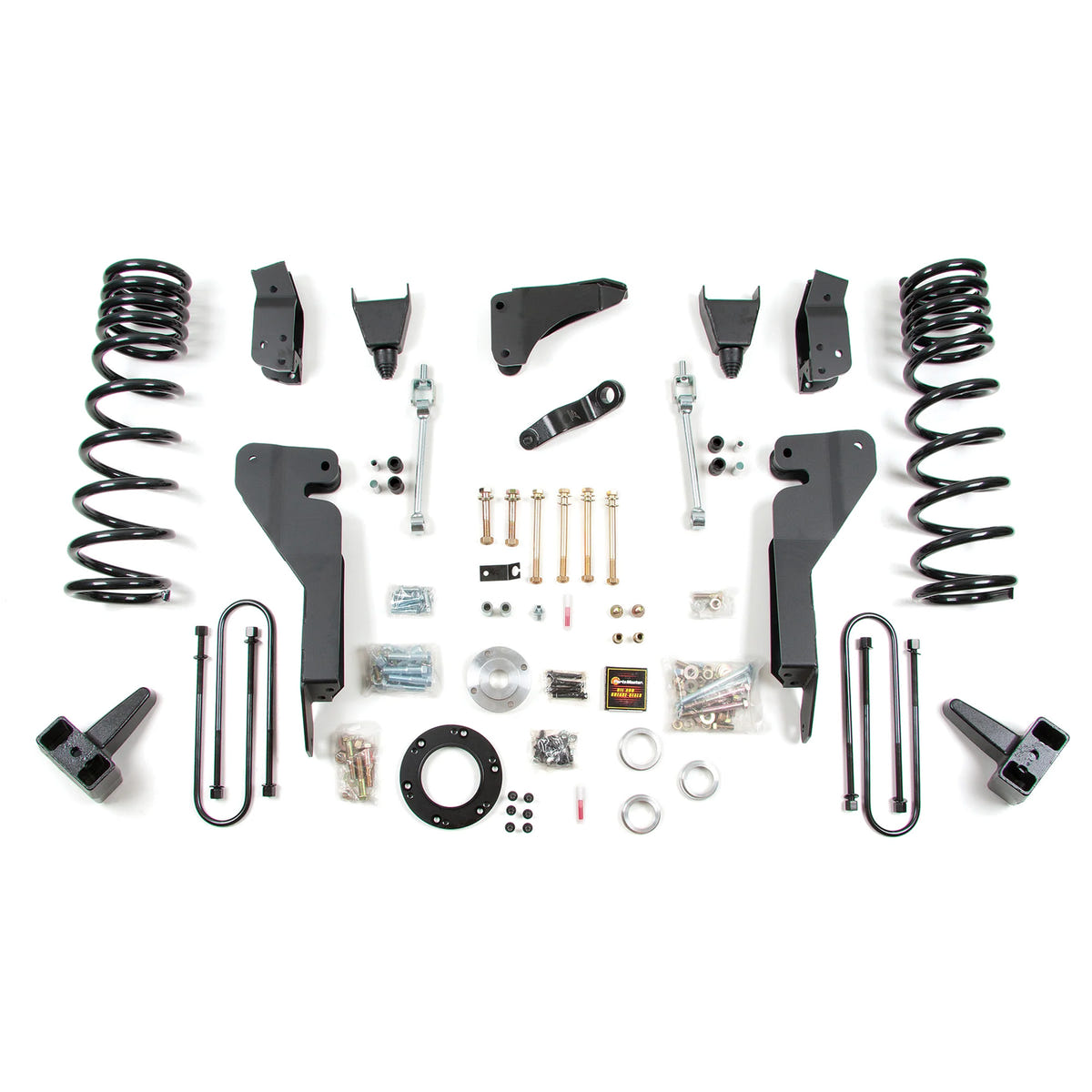

Includes full-length coil springs, dropped pitman arm, track bar and sway bar relocation, bump stops
Rear kit includes new lift blocks and u-bolts
Optional rear carrier bearing drop kit available for 2-piece driveshaft applications
Nitro Series shocks with pressurized nitrogen gas charge and Fluon-banded piston for improved travel and response
Key specs: 8" lift
1/4" steel brackets
37" tires
50 psi nitrogen gas charge
Important: 2-piece rear driveshaft requires carrier bearing drop kit D5505. Will NOT fit dually applications. Rear axle diameter will be 3.5" or 4" — measure before ordering. Minor trimming may be required with some tire/wheel combinations; a front bumper spacer kit (D5801) is available if needed. Lift springs are designed for diesel models only. Does NOT fit Ram 3500 with radius arms.

Summarized by AI from this product’s description and specs. Confirm fitment for your year, make and engine before ordering.

Bring your Ram to new heights with this massive 8" suspension system from Zone! This Zone Offroad 8" suspension system is performance packed and budget friendly for those looking to get 37" tires under their HD Dodge truck. The lift uses a unique control arm relocation design. Both the stock upper and lower arms are relocated to relieve angles, properly position the front axle and provide good caster and front pinion angle settings. The 1/4" steel constructed relocation brackets mount directly to stock locations and only require a few new holes to be drilled for extra support. No cutting of the frame or axle mounts is required. Stock alignment adjustability is retained. Stock control arm angles are maintained to provide a great ride, handling and control.

In addition to the control arm brackets, all the necessary additional components are included. Full-length coil springs, dropped pitman arm, track bar relocation, sway bar relocation and bump stops are included. The rear kits feature new lift blocks and u-bolts. A rear carrier bearing drop kit is available also for trucks featuring a stock 2-piece rear driveshaft.

Shocks:

Nitro Series Shocks: Zone Nitro Series shock absorber offers stock-like control and performance with fully displaced valving for improved compression and extension travel. This vehicle specific valving is pressurized with 50 psi nitrogen gas; this gas charge ensures split second response and reduced aeration. Combine these features with the special Fluon-banded piston and this shock is built to perform!

Manuals and Guides

INSTALL INSTRUCTIONS

Vehicle Fitment

2009-2013 Dodge Ram 6.7L Cummins 2500 4x4|2009-2012 Dodge Ram 6.7L Cummins 3500 4x4

WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov

Featured Technology Benefits

Unique upper and lower control arm relocation bracket design.
Heavy 1/4" steel construction.
No cutting of the frame required.
High performance at a low price.

Important Notes

2-piece rear driveshaft requires carrier bearing drop kit D5505.
Will not fit dually applications
Rear axle diameter will be 3.5" or 4", measure before ordering
Minor trimming may be required with some tire/wheel combinations. A front bumper spacer kit (D5801) is available to gain clearance if necessary
Depending on the factory transmission mount, in rare cases some 8" kits may not require the transfer case indexing kit. See installation instructions for details.
Lift springs are designed for diesel models only
Does NOT fit 2013 Ram 3500 with radius arms
