SKU #: SYN-8531-02 MPN #: 8531-02

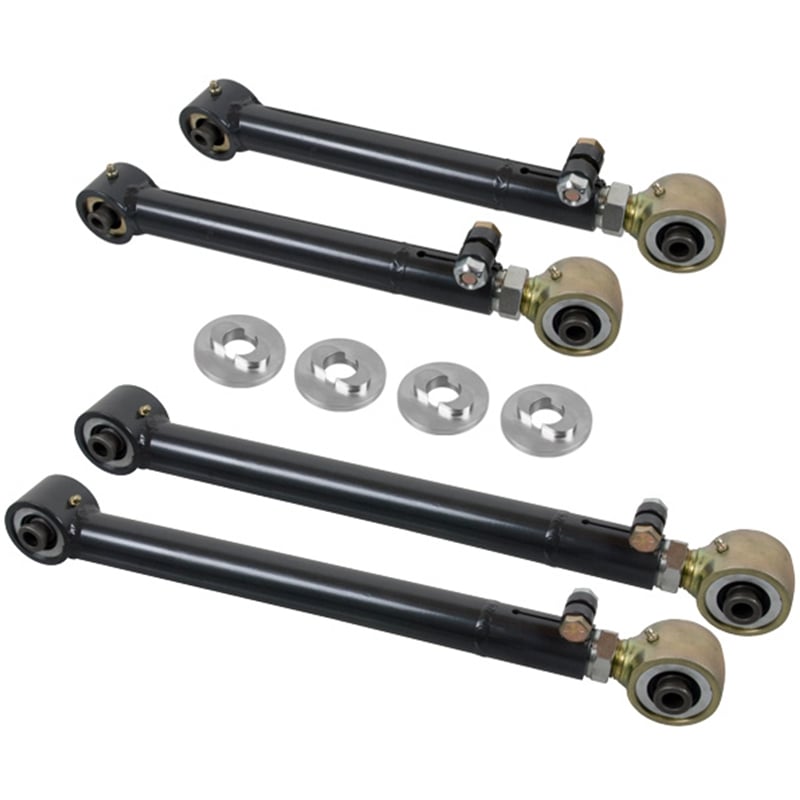

Synergy Upper & Lower Control Arm Kit 00-13 Ram 2500 / 00-12 Ram 3500 4wd

$1,110.00

Get 1110 points in loyalty rewards

Synergy Upper & Lower Control Arm Kit 00 13 Ram 2500 / 00 12 Ram 3500 4wd

Description

Upgrading the control arms on your Ram has never been easier than with this complete kit from Synergy Manufacturing. Complete with adjustable upper arms, heavy duty adjustable lowers, and even cam bolt eliminators, you will have all of the necessary hardware to add considerable strength to your front end, as well as properly centering the axle after the front end has been leveled out. On most heavy duty Rams, you can typically lift the front of the truck up to three inches through spacers or extended coils without the absolute need for replacing other components to adjust for the new added height. However, when taking this route, there are several pitfalls, one being front axle placement and movement. Due to triangulation, as you lift the front end, the front axle moves towards the back of the vehicle. This not only causes tire clearance issues, but also limits the range of motion of the factory control arms which hinders the overall ride capabilities. In order to rectify this, you add longer aftermarket control arms, and we have found the Synergy Manufacturing arms to be of exceptional quality. The kit includes a pair of Synergy's Adjustable Upper and Lower Control Arms that allow for length adjustment to deliver perfect caster alignment by threading the included Currie Enterprises Johnny Joints in or out. And finally, because you are able to align the caster with the upper arms, you can eliminate the troublesome factory cam adjusters, so we include a pair of Synergy's Stepped Cam Bolt Eliminators.

Select Year | Lower Option

Enter your zip and we'll see if installation is available.

Request quotes from local installers at checkout
Compare options and choose the best fit for your install

Free Customer Loyalty Program

No Salesmen, Just Enthusiasts

Upgrading the control arms on your Ram has never been easier than with this complete kit from Synergy Manufacturing. Complete with adjustable upper arms, heavy duty adjustable lowers, and even cam bolt eliminators, you will have all of the necessary hardware to add considerable strength to your front end, as well as properly centering the axle after the front end has been leveled out.

On most heavy duty Rams, you can typically lift the front of the truck up to three inches through spacers or extended coils without the absolute need for replacing other components to adjust for the new added height. However, when taking this route, there are several pitfalls, one being front axle placement and movement. Due to triangulation, as you lift the front end, the front axle moves towards the back of the vehicle. This not only causes tire clearance issues, but also limits the range of motion of the factory control arms which hinders the overall ride capabilities.

In order to rectify this, you add longer aftermarket control arms, and we have found the Synergy Manufacturing arms to be of exceptional quality. The kit includes a pair of Synergy's Adjustable Upper and Lower Control Arms that allow for length adjustment to deliver perfect caster alignment by threading the included Currie Enterprises Johnny Joints in or out.

And finally, because you are able to align the caster with the upper arms, you can eliminate the troublesome factory cam adjusters, so we include a pair of Synergy's Stepped Cam Bolt Eliminators.

Vehicle Fitment

2000-2012 Ram 3500 4x4
2000-2013 Ram 2500 4x4

WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov

Adjustable Upper Control Arms:

Suspension components feature an abrasive resistant powder coat finish for maximum durability and corrosion resistance
Made from high quality crush resistant 1 1/2" X .156" Wall 1026 DOM tubing
Incorporates the tried and true Currie Enterprises Johnny Joints for paramount performance

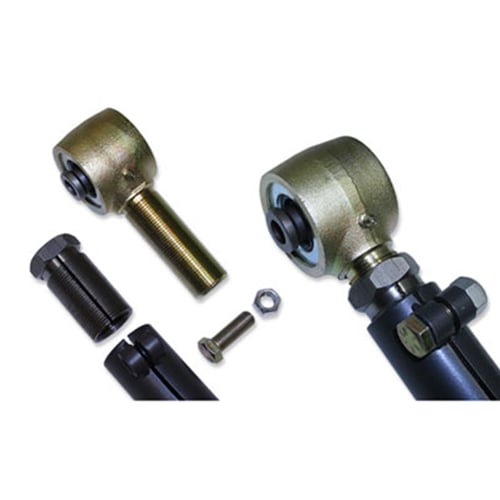

Synergy Suspension Double Adjuster Sleeve Pinch Bolt Assembly: allows for adjustment of control arm length without removing control arm mounting bolt
100% bolt on components assures an easy, trouble free installation with the use of basic hand tools

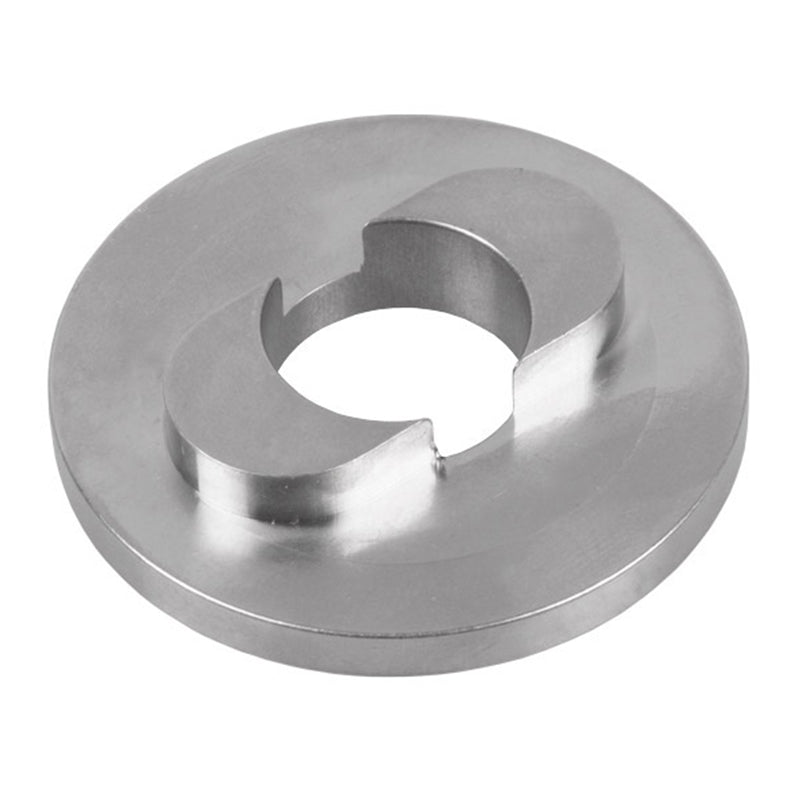

Stepped Cam Bolt Eliminators

Made from 303 Stainless Steel
Provides smooth mounting surface for bushing face
Eliminates factory alignment cam washers
Retains factory control arm bolt
Allows for even torque to be applied on bushing surface

Adjustable Lower Control Arms:

Suspension components feature an abrasive resistant powder coat finish for maximum durability and corrosion resistance
Made from high quality crush resistant 1.75" x .188" Wall 1026 DOM tubing
Incorporates the tried and true Currie Enterprises Johnny Joints‚Â® for paramount performance
Synergy Double Adjuster Sleeve Pinch Bolt Assembly: allows for adjustment of control arm length without removing control arm mounting bolt
100% bolt on components assures an easy, trouble free installation with the use of basic hand tools

About Synergy Manufacturing

SYNERGY SUSPENSION & MORE

Synergy Manufacturing is an automotive aftermarket steering, suspension, and chassis manufacturer based out of San Luis Obispo, California with nearly twenty years of industry experience. Synergy components are predominantly made in the USA and built to withstand offroad abuse, but built in such a way that they complement a daily driver that merely wants bulletproof components under their vehicle, allowing you to truly have your cake and eat it too in terms of strength and comfort. In addition to suspension systems, Synergy also manufactures a complete line of heavy duty steering components, axle upgrades, and other related products that dramatically improve your vehicles on and offroad capability, performance, and appearance.

SYNERGY OFFROAD PARTS

Synergy got their beginnings in producing heavy duty off-road parts predominantly for Jeep Wrangler JK's (and continue to do so), but has since substantially grown their portfolio in both the vehicle applications they support, as well as the types of products being produced. From complete lift kits for your Ford SuperDuty to replacement 3 progressive rate coil springs, track bars, and control arms for your Ram, they've got you covered. You can even build your lift kit one piece at a time, or replace another companys failing, inferior suspension parts to upgrade yours to Synergy! Some of our most popular Synergy Offroad Parts are adjustable track bars, 3" coil springs, steering box braces, and adjustable sway bar end links.

SHOP HERE FOR ALL YOUR SYNERGY MFG PARTS!

Overall, if you are looking for high quality components that will exceed your expectations in terms of performance and durability, you wont be disappointed by choosing Synergy Manufacturing. And to back it up, most Synergy parts come with a Limited-Lifetime Warranty
