SKU #: BDS-189H MPN #: 189H

BDS Suspension 7" High Clearance Lift Kit 01-10 GM 2500HD / 3500

$2,175.60

Get 2175 points in loyalty rewards

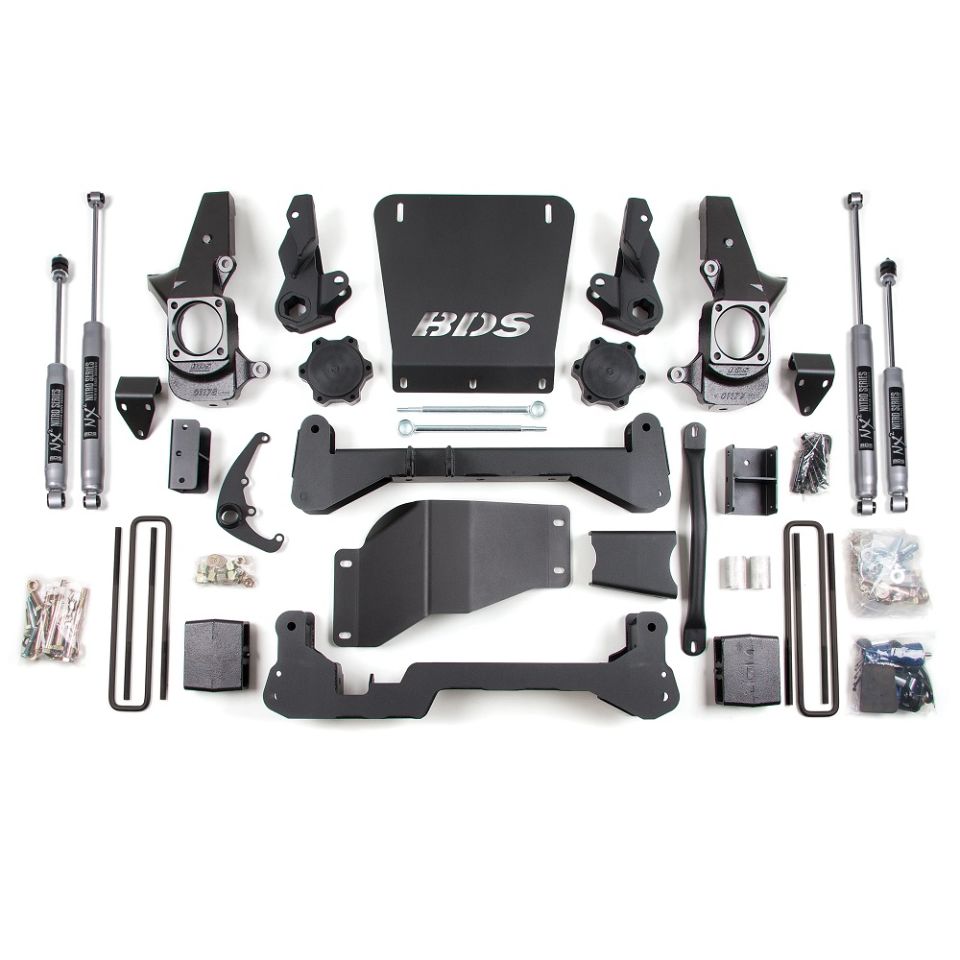

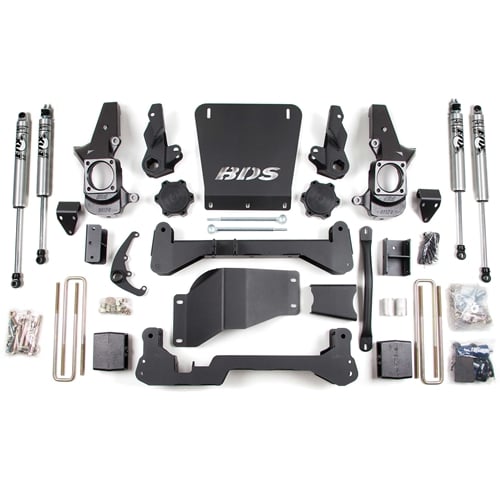

BDS Suspension 7" High Clearance Lift Kit for 01-10 GM 2500HD and 3500

Description

Get maximum lift on your GM truck with this full 7" lift kit by BDS. More lift means more options for tires, improved ground clearance, strength, and off-road protection. This kit includes all you need to get your truck set up right with clearance up to 35" tires. This unique High Clearance suspension lift kit utilizes high arched crossmembers that blend perfectly with the angle of the factory installed lower control arms for a completely integrated look while lifting your vehicle a full seven inches, dramatically increasing ground clearance at the front crossmembers and improving operating geometry. Torsion bars are mounted directly to the top of the lower A-arm, eliminating the need to drop the torsion bar crossmember. A front skid plate and differential skid plate come standard, to lock everything together, creating a nearly indestructible sub frame for extreme off road protection. The rear is lifted with a flat 5" block for easy installation. Upgrade to Glide-Ride Leaf Springs for reduced axle wrap and more control while towing. This highly customizable kit gives you the choices you need to build your rig your way. Standard or narrow track knuckles, gas shocks, and recoil traction bar kit are just a few of the options and upgrades available for this 7" Chevy/GMC suspension lift kit. Track Width Option This BDS Kit has two different knuckle designs available: standard knuckle and narrow track. The standard knuckle does not affect the turning radius while widening the track width meanwhile the narrow track will increase the turning radius. Rear Lift Option Choose between a 5" Block Kit or Leaf Springs for your rear lift. Leaf Springs will maintain factory payload weight ratings and keep a more stable feel. Shock Option Choose between NX2 Nitro Series Shocks or the FOX 2.0 Performance Series for your kit. The NX2 Nitro Series comes with 10-stage velocity-sensitive valving and a tough twin-tube design. FOX 2.0 Performance Series shocks are race-developed to perform under high performance situations. Narrow Track with Leaf Springs does not have a NX2 Nitro Option. Recoil Traction Bar Option Add on a Recoil Traction Bar Kit to improve stability of your ride. If you are going with leaf springs it's important to reduce axle wrap in high-torque situations. Using traction bars gives you constant traction throughout and a smoother overall ride.

Track Width Option

This BDS Kit has two different knuckle designs available: standard knuckle and narrow track. The standard knuckle does not affect the turning radius while widening the track width meanwhile the narrow track will increase the turning radius.

Rear Lift Option

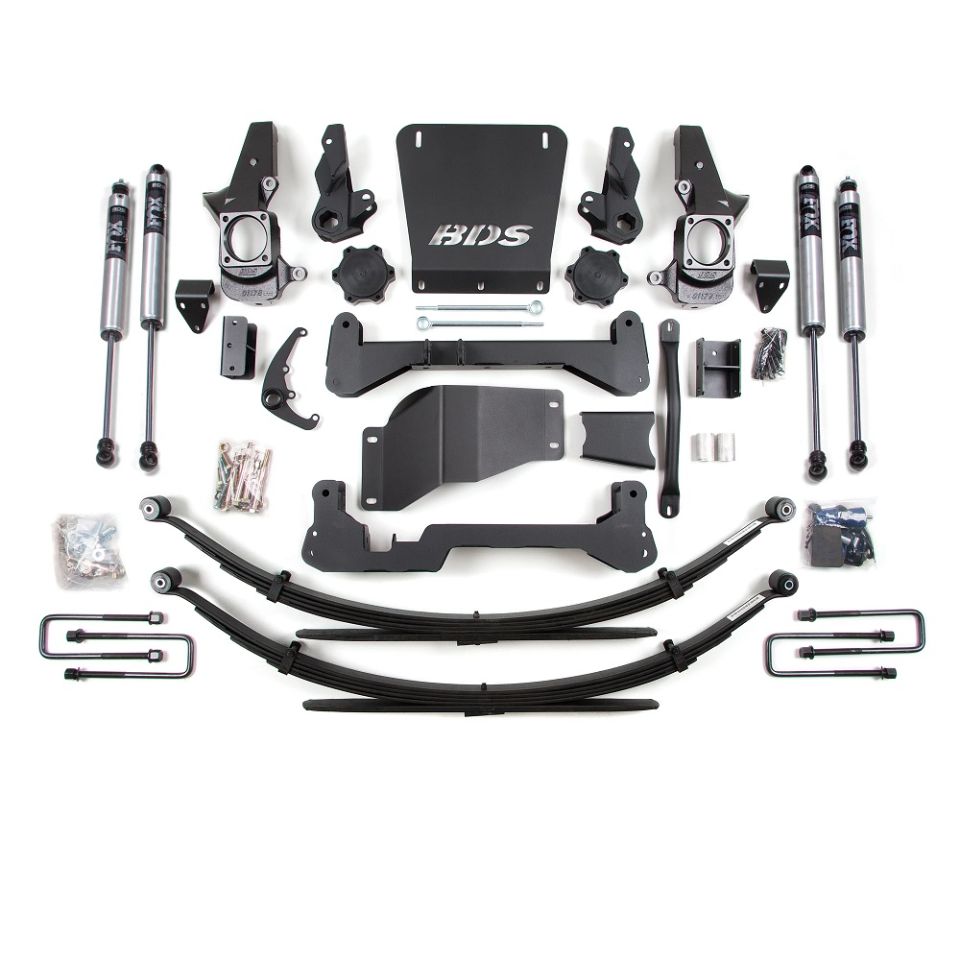

Choose between a 5" Block Kit or Leaf Springs for your rear lift. Leaf Springs will maintain factory payload weight ratings and keep a more stable feel.

Shock Option

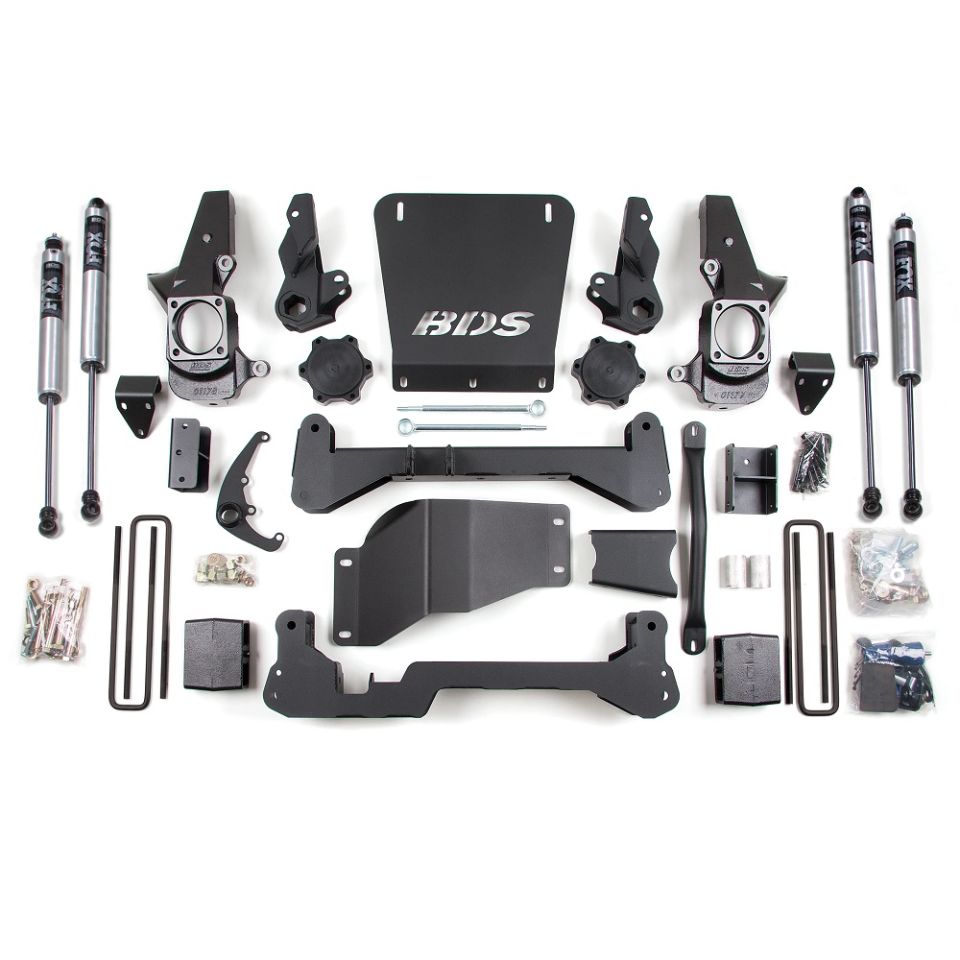

Choose between NX2 Nitro Series Shocks or the FOX 2.0 Performance Series for your kit. The NX2 Nitro Series comes with 10-stage velocity-sensitive valving and a tough twin-tube design. FOX 2.0 Performance Series shocks are race-developed to perform under high performance situations. Narrow Track with Leaf Springs does not have a NX2 Nitro Option.

Recoil Traction Bar Option

Add on a Recoil Traction Bar Kit to improve stability of your ride. If you are going with leaf springs it's important to reduce axle wrap in high-torque situations. Using traction bars gives you constant traction throughout and a smoother overall ride.

Manuals and Guides

INSTALL INSTRUCTIONS

Vehicle Fitment

2001-2010 GM 2500HD / 3500 4x4

WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov

Tire Wheel Combinations:

2001-2007 Classic Body Style

35" x 12.50" w/16 x 8 and 4.25" back spacing
35" x 12.50" w/17 or 18 x 9 and 5.5" back spacing
37" x 12.50" w/20 x 9 and 5.75" back spacing

2007-2010 New Body Style

35" x 12.50" w/16 x 8 and 4.5" back spacing
35" x 12.50" w/17 or 18 x 9 and 5.5" back spacing
35" x 12.50" w/20 x 9 and 5.75" back spacing

FEATURES & BENEFITS:

High Clearance design w/ no torsion bar drop maximizes ground clearance
Robust steering knuckles maintain ESC system compliance
HD skid plate system improved offroad protection
Multipoint differential relocation brackets to secure the front axle and improve CV angles
Factory Protection Plus drivetrain warranty included
Choice of NX2 or FOX 2.0 gas shocks for improved performance
