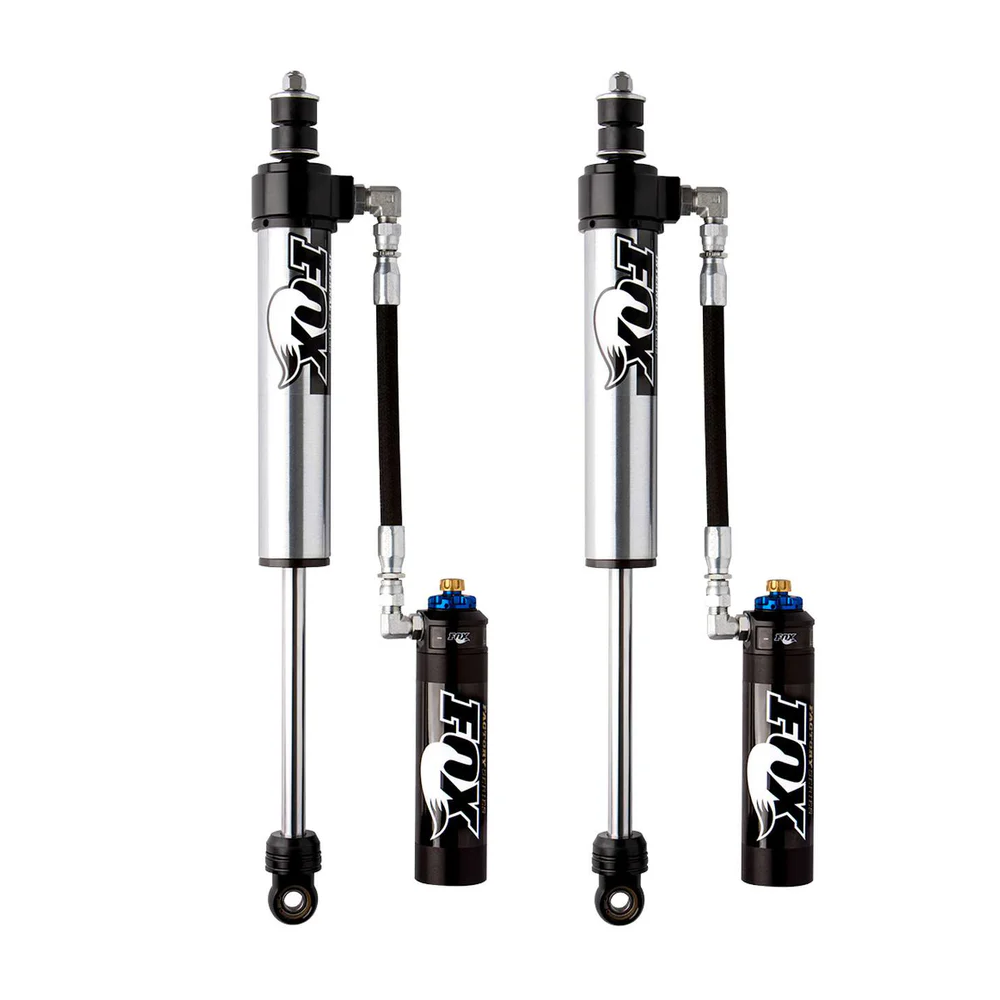

FOX 2.5 Factory Race Series Remote Reservoir Front Shock 05-16 Ford SuperDuty
Description
2.5 Factory Series Reservoir smooth body shocks give you enhanced ride quality and the control you need when heading off the pavement. They take their design from the Fox Offroad race shocks, so they've been thoroughly perfected in brutal conditions that you will probably never see. These athletes push the boundaries in competition to develop race-proven performance you can bolt onto your Truck. External reservoir allows for increased oil and nitrogen capacity, while delivering a striking race look. Experience for yourself the incredible performance and precise control that 2.5 Factory Series Reservoir shocks deliver.
BODY - 2.5" Smooth bore and honed seamless alloy body
BODY PLATING - Zinc-plated and clear coated for long lasting finish
COMPONENTS - Black anodized CNC machined 6061-T6 billet aluminum
SHAFT - 7/8" 17-4 H900 stainless steel hard-chrome plated
PISTON - 6061-T6 hard anodized, high flow aluminum piston
VALVING - Application specific valving to maximize offroad performance
SEALS - Redundant sealing pack system main seal, wiper seal, scraper seal
OIL - JM92 Advanced Suspension Fluid for improved performance at variable temperatures
RESERVOIR - External reservoir design separates shock oil from the high-pressure nitrogen
BEARING - PTFE-lined, heat-treated, alloy steel spherical
MOUNTING - Direct replacement
DSC Adjuster
The Dual Speed Compression (DSC) adjuster provides added control and comfort tuning for on-road use while also offering more aggressive damping for use off-road. The adjuster allows for precise suspension tuning with the simple twist of two clearly defined knobs: No tools and no mess, just a way to easily fine-tune your suspension to best suit your needs in any conditions. The DSC increases both low and high-speed compression levels up to 25%, allowing you to maximize small bump compliance and traction while still having the extra damping required for big hits.
About FOX Shocks
FOX is a legend when it comes to shock technology. They do it right, and they've been doing it right for thirty plus years. Starting out in 1974, Bob Fox began the first prototypes of what would later be dubbed FOX AirShox on a Maico dirt bike being built in a friend's garage. From their roots in motorcycles, FOX has grown their expertise into nearly anything automotive and powersports, from snowmobiles, motorcycles, ATV's, off-road cars and trucks, and even bicycles. If it has wheels and can play offroad, FOX has an application.
FOX is continually raising the bar in each of their sectors with a fleet of sponsored riders and racers that allow their shocks to be pushed to the limits, and then determining ways to make the product even better for each application. Fox team members have stood atop the podiums in every sport they have competed in. What this means to you is that you get a race-proven component that can withstand extreme abuse, even if you're using it for novice level activities.
FOX SHOCKS FOR TRUCKSDoes Fox make shocks for trucks? You bet they do! While Fox does not make complete suspension systems, they do manufacture a fleet of varying shock options for both stock height trucks, as well as lifted. Youll even find Fox Shocks coming as included standard equipment in numerous lift kits. Beyond varying lift heights, Fox has a few different options when it comes to selecting the right shocks for your truck.
FOX SHOCKS 2.0In terms of the various levels of shocks that Fox builds, things start out with their Performance Series. The Performance Series are a range of 2.0 diameter shocks available in IFP (Internal Floating Piston) monotube, remote reservoir, and coil over depending on the application. These are our most popular option because of their wide range of fitments, quality, and price. Beyond the Performance Series, youll find the Performance Elite Series that feature 2.5 diameter shock bodies and larger shafts to deliver a higher level of confidence and performance in more off-road situations. Finally, Fox rounds things off in their Factory Race Series with 2.5 and 3.0 bodies and a ton of cool features to help you go VERY fast off road.
FOX SHOCKS FOR F-250The Ford F-250 SuperDuty is one of the most popular vehicles to upgrade with a set of Fox Shocks and/or steering stabilizer. For the most part Ford did a good job of carrying over the fitment of their shocks over numerous model years. For instance, the 1999-2016 all have the same rear shock and 2005-2016 the same front. Thats a HUGE range! Or you can step up your steering stabilizer to one of the Fox 2.0 Performance Series or really go big with a Fox Factory Series ATS that features a passthrough body for the shaft, meaning you get equal pressure in both directions!
RAM 2500 FOX SHOCKSAnother very popular vehicle upgraded with Fox Shocks is the Ram 2500. For the 1994-2013 Ram 2500s, they were also all the same fitment both front and rear shocks, carrying through the 2nd Gen, 3rd Gen, and even 4th Gen series Rams.
FOX RACING SHOCKSRacing or not, Fox has a series of Race series shocks intended for those of us really pushing our suspension to the limits or merely demand the very best suspension performance. Complementing a proper suspension system with the right shocks can and will make all of the difference in the ride quality and overall suspension performance.
