SKU #: ICON-K213005 MPN #: K213005

ICON K213005 Stage 5 Suspension System 09-18 Ram 1500 4WD

Name: ICON K213005 Stage 5 Suspension System 09-18 Ram 1500 4WD
Brand: ICON Vehicle Dynamics
SKU: ICON-K213005
Price: 4064.8 USD
Availability: InStock

$4,064.80

Get 4064 points in loyalty rewards

☆☆☆☆☆ (0)

ICON K213005 Stage 5 Suspension System 09-18 Ram 1500 4WD

Description

The ICON Stage 5 Suspension System is ICON's premier kit for your Dodge Ram 1500 4WD. Comprised of the same components as the Stage 4 Kit, but with the addition of ICON's CDCV (Compression Damping Control Valve) to the rear piggybacks. The Tubular Delta Joint Upper Control Arm Kit allow for proper alignment and gobs of wheel travel, perfectly married to the capable wheel travel of the coilovers. The coil-overs are adjustable from 0" - 3" of lift to level out the truck. Also included are a set of ICON rear coil springs that will lift the rear 1.5", as well as further increase wheel travel. The dual rate spring is slightly softer than stock in the first rate and 75% stiffer in the second rate for more stability with payload or towing. Lastly, the kit includes a set of ICON rear 2.5" piggy-back shocks. These shocks are tuned and valved specifically for the best on and off road performance. They are constructed of the same high quality components used in all of ICON Vehicle Dynamics coil-over shocks. The PiggyBack Reservoir gives the shock added heat dissipation and its locations gives the shock an internal bump zone. This bump zone gives added control and stability when the suspension is pushed to full compression. Recommended tire 305X70R17, Wheel 17" with 4.75" backspacing. ICON's exclusive CDCV (Compression Damping Control Valve) gives the end user control over the shock's compression damping via a simple turn dial knob. ICON DELTA JOINT UPPER CONTROL ARM - These upper control arms feature ICON's patent pending Delta Joint. The Delta Joint is a heavy duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greasable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.

Free Customer Loyalty Program

No Salesmen, Just Enthusiasts

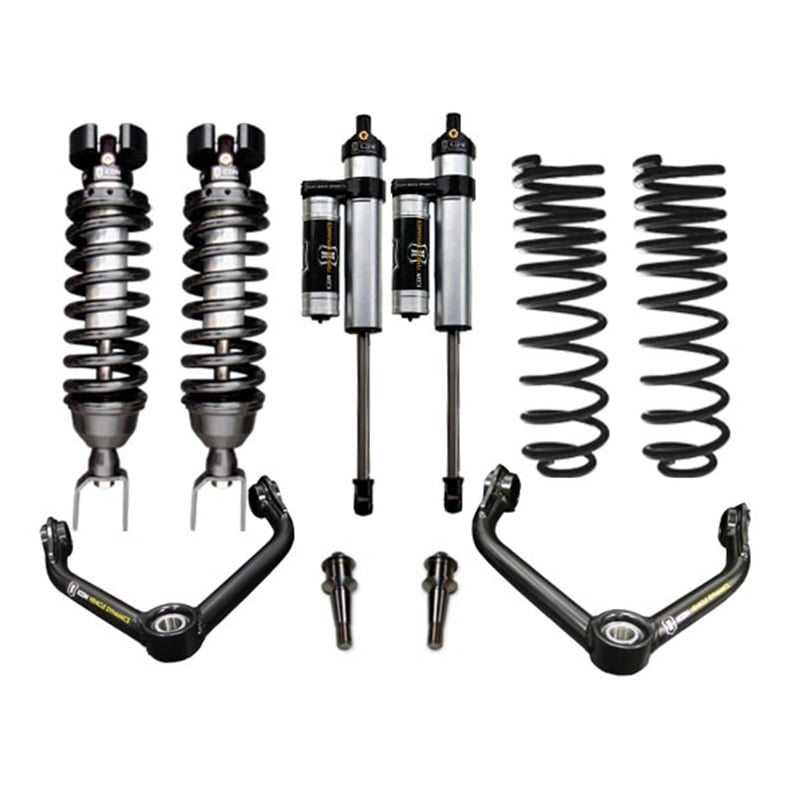

The ICON Stage 5 Suspension System is ICON's premier kit for your Dodge Ram 1500 4WD. Comprised of the same components as the Stage 4 Kit, but with the addition of ICON's CDCV (Compression Damping Control Valve) to the rear piggybacks. The Tubular Delta Joint Upper Control Arm Kit allow for proper alignment and gobs of wheel travel, perfectly married to the capable wheel travel of the coilovers. The coil-overs are adjustable from 0" - 3" of lift to level out the truck. Also included are a set of ICON rear coil springs that will lift the rear 1.5", as well as further increase wheel travel.

The dual rate spring is slightly softer than stock in the first rate and 75% stiffer in the second rate for more stability with payload or towing. Lastly, the kit includes a set of ICON rear 2.5" piggy-back shocks. These shocks are tuned and valved specifically for the best on and off road performance. They are constructed of the same high quality components used in all of ICON Vehicle Dynamics coil-over shocks. The PiggyBack Reservoir gives the shock added heat dissipation and its locations gives the shock an internal bump zone. This bump zone gives added control and stability when the suspension is pushed to full compression. Recommended tire 305X70R17, Wheel 17" with 4.75" backspacing. ICON's exclusive CDCV (Compression Damping Control Valve) gives the end user control over the shock's compression damping via a simple turn dial knob.

ICON DELTA JOINT UPPER CONTROL ARM - These upper control arms feature ICON's patent pending Delta Joint. The Delta Joint is a heavy duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greasable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.

Manuals and Guides

Vehicle Fitment

2009-2018 Dodge Ram 1500 4x4

WHEEL & TIRE FITMENT INFO:

OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Wheels: 8.5" Wide Wheel with 5" Backspace
Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required)

FEATURE & BENEFITS

Increased wheel travel and ride quality over stock with no change in towing capacity
Vehicle specific tuned front and rear shocks for superior shock damping and control
ICON CDC Valve allows quick and easy end-user adjustability
Adjustable coilovers from .75-2.5" of lift height
6061 Aircraft grade aluminum CNC machined components
Corrosion resistant CAD plated coilover shock body with 7/8" shaft
FK rod end bearings for extended longevity and minimal deflection
100% Bolt-on system - no drilling, cutting, or welding necessary for install

About ICON Vehicle Dynamics

ICON Vehicle Dynamics is a premiere performance suspension manufacturer specializing in aftermarket suspension components for trucks, SUVs and off road suspension development. The companys business is customer-driven, technology-influenced, engineering-oriented and focuses on world-class manufacturing processes and techniques. Led by head engineer and SCORE champion driver Dylan Evans, ICON Vehicle Dynamics has the unique qualities to design and build the highest quality suspension components and test them in both real world applications as well as race conditions.

ICON is often asked how they develop such revolutionary performance suspension systems. The answer might surprise you. Their engineers actually start by determining a desired outcome of the vehicle they are working on. By studying forces and their effect on the vehicle in motion (Vehicle Dynamics) they are able to determine what improvements can be made. They determine how they can improve drivability of the vehicle, how to improve the handling characteristics and what changes can be made to improve the vehicle in real world situations. The end result of all this study is the highest quality and performing suspension products in the world. What also sets ICON products apart is our incredible commitment of time and energy dedicated to both ride development and testing. From vehicle dynamic theory to our years of experience and involvement in off road racing, rock crawling and just about anything you can do with a vehicle on or off the road. ICON engineers are in control and the driving force of the entire product line and manufacturing processes. This is made possible because all of their laser cutting, metal forming, CNC machining, welding and assembly is done in house.
