SKU #: ATS-3099233224 MPN #: 309-923-3224

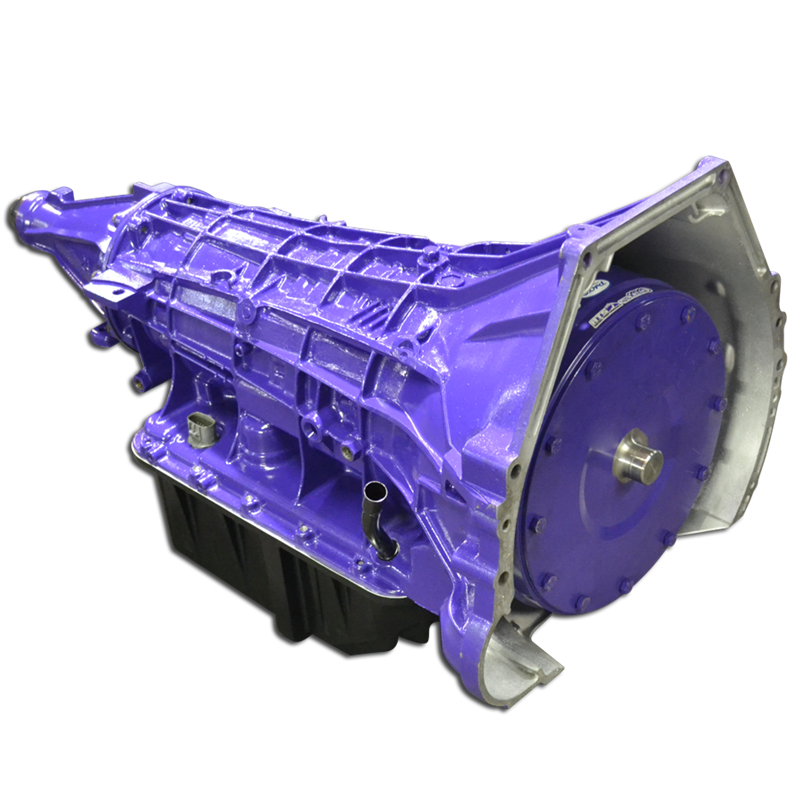

ATS Stage 2 Transmission Package 99-03 7.3L Ford Powerstroke

$5,669.99

Get 5669 points in loyalty rewards

ATS Stage 2 Transmission Package for 99-03 7.3L Ford Powerstroke

Description

The factory Ford 4R100 suffers from weak points in the converter, clutch pack assemblies, valve body and line pressure limitations. These weaknesses arise when the motor's power is increased or in towing applications. ATS addressed these concerns by re-designing the torque converter, transmission pump, valve body and clutch packs. The result is a solid transmission setup to meet the demands of your Ford Super Duty. Ensure that the power of your Powerstroke is getting to the ground with an ATS Transmission Package. By increasing the line pressure, clutch pack surface area and modifying the valve body, the 4R100 becomes a consistent, responsive and dependable transmission. The Stage 2 adds a billet 300M input shaft. As power increases over 400hp, or considerable weight will be towed, the input shaft takes the brunt of it. The ATS input shaft is designed to withstand extreme torque, converter lock-up sooner than stock, and competition and towing use. The ATS Stage 2 4R100 is designed for trucks that see daily driving and towing duties, aggressive tuning, and a modified turbo and/or injectors. SHIPPING POLICY - Due to the size and weight of transmissions, they cannot be shipped through traditional couriers, such as UPS, FedEx, USPS, etc. and MUST be shipped via truck freight. We do not offer free shipping on transmissions, however, we do offer a very competitive rate charged at checkout checkout. Once your core transmission is ready for pick up, you just need to give us a call or send us an e-mail with your original order number and the core tag on the transmission, and we can supply you with a quote on the return shipping as that is not covered in the original shipping cost. Otherwise, we give you the option to coordinate the return shipping on your own and independently pay your courier of choice. As always, if you have any questions, give us a call or send us an e-mail. ATS 4R100 Transmission Package Stage Build Comparison Stage 1 Stage 2 Stage 3 Stage 4 Stage 5 Stage 6 Horsepower Rating 400 500 600 700 800 1000 ATS 4R100 Transmission ✅ ✅ ✅ ✅ ✅ ✅ 5-Star Torque Converter ✅ ✅ ✅ ✅ ✅ ✅ Deep Pan Trans Pan ✅ ✅ ✅ ✅ ✅ ✅ Billet Input Shaft ✅ ✅ ✅ ✅ ✅ Co-Pilot® Controller ✅ ✅ ✅ ✅ Billet Flex Plate ✅ ✅ ✅ Billet Intermediate Shaft ✅ ✅ Billet Output Shaft ✅

Options

CORE CHARGE

What is a core charge?

Defer core charge

I have read and I accept the terms and conditions. I understand that if I select "Defer Core Charge" I will be charged for the core if I do not return an acceptable core part within 21 days

Accept core charge +$1,600.00

Enter your zip and we'll see if installation is available.

Request quotes from local installers at checkout
Compare options and choose the best fit for your install

Free Customer Loyalty Program

No Salesmen, Just Enthusiasts

The factory Ford 4R100 suffers from weak points in the converter, clutch pack assemblies, valve body and line pressure limitations. These weaknesses arise when the motor's power is increased or in towing applications. ATS addressed these concerns by re-designing the torque converter, transmission pump, valve body and clutch packs. The result is a solid transmission setup to meet the demands of your Ford Super Duty. Ensure that the power of your Powerstroke is getting to the ground with an ATS Transmission Package.

By increasing the line pressure, clutch pack surface area and modifying the valve body, the 4R100 becomes a consistent, responsive and dependable transmission. The Stage 2 adds a billet 300M input shaft. As power increases over 400hp, or considerable weight will be towed, the input shaft takes the brunt of it. The ATS input shaft is designed to withstand extreme torque, converter lock-up sooner than stock, and competition and towing use. The ATS Stage 2 4R100 is designed for trucks that see daily driving and towing duties, aggressive tuning, and a modified turbo and/or injectors.

SHIPPING POLICY - Due to the size and weight of transmissions, they cannot be shipped through traditional couriers, such as UPS, FedEx, USPS, etc. and MUST be shipped via truck freight. We do not offer free shipping on transmissions, however, we do offer a very competitive rate charged at checkout checkout. Once your core transmission is ready for pick up, you just need to give us a call or send us an e-mail with your original order number and the core tag on the transmission, and we can supply you with a quote on the return shipping as that is not covered in the original shipping cost. Otherwise, we give you the option to coordinate the return shipping on your own and independently pay your courier of choice. As always, if you have any questions, give us a call or send us an e-mail.

ATS 4R100 Transmission Package Stage Build Comparison

	Stage 1	Stage 2	Stage 3	Stage 4	Stage 5	Stage 6
Horsepower Rating	400	500	600	700	800	1000
ATS 4R100 Transmission	✅	✅	✅	✅	✅	✅
5-Star Torque Converter	✅	✅	✅	✅	✅	✅
Deep Pan Trans Pan	✅	✅	✅	✅	✅	✅
Billet Input Shaft		✅	✅	✅	✅	✅
Co-Pilot® Controller			✅	✅	✅	✅
Billet Flex Plate				✅	✅	✅
Billet Intermediate Shaft					✅	✅
Billet Output Shaft						✅

Manuals and Guides

PRODUCT DOCUMENTS

Vehicle Fitment

1999-2003 7.3L Ford Powerstroke|4R100 Automatic Transmission

WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov

FEATURES & BENEFITS:

ATS Five Star Torque Converter featuring a billet cover, five lock-up clutches, billet stator and a furnace-brazed impeller
ATS Billet Input Shaft
Modified transmission pump for increased line pressure
High performance clutch packs with more clutches than stock
Re-designed accumulator pistons for a precise shift feel
ATS Deep Transmission Pan that adds 5 quarts of fluid, featuring a finned design, magnetic drain plug and is tapped for a temperature probe

KIT CONTENTS:

ATS Built 4R100 Automatic Transmission
ATS 5 Star Viskus Clutch Drive Torque Converter
ATS Extra Deep Transmission Pan
ATS Billet Input Shaft

About ATS Diesel Performance

ATS DIESEL PERFORMANCE

ATS Diesel Performance, based out of Arvada, Colorado, is a diesel performance manufacturing company that designs, engineers, and manufactures upgraded transmission components, valve bodies, patented heavy-duty torque converters, exhaust and intake manifolds, electronics, turbochargers, dual CP3 injection pumps, and more for Cummins, Powerstroke, and Duramax powered diesel trucks. Operating out of a humongous 110,000 square foot facility in the heart of the Rocky Mountains allows ATS to keep operations in-house, as opposed to overseas sourcing, and then grueling test their products at altitude and through grades and descents that would make other companies think twice. From full-time RV users who travel nonstop to high-horsepower competition-based vehicles, ATS has the answers.

ATS DIESEL TRANSMISSIONS

Clint Cannon and Ranee Elder founded Automotive Transmission Specialists in 1993. At that time, the company specialized in transmission repair for all types of vehicles. In 1997, the company "Performance Torque Converters" was founded, and they started doing torque converter rebuilds in-house. Bringing the capability of building torque converters in-house gave them more flexibility to service their racing customers. As the popularity of diesel trucks grew and more people became aware of the power upgrades available for their diesels, problems with diesel transmissions emerged.

Clint started research and development into a more robust torque converter to address the transmission issues. It was discovered that a clutch pack design was the answer to providing a robust torque converter. The development of the TripleLok Torque Converter and the company's focus on Diesel Performance products resulted in a rename of the company to ATS Diesel Performance.

By having their foot in the door before most, it allowed ATS Diesels transmission upgrades to grow with the demands of diesel trucks, putting them at the forefront of reliability. Fortunately for us, Clint didn't stop with transmissions and began to explore and refine upgraded turbochargers, intake and exhaust manifolds, and anything else to generate additional power with the ever-present mindset of maintaining powertrain reliability.

ATS Diesel products are proudly made in the USA.
