JC Customs Hidden Winch Mount 94-97 Ford F-250/F-350

Name: JC Customs Hidden Winch Mount 94-97 Ford F-250/F-350
Brand: JC Customs
Price: 880.0 USD
Availability: InStock

$880.00

Get 880 points in loyalty rewards

JC Customs Hidden Winch Mount 94-97 Ford F-250/F-350

Description

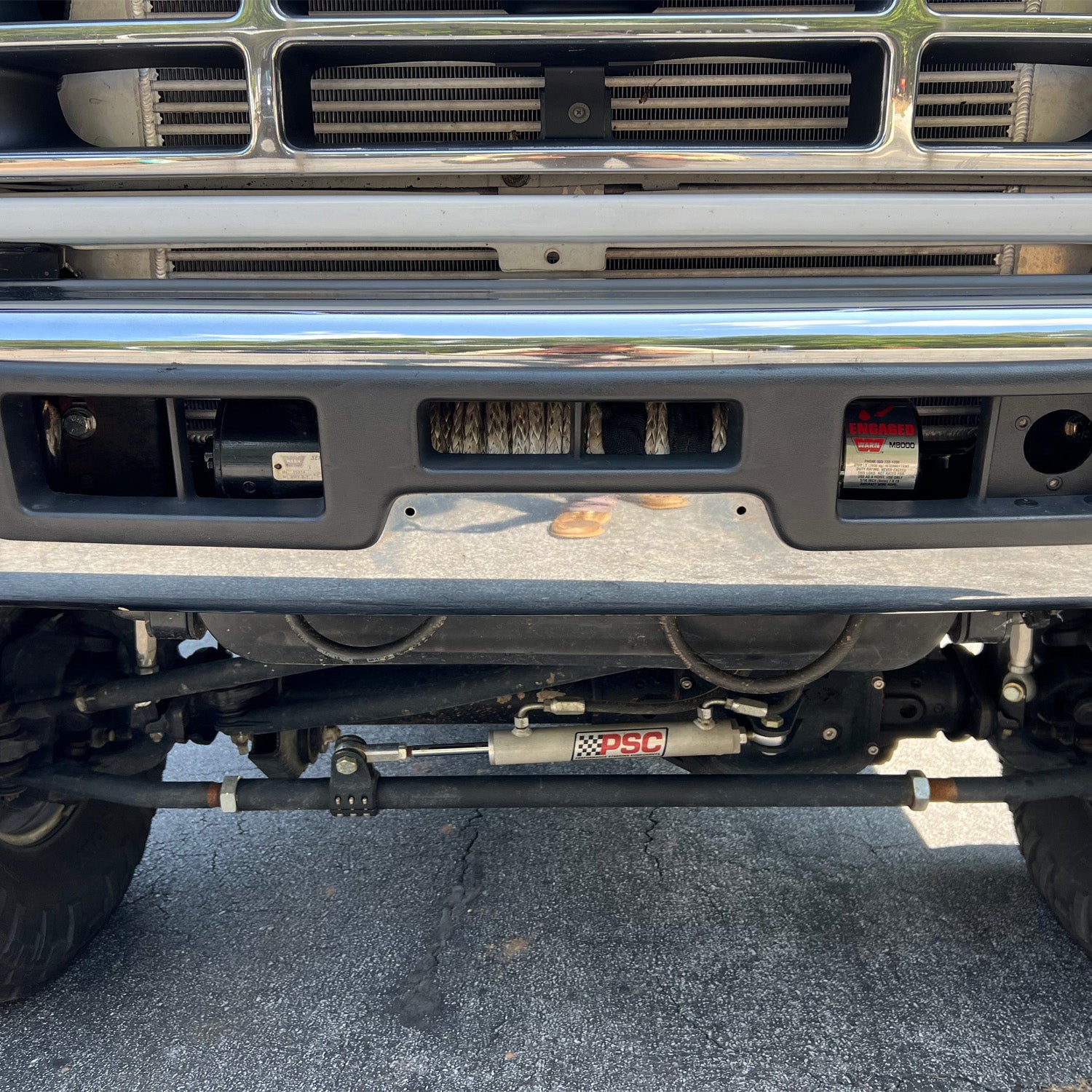

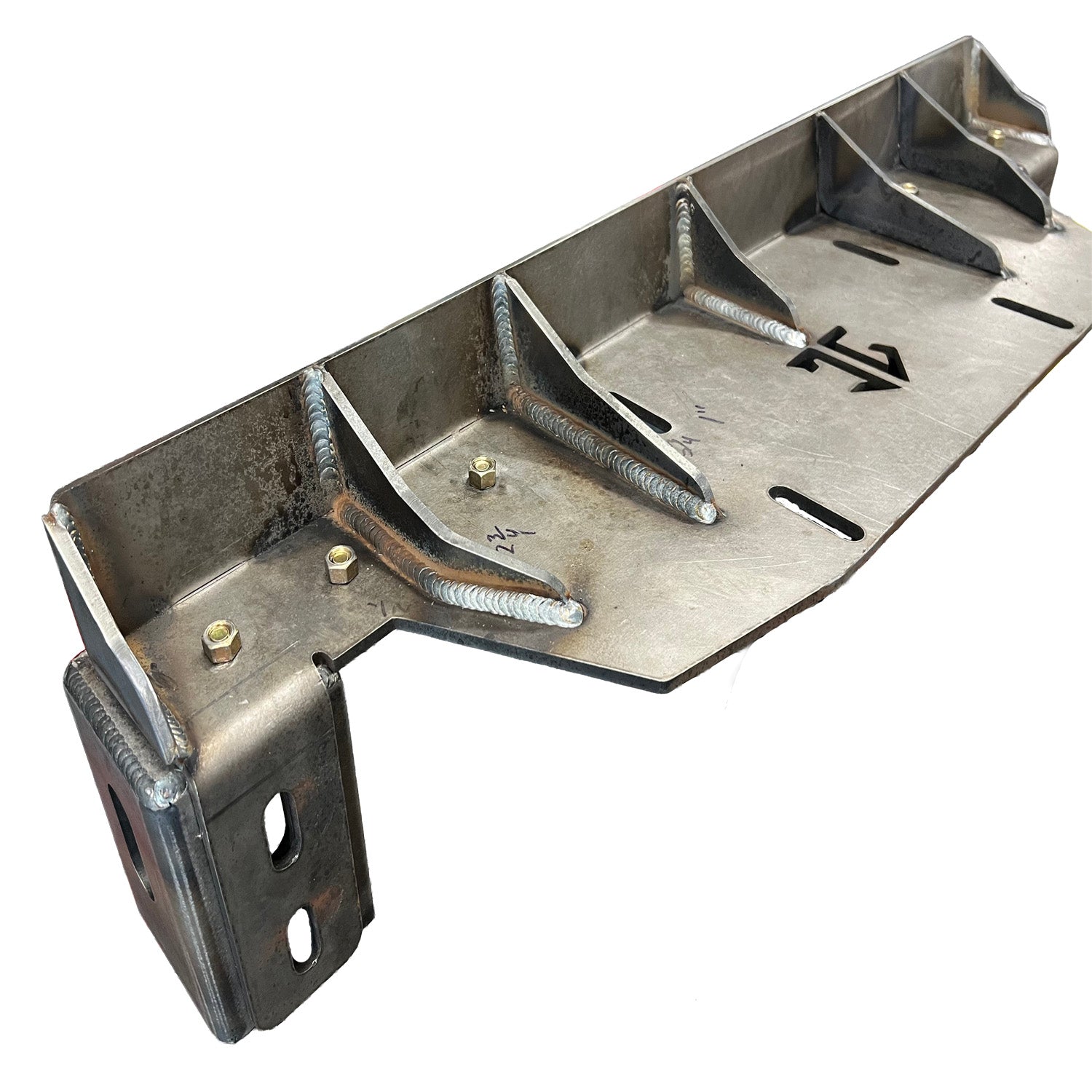

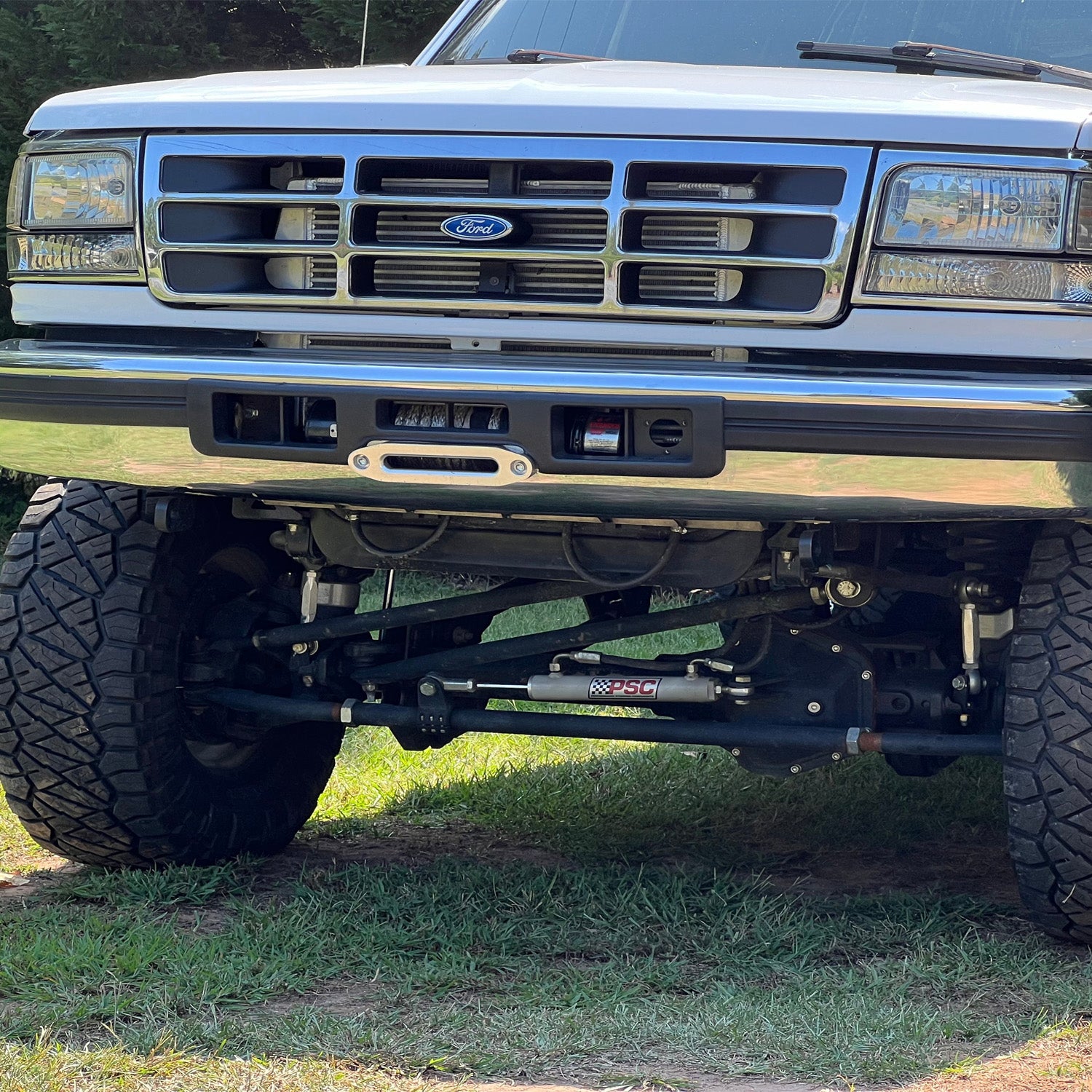

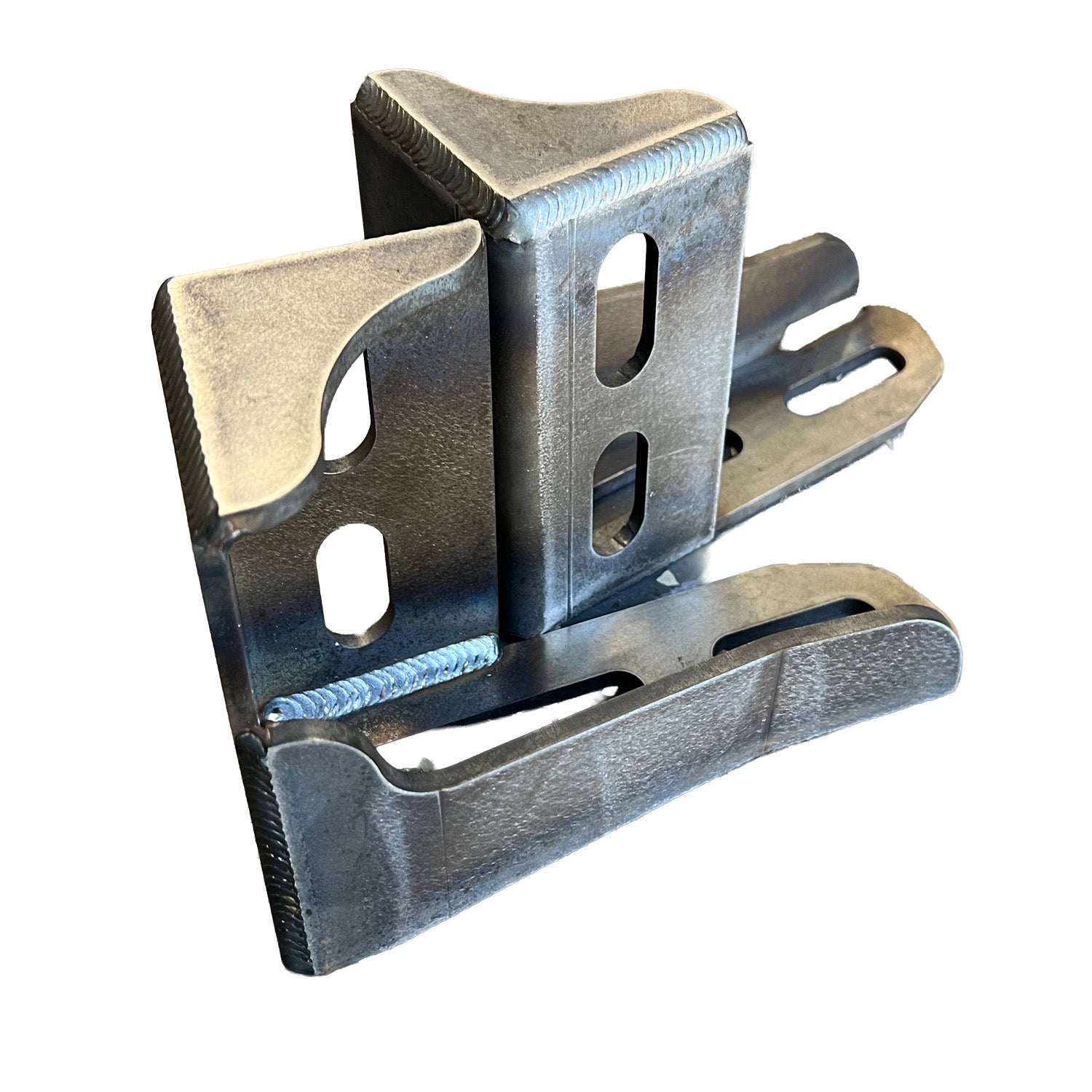

Maintain the classic look of your OBS Ford while adding serious recovery capability with the first production-based hidden winch mount designed specifically for these trucks. Engineered to mount a winch behind the factory front bumper, this system keeps the iconic OBS styling intact while providing the functionality needed for off-road adventures, work applications, and unexpected recovery situations. Built entirely from heavy-duty 1/4" HRPO steel and supplied with Grade 8 hardware, this mount is designed to handle demanding use while offering adjustability to compensate for bent or imperfect factory frame rails. This hidden winch mount delivers an incredibly tight, low-profile fit that maximizes available space behind the factory bumper. Installation requires relocation of the winch control box, minor bumper trimming, and a supplied 1/4" bumper spacer to ensure proper clearance. Compatibility includes factory leaf-spring and coil-spring-converted trucks, though slight trimming is required for leaf-spring applications. Due to the tight tolerances involved, professional installation is recommended. An optional fairlead reinforcement bracket is available for trucks that see frequent winch use, helping reduce stress on the factory bumper during repeated recovery operations.

Enter your zip and we'll see if installation is available.

Request quotes from local installers at checkout
Compare options and choose the best fit for your install

Free Customer Loyalty Program

No Salesmen, Just Enthusiasts

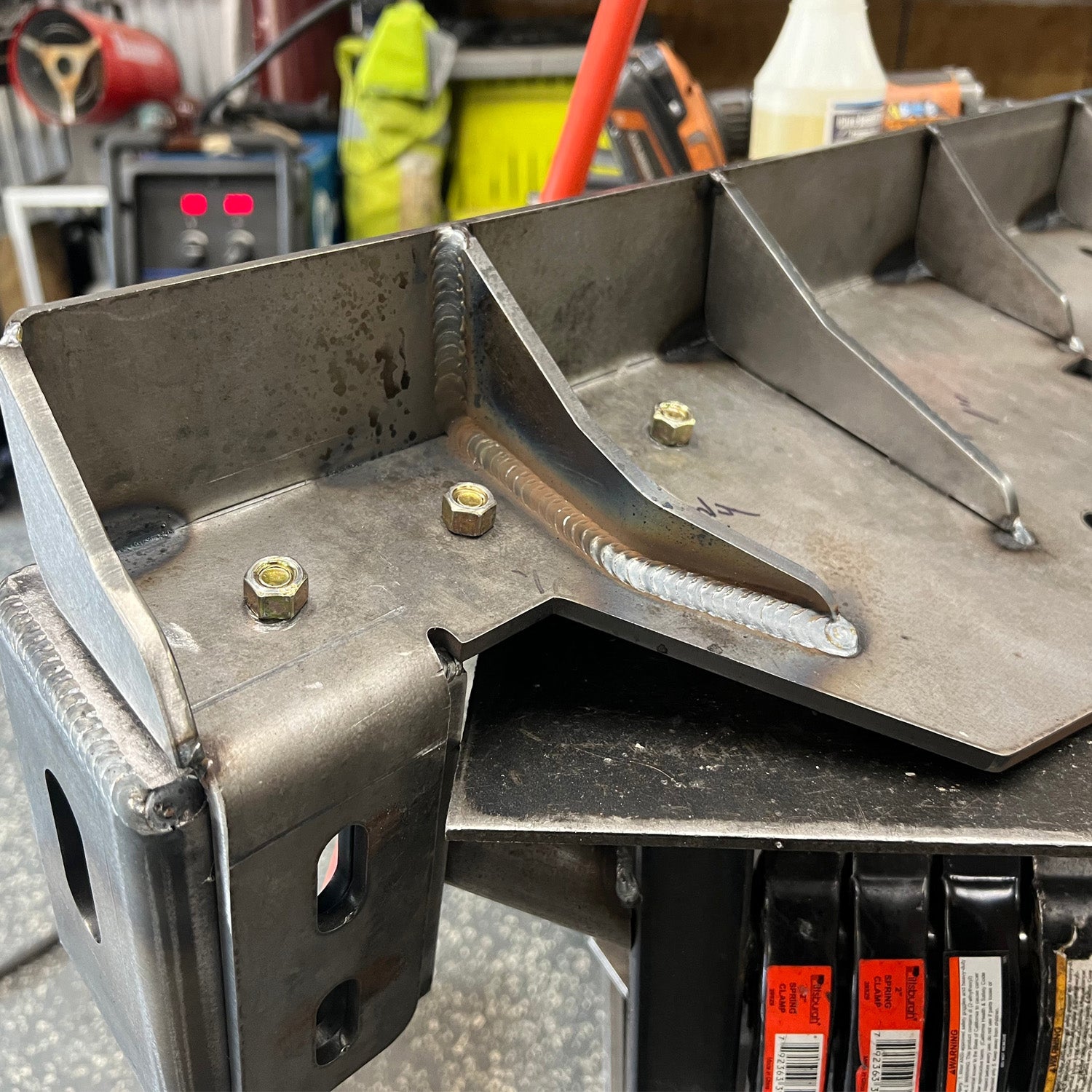

Maintain the classic look of your OBS Ford while adding serious recovery capability with the first production-based hidden winch mount designed specifically for these trucks. Engineered to mount a winch behind the factory front bumper, this system keeps the iconic OBS styling intact while providing the functionality needed for off-road adventures, work applications, and unexpected recovery situations. Built entirely from heavy-duty 1/4" HRPO steel and supplied with Grade 8 hardware, this mount is designed to handle demanding use while offering adjustability to compensate for bent or imperfect factory frame rails.

This hidden winch mount delivers an incredibly tight, low-profile fit that maximizes available space behind the factory bumper. Installation requires relocation of the winch control box, minor bumper trimming, and a supplied 1/4" bumper spacer to ensure proper clearance. Compatibility includes factory leaf-spring and coil-spring-converted trucks, though slight trimming is required for leaf-spring applications. Due to the tight tolerances involved, professional installation is recommended. An optional fairlead reinforcement bracket is available for trucks that see frequent winch use, helping reduce stress on the factory bumper during repeated recovery operations.

Vehicle Fitment

1994-1997 Ford F-250/F-350

WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov

APLLICATION INFO:

WILL NOT fit 1/2 ton trucks! (F-150's) As of now this is only for 3/4 and 1 ton truck frames.
WILL NOT fit 2WD trucks. 2WD frames are lacking much of the structural areas needed for this mount to work.
WILL NOT work with trucks running any RSK kit.
1/4" spacer on bumper is required regardless of winch size. Spacer is provided. It is recommended to tack weld it to the factory bumper mounts, but not necessary.

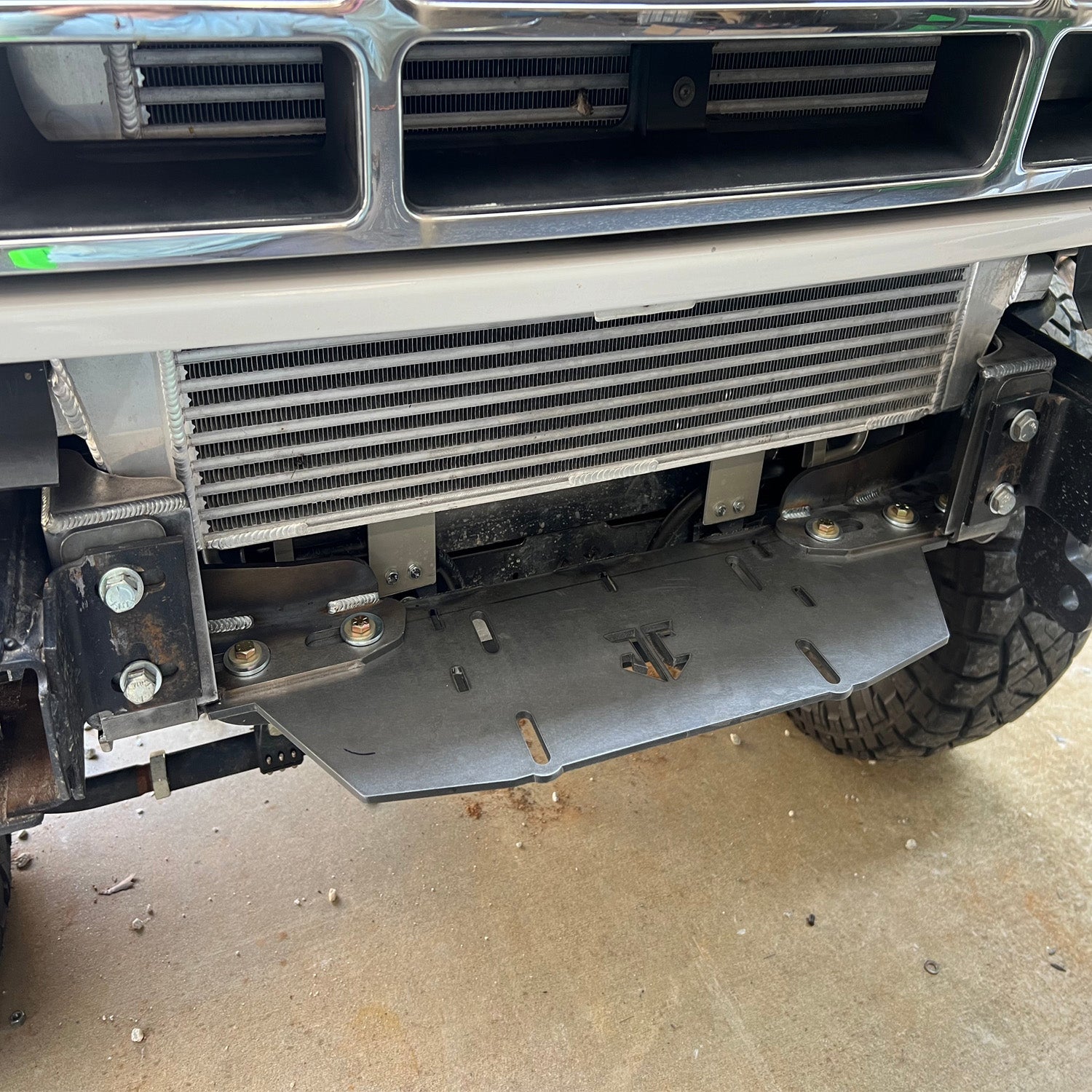

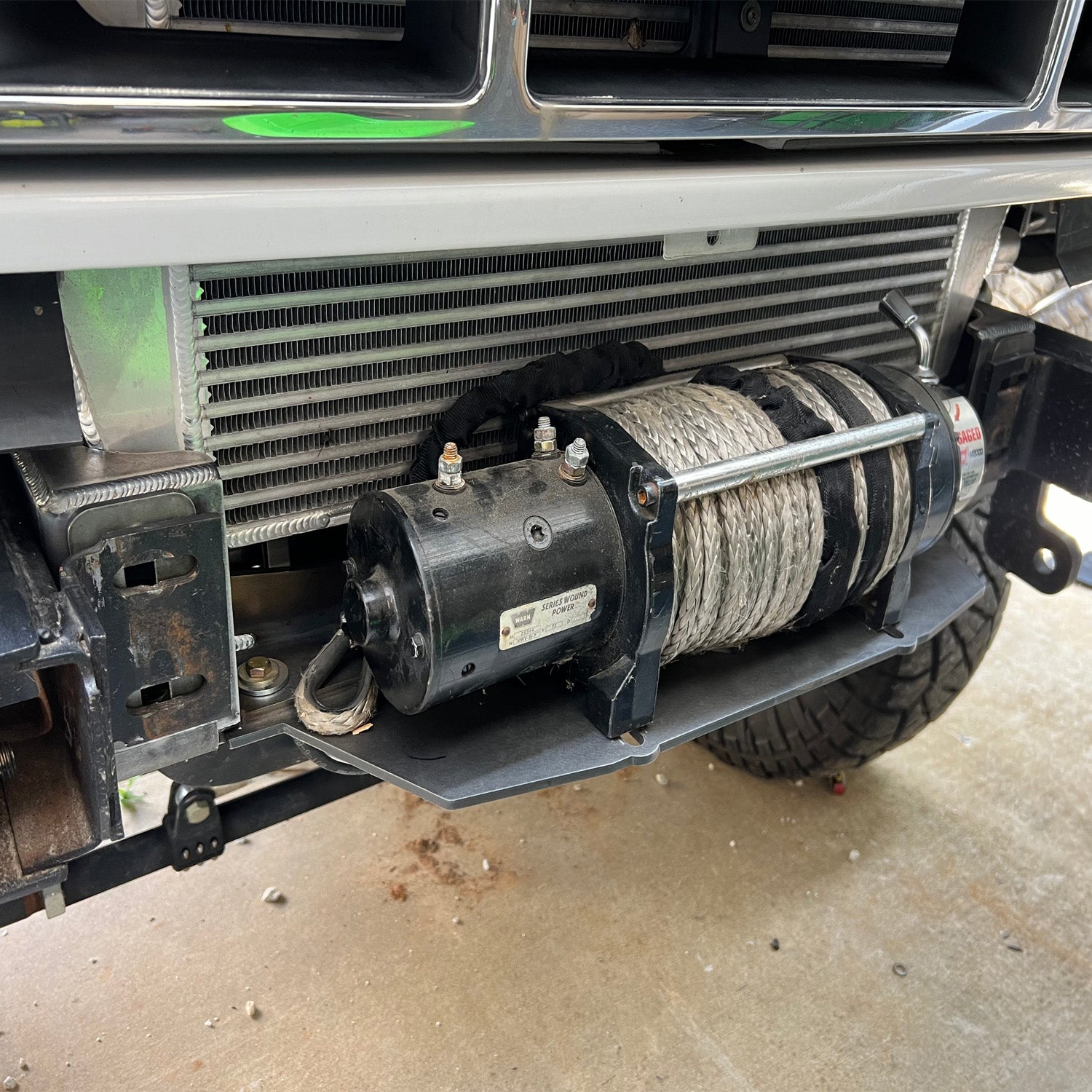

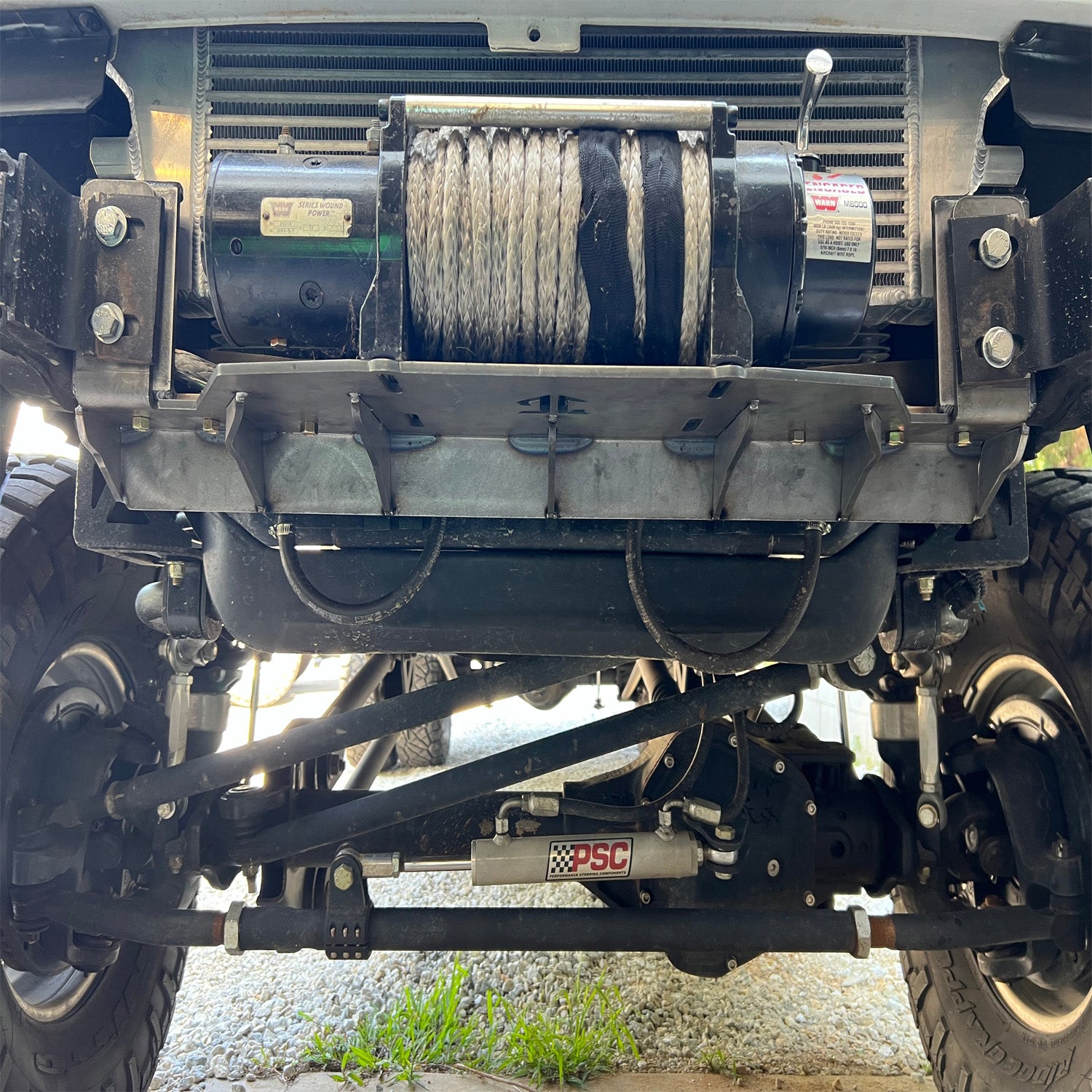

Clearance is TIGHT. There is a reason this has not been done before. Tolerance's are between 1/8" and 1/16" of an inch in most places. If your factory bumper is tweaked this could be enough to cause clearance issues. Mounting the winch and bumper will most likely require you to remove grille and lower valance to access the rear hardware on the winch mount.
Bumper trimming is required. It is very minimal. You will need to remove some of the lip located on the inner bottom side of the bumper to clearance for the mount itself.
Professional installation recommended. Install is straight forward, but not necessarily easy.
