SKU #: MRW-MR10578560500B MPN #: MR10578560500B

Method Race Wheels 105 Beadlock 17" | 6x5.5 | 16-22 GM Canyon/Colorado 2.8L Duramax LWN

$492.00

Get 492 points in loyalty rewards

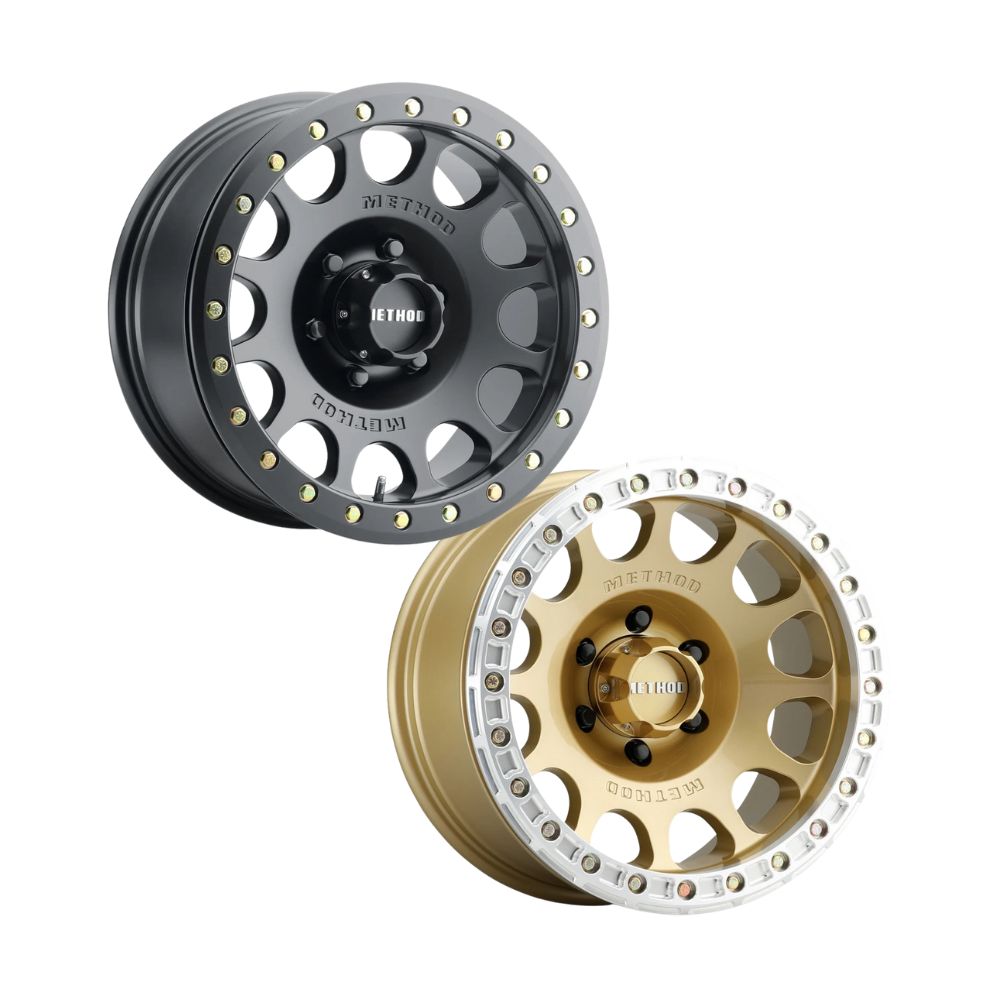

Method Racing Wheels 105 Beadlock Matte Black and Gold Wheels

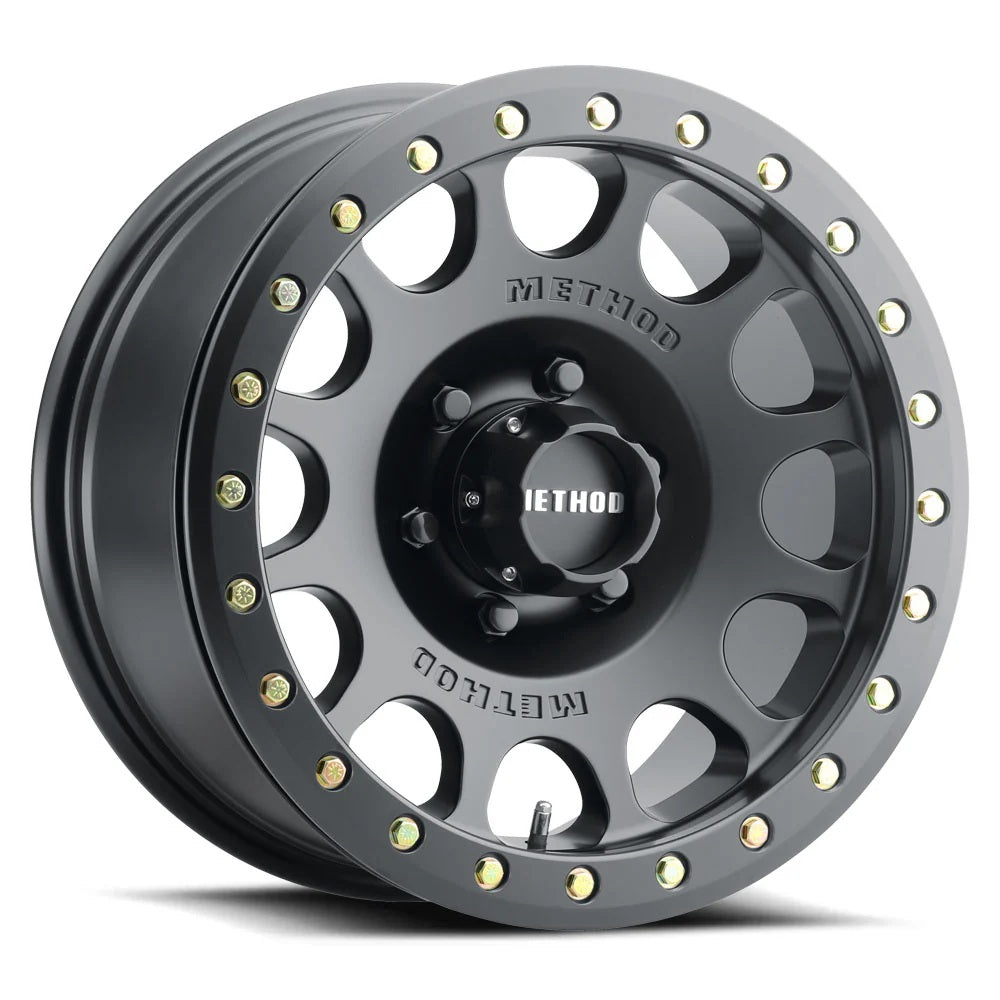

Method Racing Wheel 105 Beadlock Matte Black Wheel

Method Race Wheels 105 Beadlock 17" 6x5.5 for 16-22 GM Canyon and Colorado 2.8L Duramax LWN

Description

Want a beadlock wheel that stands out as much as it performs? The Method Race Wheels 105 Beadlock is built for serious off-road use when the pavement runs out. Its iconic 12-window design with debossed METHOD logos delivers a bold, aggressive look that fits all kinds of terrain. Constructed from A356 aluminum with T6 heat treatment, the 105 Beadlock is designed to handle real off-road abuse. A forged 6061-T6 V.3 beadlock ring, reinforced inner lip, and included Grade 8 hardware help keep tires locked in place at low pressures, while a 3600 lb load rating provides confidence on demanding terrain. Available in Gold with a machined beadlock ring or Matte Black, this wheel brings performance and style together. FITMENT NOTE: Fits 16-22 GM Canyon/Colorado 2.8L Duramax WHEEL FITMENT & SPECS: Wheel Diameter (in) Wheel Width (in) Bolt Pattern Offset (mm) Backspacing (in) Hub Bore (mm) Wheel Weight (lbs) Max Load (lbs) 17 8.5 6x139.7 (6x5.5) 0 4.75 108 31.78 3600 17 9 6x139.7 (6x5.5) -38 3.5 108 34.32 3600

Select Size

Select Bolt Pattern & Offset Spacing

Select Color

Enter your zip and we'll see if installation is available.

Request quotes from local installers at checkout
Compare options and choose the best fit for your install

Free Customer Loyalty Program

No Salesmen, Just Enthusiasts

Want a beadlock wheel that stands out as much as it performs? The Method Race Wheels 105 Beadlock is built for serious off-road use when the pavement runs out. Its iconic 12-window design with debossed METHOD logos delivers a bold, aggressive look that fits all kinds of terrain.

Constructed from A356 aluminum with T6 heat treatment, the 105 Beadlock is designed to handle real off-road abuse. A forged 6061-T6 V.3 beadlock ring, reinforced inner lip, and included Grade 8 hardware help keep tires locked in place at low pressures, while a 3600 lb load rating provides confidence on demanding terrain. Available in Gold with a machined beadlock ring or Matte Black, this wheel brings performance and style together.

FITMENT NOTE:

Fits 16-22 GM Canyon/Colorado 2.8L Duramax

WHEEL FITMENT & SPECS:

Wheel Diameter (in)	Wheel Width (in)	Bolt Pattern	Offset (mm)	Backspacing (in)	Hub Bore (mm)	Wheel Weight (lbs)	Max Load (lbs)
17	8.5	6x139.7 (6x5.5)	0	4.75	108	31.78	3600
17	9	6x139.7 (6x5.5)	-38	3.5	108	34.32	3600

Vehicle Fitment

2016-2022 GM Canyon/Colorado 2.8L Duramax LWN

WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov

FEATURES & BENEFITS:

A356 aluminum construction with T6 heat treatment for off-road strength
Forged 6061-T6 beadlock ring keeps tires secure at low air pressures
Reinforced inner lip adds durability for hard trail use
Classic 12-window design with debossed METHOD logos
Grade 8 zinc-plated beadlock hardware included
3600 lb load rating built for demanding off-road builds

About Method Race Wheels

Method Race Wheels motto is œlighter, stronger, faster. This sounds like a catchy tagline, but is that all its about? Ultimately, its your vehicles responsibility to turn your wheel and tire combo to get your 8,000lbs.+ truck rolling down the road. As the weight of the wheel and tire package increases, it takes additional power to move that mass. Thus, the lighter you can make a wheel and tire package, the faster, or more efficient your truck will be. That said, unless you have strength, theres no point in a light wheel as utter catastrophe can occur. Fortunately, Methos Race Wheels has a sharp focus on weight reduction while maintaining or increasing strength, alleviating concerns over safety, all netting a better overall product.

METHOD RACE WHEELS

The next thing to address is the name: Method Race Wheels. Does this mean that these wheels are intended for racing applications? Well, maybe in the early days of Method, but that is long gone. The majority of Method Race Wheels catalog are for street vehicle, but the name pays homage to the engineering put into every wheel design that results in a high performance package at ever corner.

METHOD OFF ROAD WHEELS

The next thing to discuss would be the offroad styling of their wheels. Are Method wheels specifically designed for offroad use? No way! While MRW does offer a lineup of legitimate bead lock wheels, the majority of their styles featuring some kind of bolt at the wheels lip (or bead), these are merely for styling, sometimes called a simulated bead lock. Now, what Method does realize is that many of us are weekend warriors. We either commute to work in our trucks all week, or we work our trucks all week, but then on the weekends we like to hit some offroad trails. In these instances, we may air down our tires for better traction. Method has us covered with their unique Bead Grip technology that ensures a better wheel to tire seal even at lower air pressures.

WHEEL OFFSET EXPLAINED

Offset: Measured from center line of wheel to mounting surface
Backspace: Measures from inner lip of wheel to mounting surface
Positive Offset: Outside center line of the wheel. This brings the wheel in towards the center of the vehicle. Typically found on vehicles that are stock, leveled or lifted up to 3
Negative Offset: Inside center line of the wheel. This pushes the wheel out away from center of the vehicle. Typically found on vehicles lifted over 3
