SKU #: MH-E40D/4R100
MPN #: E40D/4R100

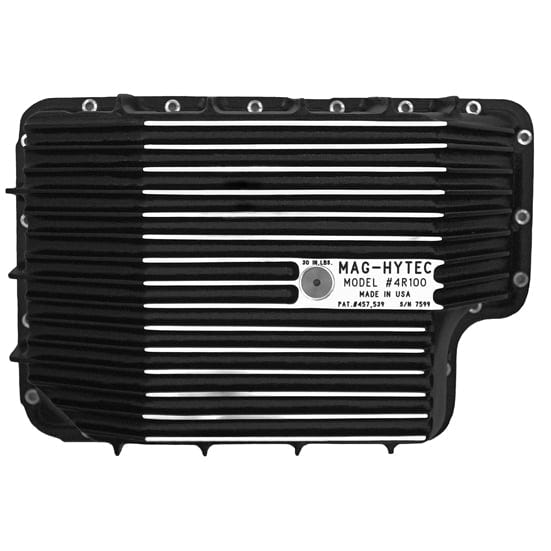

Mag-Hytec E40D / 4R100 Transmission Pan 94-03 7.3L Ford Powerstroke
Description
Overview

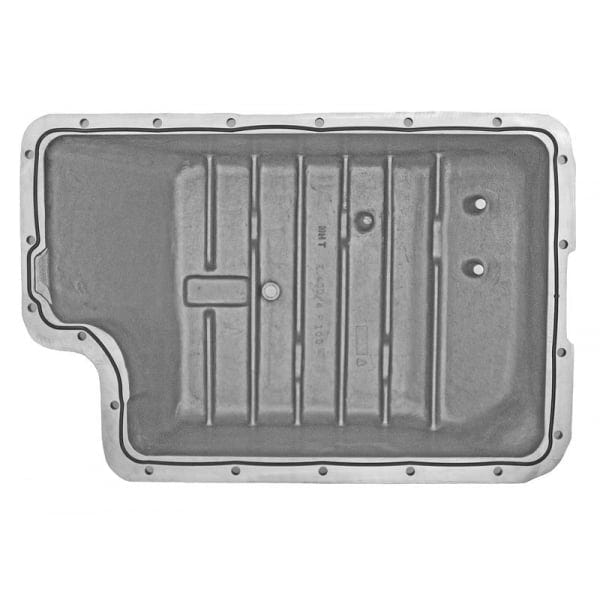

Constructed from high-quality cast aluminum right here in the USA, this heavy duty transmission pan from Mag-Hytec keeps your transmission remarkably cooler than your stock pan. This dramatic increase in heat dissipation happens for three reasons: First, the cast aluminum deals with heat in a vastly better manner than the stock steel pan. Second, Mag-Hytec designed the pan with internal heat sink fins as well as external cooling fins--a winning combination of oil cooling capability! Third, this pan holds way more fluid than stock. Cool, dense fluid is always a good way to keep temperatures under control.Mag-Hytec also went to work to make sure this pan comes with a host of other features. To keep your fluid clean, the pan comes standard with a magnetic drain plug--designed to pull harmful ferrous metal particles right out of the oil long before they have any chance of hurting your transmission. Next, the pan features a pre-tapped 1/8 NPT port for those who wish to install a temperature probe--capped with a stainless steel plug when not in use. Finally, an o-ring is used to seal the pan instead of messy sealant and gaskets. This pan allows you to drive your truck hard without fear of transmission heat damage!FITMENT GUIDE:
Overall height 6 1/8"
Check clearance before ordering
Fits 1994-2003 Ford trucks with the 7.3L Powerstroke and E40D/4R100 transmission
Enter your zip and we'll see if installation is available.
- Request quotes from local installers at checkout
- Compare options and choose the best fit for your install
About WrenchConnected
WrenchConnected is an independent installation marketplace operating in partnership with Diesel Power Products.
How it works
After checkout, we route your vehicle info and part SKU to verified installation shops near you. Local installers review the job and submit competitive bids; you pick the shop you want based on price, reviews, and availability. Your name and email stay private until you select an installer.
Pricing
You pay for the bid from your preferred shop. The full amount is shown before you confirm — installers cannot add charges without your written consent. Payments are processed securely by Stripe.
Your privacy
During bidding, shops see only your service ZIP code, vehicle year/make/model, and the part SKU — not your name, email, or address. Only the shop you select receives your contact details after payment. We never sell your personal information.
More detail at wrenchconnected.com.
This is a cast aluminum transmission pan from Mag-Hytec that runs cooler than stock via internal/external fins and increased fluid capacity, plus a magnetic drain plug for cleaner fluid.
- Fits
- 1994-2003 7.3L Ford Powerstroke
- Brand
- Mag-Hytec
- Best for
- Keeping transmission fluid cooler under heavy load
- Key features
- Deep high-capacity sump for maximum cooling
- Magnetic drain plug pulls ferrous metal particles from fluid
- 303 hardware, with zinc-plated Allen head cap screws
- 1/8 NPT temperature sender port with stainless steel plug
- Finned aircraft aluminum construction for heat dissipation
- O-ring seal eliminates need for gaskets or sealants
- Key specs
- Overall height 6 1/8"
- Holds an additional 8 quarts over stock pan
- 1/8 NPT temperature sender port
- Important
- Check clearance before ordering.
Summarized by AI from this product’s description and specs. Confirm fitment for your year, make and engine before ordering.
FEATURES & BENEFITS:
- Deep high-capacity sump for maximum cooling
- Magnetic drain plug
- 303 hardware except Allen head cap screws are zinc plated
- 1/8 NPT temperature sender port
- Finned aircraft aluminum construction
- O-rings require no gaskets or sealants
- Holds an additional 8 Quarts Over Stock Pan!
About Mag-Hytec
Mag-Hytec manufactures extremely high quality, heavy duty transmission pans and differential covers for many makes and models.
Mag-Hytec's heavy duty differential covers and transmission pans provide increased lubricant and cooling capacity for hard working diesel trucks. Mag-Hytec covers and pans set your vehicle apart in both aesthetics and function - cast in A356-T6 aluminum and texture powder coated black with machined cooling fins. Magnetic drain plugs trap worn gear material promoting fluid integrity. Each unit is fitted with ARP 568 O-rings for superior sealing. All hardware is 303 stainless steel, in most applications no gasket or sealant is required, and all Mag-Hytec parts are covered by a lifetime limited warranty. Depend on Mag-Hytec to keep your powertrain running cool and looking awesome.
Blog
October 28, 2025
Discover 68RFE transmission problems and the best DIY upgrades for Ram 2500 / 3500. Get expert tips,...
Read More68RFE Transmission Guide: Problems & DIY Upgrades
October 27, 2025
Learn everything you need about transfer case replacement, rebuild, and repair in diesel trucks, including symptoms, costs,...
Read MoreTransfer Case Replacement, Rebuild, and Repair Guide for Diesel Trucks
April 18, 2025
With the cost of new vehicle costs nearing, and sometimes exceeding the six digit mark, many of...
Read MoreHow To Diagnose and Replace A Steering Gear Box
December 17, 2024
More than 76% of all commercial vehicles (Class 3-8) in the U.S. are powered by diesel, and...
Read MoreThe Most Reliable Diesel Truck: Exploring Top Contenders
Overall rating: 5.0 / 5 from 2 reviews.
AI Generated Review Summary
Summary topics
Review topics: [].
Review highlights
Reviews
Trans pan
"The pan is great! Great quality, easy to install, helps lower temperature. Also looks good under the truck!"
Q&A
- Does this pan fit an 03 Ford Excursion with the 7.3 diesel? Thank you
- Yes, these will fit that application.
- Does the install require a different filter to draw oil from bottom of oil pan?
- Per Mag-Hytec's instructions Remove the filter and replace it with the filter for a 4 wheel drive truck applications Ford Part #F6TZ7A098BB or Purolator Part # 1214. -Mark
- How many extra quarts of fluid.? Use standard gasket ? Standard filter ? Should I put the original magnet in this pan. ? Thanks for your help
- 8 quarts extra, uses a standard filter from a 4x4 application, Oring style seal, would just use the magnet drain plug.
