Mac's Double Stud Anchor Plate Assembly
Description
Have you come to the same conclusion that factory installed tie downs are just never in the right location for your particular needs? End these woes with this tie down assembly from Mac's.

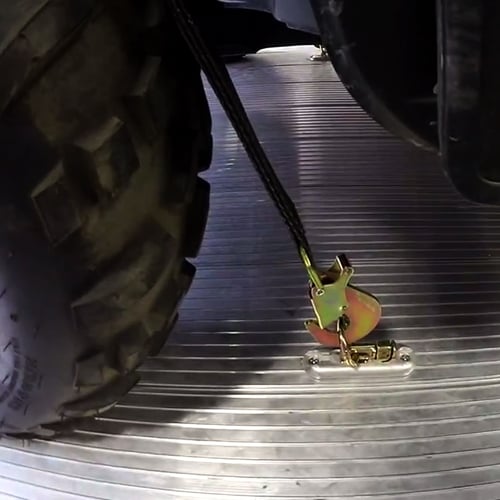

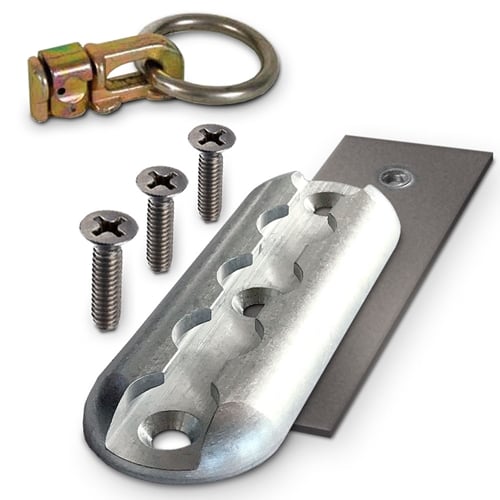

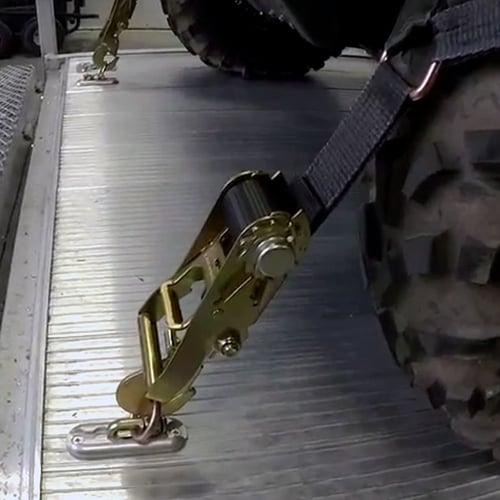

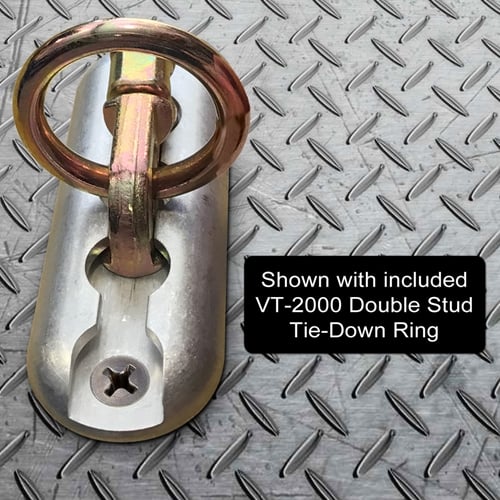

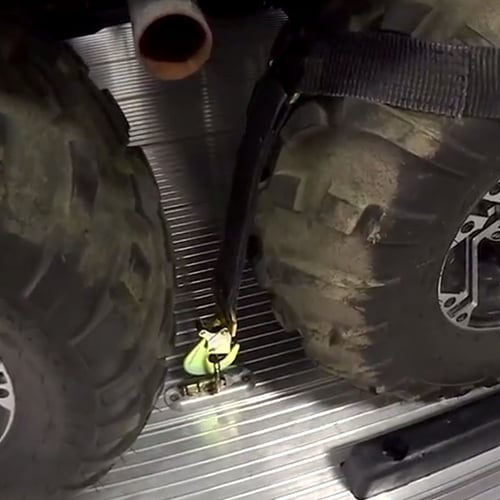

Mac's Double Stud Anchor Plate Assembly lets you add a tie-down point virtually anywhere, but are designed specifically for their higher load capacity double stud fittings, such as the included VT-2000 Double Stud Tie-Down Ring. This combination offers nearly twice the holding power (5,000lb Minimum Breaking Strength) as their Single Stud Anchor Plate Assembly. This is a great solution when securing heavy loads where a full length track system is not desired.
CUSTOM LOOK WITHOUT THE COST
This anchor plate provides a sleek, finished look, since it is precision milled using the same wide and smooth profile of Mac's Series 3 VersaTie track. When the fitting is removed, the anchor plate is smooth and unobtrusive. This is particularly beneficial for multi-use trailers. When not using for hauling a vehicle, you can even add multiple VT-1000 Single Stud Tie-Down Rings for additional hard points to secure various cargo.
BUILT TO WITHSTAND THE ELEMENTS

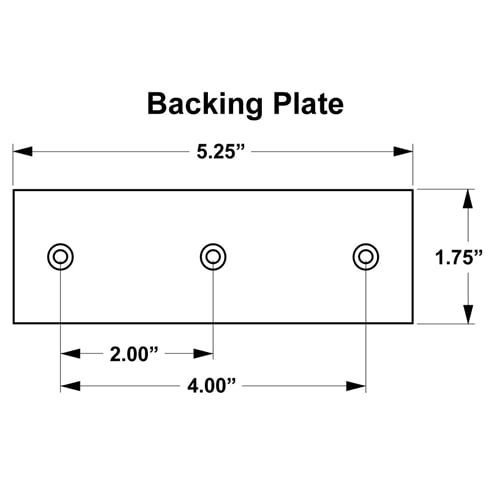

For long-lasting performance, the anchor plate is manufactured from rugged aircraft-grade aluminum. The mild steel backing plate is zinc-dipped to inhibit corrosion, then press-fit with stainless steel swage nuts. Stainless steel screws are provided to attach the assembly to your structure to ensure years of trouble-free service.
EAST INSTALLATION

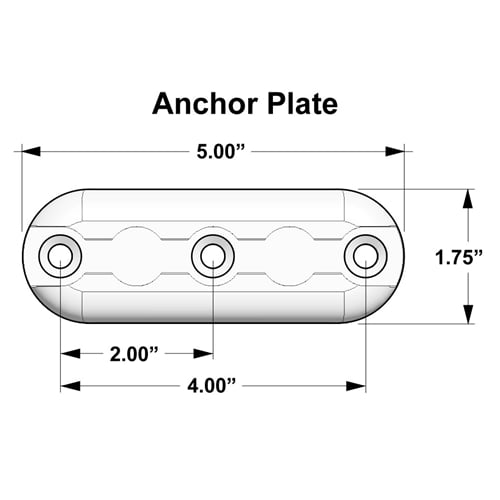

The Double Stud Anchor Plate is pre-drilled with three countersunk holes. After drilling matching holes in the main structure, simply insert the screws through the anchor plate and structure and tighten into the threads of the backing plate.
MADE IN THE USA
All VersaTie tracks are fabricated right in Idaho. This allows Mad's to have better quality control, quicker turn-around time on custom orders and it also supports American jobs!
