SKU #: LFS-201052-FM
MPN #: 201052-FM

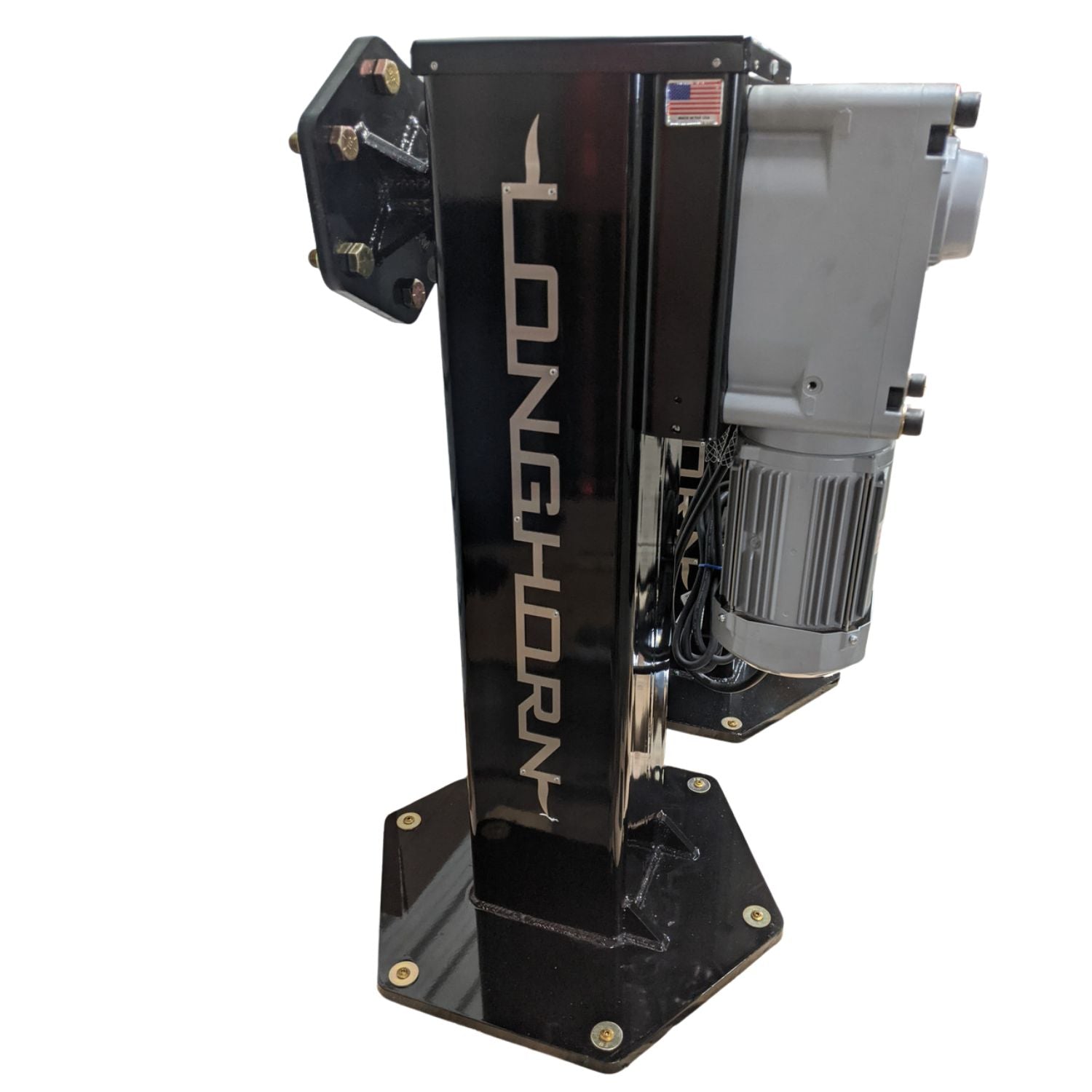

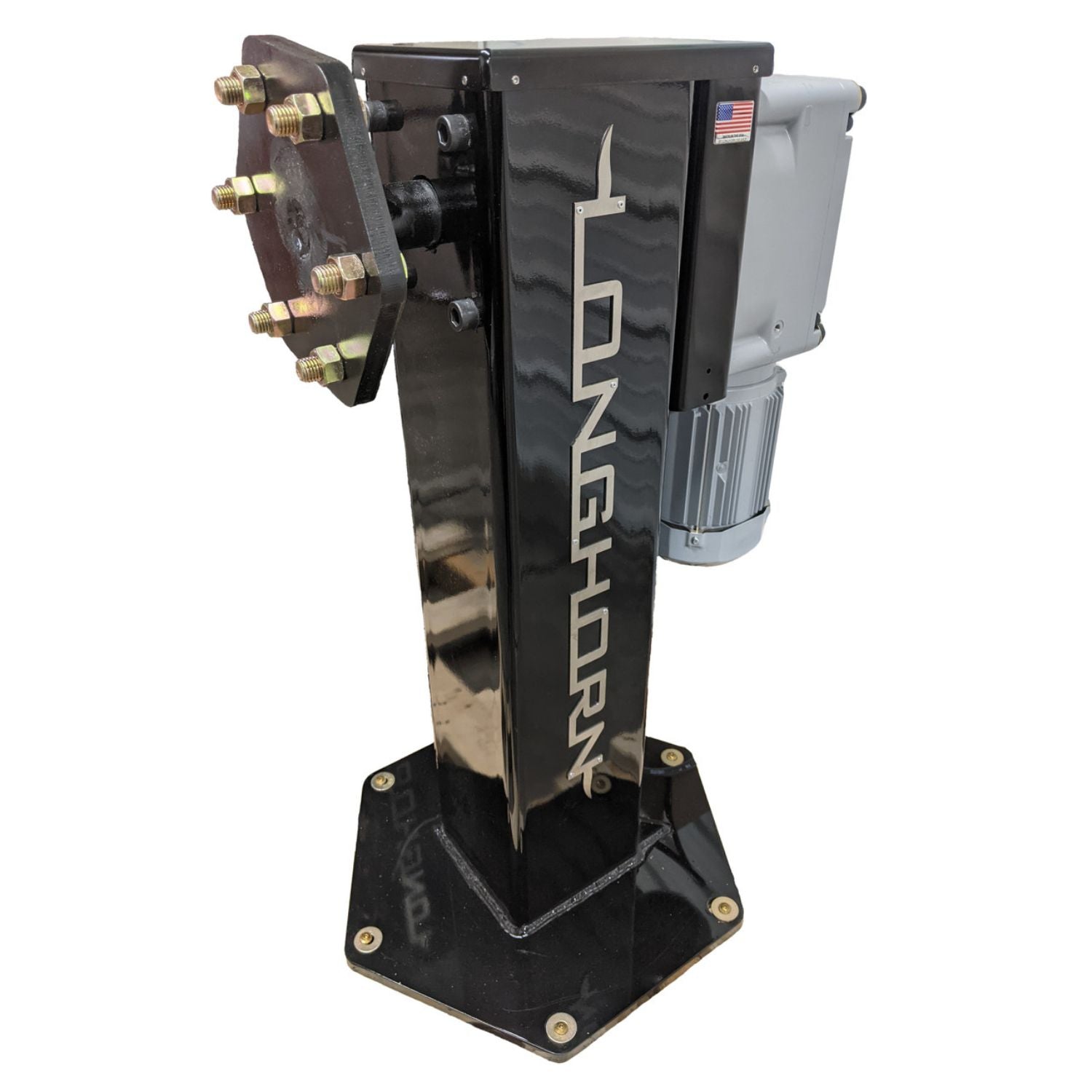

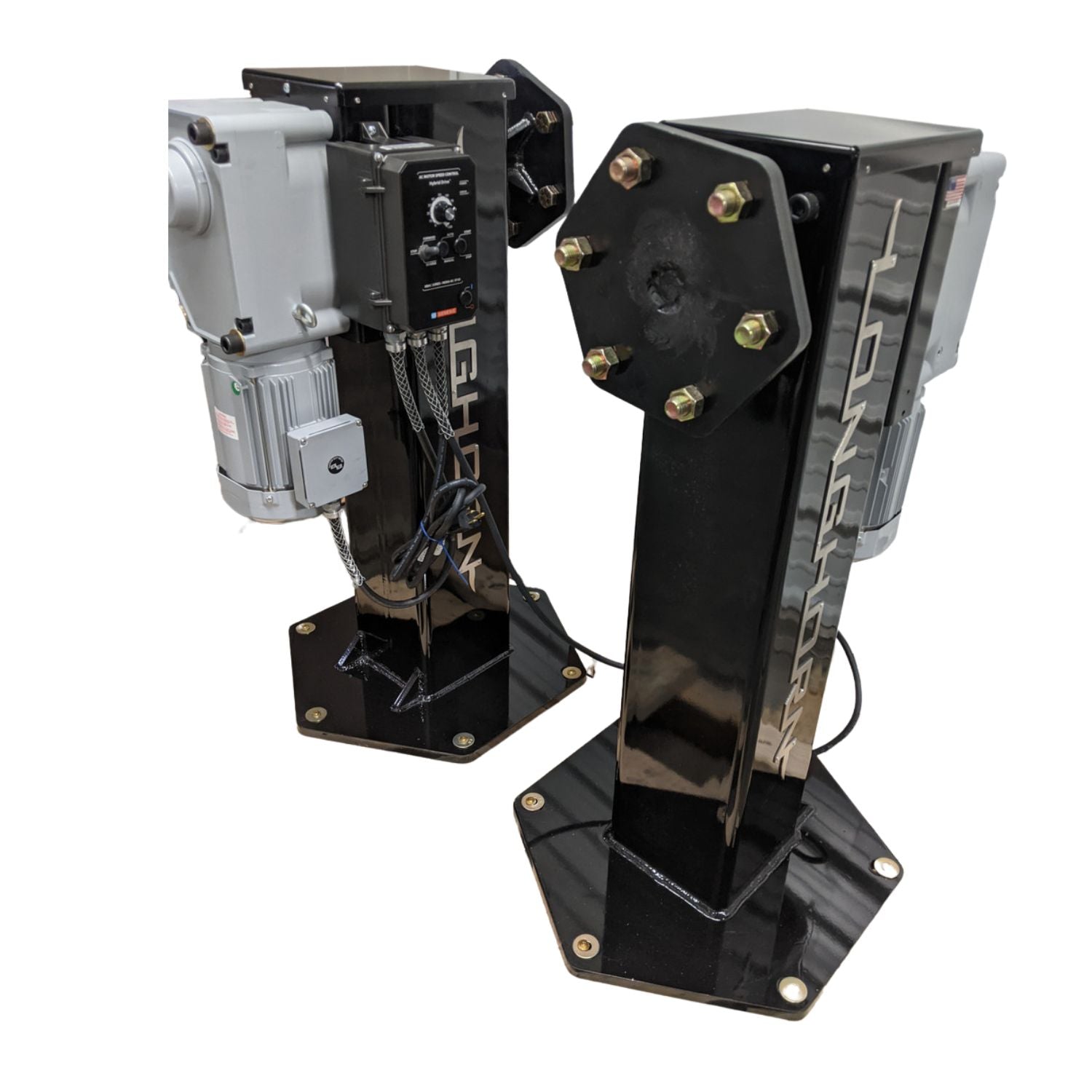

Longhorn Fab Shop Pro Grade Rotating Engine Stand - Floor Mount
Description
Overview
Working on large diesel engines can be challenging when you're constantly repositioning components to reach different areas. The Longhorn Fab Shop Industrial Rotator is designed to make engine assembly, teardown, inspection, and fabrication work easier by allowing you to rotate heavy engines safely and precisely with variable-speed powered controls. The hands-free operation helps reduce strain, improve access, and keep projects moving efficiently through the shop. Built for professional environments, this floor-mounted rotating engine stand features a heavy-duty 2" shaft, dual 6,500 lb bearings, a 350 ft-lb industrial gear reduction drive, and a 1 HP motor with forward, stop, and reverse controls. Variable speed operation allows rotation from 1-6 RPM, while the included foot pedal provides convenient hands-free control. The stand is rated to support up to 2,000 lbs positioned 24" from the neck while maintaining proper functionality and smooth operation. The floor mount design anchors directly to concrete for maximum stability and features a compact footprint while still accommodating large applications with a maximum swing length of 61.5". Custom adapter plates can be used to support engines, transmissions, axles, and specialized industrial projects. Please note that an application-specific adapter is required and sold separately.
Choose add-ons
Enter your zip and we'll see if installation is available.
- Request quotes from local installers at checkout
- Compare options and choose the best fit for your install
About WrenchConnected
WrenchConnected is an independent installation marketplace operating in partnership with Diesel Power Products.
How it works
After checkout, we route your vehicle info and part SKU to verified installation shops near you. Local installers review the job and submit competitive bids; you pick the shop you want based on price, reviews, and availability. Your name and email stay private until you select an installer.
Pricing
You pay for the bid from your preferred shop. The full amount is shown before you confirm — installers cannot add charges without your written consent. Payments are processed securely by Stripe.
Your privacy
During bidding, shops see only your service ZIP code, vehicle year/make/model, and the part SKU — not your name, email, or address. Only the shop you select receives your contact details after payment. We never sell your personal information.
More detail at wrenchconnected.com.
A powered, floor-mounted rotating engine stand that lets technicians rotate heavy engines with variable-speed control, supporting up to 2,000 lbs positioned 24" from the neck.
- Fits
- Universal - Requires Floor Mounting
- Brand
- Longhorn Fab Shop
- Best for
- Professional engine assembly, teardown, and fabrication work
- Key features
- Variable speed operation from 1-6 RPM for precise positioning
- Forward, stop, and reverse controls for easy rotation
- Foot pedal for hands-free operation
- Heavy-duty industrial gear reduction drive
- Dual bearings for smooth, reliable rotation
- Floor-mounted design for maximum stability
- Accommodates engines, transmissions, axles, and custom industrial applications
- Can be operated using commercially available battery packs
- Custom mounting solutions available for specialty applications
- Designed to reduce labor time and improve shop productivity
- Key specs
- 2,000 lb capacity at 24" from neck
- 2" shaft
- Dual 6,500 lb bearings
- 350 ft-lb gear reduction drive
- 1 HP motor, 110V 15A outlet
- 1-6 RPM variable speed
- 61.5" maximum swing length
- Important
- An application-specific adapter is required and sold separately.
FEATURES & BENEFITS:
```
- Powered rotating engine stand designed for professional shops and engine builders
- Variable speed operation from 1-6 RPM for precise positioning and control
- Forward, stop, and reverse controls allow easy engine rotation
- Foot pedal provides convenient hands-free operation
- Heavy-duty industrial gear reduction drive delivers 350 ft-lbs of rotation torque
- 1 HP motor operates on a standard 110V 15A outlet
- Dual 6,500 lb bearings provide smooth and reliable rotation
- Supports up to 2,000 lbs at 24" from the neck while maintaining proper functionality
- Floor-mounted design provides maximum stability during operation
- Accommodates engines, transmissions, axles, and custom industrial applications
- Maximum swing length of 61.5" allows support for large assemblies
- Can be operated using commercially available battery packs
- Custom mounting solutions available for specialty applications
- Designed to reduce labor time and improve shop productivity
```
