Shopping for
2005 Chevrolet 6.6L Duramax LLY
SKU #: HAM-07-C-178/208 MPN #: 07-C-178/208

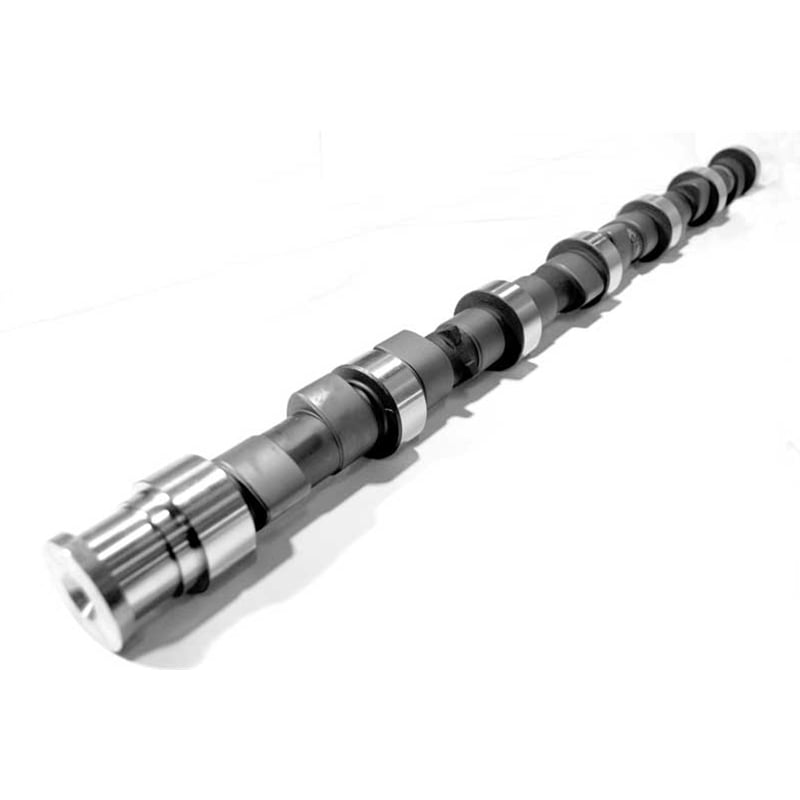

Hamilton Cams 178/208 Street Cam 89-18 5.9L / 6.7L Cummins

$649.00
Get 649 points in loyalty rewards
Description
This cam will help to drastically reduce exhaust gas recirculation (EGR) and provide more fresh, cool air for your engine. That means less particulate matter, lower exhaust gas temperatures (EGT's), and better fuel economy! Originally, Hamilton built this cam for 6.7L Cummins owners looking to create overall efficiency while keeping all of the factory emissions system intact. If you have accepted that DPFs are here to stay, but you want to make more power and you don't like wasting fuel to clean out your DPF, this is your cam! And for owners of 5.9L's, after further development, Hamilton learned that this cam also worked extremely well in these models for creating efficiency in moderate street trucks. Due to its short duration and wide lobe separation angle, it also has the least overlap (when intake and exhaust valves are open at the same time) of any of Hamilton's cams, which helps to eliminate in cylinder EGR on engines that have higher drive pressure than boost. This occurrence is usually found on trucks with stock turbos with a restrictive turbine housing. Upon testing this cam, it produced an additional 40 horsepower at 1700 RPM on a truck running a 62mm turbo and 80HP injectors due to the fact that it moves so much air at lower RPM's and aids the turbo in spooling substantially faster. If you live at high altitudes, tow heavy, or are looking for the best efficiency possible for highway driving, this cam will be your best friend. And for those running larger turbos on a common rail engine, this cam will aid in low RPM spool up, as well.

This cam will help to drastically reduce exhaust gas recirculation (EGR) and provide more fresh, cool air for your engine. That means less particulate matter, lower exhaust gas temperatures (EGT's), and better fuel economy!

Originally, Hamilton built this cam for 6.7L Cummins owners looking to create overall efficiency while keeping all of the factory emissions system intact. If you have accepted that DPFs are here to stay, but you want to make more power and you don't like wasting fuel to clean out your DPF, this is your cam! And for owners of 5.9L's, after further development, Hamilton learned that this cam also worked extremely well in these models for creating efficiency in moderate street trucks. Due to its short duration and wide lobe separation angle, it also has the least overlap (when intake and exhaust valves are open at the same time) of any of Hamilton's cams, which helps to eliminate in cylinder EGR on engines that have higher drive pressure than boost. This occurrence is usually found on trucks with stock turbos with a restrictive turbine housing.

Upon testing this cam, it produced an additional 40 horsepower at 1700 RPM on a truck running a 62mm turbo and 80HP injectors due to the fact that it moves so much air at lower RPM's and aids the turbo in spooling substantially faster.

If you live at high altitudes, tow heavy, or are looking for the best efficiency possible for highway driving, this cam will be your best friend. And for those running larger turbos on a common rail engine, this cam will aid in low RPM spool up, as well.

No shipping to CA
IMPORTANT NOTES:
  • In order to work on a 12 valve, you must be running an electric lift pump as this cam does not have provisions for the stock mechanical pump.
  • When replacing the camshaft, you must use Hamilton's Zinc Additive for the break-in period. Hamilton recommends two bottles during break-in.
  • If you do not use Hamilton's tappetes, they will not provide any warranty
About Hamilton Cams
Hamilton Cams has become a household name in the diesel industry over the past decade by producing some of the highest quality, best power producing components in the industry. Hamilton produces a variety of cam shafts, valve springs, valve retainers, locks, pushrods, and even complete 6BT cylinder heads. And to top it off, all of their products are produced in the USA. If you have any trouble deciding which product is best for you, give us a call!
