SKU #: JKS-JKS6201 MPN #: JKS6201

JKS Front Control Arm Correction Brackets 2-4.5" 20-23 Wrangler JL Gladiator JT 3.0L EcoDiesel

Name: JKS Front Control Arm Correction Brackets 2-4.5" 20-23 Wrangler JL Gladiator JT 3.0L EcoDiesel
Brand: JKS Manufacturing
Price: 207.95 USD
Availability: InStock

$207.95

Get 207 points in loyalty rewards

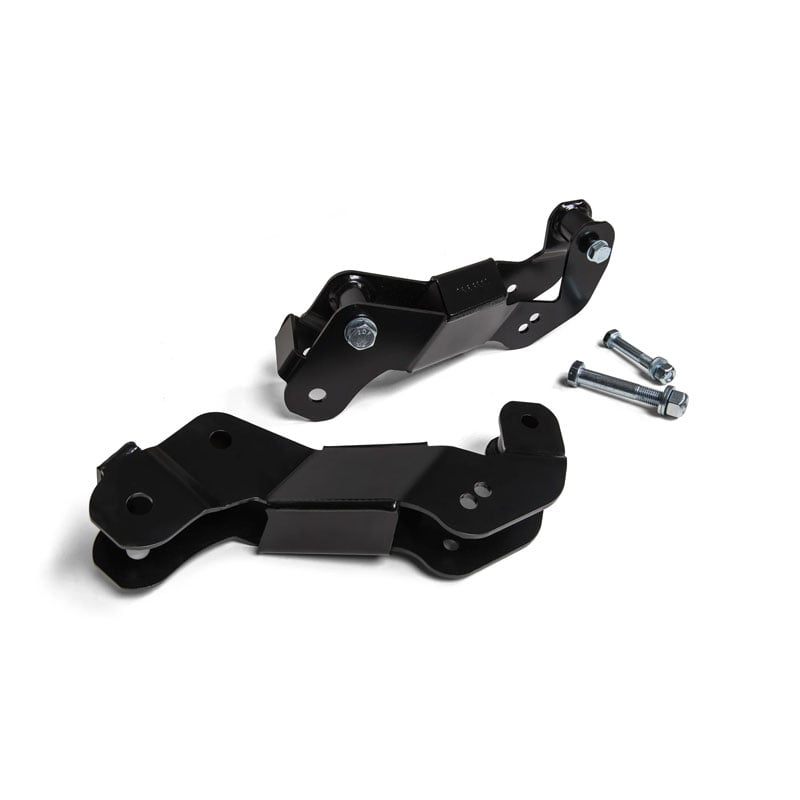

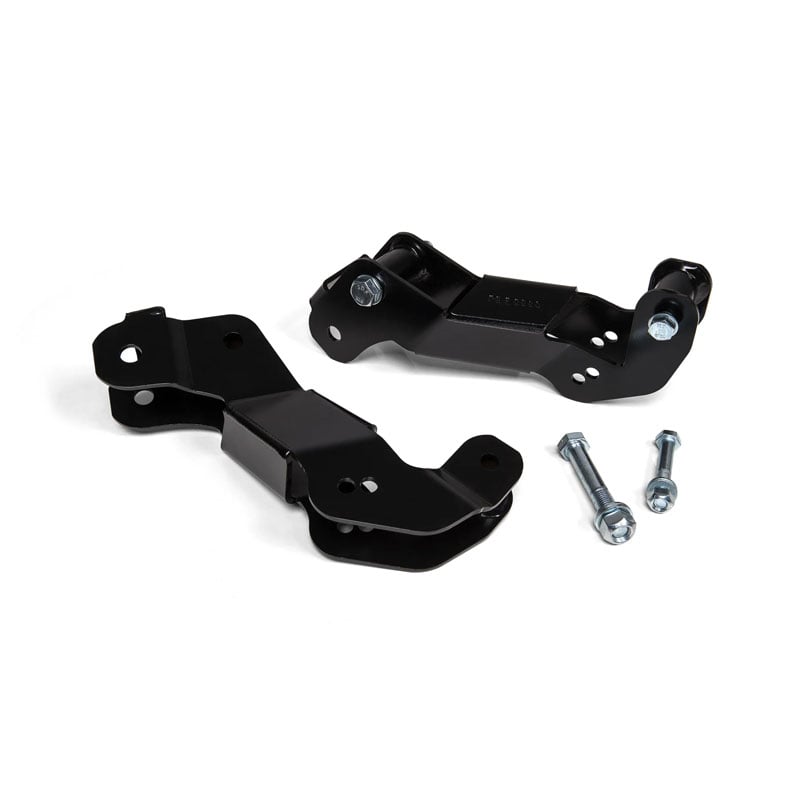

JKS Front Control Arm Correction Brackets 2-4.5" for 20-23 Wrangler JL Gladiator JT 3.0L EcoDiesel

Description

When lifting your JL or JT, good front control arm geometry is vital to have smooth operation of the front suspension. JKS has engineered front correction brackets to adjust your control are geometry to put your arms (and axle) back in the sweet spot to help your suspension work more effeciently. Designed for use with 2"-4.5" lift kits the brackets improve control arm operating angle to mimic or improve on factory arm angles as well as improve anti-dive during braking. Lowering the control arm mounting point slightly places the arms closer to the axle mount which corrects caster and geometry caused by the lifted ride height. Two mounting hole positions correct geometry for given lift heights. Heavy duty, 1pc, fully boxed 7GA steel brackets install inside the factory upper and lower control arm mounts with the factory hardware. The fully gusseted design you extra confidence both on and off road. For ultimate performance, Control Arm Correction Brackets can be used with JKS adjustable control arms. IMPORTANT NOTES: Requires 2" of front bump stop extension for adequate clearance at full suspension compression. JKS 2" bump stop extension are available separately (#1120) Can be used in conjunction with JKS or other aftermarket control arms that can be set to factory length. Designed for use with 2"+ lift. Ideal lift range is 2"-4.5" but can be used up to 6". Do not combine with any other drop/relocation brackets

Enter your zip and we'll see if installation is available.

Request quotes from local installers at checkout
Compare options and choose the best fit for your install

Free Customer Loyalty Program

No Salesmen, Just Enthusiasts

When lifting your JL or JT, good front control arm geometry is vital to have smooth operation of the front suspension. JKS has engineered front correction brackets to adjust your control are geometry to put your arms (and axle) back in the sweet spot to help your suspension work more effeciently. Designed for use with 2"-4.5" lift kits the brackets improve control arm operating angle to mimic or improve on factory arm angles as well as improve anti-dive during braking. Lowering the control arm mounting point slightly places the arms closer to the axle mount which corrects caster and geometry caused by the lifted ride height. Two mounting hole positions correct geometry for given lift heights. Heavy duty, 1pc, fully boxed 7GA steel brackets install inside the factory upper and lower control arm mounts with the factory hardware. The fully gusseted design you extra confidence both on and off road. For ultimate performance, Control Arm Correction Brackets can be used with JKS adjustable control arms.

IMPORTANT NOTES:

Requires 2" of front bump stop extension for adequate clearance at full suspension compression. JKS 2" bump stop extension are available separately (#1120)
Can be used in conjunction with JKS or other aftermarket control arms that can be set to factory length.
Designed for use with 2"+ lift. Ideal lift range is 2"-4.5" but can be used up to 6".
Do not combine with any other drop/relocation brackets

Vehicle Fitment

2020-2023 Jeep Wrangler JL 4WD|2020-2023 Jeep Gladiator JT

WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov

FEATURES & BENEFITS:

Correct control arm operating angle and mimic factory suspension geometry.
Improve on-road handling and control.
Corrects caster for 2"-4.5" of lift. Improves the front drive shaft CV joint operating angles.
Made from heavy-duty 7GA steel and are fully boxed and welded for superior strength.

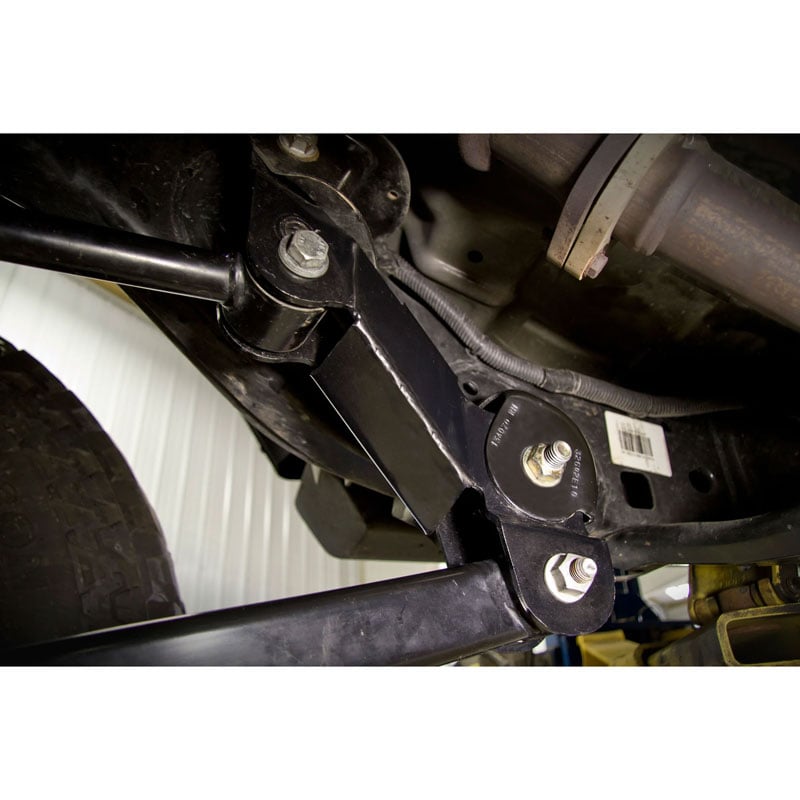

Install inside the factory upper and lower control arm mounts with the factory hardware.
