SKU #: FOX-983-02-143 MPN #: 983-02-143

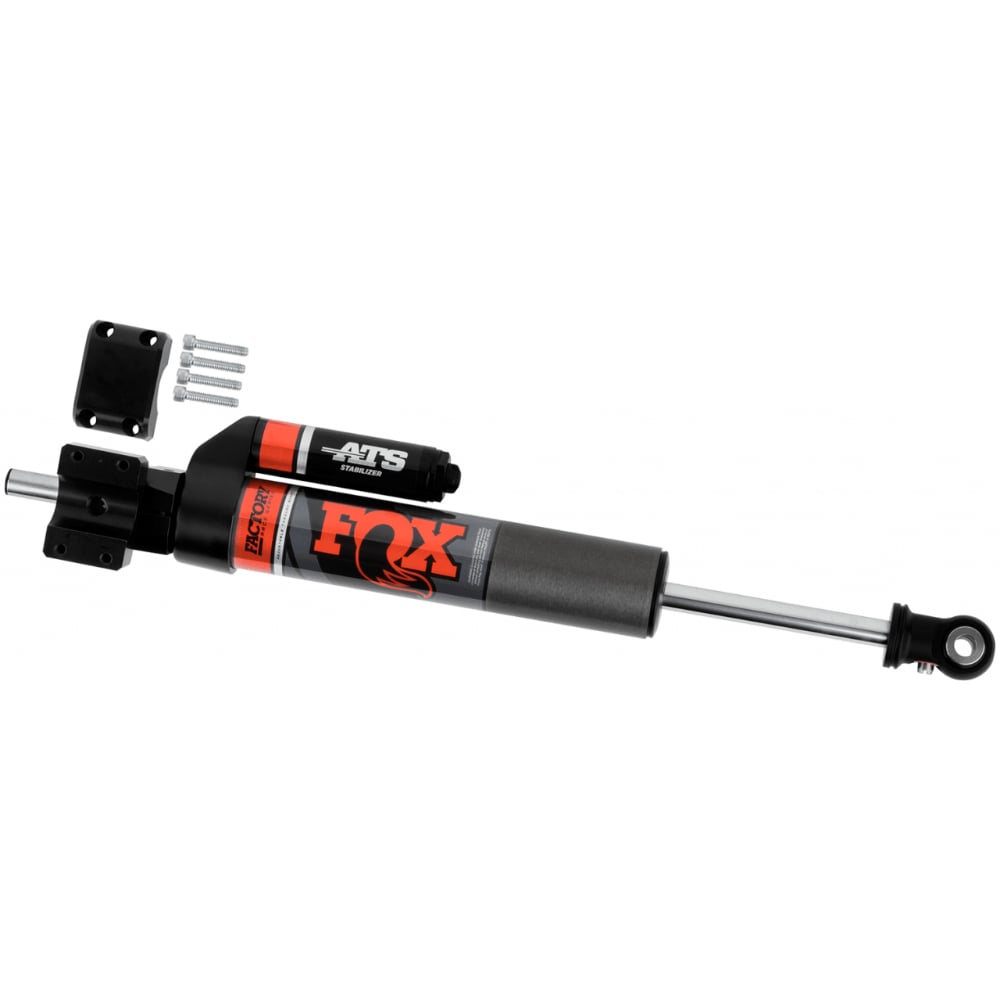

Fox 2.0 ATS Steering Stabilizer Shock 22-24 Ford 6.7L Powerstroke

$469.95
Get 469 points in loyalty rewards
Description
Using traditional steering stabilizers, when turning in a particular direction, pressure within the stabilizer rises. This occurs because the shaft occupies more volume within the body, displacing the oil. The repercussion is a push or pull steering force felt by the driver as the stabilizer attempts to return to its neutral state. To overcome this unidirectional force, dual opposing stabilizers are often used, but this requires additional mounting hardware and space. The Factory Race Series 2.0 Stabilizer ATS utilizes an Adjustable Through Shaft (ATS) architecture that eliminates shaft fluid displacement throughout the stabilizer’s entire travel in both directions. The external piggyback reservoir provides additional fluid capacity and utilizes an Internal Floating Piston (IFP) to separate the fluid from the nitrogen gas charge to eliminate cavitation. For increased control that can be tailored to any driving style and setup, an external adjuster provides 24 clicks of adjustment to fine tune the feel. The result is highly customizable and consistent damping of unwanted steering feedback in a single, bolt-on stabilizer.

Enter your zip and we'll see if installation is available.

  • Request quotes from local installers at checkout
  • Compare options and choose the best fit for your install

Using traditional steering stabilizers, when turning in a particular direction, pressure within the stabilizer rises. This occurs because the shaft occupies more volume within the body, displacing the oil. The repercussion is a push or pull steering force felt by the driver as the stabilizer attempts to return to its neutral state. To overcome this unidirectional force, dual opposing stabilizers are often used, but this requires additional mounting hardware and space.

The Factory Race Series 2.0 Stabilizer ATS utilizes an Adjustable Through Shaft (ATS) architecture that eliminates shaft fluid displacement throughout the stabilizer’s entire travel in both directions. The external piggyback reservoir provides additional fluid capacity and utilizes an Internal Floating Piston (IFP) to separate the fluid from the nitrogen gas charge to eliminate cavitation. For increased control that can be tailored to any driving style and setup, an external adjuster provides 24 clicks of adjustment to fine tune the feel. The result is highly customizable and consistent damping of unwanted steering feedback in a single, bolt-on stabilizer.

Manuals and Guides
Vehicle Fitment
2022-2023 Ford 6.7L Powerstroke
WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov
FEATURES & BENEFITS:
  • Body: 2.0” impact extruded and CNC machined 6061-T6 clear anodized aluminum body resists rust over time
  • Body Plating: Hard-anodized for a durable finish
  • Reservoir: External reservoir design separates shock oil from the high-pressure nitrogen
  • Components: Black-anodized, CNC-machined 6061-T6 billet aluminum
  • Shaft: 5/8" hard chrome plated heat-treated alloy steel
  • Piston: Race-developed high-flow piston design
  • Valving: Application specific valving to maximize performance
  • Seals: Redundant sealing pack system main seal, wiper seal, scraper seal
  • Bushings: Quiet nitrile rubber allows for increased suspension articulation
  • Adjustments: Adjuster - 24 clicks of adjustability
  • Extended: 22.190
  • Compressed: 14.090
  • Travel: 8.110
  • Top Mount: Tie Rod Clamp
  • Bottom Mount: Eyelet
  • Fitment notes: Requires drop bracket for greater than 1.5" lift
About FOX Shocks

FOX is a legend when it comes to shock technology. They do it right, and they've been doing it right for thirty plus years. Starting out in 1974, Bob Fox began the first prototypes of what would later be dubbed FOX AirShox on a Maico dirt bike being built in a friend's garage. From their roots in motorcycles, FOX has grown their expertise into nearly anything automotive and powersports, from snowmobiles, motorcycles, ATV's, off-road cars and trucks, and even bicycles. If it has wheels and can play offroad, FOX has an application.

FOX is continually raising the bar in each of their sectors with a fleet of sponsored riders and racers that allow their shocks to be pushed to the limits, and then determining ways to make the product even better for each application. Fox team members have stood atop the podiums in every sport they have competed in. What this means to you is that you get a race-proven component that can withstand extreme abuse, even if you're using it for novice level activities.

FOX SHOCKS FOR TRUCKS

Does Fox make shocks for trucks? You bet they do! While Fox does not make complete suspension systems, they do manufacture a fleet of varying shock options for both stock height trucks, as well as lifted. Youll even find Fox Shocks coming as included standard equipment in numerous lift kits. Beyond varying lift heights, Fox has a few different options when it comes to selecting the right shocks for your truck.

FOX SHOCKS 2.0

In terms of the various levels of shocks that Fox builds, things start out with their Performance Series. The Performance Series are a range of 2.0 diameter shocks available in IFP (Internal Floating Piston) monotube, remote reservoir, and coil over depending on the application. These are our most popular option because of their wide range of fitments, quality, and price. Beyond the Performance Series, youll find the Performance Elite Series that feature 2.5 diameter shock bodies and larger shafts to deliver a higher level of confidence and performance in more off-road situations. Finally, Fox rounds things off in their Factory Race Series with 2.5 and 3.0 bodies and a ton of cool features to help you go VERY fast off road.

FOX SHOCKS FOR F-250

The Ford F-250 SuperDuty is one of the most popular vehicles to upgrade with a set of Fox Shocks and/or steering stabilizer. For the most part Ford did a good job of carrying over the fitment of their shocks over numerous model years. For instance, the 1999-2016 all have the same rear shock and 2005-2016 the same front. Thats a HUGE range! Or you can step up your steering stabilizer to one of the Fox 2.0 Performance Series or really go big with a Fox Factory Series ATS that features a passthrough body for the shaft, meaning you get equal pressure in both directions!

RAM 2500 FOX SHOCKS

Another very popular vehicle upgraded with Fox Shocks is the Ram 2500. For the 1994-2013 Ram 2500s, they were also all the same fitment both front and rear shocks, carrying through the 2nd Gen, 3rd Gen, and even 4th Gen series Rams.

FOX RACING SHOCKS

Racing or not, Fox has a series of Race series shocks intended for those of us really pushing our suspension to the limits or merely demand the very best suspension performance. Complementing a proper suspension system with the right shocks can and will make all of the difference in the ride quality and overall suspension performance.

SHOP FOX SUSPENSION AND SHOCKS AT DPP!

We at Diesel Power Products carry a wide range of Fox Shocks and Steering Stabilizers. If youre having trouble determining which set of Fox Shocks is right for you and your truck, dont hesitate to give us a call or send an e-mail and we would be happy to help!
