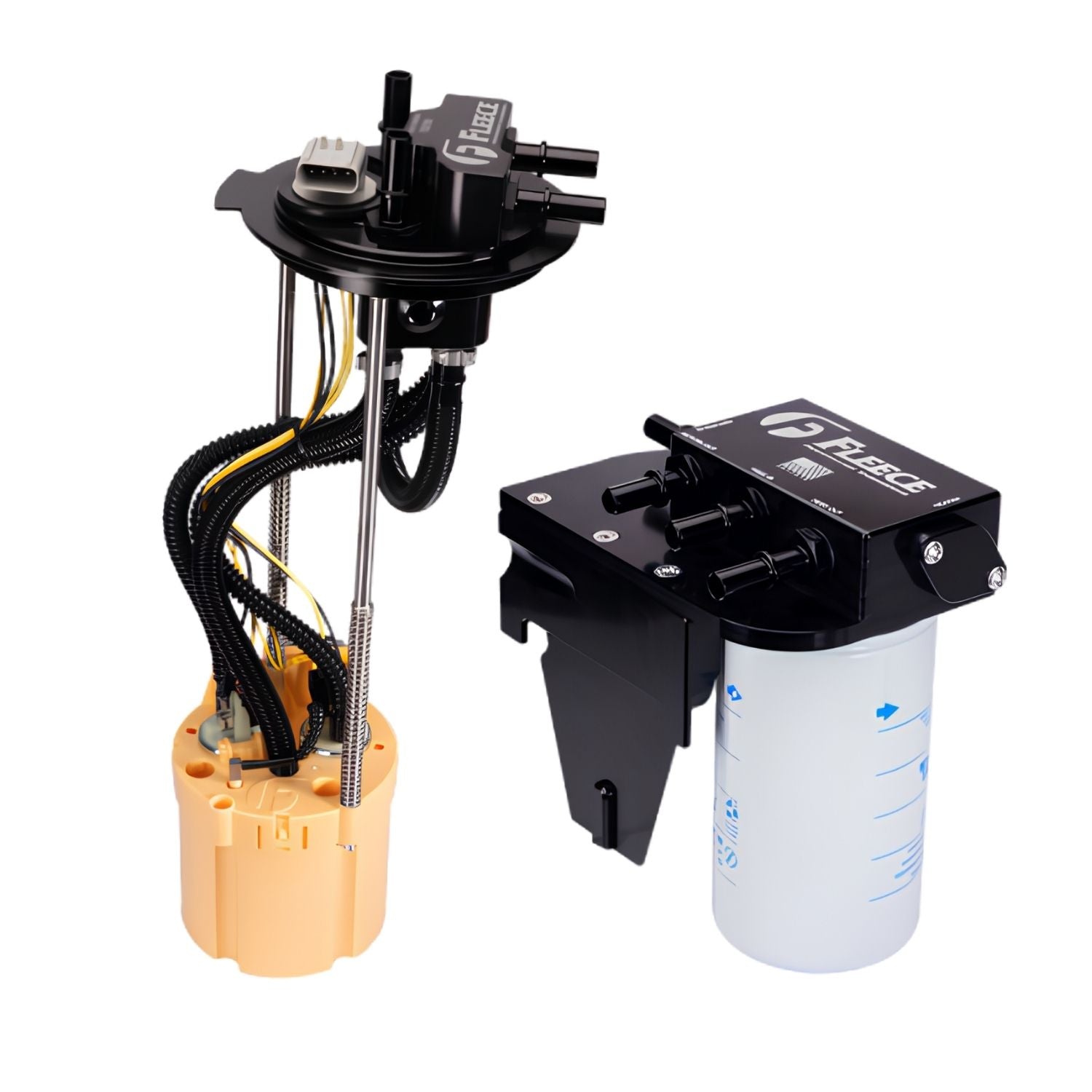

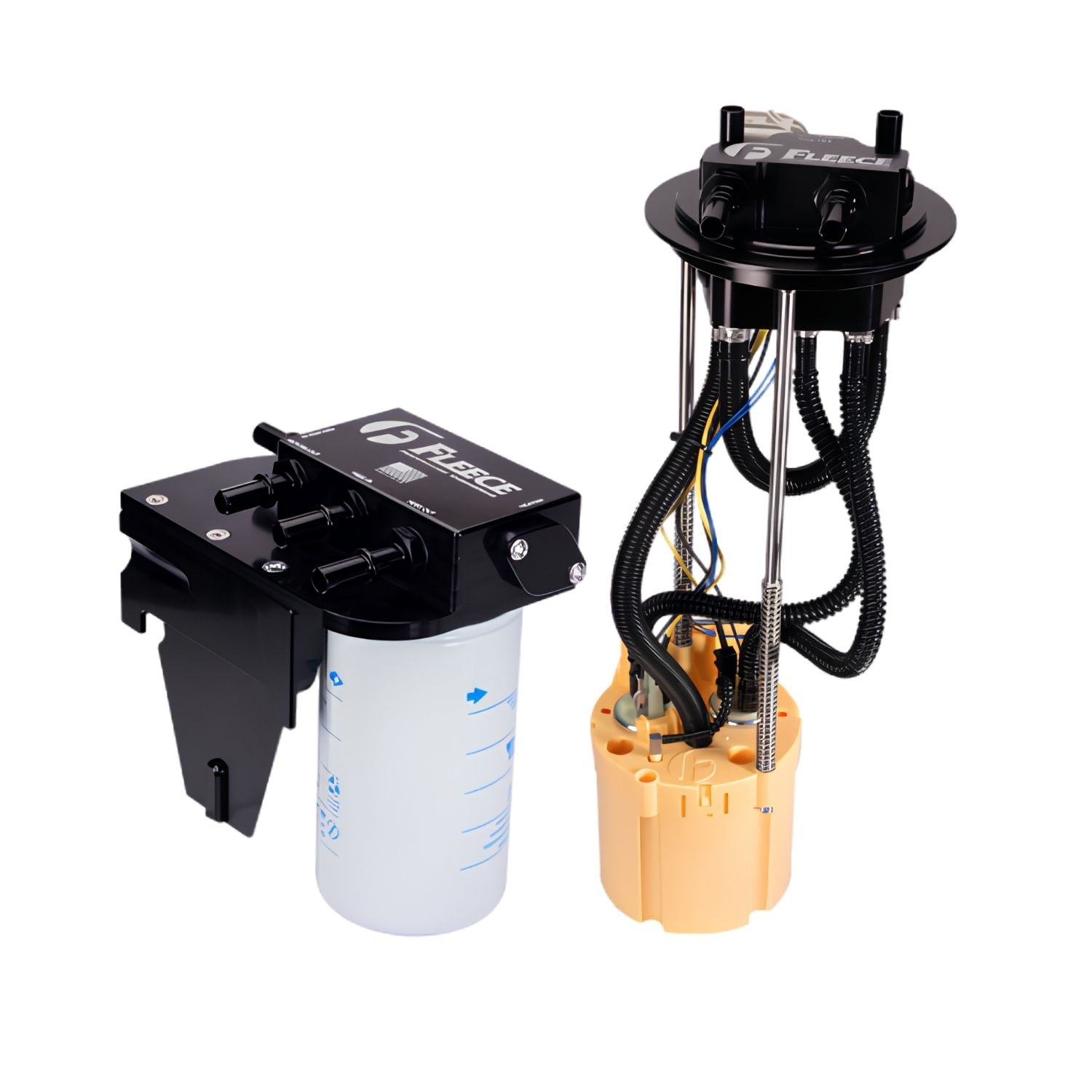

Fleece Performance PowerFlo Lift Pump with Under Bed Filter 17-24 Ford 6.7L Powerstroke
Description

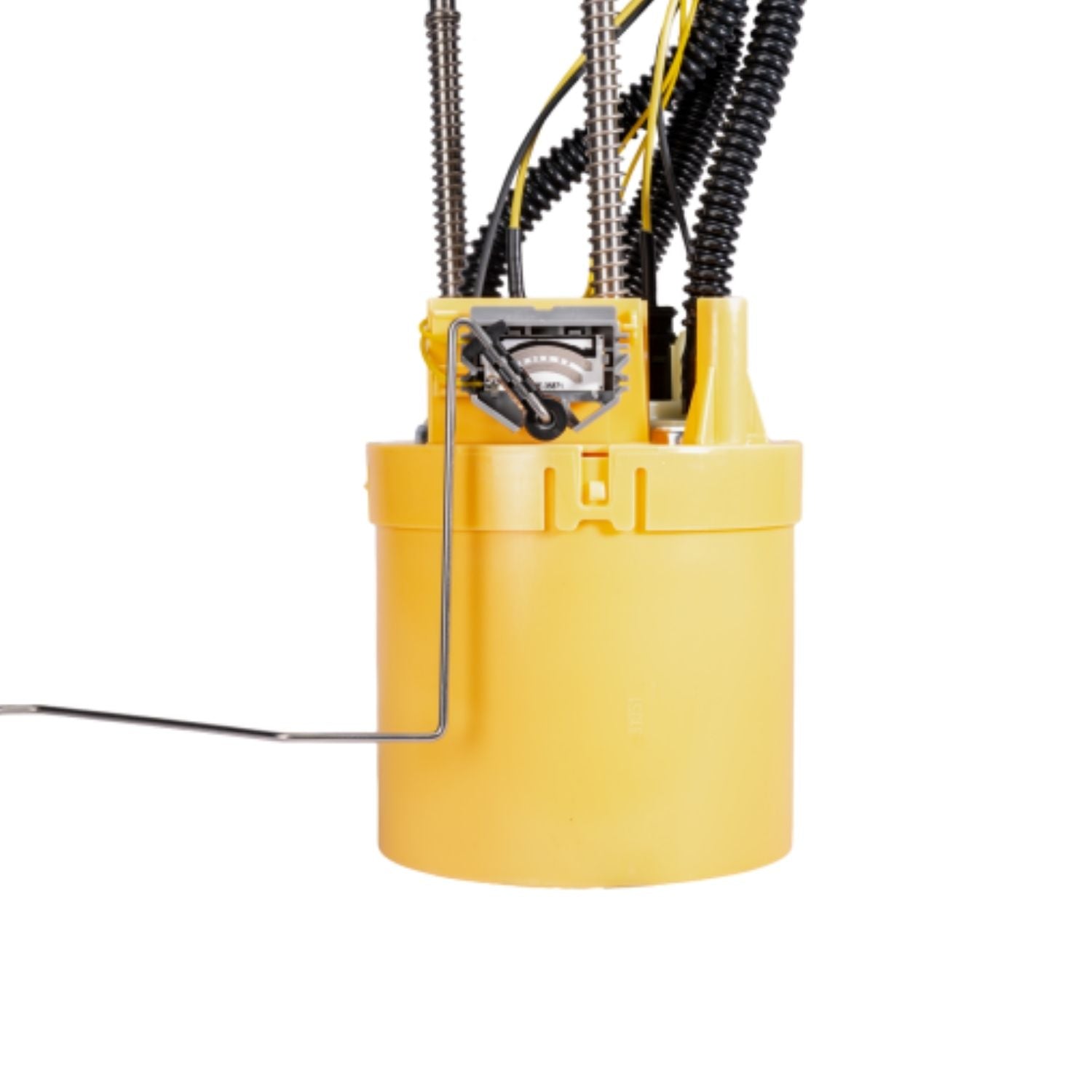

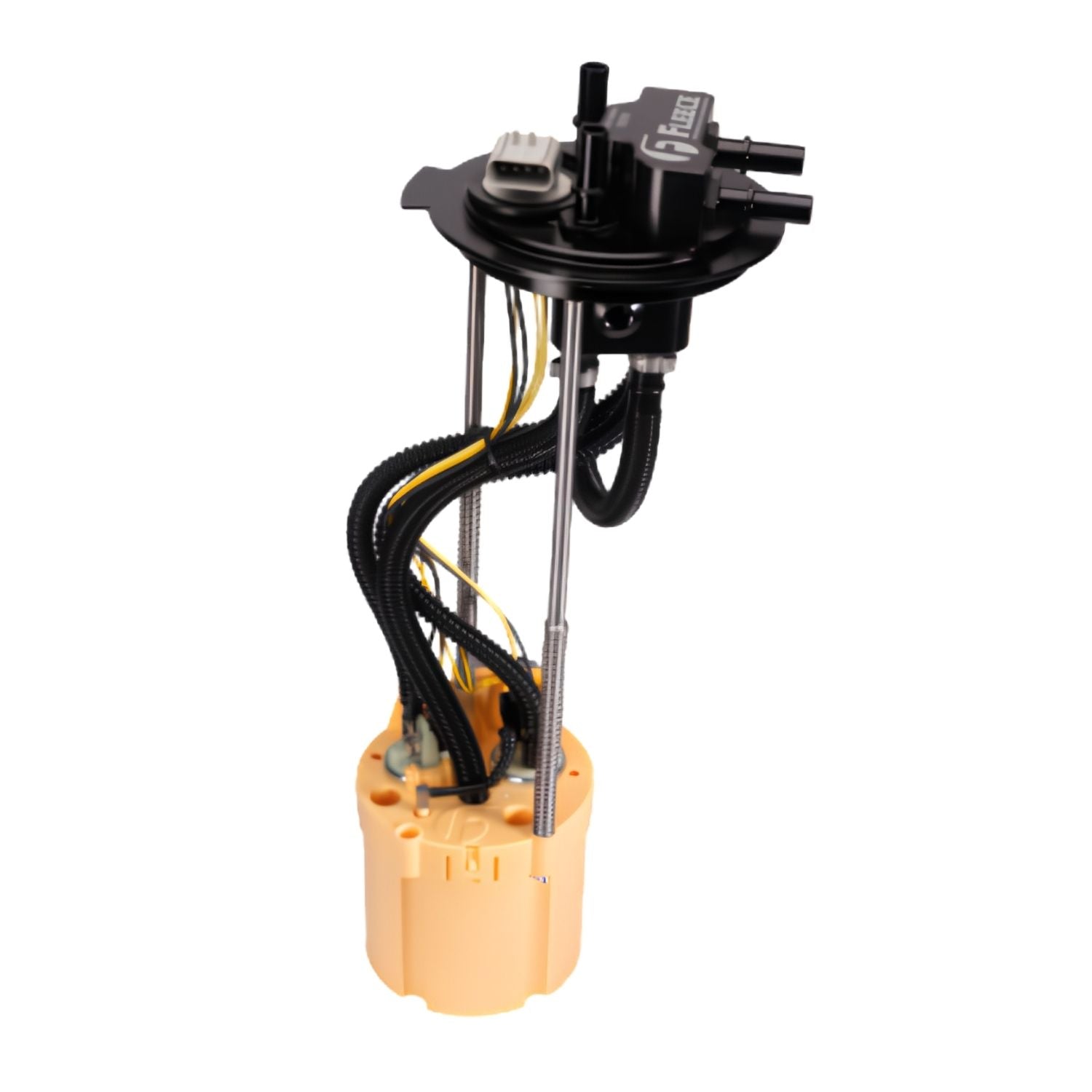

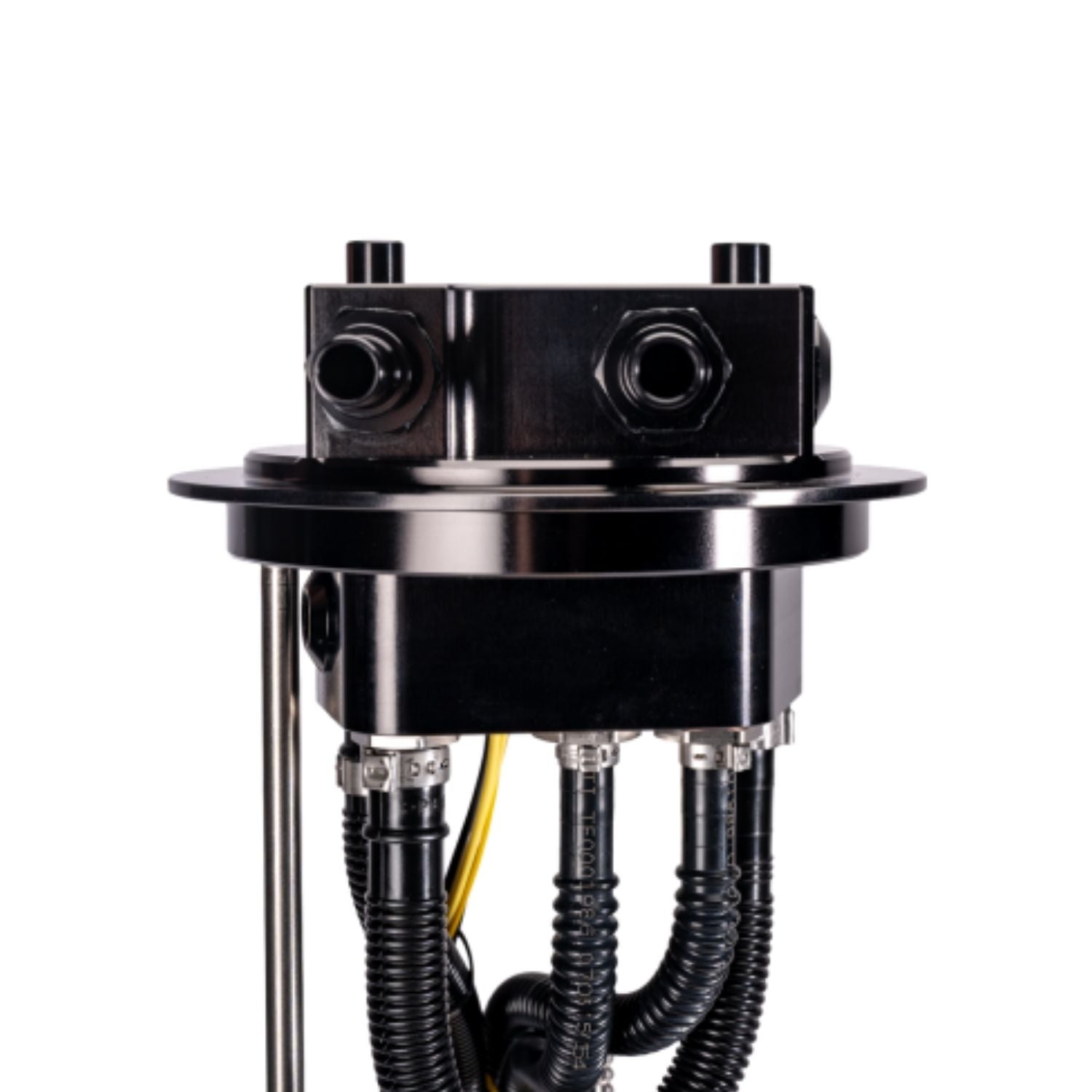

If you want more fuel support from your Ford 6.7L Power Stroke without converting to a frame-mounted lift pump setup, the Fleece Performance PowerFlo Lift Pump with Under Bed Filter Kit keeps the upgrade simple and close to the factory design! The PowerFlo replaces the factory in-tank pump and uses dual ultra-quiet gerotor pumps to increase fuel flow while supporting applications up to 800 HP. It retains the factory fuel lines, fuel tank, harness, and fuel control module functionality, so no cutting, splicing, tank sump, or draw straw is required. An active fill bucket helps maintain consistent fuel supply and avoids the common 1/4-tank issues associated with some higher-flow fuel systems. The pump also features threaded outlet and return ports that accept -8 O-ring fittings with 3/4"-16 threads for owners who want to run aftermarket fuel lines.

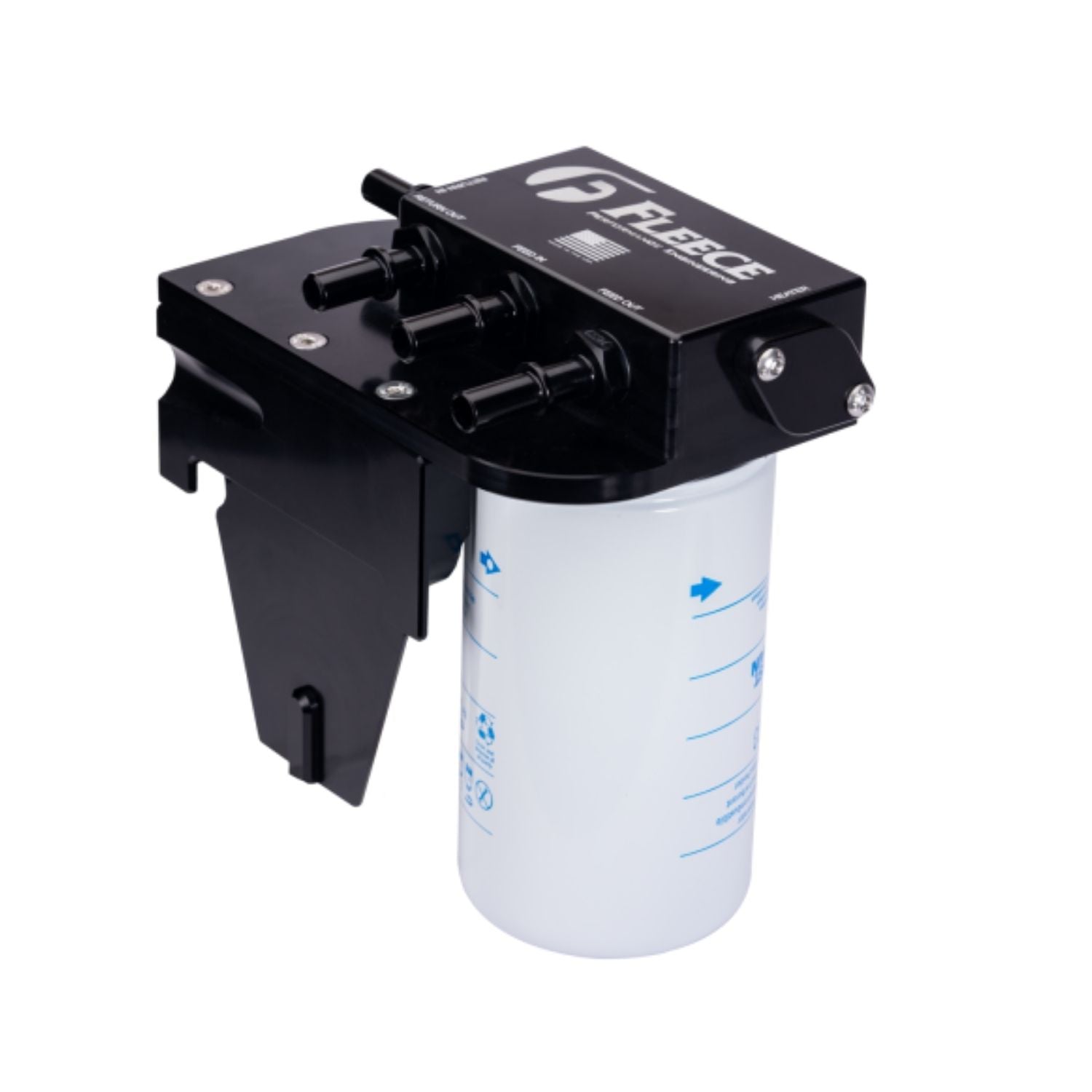

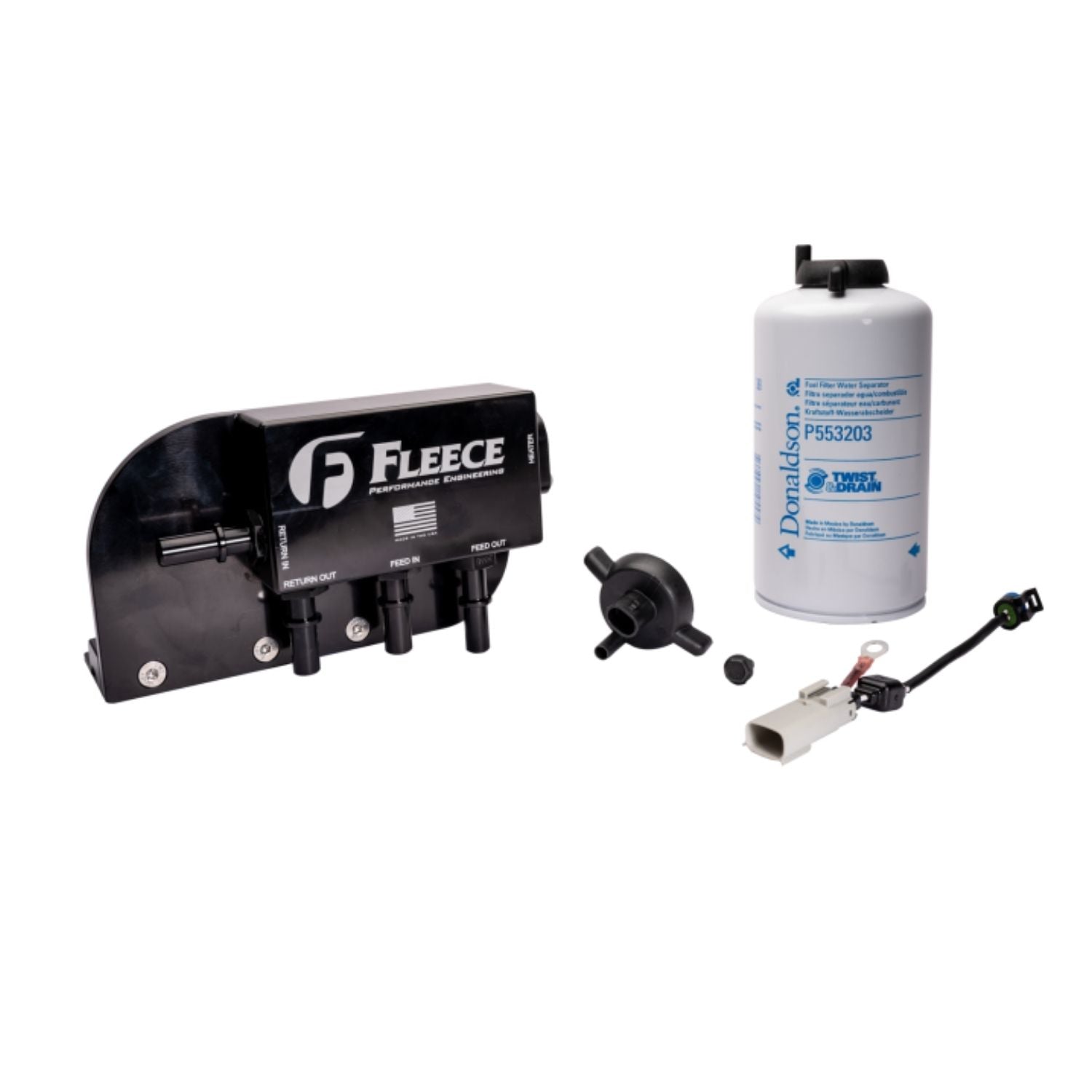

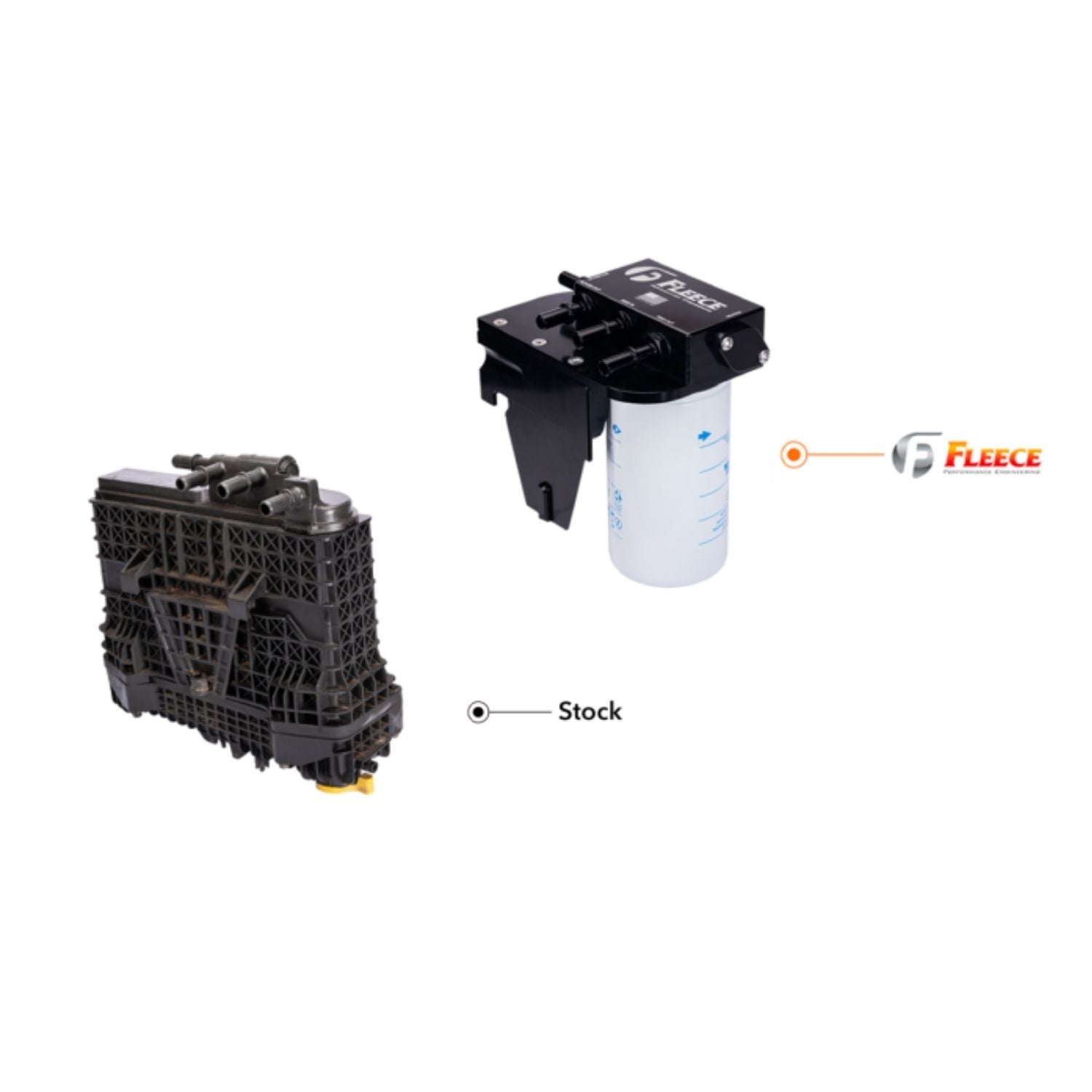

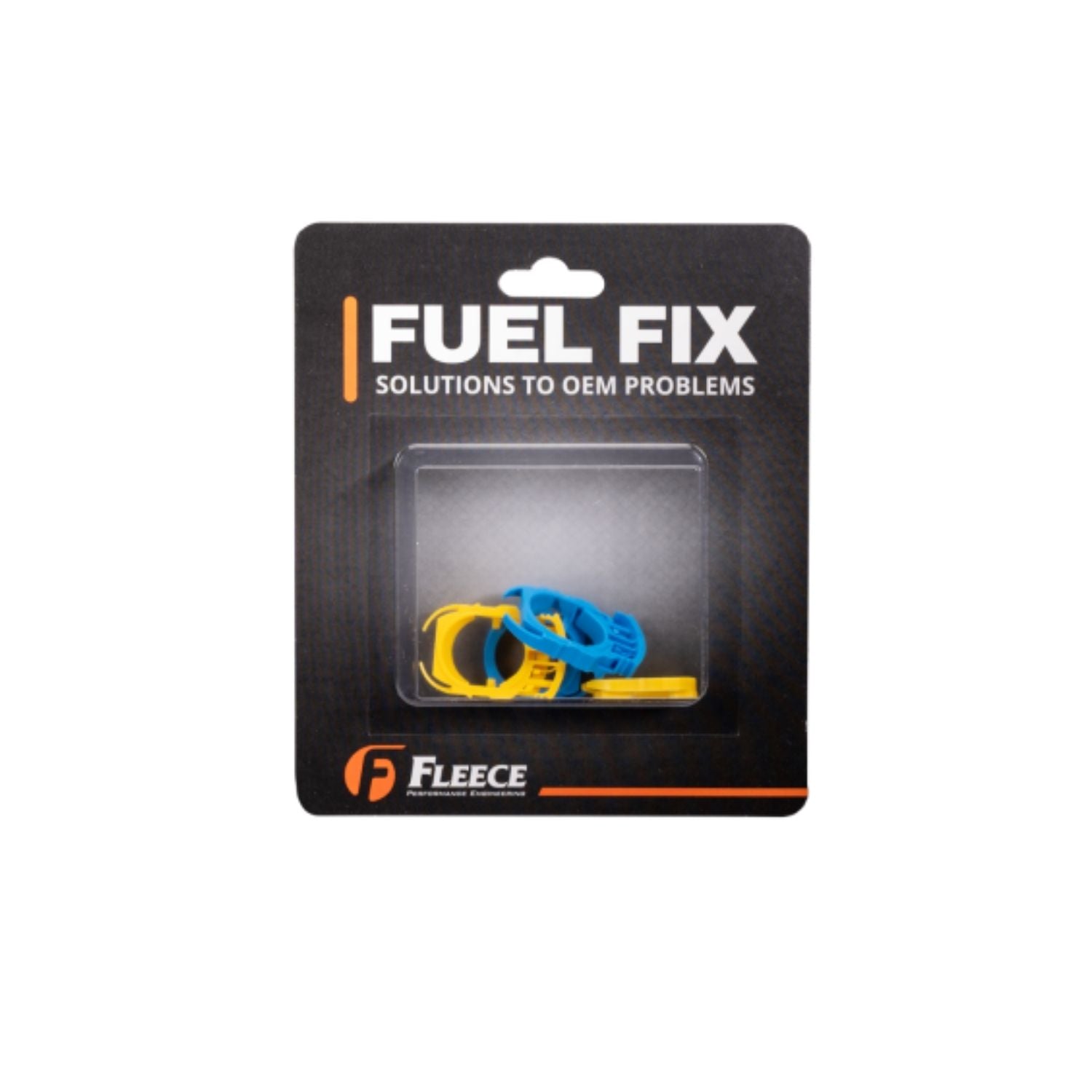

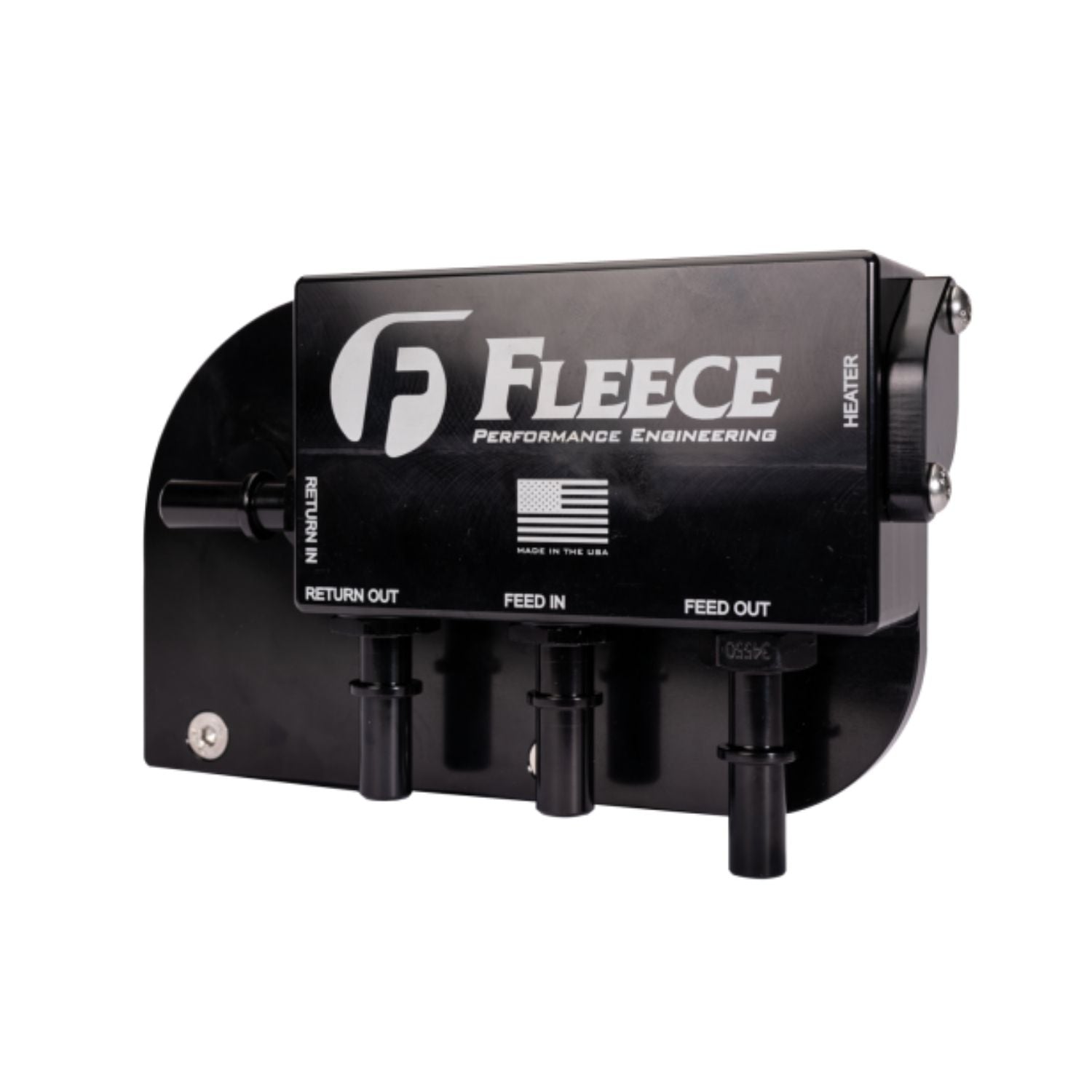

The included under-bed filter kit replaces the factory filter housing in its original mounting location and connects directly to the factory fuel lines for a clean installation. It converts the truck to a convenient spin-on Donaldson P553203 fuel filter, providing 99% efficiency at 4 microns along with improved water separation. Factory water-in-fuel functionality is retained via the included sensor and electrical extension harness, and the billet aluminum filter base has provisions for an optional Fleece fuel heater. The PowerFlo installs in less than half the time of many frame-mounted high-flow lift pumps, and the complete kit includes the PowerFlo pump with integrated fuel level sender, chassis wiring adapter harness, fuel sending unit tank O-ring, assembled filter base and Donaldson filter, water-in-fuel sensor and extension harness, mounting bolt, and replacement fuel line retaining clips.
This system has been tested with S&S Diesel Motorsport DCR conversion and CP4 Disaster Prevention kits and is validated for fuel containing up to 20% biodiesel. Both Short Bed and Long Bed versions are compatible with Titan aftermarket fuel tanks, while the Short Bed version is also confirmed for S&B short-bed aftermarket tanks. The Long Bed version does not fit the S&B long-bed fuel tank P/N 10-1008, and neither version fits Cab & Chassis applications. For owners looking for an even more complete 6.7L Power Stroke fuel filtration setup, the system can also be paired with the Fleece Performance under-hood filter base P/N FPE-FMC-UHFA-1123.
Install Instructions Under Bed Fuel Filter Assembly
PowerFlo Installation Instructions
IMPORTANT FITMENT NOTES:
Short Bed: Compatible with S&B short-bed aftermarket fuel tanks.
Long Bed: Not compatible with the S&B long-bed aftermarket fuel tank (P/N 10-1008).
Titan Fuel Tanks: Both Short Bed and Long Bed variants are compatible with Titan aftermarket fuel tanks.
Cab & Chassis: The PowerFlo lift pump is not compatible with Cab & Chassis applications.
Choose add-ons
Enter your zip and we'll see if installation is available.
- Request quotes from local installers at checkout
- Compare options and choose the best fit for your install
About WrenchConnected
WrenchConnected is an independent installation marketplace operating in partnership with Diesel Power Products.
How it works
After checkout, we route your vehicle info and part SKU to verified installation shops near you. Local installers review the job and submit competitive bids; you pick the shop you want based on price, reviews, and availability. Your name and email stay private until you select an installer.
Pricing
You pay for the bid from your preferred shop. The full amount is shown before you confirm — installers cannot add charges without your written consent. Payments are processed securely by Stripe.
Your privacy
During bidding, shops see only your service ZIP code, vehicle year/make/model, and the part SKU — not your name, email, or address. Only the shop you select receives your contact details after payment. We never sell your personal information.
More detail at wrenchconnected.com.
FEATURES & BENEFITS:
POWERFLO KIT INCLUDES:
POWERFLO CROSS-REFERENCE:
- Dual ultra-quiet gerotor pumps provide increased fuel flow while supporting applications up to 800 HP
- Direct in-tank replacement retains the factory fuel lines for a clean, factory-style installation
- Plug-and-play design requires no cutting, splicing, tank sump, draw straw, or modification of the factory fuel tank
- Active fill bucket helps maintain consistent fuel delivery and prevents common 1/4-tank fuel supply issues
- Retains factory fuel control module functionality to regulate fuel delivery based on engine load
- Under-bed filter assembly mounts in the factory location and connects directly to the existing fuel lines
- Donaldson P553203 spin-on filter provides 99% efficiency at 4 microns with effective water separation
- Retains factory water-in-fuel sensor functionality for seamless integration with the truck

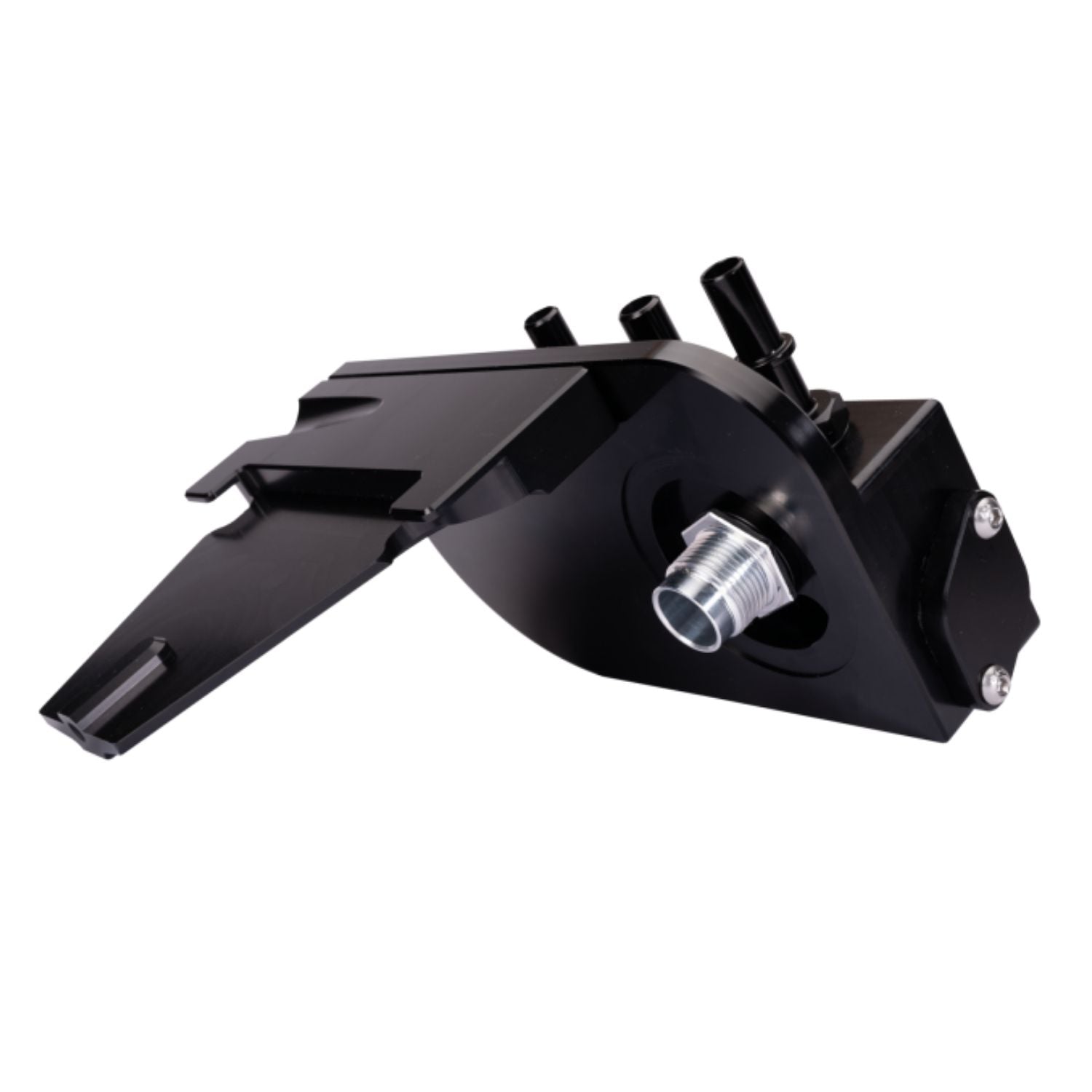

- Billet aluminum filter base includes a provision for an optional fuel heater for cold-weather use
- Installs in less than half the time of many frame-mounted high-flow lift pump systems

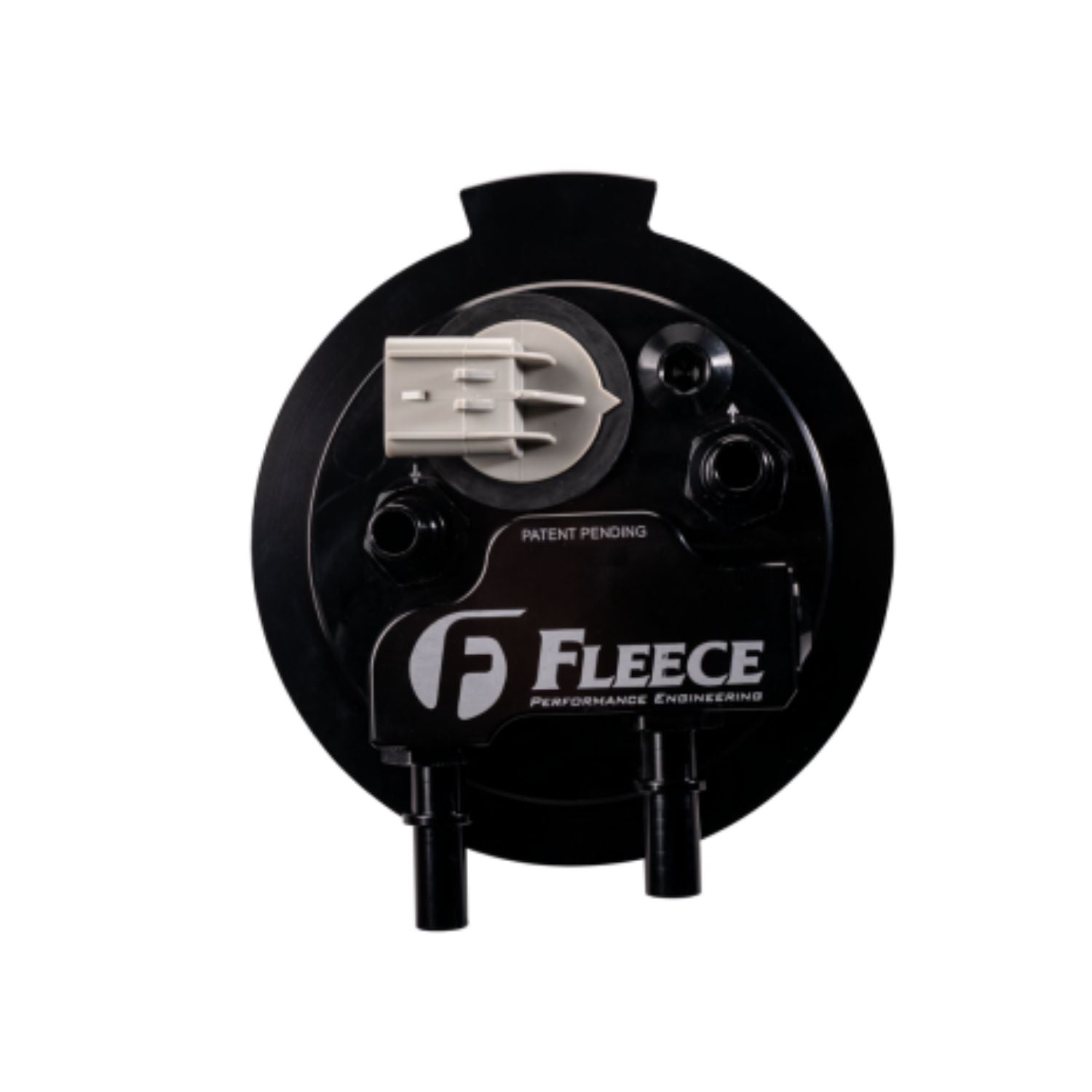

- Threaded pump outlet and return accept -8 O-ring fittings for use with aftermarket fuel lines
- Tested for compatibility with S&S Diesel Motorsport DCR conversion and CP4 Disaster Prevention kits
- Validated for use with fuel containing up to 20% biodiesel

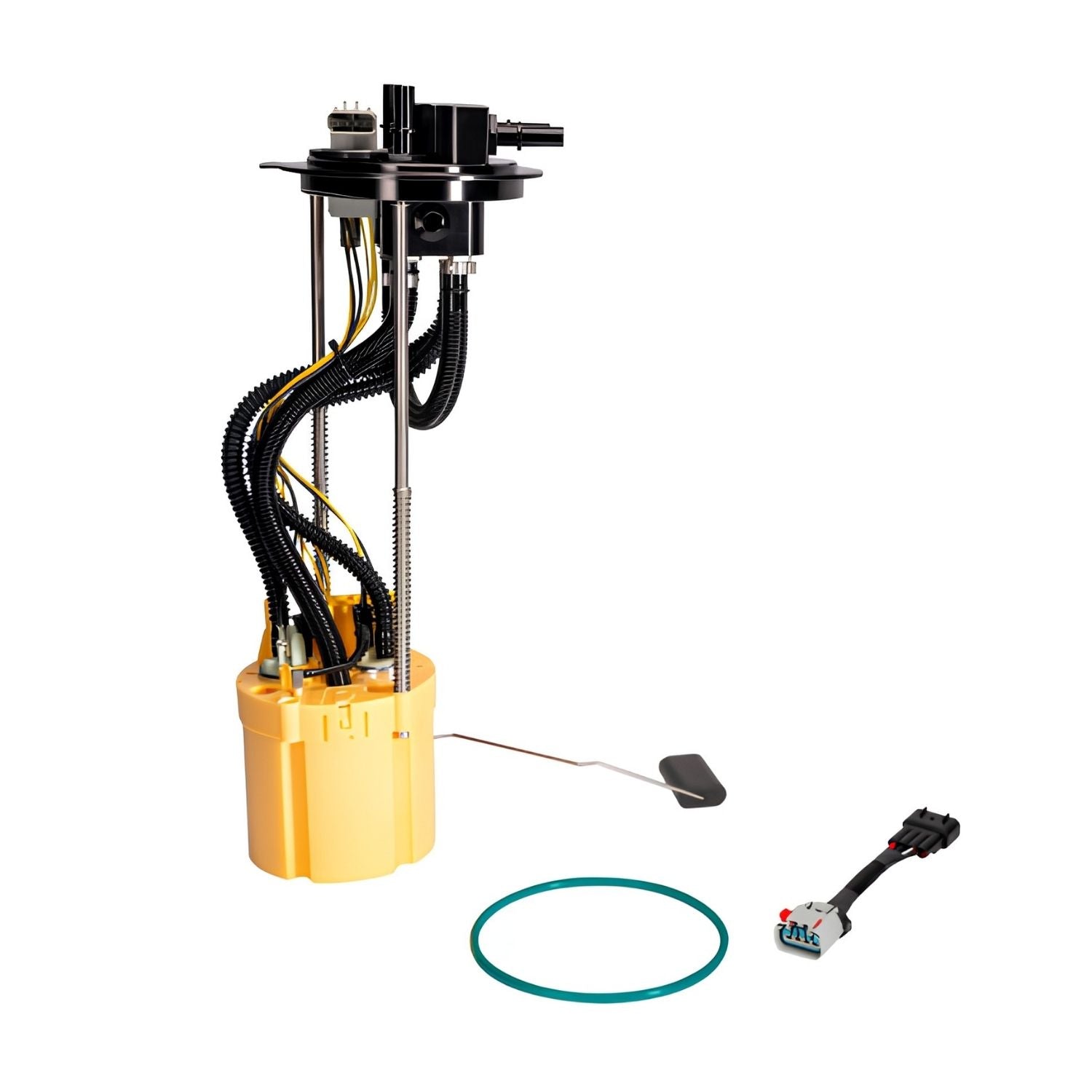

POWERFLO KIT INCLUDES:
- (1) PowerFlo Lift Pump with integral fuel level sender
- (1) chassis wiring adapter harness
- (1) fuel sending unit tank O-ring
POWERFLO CROSS-REFERENCE:
- Short Bed: FPE-PF-FMC-1724-SB — Replaces Ford OE P/N HC3Z-9H307AQ
- Long Bed: FPE-PF-FMC-1724-LB — Replaces Ford OE P/N HC3Z-9H307AR
