Fleece Performance PowerFlo Lift Pump 17-24 Ford 6.7L Powerstroke

$849.45

Get 849 points in loyalty rewards

Fleece Performance PowerFlo Lift Pump for 2017-2024 Ford 6.7L Power Stroke

Fleece PowerFlo in-tank lift pump for Ford 6.7L Power Stroke diesel

Fleece Performance PowerFlo dual gerotor fuel lift pump for Ford Super Duty

PowerFlo Lift Pump kit with wiring harness for 2017-2024 Ford 6.7L Power Stroke

Fleece Performance PowerFlo fuel pump upgrade for Ford 6.7L Power Stroke truck

Description

If your Ford 6.7L Power Stroke needs more fuel supply than the factory lift pump can comfortably provide, you shouldn't have to completely rework the fuel system to get it. The Fleece Performance PowerFlo Lift Pump delivers the increased fuel flow of a high-performance setup while keeping the clean, in-tank design of the factory system. Its dual ultra-quiet gerotor pumps provide increased flow capacity to support applications up to 800 HP without the noticeable pump noise commonly associated with frame-mounted systems. Consistent fuel delivery matters just as much as increased flow. The PowerFlo uses an active fill bucket to keep fuel available to the pumps, even as the tank level drops. This helps eliminate common 1/4-tank fuel delivery issues while avoiding the need for a tank sump, draw straw, or additional air filtration. The factory fuel control module is also retained, allowing the truck to continue adjusting fuel delivery pressure based on engine load for smooth, consistent operation. Installation is designed to be straightforward. The PowerFlo is a direct in-tank replacement that retains the factory fuel lines, wiring harness, and fuel tank, so there is no cutting, splicing, or permanent modification required. Fleece states that it installs in less than half the time of many frame-mounted high-flow lift pumps. For custom fuel systems, the pump outlet and return are threaded to accept -8 O-ring fittings with 3/4"-16 threads. It has also been tested with S&S Diesel Motorsport DCR conversion and CP4 Disaster Prevention Kits, confirmed for use with approved Titan and S&B aftermarket fuel tanks, and validated for fuel containing up to 20% biodiesel. The PowerFlo must be used with the Fleece Performance FPE-FMC-UBFA-1724 under-bed fuel filter kit and is not compatible with the factory under-bed filter assembly or FASS Drop-In Series filters. It does not fit cab and chassis applications. Each kit includes the PowerFlo Lift Pump with an integrated fuel level sender, chassis wiring adapter harness, and fuel sending unit tank O-ring. Short-bed and long-bed versions are available to match the truck's configuration. IMPORTANT NOTE: The FPE-FMC-UBFA-1724 Under-Bed Fuel Filter Kit is the only under-bed filter kit compatible with this PowerFlo Lift Pump and is sold separately. Do not use with the factory under-bed filter assembly or other under-bed filter kits.

Select Bed Length

Product photos may not match the selected option. Please confirm your choice before adding to cart.

Choose add-ons

Add Fleece Donaldson Replacement Fuel Filter 17-22 GM 6.6L Duramax L5P / 98.5-18 Ram 5.9/6.7L Cummins +$27.99

Enter your zip and we'll see if installation is available.

Request quotes from local installers at checkout
Compare options and choose the best fit for your install

Free Customer Loyalty Program

No Salesmen, Just Enthusiasts

If your Ford 6.7L Power Stroke needs more fuel supply than the factory lift pump can comfortably provide, you shouldn't have to completely rework the fuel system to get it. The Fleece Performance PowerFlo Lift Pump delivers the increased fuel flow of a high-performance setup while keeping the clean, in-tank design of the factory system. Its dual ultra-quiet gerotor pumps provide increased flow capacity to support applications up to 800 HP without the noticeable pump noise commonly associated with frame-mounted systems.

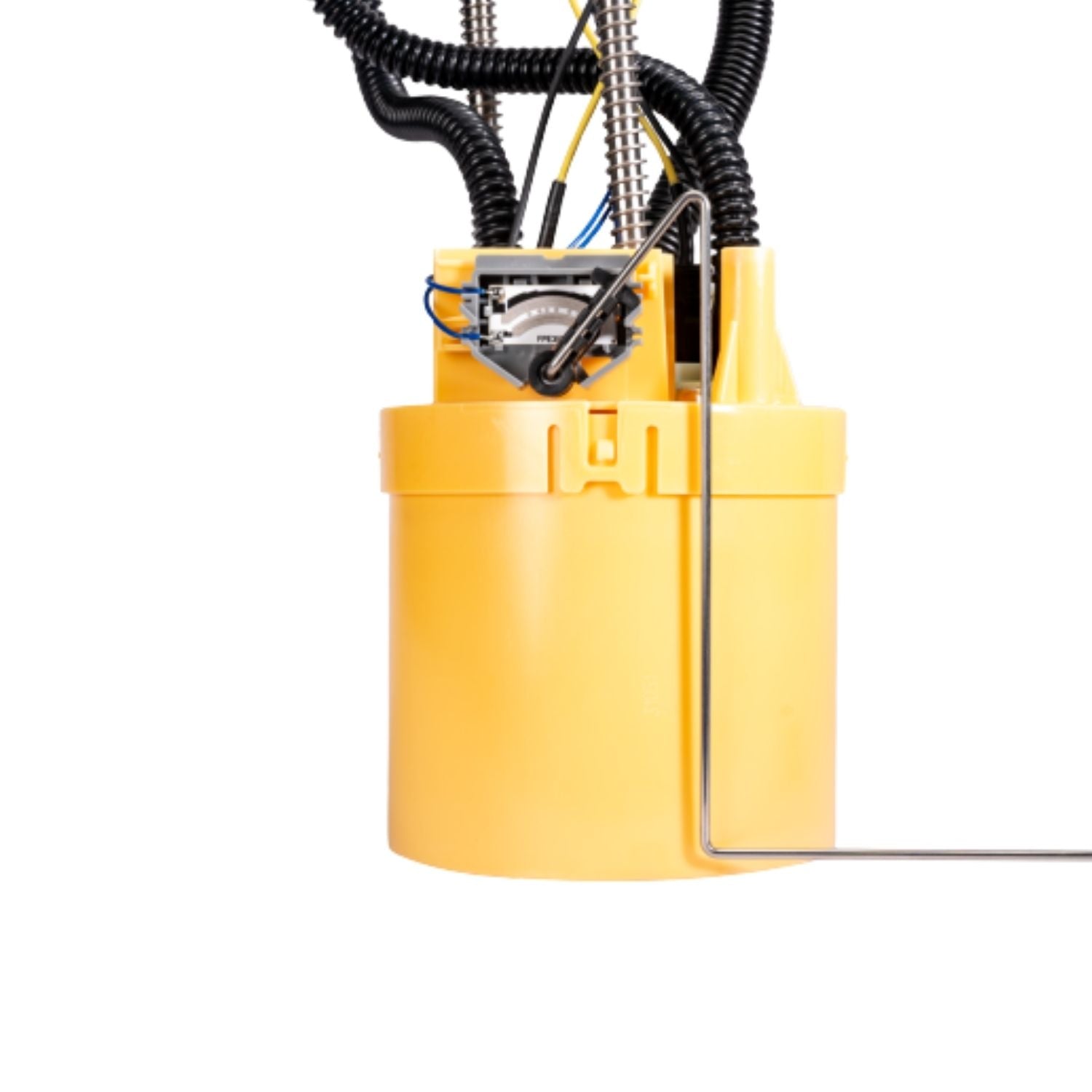

Consistent fuel delivery matters just as much as increased flow. The PowerFlo uses an active fill bucket to keep fuel available to the pumps, even as the tank level drops. This helps eliminate common 1/4-tank fuel delivery issues while avoiding the need for a tank sump, draw straw, or additional air filtration. The factory fuel control module is also retained, allowing the truck to continue adjusting fuel delivery pressure based on engine load for smooth, consistent operation.

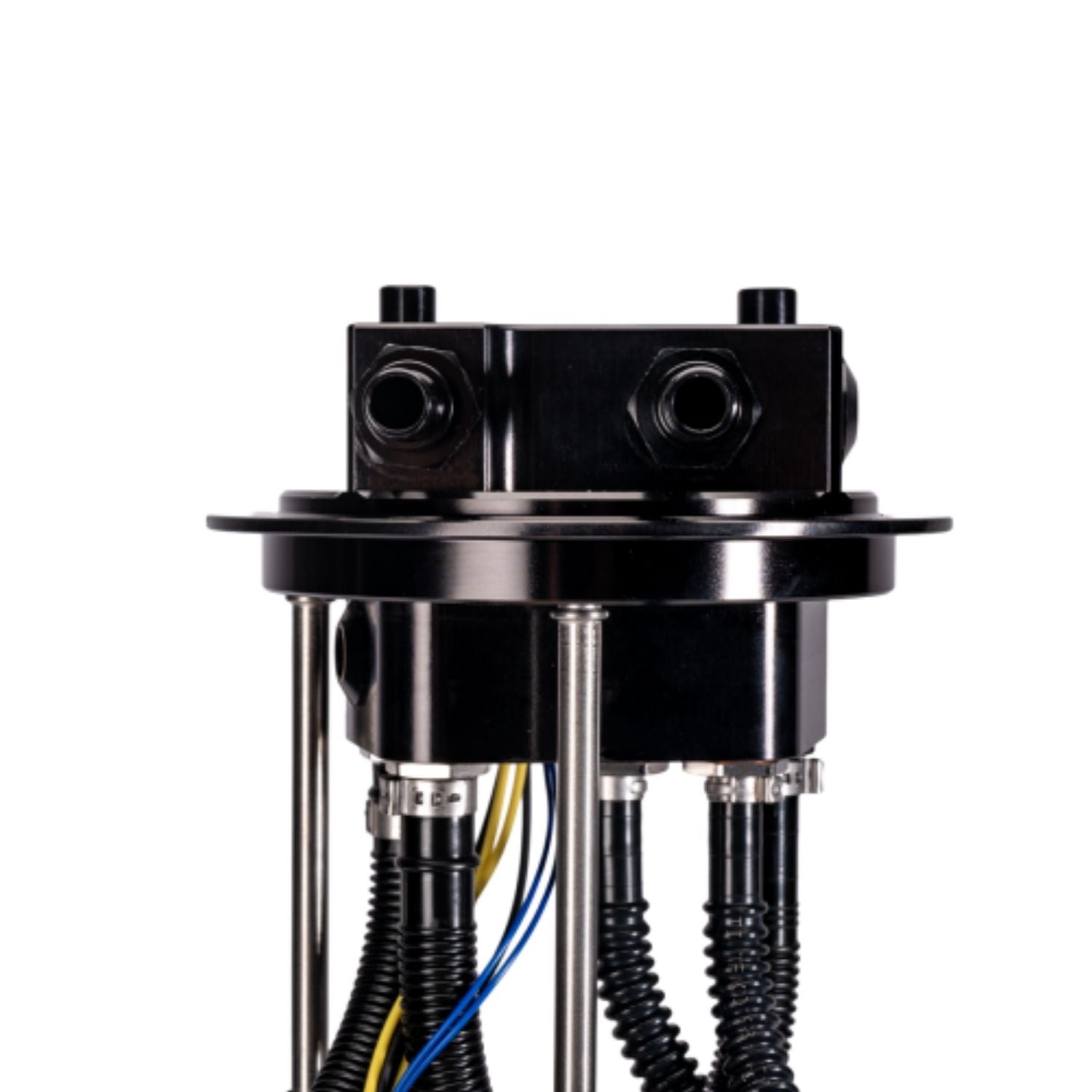

Installation is designed to be straightforward. The PowerFlo is a direct in-tank replacement that retains the factory fuel lines, wiring harness, and fuel tank, so there is no cutting, splicing, or permanent modification required. Fleece states that it installs in less than half the time of many frame-mounted high-flow lift pumps. For custom fuel systems, the pump outlet and return are threaded to accept -8 O-ring fittings with 3/4"-16 threads. It has also been tested with S&S Diesel Motorsport DCR conversion and CP4 Disaster Prevention Kits, confirmed for use with approved Titan and S&B aftermarket fuel tanks, and validated for fuel containing up to 20% biodiesel.

The PowerFlo must be used with the Fleece Performance FPE-FMC-UBFA-1724 under-bed fuel filter kit and is not compatible with the factory under-bed filter assembly or FASS Drop-In Series filters. It does not fit cab and chassis applications. Each kit includes the PowerFlo Lift Pump with an integrated fuel level sender, chassis wiring adapter harness, and fuel sending unit tank O-ring. Short-bed and long-bed versions are available to match the truck's configuration.

IMPORTANT NOTE: The FPE-FMC-UBFA-1724 Under-Bed Fuel Filter Kit is the only under-bed filter kit compatible with this PowerFlo Lift Pump and is sold separately. Do not use with the factory under-bed filter assembly or other under-bed filter kits.

NOT LEGAL FOR SALE OR USE IN CALIFORNIA

Manuals and Guides

INSTALL INSTRUCTIONS

Vehicle Fitment

2017-2024 Ford 6.7L Powerstroke 250/350/450 SuperDuty

WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov

FEATURES & BENEFITS:

Dual ultra-quiet gerotor pumps provide increased fuel flow while keeping pump noise to a minimum
Supports applications up to 800 HP for stock and modified 6.7L Power Stroke trucks
Direct in-tank replacement retains the factory-style fuel system layout
Active fill bucket helps maintain consistent fuel delivery and reduce common 1/4-tank issues
Installs without cutting, splicing, or modifying the factory fuel lines, harness, or fuel tank
Retains the factory fuel control module for load-based fuel pressure control
Threaded outlet and return accept -8 O-ring fittings for custom fuel system setups
Tested with S&S Diesel Motorsport DCR conversion and CP4 Disaster Prevention Kits
Validated for use with fuel containing up to 20% biodiesel

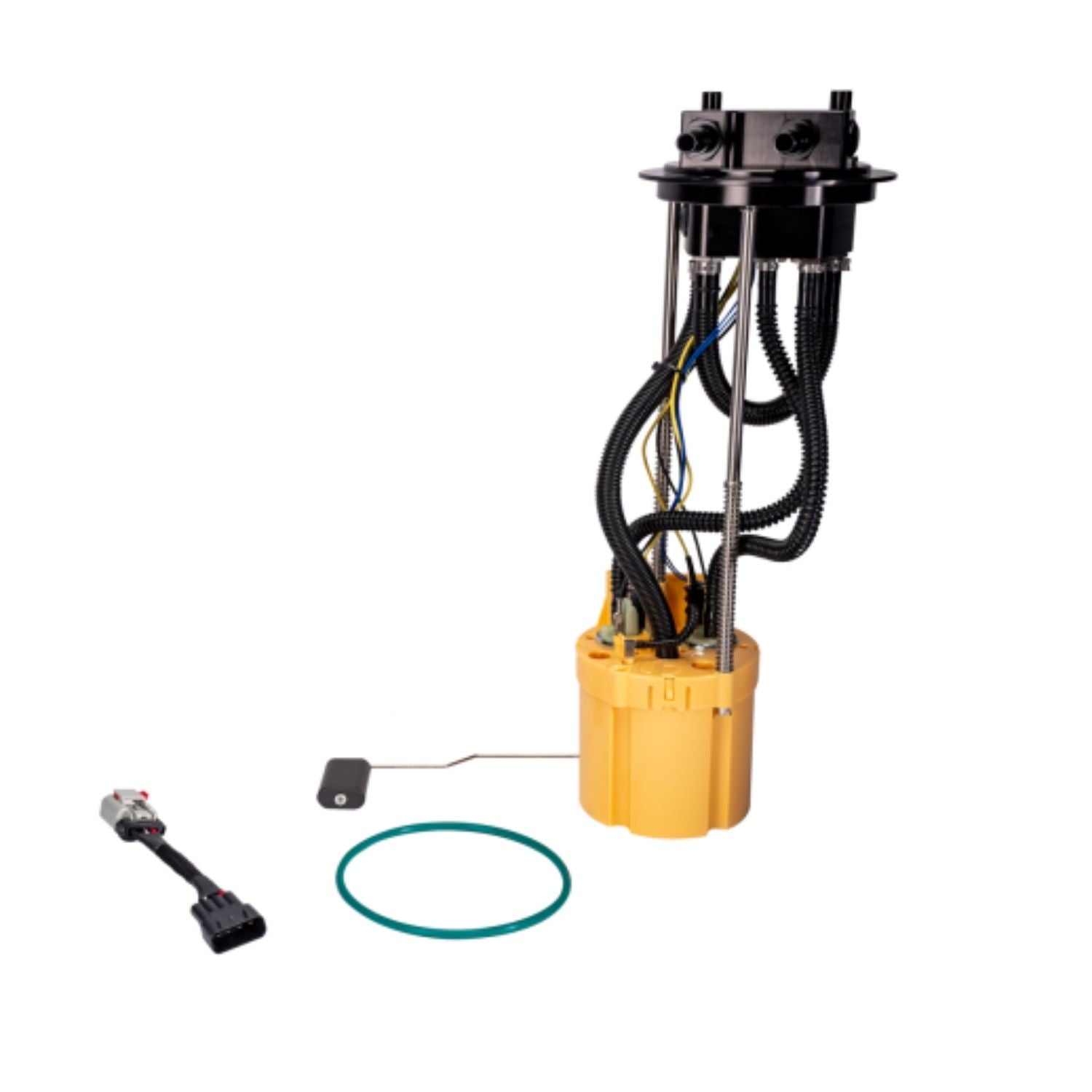

KIT INCLUDES:

PowerFlo Lift Pump with integral fuel level sender
Chassis wiring adapter harness
Fuel sending unit tank O-ring
