SKU #: FPE-PF-FMC-1724-SB-CFS MPN #: FPE-PF-FMC-1724-SB-CFS

Fleece Performance Fuel System Upgrade Kit with PowerFlo Lift Pump 17-24 Ford 6.7L Powerstroke

$1,489.95

Get 1489 points in loyalty rewards

Fleece Performance Complete Fuel System Upgrade for 2017-2024 Ford 6.7L Power Stroke

Fleece Performance PowerFlo Lift Pump fuel system kit for Ford 6.7L Power Stroke

2017-2024 Ford 6.7L Power Stroke complete fuel system upgrade kit

Fleece Performance PowerFlo fuel system upgrade for Ford Super Duty 6.7L Power Stroke

Ford 6.7L Power Stroke PowerFlo Lift Pump and fuel filter upgrade kit

Fleece Performance complete fuel supply and filtration kit for 6.7L Power Stroke

PowerFlo dual gerotor lift pump kit for Ford 6.7L Power Stroke diesel trucks

Fleece Performance under bed fuel filter kit with Donaldson spin-on filter

Fleece Performance billet injector return fitting for Ford 6.7L Power Stroke fuel system

Ford 6.7L Power Stroke PowerFlo fuel system upgrade with under bed filter

Fleece PowerFlo Lift Pump with billet aluminum under bed filter base

Fleece Performance PowerFlo fuel pump and filter components for Ford 6.7L diesel

PowerFlo Lift Pump kit for 2017-2024 Ford 6.7L Power Stroke diesel

Fleece Performance under-bed fuel filter assembly for Ford 6.7L Power Stroke

Fleece Performance under-hood fuel filter upgrade for 6.7L Power Stroke

Description

Your 6.7L Power Stroke's fuel system relies on several factory components to keep clean fuel moving from the tank to the engine, and over time, some of those plastic filters, fittings, and connections can become weak or difficult to service. The Fleece Performance Complete Fuel System Upgrade addresses the system as a whole, combining an upgraded PowerFlo Lift Pump, under-bed and under-hood filtration, an injector return fitting, and replacement fuel line retaining clips into one complete package for your Ford 6.7L Power Stroke. At the tank, the PowerFlo Lift Pump provides increased fuel supply for trucks with higher fuel demands while maintaining a clean, factory-style installation. It installs without cutting, splicing, or modifying the factory fuel lines or fuel tank and continues to use the stock fuel control module to adjust fuel delivery pressure based on engine load. The pump has also been validated for use with up to 20% biodiesel and tested with S&S Diesel Motorsport DCR conversion and CP4 Disaster Prevention kits. The kit also makes fuel filtration easier to service while replacing factory components that can become failure points. The under-bed assembly replaces the factory furnace-style filter with a convenient spin-on filter, mounts in the factory location, connects directly to the existing fuel lines and chassis harness, and retains the factory water-in-fuel circuitry. Under the hood, a billet aluminum cap and billet quick-disconnect fittings replace the crack-prone factory plastic filter components and use a serviceable Donaldson spin-on filter. An extra Donaldson fuel filter is included for a future service. To round out the upgrade, Fleece includes a heavy-duty billet aluminum injector return fitting with a dual O-ring design and serviceable barb, replacing the factory plastic connector that can break from heat, vibration, and repeated servicing. Four replacement retaining clips are also included for common 1/2-inch and 12mm fuel connections throughout the system. The kit works with Titan aftermarket fuel tanks, while S&B tank compatibility depends on bed length: the Short Bed version works with S&B short-bed tanks, while the Long Bed version does not fit S&B long-bed fuel tank 10-1008. This kit does not fit Cab & Chassis applications and is backed by Fleece Performance's Lifetime Limited Parts Warranty. IMPORTANT FITMENT NOTES: Does not fit Cab & Chassis applications Compatible with Titan aftermarket fuel tanks Short Bed version is compatible with S&B short-bed aftermarket fuel tanks Long Bed version does not fit S&B long-bed fuel tank (10-1008) PowerFlo has been tested and verified for use with S&S Diesel Motorsport DCR conversion and CP4 Disaster Prevention kits PowerFlo is validated for use with up to 20% biodiesel

Select Bed Length

Product photos may not match the selected option. Please confirm your choice before adding to cart.

Enter your zip and we'll see if installation is available.

Request quotes from local installers at checkout
Compare options and choose the best fit for your install

Free Customer Loyalty Program

No Salesmen, Just Enthusiasts

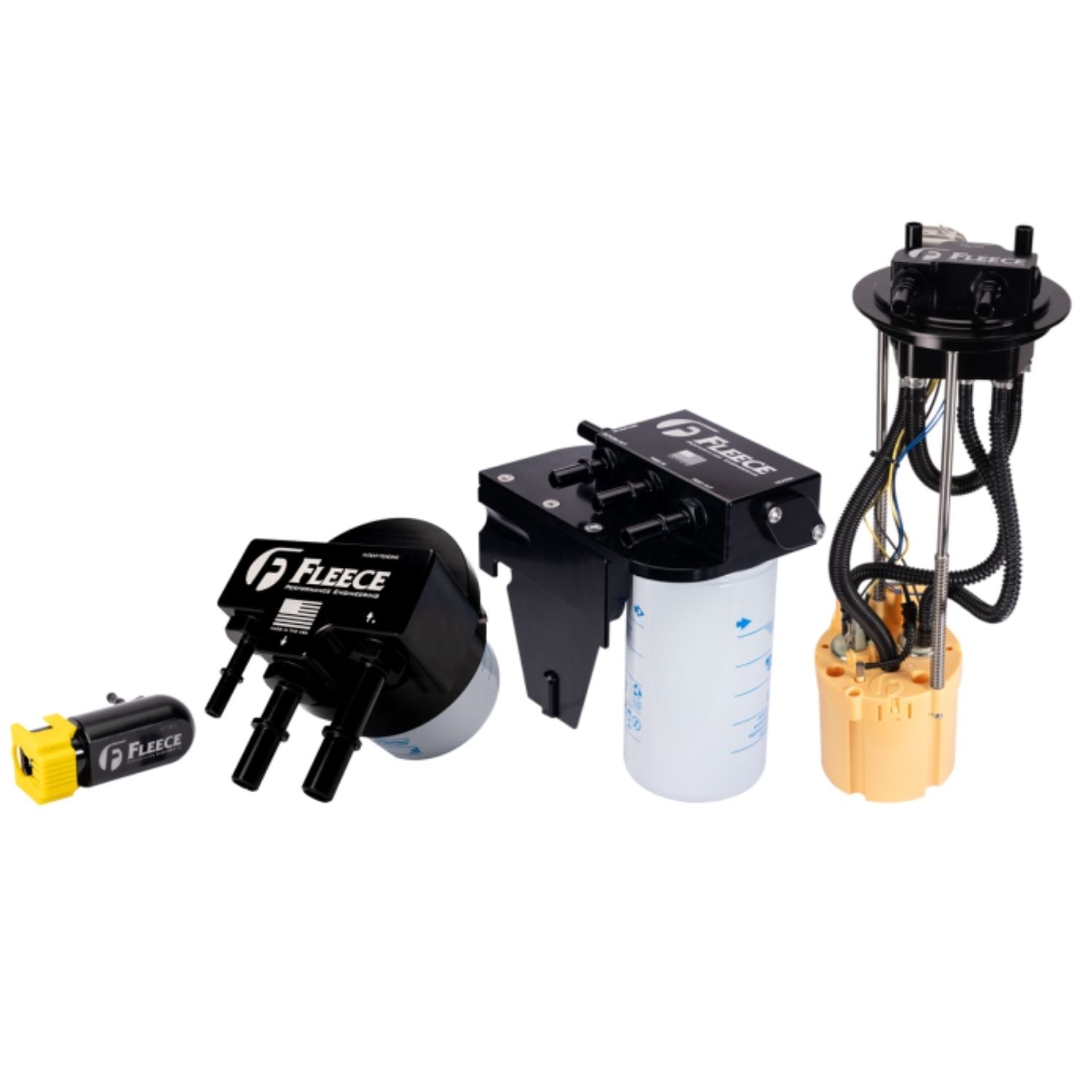

Your 6.7L Power Stroke's fuel system relies on several factory components to keep clean fuel moving from the tank to the engine, and over time, some of those plastic filters, fittings, and connections can become weak or difficult to service. The Fleece Performance Complete Fuel System Upgrade addresses the system as a whole, combining an upgraded PowerFlo Lift Pump, under-bed and under-hood filtration, an injector return fitting, and replacement fuel line retaining clips into one complete package for your Ford 6.7L Power Stroke.

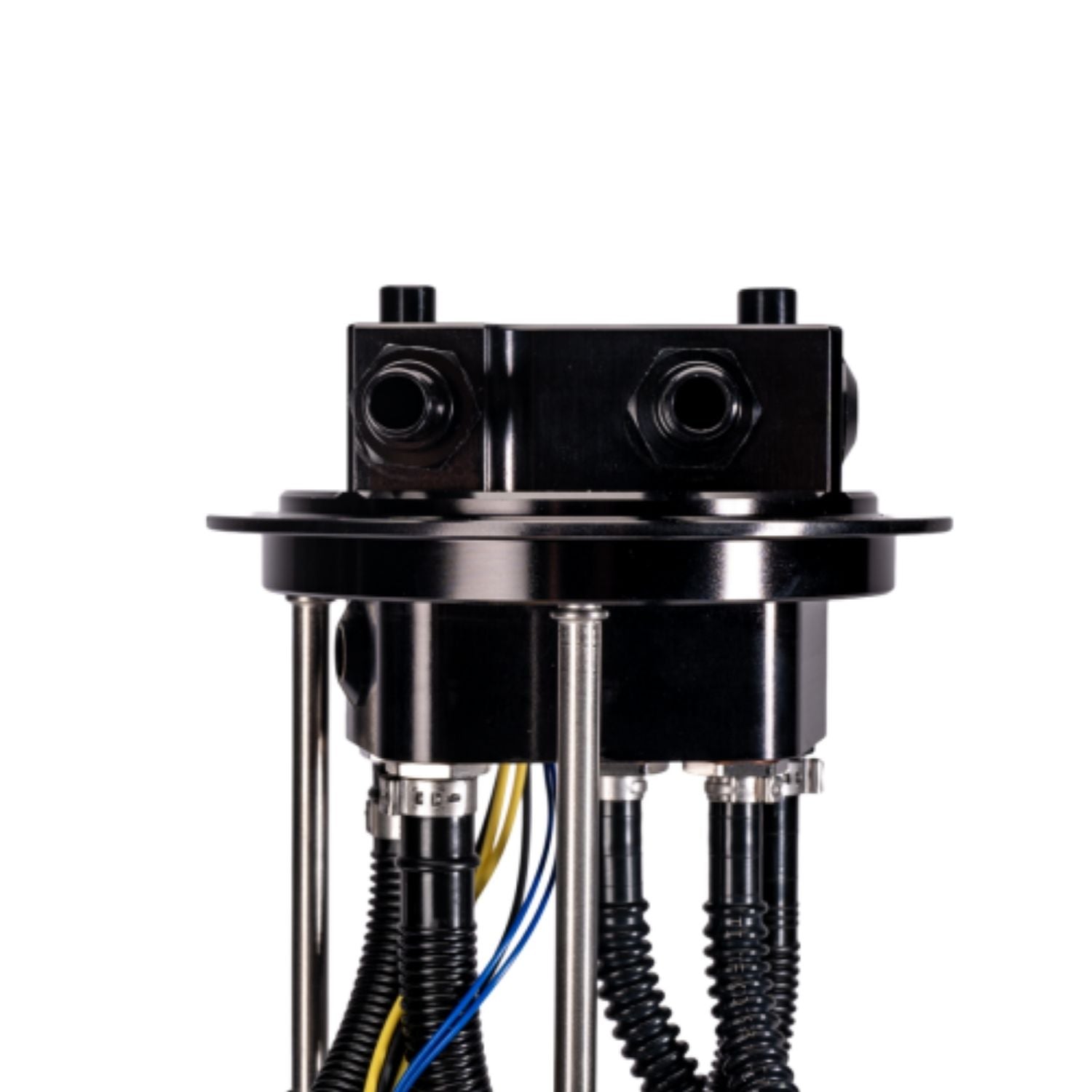

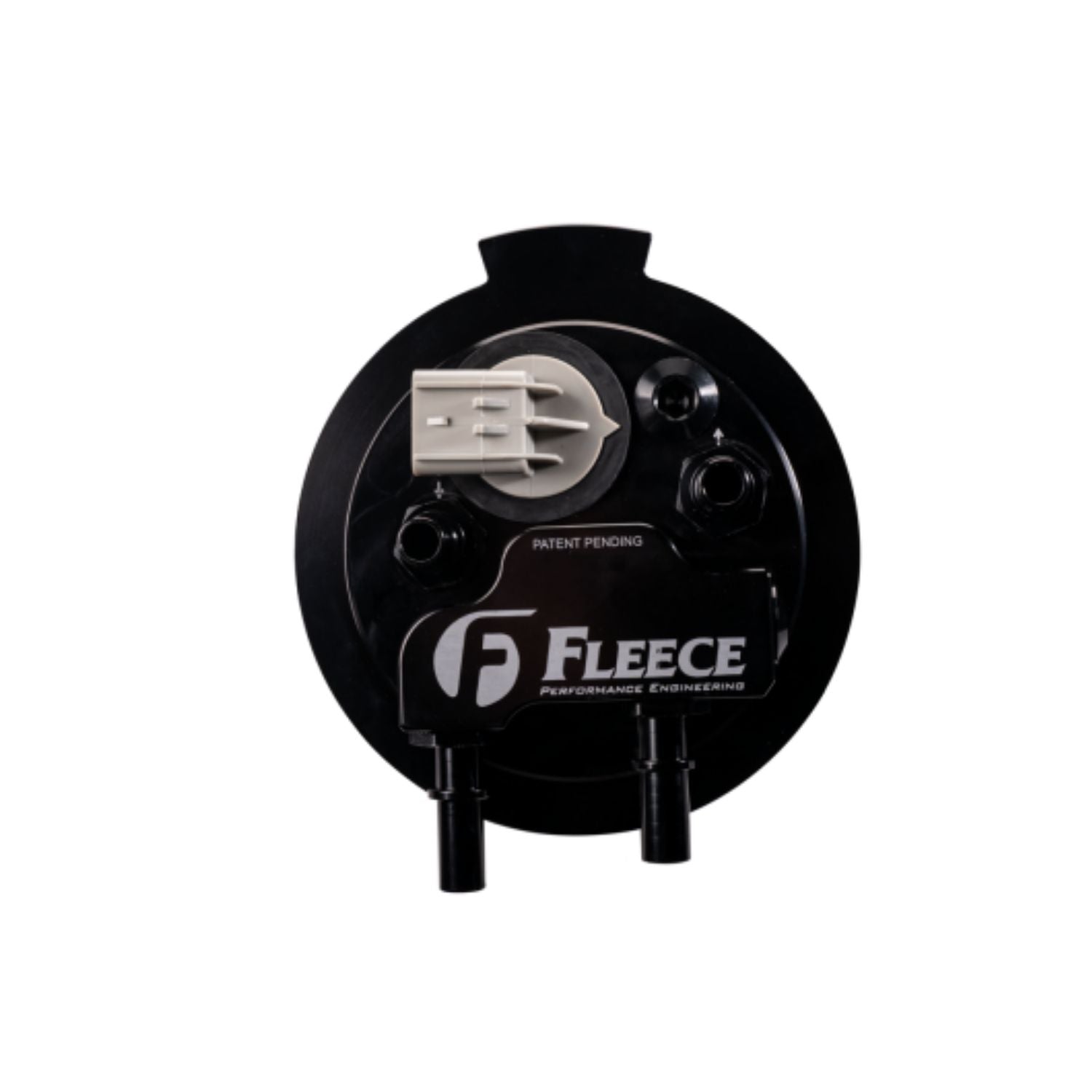

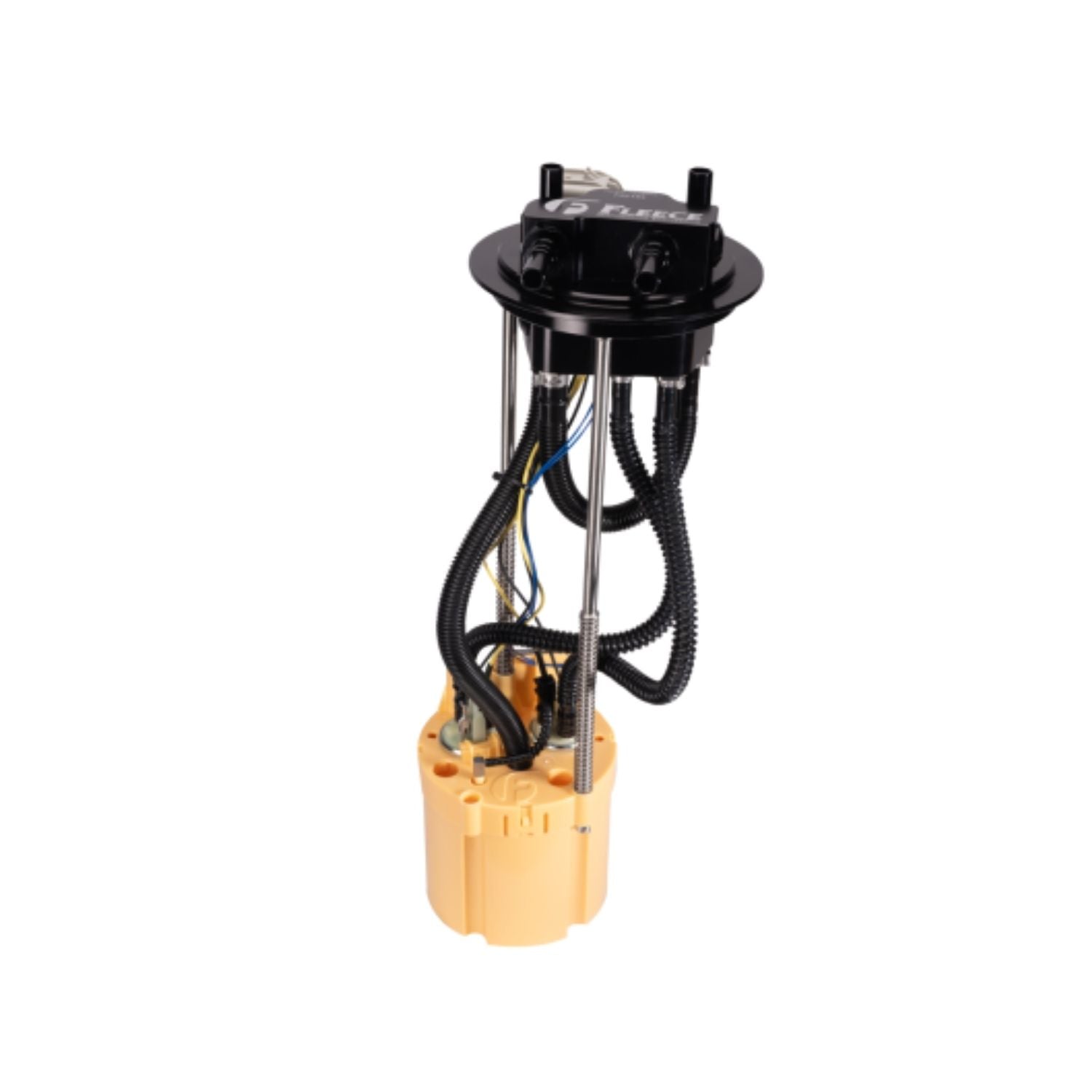

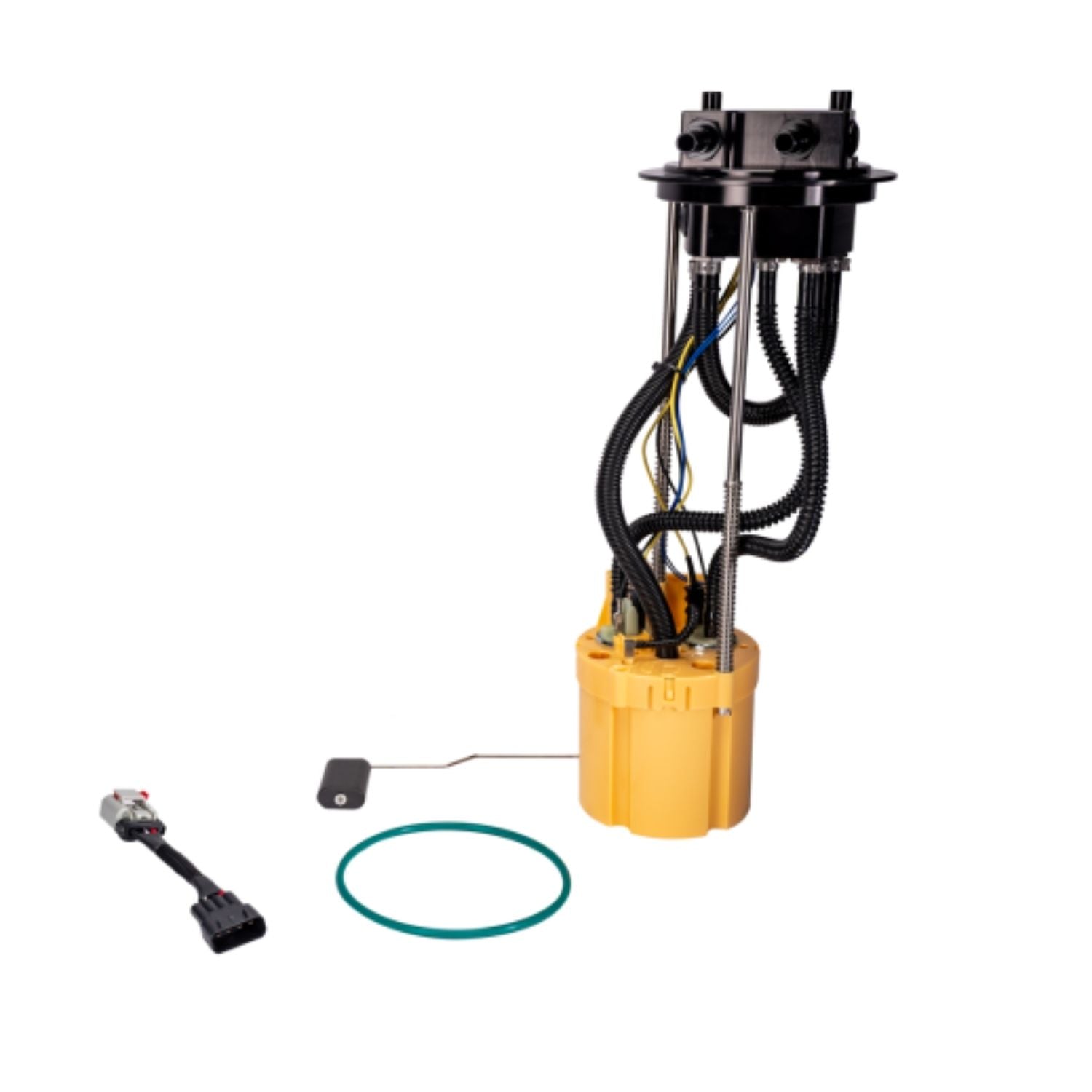

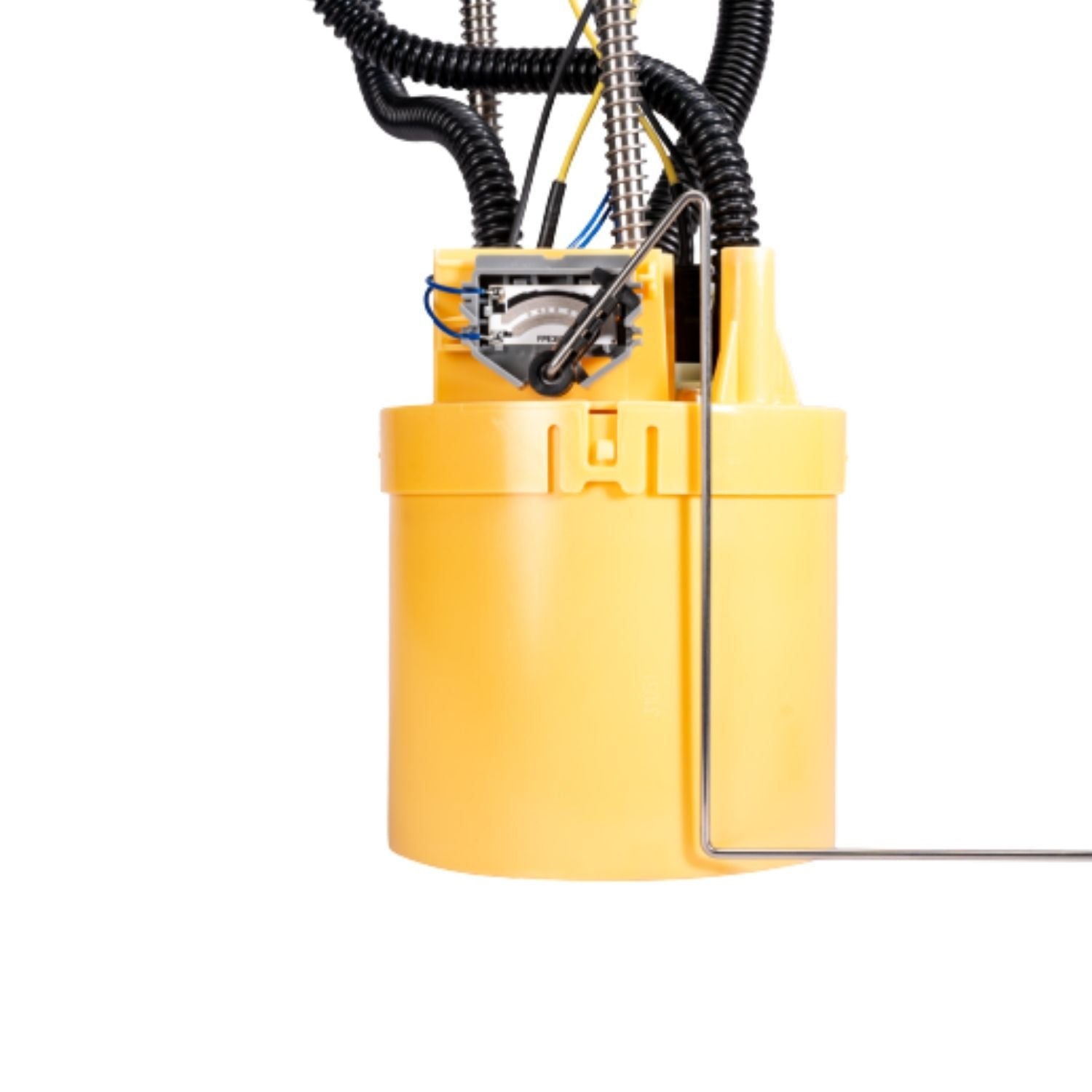

At the tank, the PowerFlo Lift Pump provides increased fuel supply for trucks with higher fuel demands while maintaining a clean, factory-style installation. It installs without cutting, splicing, or modifying the factory fuel lines or fuel tank and continues to use the stock fuel control module to adjust fuel delivery pressure based on engine load. The pump has also been validated for use with up to 20% biodiesel and tested with S&S Diesel Motorsport DCR conversion and CP4 Disaster Prevention kits.

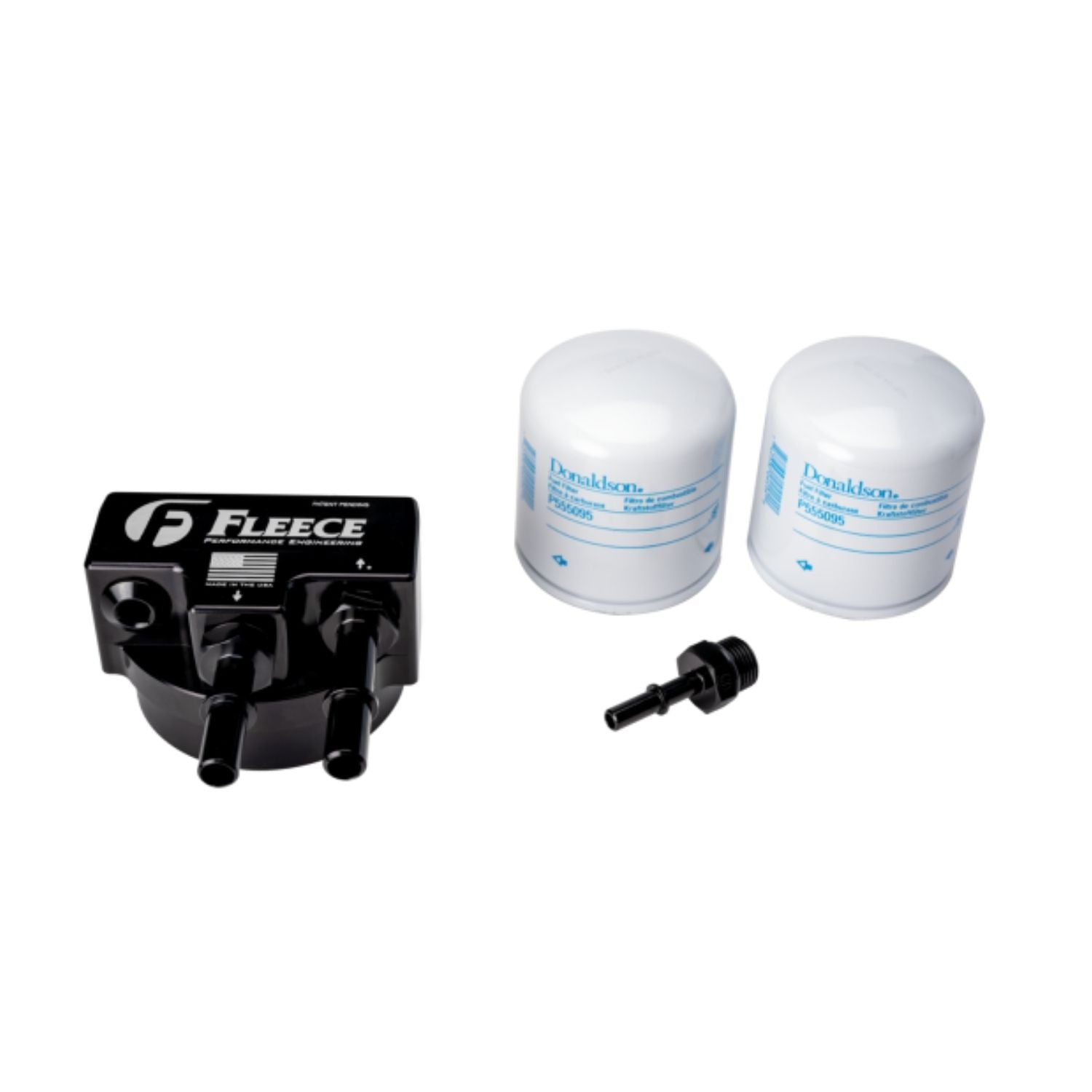

The kit also makes fuel filtration easier to service while replacing factory components that can become failure points. The under-bed assembly replaces the factory furnace-style filter with a convenient spin-on filter, mounts in the factory location, connects directly to the existing fuel lines and chassis harness, and retains the factory water-in-fuel circuitry. Under the hood, a billet aluminum cap and billet quick-disconnect fittings replace the crack-prone factory plastic filter components and use a serviceable Donaldson spin-on filter. An extra Donaldson fuel filter is included for a future service.

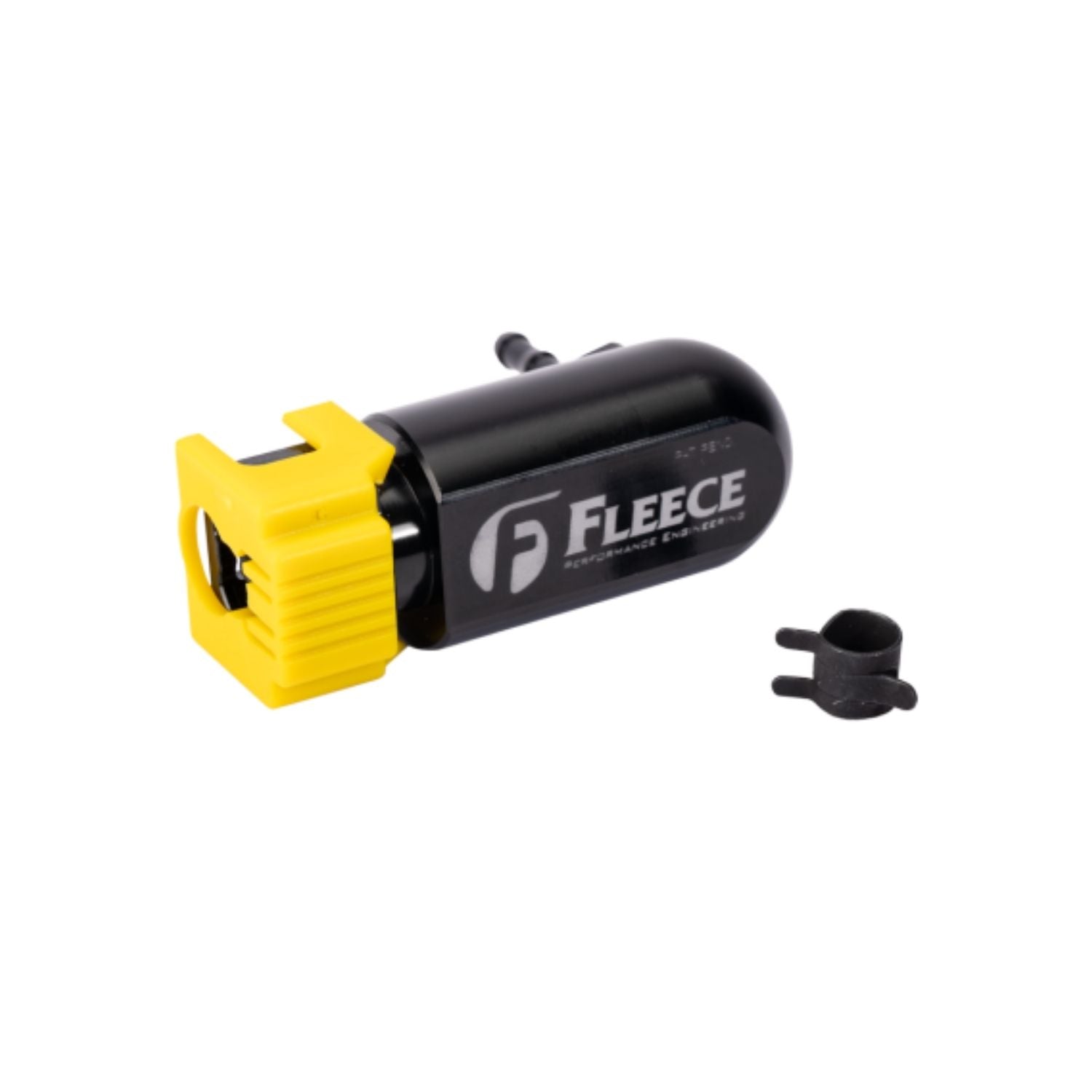

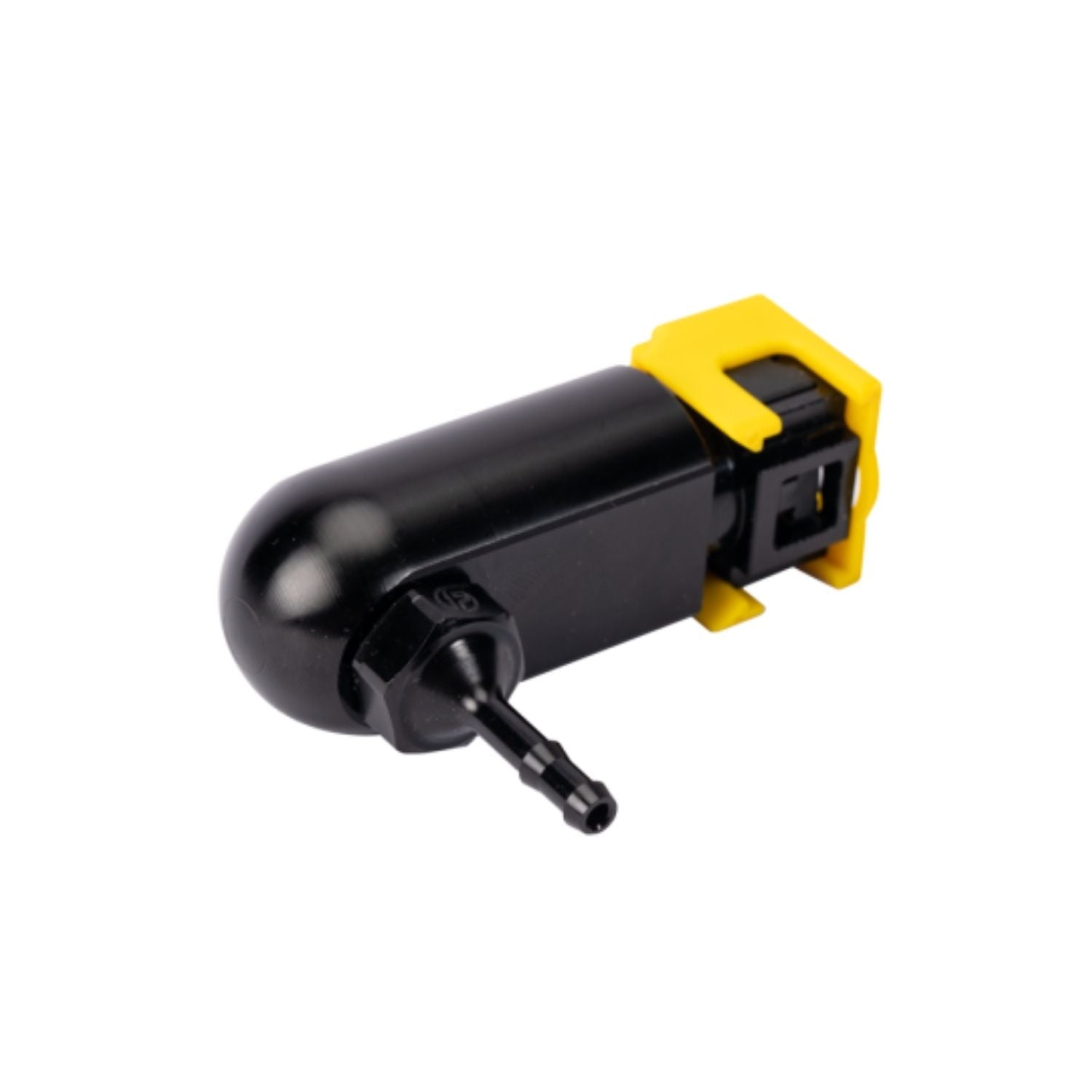

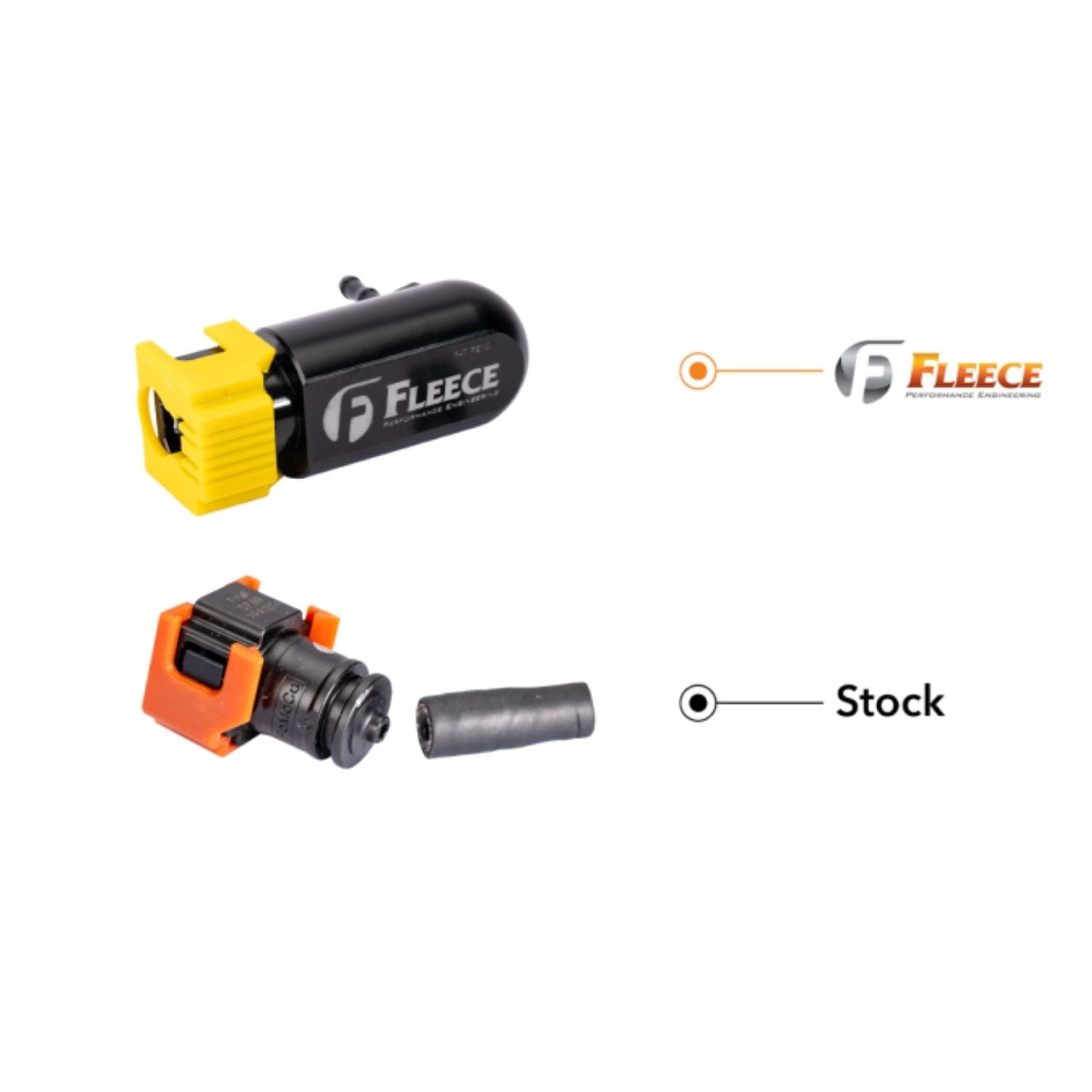

To round out the upgrade, Fleece includes a heavy-duty billet aluminum injector return fitting with a dual O-ring design and serviceable barb, replacing the factory plastic connector that can break from heat, vibration, and repeated servicing. Four replacement retaining clips are also included for common 1/2-inch and 12mm fuel connections throughout the system. The kit works with Titan aftermarket fuel tanks, while S&B tank compatibility depends on bed length: the Short Bed version works with S&B short-bed tanks, while the Long Bed version does not fit S&B long-bed fuel tank 10-1008. This kit does not fit Cab & Chassis applications and is backed by Fleece Performance's Lifetime Limited Parts Warranty.

IMPORTANT FITMENT NOTES:

Does not fit Cab & Chassis applications
Compatible with Titan aftermarket fuel tanks
Short Bed version is compatible with S&B short-bed aftermarket fuel tanks
Long Bed version does not fit S&B long-bed fuel tank (10-1008)
PowerFlo has been tested and verified for use with S&S Diesel Motorsport DCR conversion and CP4 Disaster Prevention kits
PowerFlo is validated for use with up to 20% biodiesel

NOT LEGAL FOR SALE OR USE IN CALIFORNIA

EXECUTIVE ORDER #D-834-21

Vehicle Fitment

2017-2024 Ford 6.7L Powerstroke 250/350/450 SuperDuty

WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov

FEATURES & BENEFITS:

Complete fuel system upgrade
PowerFlo Lift Pump provides increased fuel supply to support higher fuel demands
Upgrades both under-bed and under-hood fuel filtration for easier servicing
Spin-on fuel filters replace harder-to-service factory-style filtration components
Billet aluminum components replace failure-prone factory plastic parts for improved durability
Heavy-duty injector return fitting helps prevent leaks and failures from heat and vibration
Installs without cutting, splicing, or modifying the factory fuel lines or fuel tank
Retains the factory fuel control module and water-in-fuel circuitry
Includes replacement fuel line retaining clips for common 1/2-inch and 12mm connections
Backed by Fleece Performance's Lifetime Limited Parts Warranty

OE CROSS-REFERENCE:

FD-4625
FD-4625AA
FD4625AA
HC3Z-9N184-C
HC3Z-9N184-J
HC3Z9N184C
HC3Z-9H307AQ
HC3Z-9H307AR

CARB EO NUMBERS:

D-834-21
D-834-17
