SKU #: EDG-98607
MPN #: 98607
Edge EAS Universal Sensor Input for Edge CS/CTS
Description

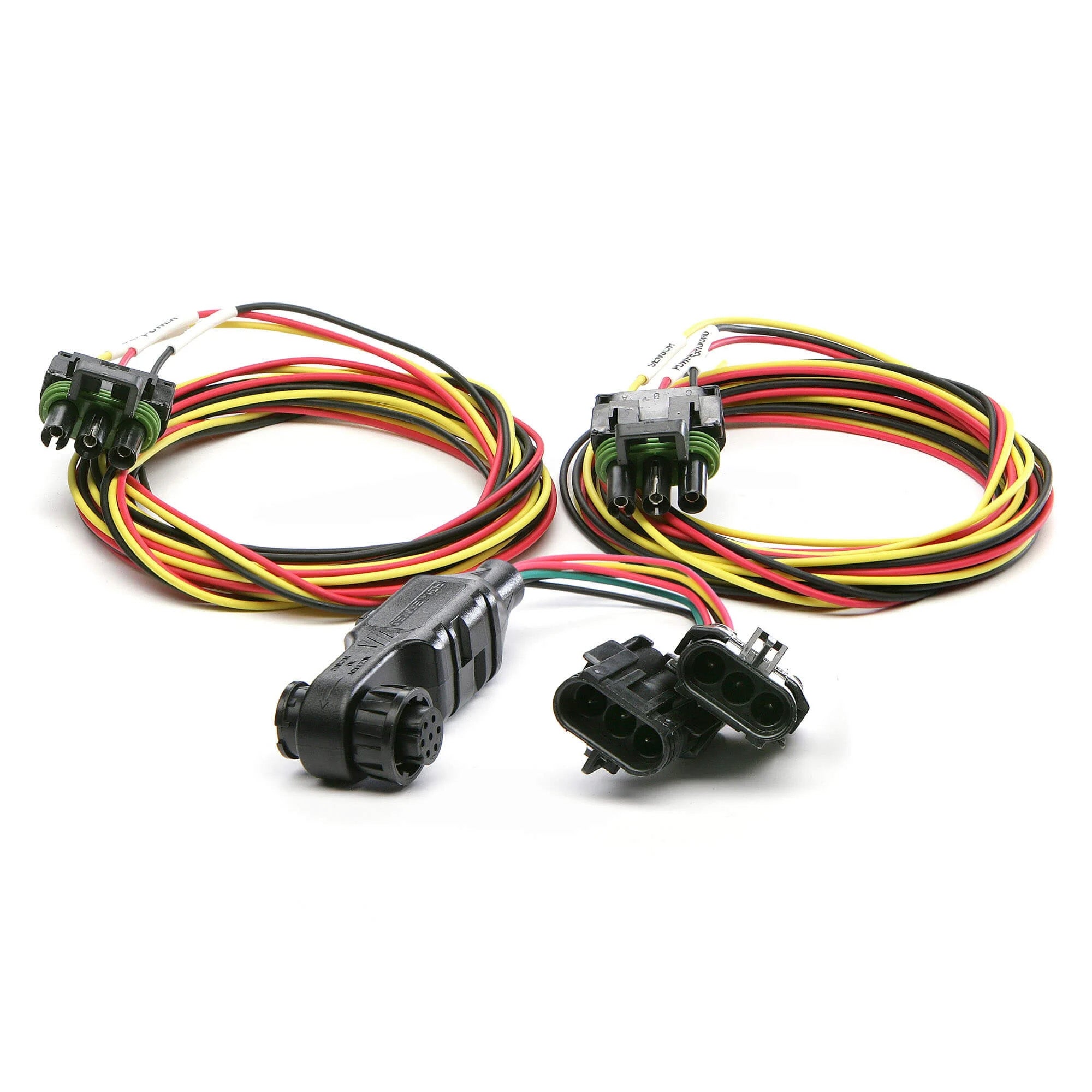

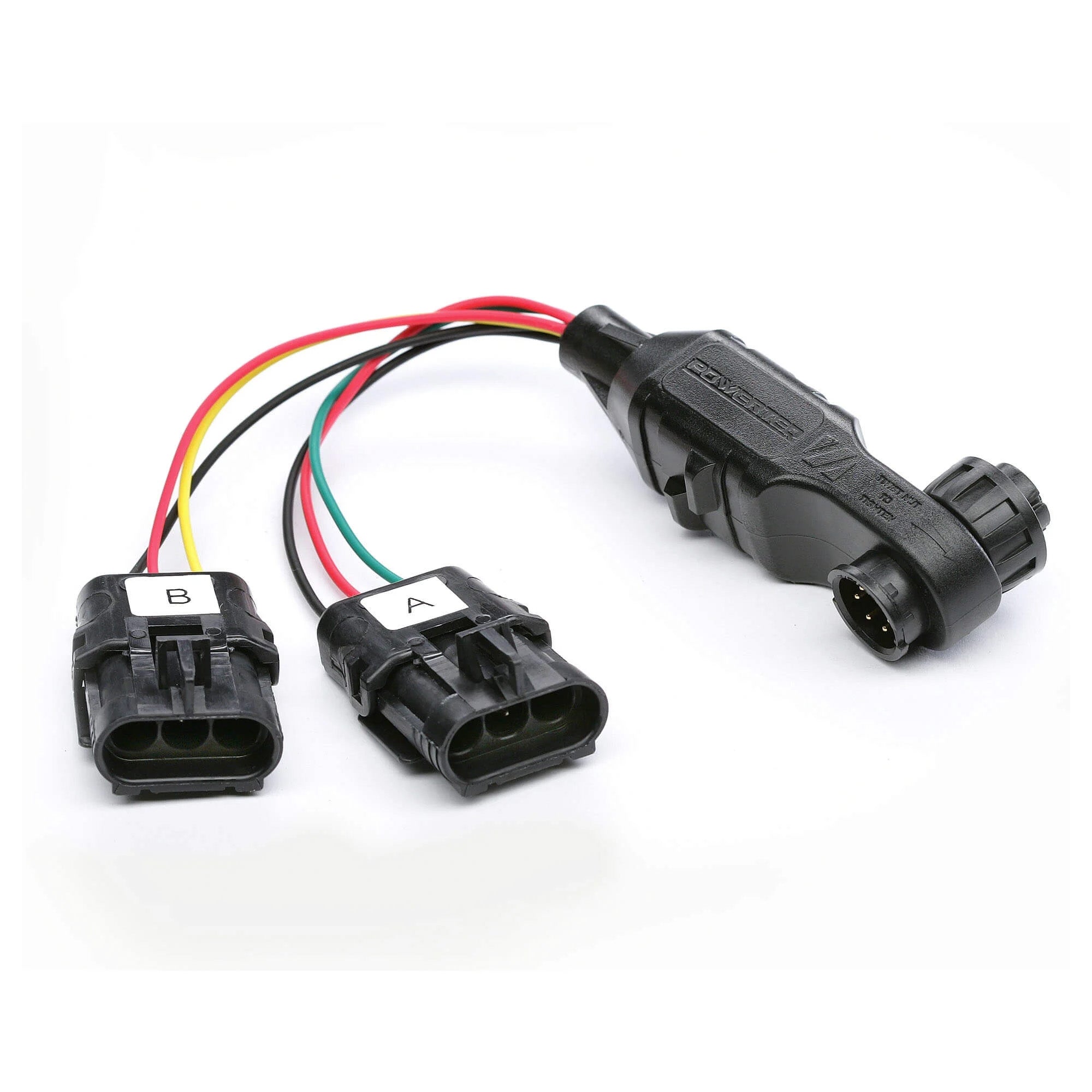

The EAS Universal Sensor Input provides the ability to read any 0-5 volt signal and translate that signal into a meaningful value for display on the Edge CS or CTS. This means you can add custom temperature, pressure, Air/Fuel and even Travel/Position gauges to your Edge CS and CTS!
Currently there are 2 sensors available for this kit:
EAS Pressure Sensor 0-100 PSI 1/8" NPT sensor.
EAS Temperature Sensor: -40 to 300°F 1/8" NPT sensor.
EAS Starter Kit- Required - The Edge accessory system (EAS) was created with future expandability in mind. The architecture of the EAS allows users to connect multiple accessories daisy-chain style to the Evolution CS or CTS. This means Edge can create optional accessories that can be added to the products by the owner at any time. An optional exhaust gas temperature (EGT) probe is one example of an optional accessory that will be offered by Edge. Look for a variety of other optional accessories to become available in the near future.

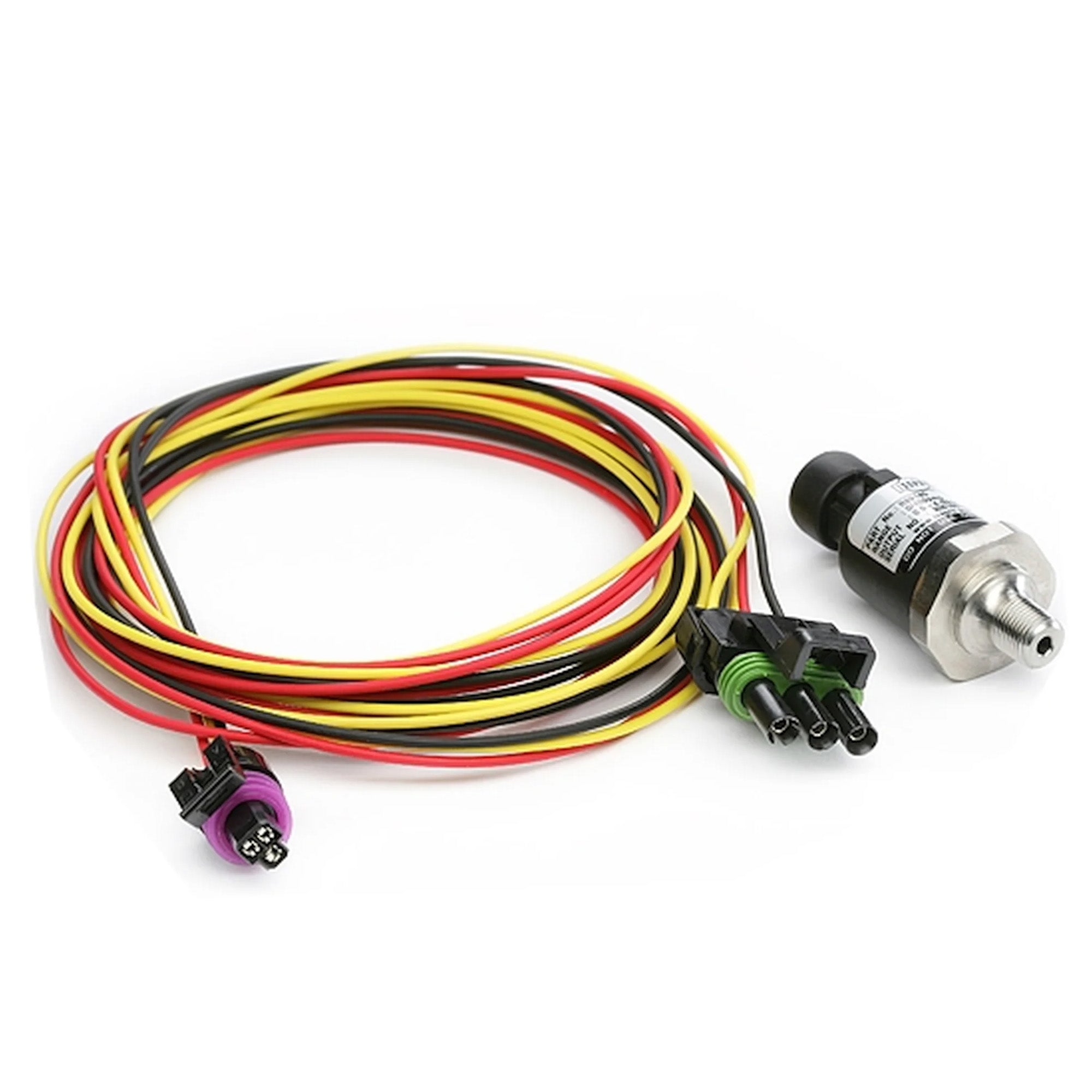

EAS Pressure Sensor - Edge's EAS Pressure Sensor is a 0 - 100 PSIg 1/8" NPT sensor that plugs directly into the Universal Sensor Input system (p/n 98605). Edge's Pressure Sensor comes equipped with the proper wires and connectors to plug right into the Universal Sensor Input system saving time and money on cutting, splicing, and crimping wire terminals to connect the sensor. Use Edge's Pressure Sensor to monitor data such as Boost PSI, Air Bag Pressure, Lift Pump Pressure, Pre and Post Intercooler Pressure and many more.
Tolerance: +-1.5% Full Span over temperature range of -20C to 85C and +-2.4% Full Span over temperature range of -40C to 135C.

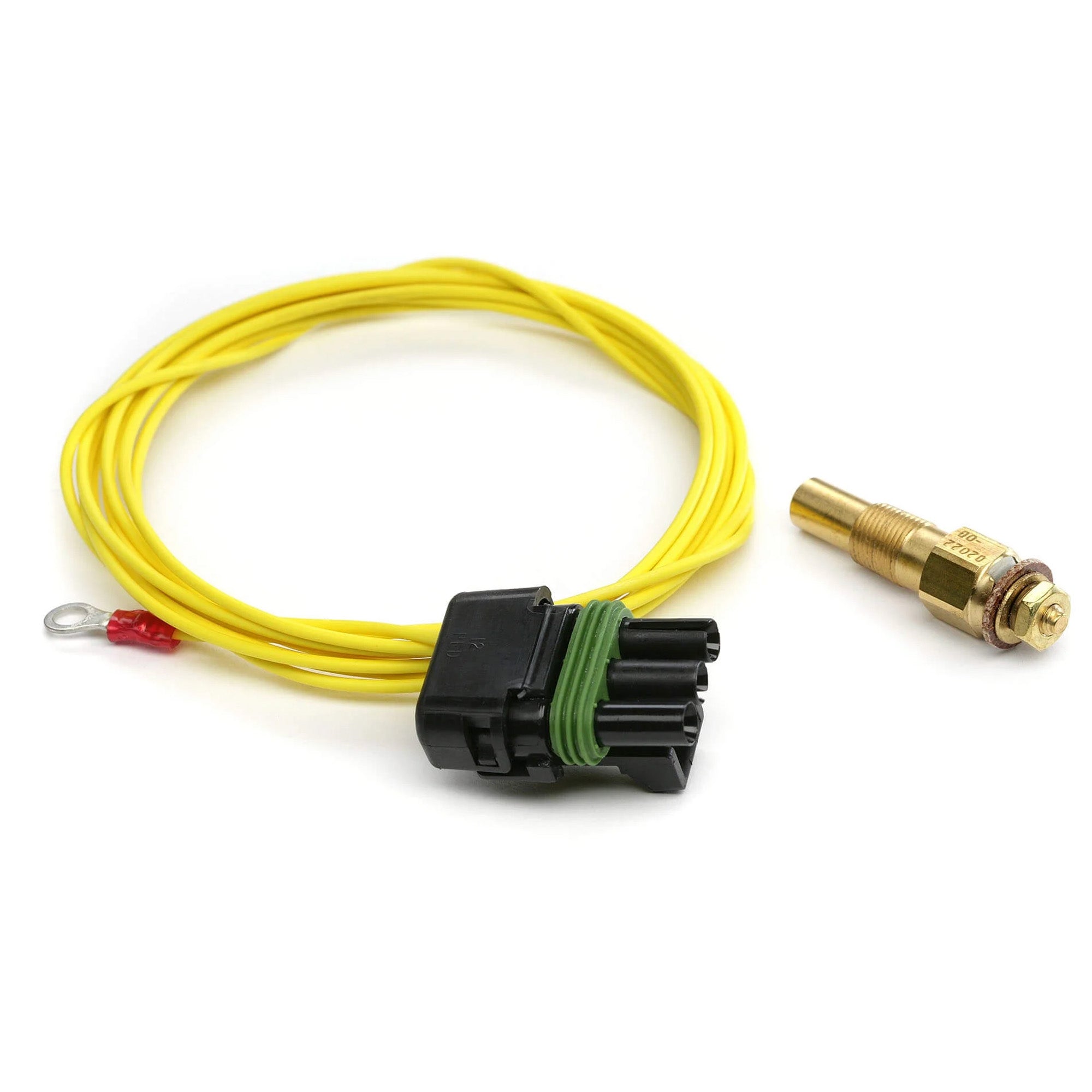

EAS Temperature Sensor - The EAS Temperature Sensor is a -40°F to 300°F 1/8" NPT supplied with the connectors to plug directly into Edge's Universal Sensor Input System. Using Edge's Temperature Sensor you can monitor Transmission Temp., Differential/Axle Oil Temp., Oil Temp., Engine Coolant Temp., Air Intake Temp., Pre and Post Intercooler Temp., and many more. Use this in conjunction with the Universal Sensor Input and the CS or CTS monitor to allow you to view critical temperatures with the most state-of-the-art product on the market today.
