SKU #: DT-CPS200368 MPN #: CPS200368

Duramax Tuner Stealth Mach 2 (67mm) Drop In Turbo 01-04 GM LB7 Duramax

Name: Duramax Tuner Stealth Mach 2 (67mm) Drop In Turbo 01-04 GM LB7 Duramax
Brand: DuramaxTuner.com
Price: 2449.0 USD
Availability: InStock

$2,449.00

Get 2449 points in loyalty rewards

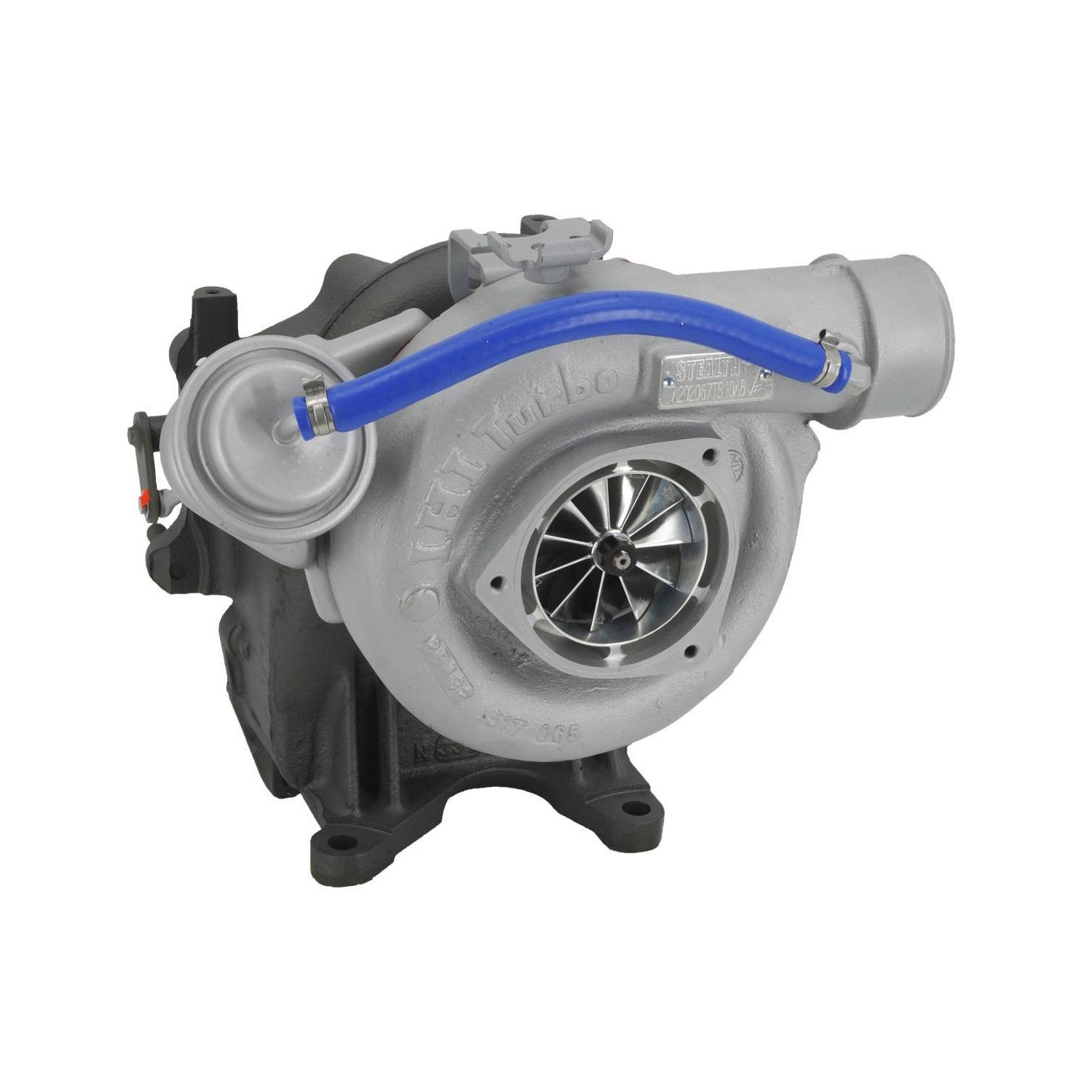

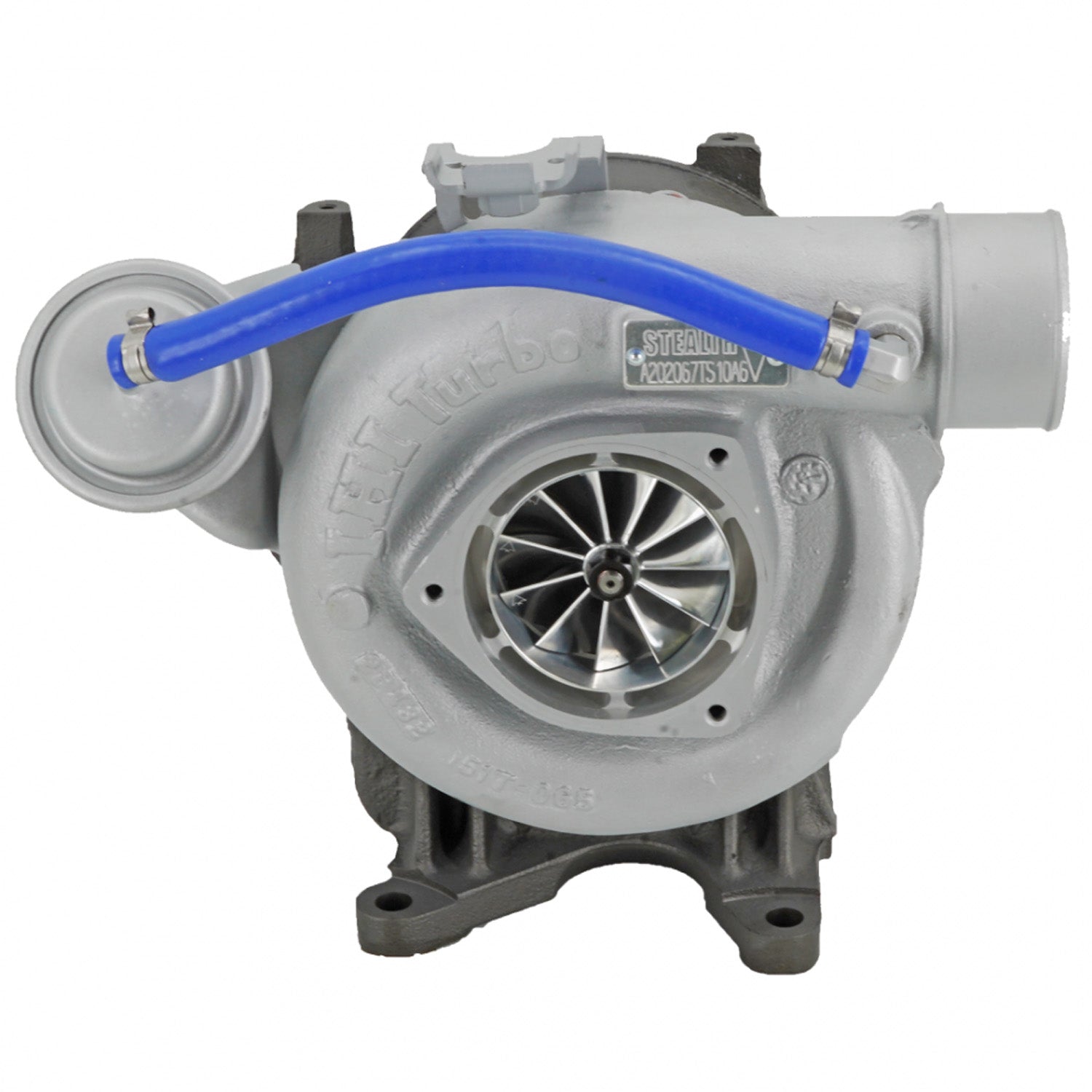

Duramax Tuner Stealth Mach 2 67mm Drop In Turbo for 01-04 GM LB7 Duramax

Description

Building the line of Stealth Turbos meant designing a turbo that's safe to tow with, fun to drive every day and a class leading competitor. If you think street-able, clean, stealthy power is cool, then this is the turbo for you.Duramax Tuner's custom-built Mach 2 (67mm) compressor wheel is specifically designed to maximize peak power while maintaining a wide, useable powerband. To fit the monster compressor wheel, they developed a unique, OEM appearing, anti-surge ring, which nestles in the factory compressor cover. Matching the class-leading compressor performance meant updating the center section which is fitted with a 360-degree thrust bearing to increase reliability under heavy load transitions. The wastegate was even updated to make sure you have the most amount of power and the quickest spool-up.With the compressor side and center section put together, a turbine wheel and exhaust housing upgrades had to be made. The LB7 Stealth Mach 2 (67) features the largest turbine available in an IHI-style (stock LB7 turbo) frame. This dramatically reduces drive pressure and allows for serious power production even at high RPM where the IHI typically falters. This monster turbine helps you achieve as close to a 1:1 ratio between drive and boost pressure, which not only helps make more power but also manages EGT's (Exhaust Gas Temperature) under heavy load.TURBO SPECIFICATIONS: Compressor Wheel Inducer: 67mm Compressor Inducer Bore: 68mm Compressor Wheel Blade Count: 11 Blade Turbine Wheel Exducer: 71mm Turbine Wheel Inducer: 77mm Turbine Wheel Blade Count: 10 Blade Peak Power: 800 RWHP IMPORTANT NOTE: This turbo will not replace the turbo on a CA emissions truck that was equipped with EGR. Only for fitment on Federal emissions trucks that were not equipped with EGR.

Choose add-ons

Add DuramaxTuner Calibrated Power Turbo Gasket Kit 2001-2010 Duramax +$105.00

Enter your zip and we'll see if installation is available.

Request quotes from local installers at checkout
Compare options and choose the best fit for your install

Free Customer Loyalty Program

No Salesmen, Just Enthusiasts

Building the line of Stealth Turbos meant designing a turbo that's safe to tow with, fun to drive every day and a class leading competitor. If you think street-able, clean, stealthy power is cool, then this is the turbo for you.

Duramax Tuner's custom-built Mach 2 (67mm) compressor wheel is specifically designed to maximize peak power while maintaining a wide, useable powerband. To fit the monster compressor wheel, they developed a unique, OEM appearing, anti-surge ring, which nestles in the factory compressor cover. Matching the class-leading compressor performance meant updating the center section which is fitted with a 360-degree thrust bearing to increase reliability under heavy load transitions. The wastegate was even updated to make sure you have the most amount of power and the quickest spool-up.

With the compressor side and center section put together, a turbine wheel and exhaust housing upgrades had to be made. The LB7 Stealth Mach 2 (67) features the largest turbine available in an IHI-style (stock LB7 turbo) frame. This dramatically reduces drive pressure and allows for serious power production even at high RPM where the IHI typically falters. This monster turbine helps you achieve as close to a 1:1 ratio between drive and boost pressure, which not only helps make more power but also manages EGT's (Exhaust Gas Temperature) under heavy load.

TURBO SPECIFICATIONS:

Compressor Wheel Inducer: 67mm
Compressor Inducer Bore: 68mm
Compressor Wheel Blade Count: 11 Blade
Turbine Wheel Exducer: 71mm
Turbine Wheel Inducer: 77mm
Turbine Wheel Blade Count: 10 Blade
Peak Power: 800 RWHP

IMPORTANT NOTE: This turbo will not replace the turbo on a CA emissions truck that was equipped with EGR. Only for fitment on Federal emissions trucks that were not equipped with EGR.

NOT LEGAL FOR SALE OR USE IN CALIFORNIA

Vehicle Fitment

2001-2004 GM LB7 Duramax

WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov

IMPORTANT NOTE:

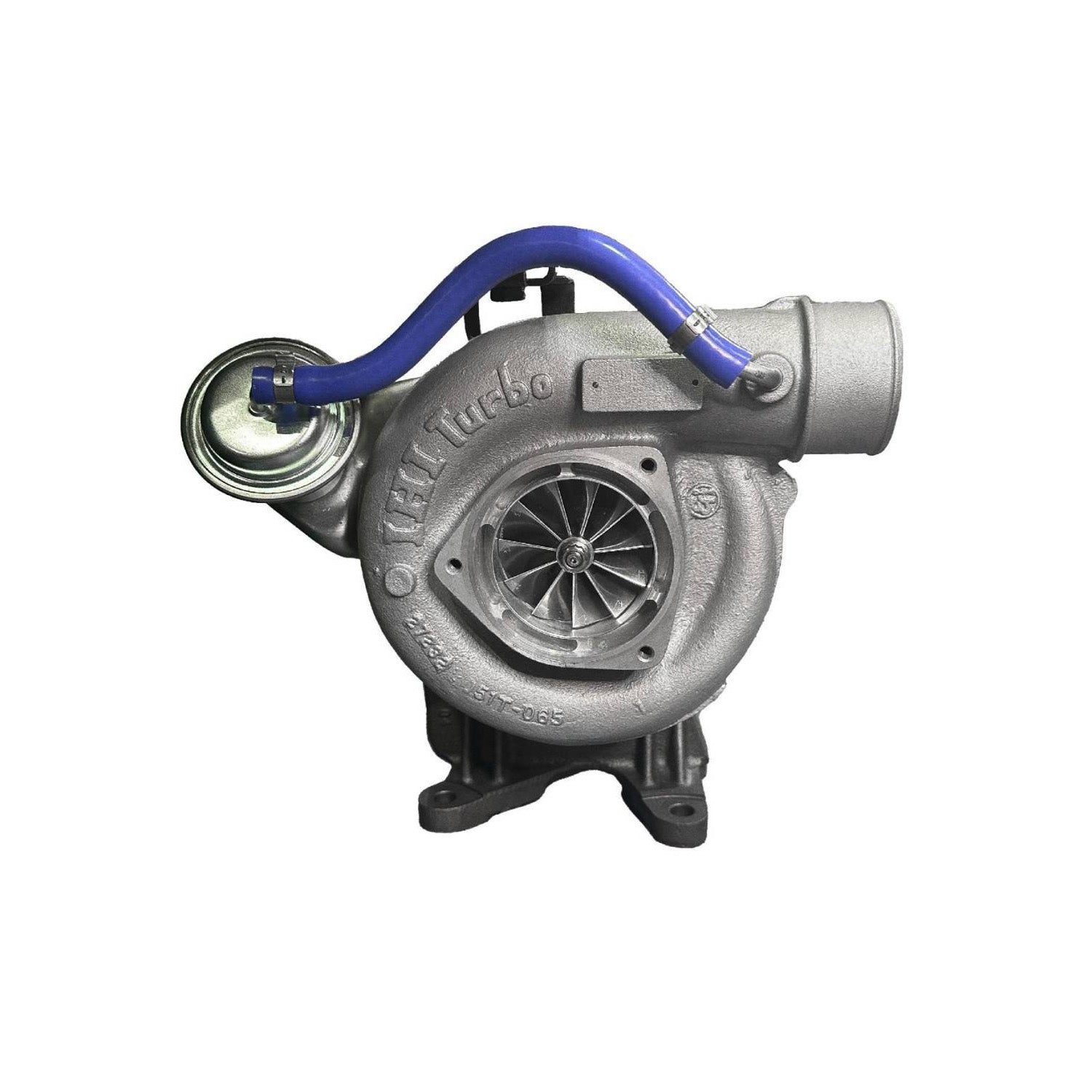

Depending on core availability, the compressor housing may or may not include the the stamped "IHI Turbo" text as shown in the image.

OPTIONAL INSTALLATION KIT COMPONENTS:

(2) Gasket - Upper Up-Pipe
(1) Gasket - Lower Turbo Drain
(2) Gasket - Turbo Feed Line
(1) Gasket - Upper Turbo Drain
(2) Seal - Turbo Oil Feed
(2) Gasket - Lower Up-pipe
