Works well, buuuut…
"The hose needs to be at least a foot longer in order to reach the driver’s side fender while still being able to route it under and behind things to tuck it out of sight."
Cummins
Shop All
SKU #: DD-60FS-FPAKIT
MPN #: DD-60FS-FPAKIT
Driven Diesel Fuel Pressure Adapter 03-07 6.0L Ford Powerstroke
Description
Easily install a fuel pressure gauge without having to install a into the fuel line with the Driven Diesel Fuel Pressure Adapter!This Fuel Pressure Adapter from Driven Diesel solves two issues when installing and running a fuel pressure gauge in your 6.0L. First of all, without this type of adapter, you would traditionally have to splice into your fuel line and install a "T" in order to gain access to the fuel pressure. Secondly, by separating the sending unit away from the direct stream of fuel, it will help to alleviate needle bounce that is most prevalent with electric fuel pressure gauges / sending units that is caused by the pump pulsations and the way the sending unit gains its readings, which are also pulsations on electric sending units.
The provided adapter fitting installs in place of the plug in the fuel filter bowl and the hose allows the sending unit to be located off the engine (away from heat and vibration). The sending unit can also be located lower than the filter bowl (allowing any air bubbles to migrate back up to the filter so they don't affect the pressure reading). Typically, your best option is to route the hose and sending unit behind the air box and battery tray near the drivers side of the engine compartment.
MADE IN THE USA
Enter your zip and we'll see if installation is available.
- Request quotes from local installers at checkout
- Compare options and choose the best fit for your install
About WrenchConnected
WrenchConnected is an independent installation marketplace operating in partnership with Diesel Power Products.
How it works
After checkout, we route your vehicle info and part SKU to verified installation shops near you. Local installers review the job and submit competitive bids; you pick the shop you want based on price, reviews, and availability. Your name and email stay private until you select an installer.
Pricing
You pay for the bid from your preferred shop. The full amount is shown before you confirm — installers cannot add charges without your written consent. Payments are processed securely by Stripe.
Your privacy
During bidding, shops see only your service ZIP code, vehicle year/make/model, and the part SKU — not your name, email, or address. Only the shop you select receives your contact details after payment. We never sell your personal information.
More detail at wrenchconnected.com.

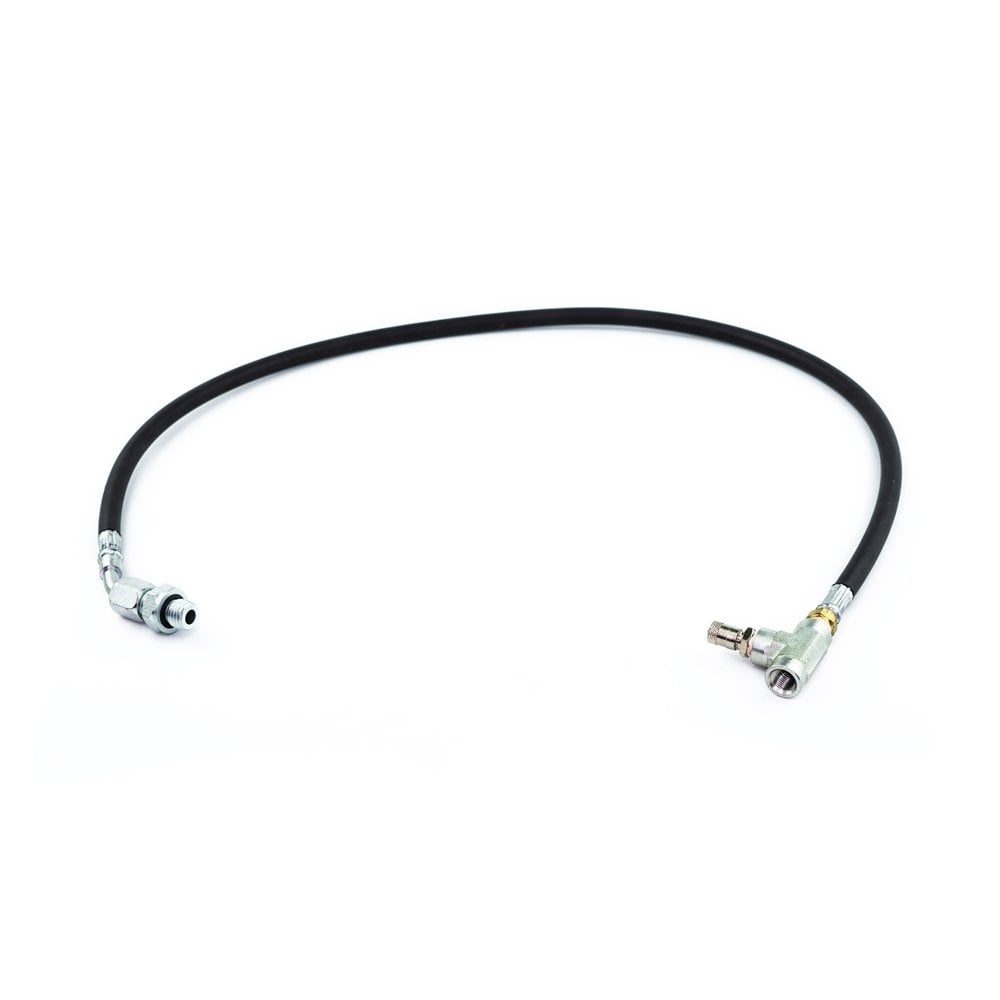

Kit Features:
- Filter Bowl Adapter Fitting
- 30" Pre-Assembled S.S. Braided Teflon Hose
- BLACK Protective Sleeve Over Hose
- 1/8" Female NPT Gauge / Sending Unit Port
- Schrader Valve to Bleed Air or Connect Mechanical Gauge
- 45‚° Hose End for Better Clearance
About Driven Diesel
Driven Diesel, the manufacturing side of the highly accredited Strictly Diesel, is widely known for producing quality, first to market, diesel performance and maintenance products, specializing in Ford Powerstrokes. Dennis Schroeder and Nate Brekken, co-owners of Strictly Diesel, came together in 2010 in order to merge two companies with a common goal. Previously, Dennis owned ITP Diesel that was notorious for producing regulated return fuel kits for Powerstrokes and other specialty performance products while Nate owned Strictly Diesel, which at the time focused on quality, local service and repair work. The two continually collaborated between one another so it was only natural to combine the two companies into what it is now. While many know the Regulated Return Kits, Fuel Filter Kits, Electric Fuel Pump Kits, etc. as Strictly Diesel products, technically they are derived from the manufacturing side of Strictly, known as Driven Diesel. Whichever name you have come to know their products as, you can be rest assured you will never find a "copy-cat" product with their name on it and they have put their own blood, sweat, and tears into every finite detail. These are not "one size fits all" products, but truly tailored for each individual application and designed to serve a purpose and make your truck more reliable than the day it rolled off the assembly line.
Blog
February 14, 2026
Ford diesel trucks have earned their place on job sites, highways, and tow rigs across the country....
Read MoreFord Diesel Engines to Avoid: Common Problems & Years
October 29, 2025
Whether you just drove a brand-new truck off the lot or picked up a used rig that’s...
Read MoreHow to Properly Maintain a Diesel Pickup: Day 1 to Day 365
October 27, 2025
Learn how diesel turbocharger parts work, what each component does, and how they impact airflow, power, and...
Read MoreKnow Your Turbo: Breaking Down Turbocharger Parts for Diesel Trucks
October 23, 2025
Thinking of buying a used 6.0 Powerstroke? Learn the engine specs, issues, and what to inspect before...
Read More6.0 Powerstroke Buyer’s Guide: What to Know Before You Buy
Overall rating: 4.75 / 5 from 4 reviews.
AI Generated Review Summary
Summary topics
Review topics: ["install","works"].
Review highlights
Reviews
Works good
"Fit and finish are great, brings the sending unit over to the back drivers side of the engine bay out of the way of vibrations and heat."
Perfect fuel pressure adapter
"This pressure adapter works as described and is useful to test the fuel pressure away from the engine and the cramped space of the test port. The only downside is the metric thread to standard hose adapter is too large and hits the fuel bowl housing. To fix this, I used a file to round down the fitting which got it to fit with no issues."
Quick and easy installation, would recommend.
"Very quick and easy installation. Simply remove the boot at the intake elbow for a little room, remove the 6mm test port plug, and install the O-ring adapter. No grinding or clearancing needed. Fuel psi sender is now mounted out of harms way."
