What are the key features of the DmaxStore CP3 Injection Pump Hose Kit 01-10 GM 6.6L Duramax LB7/LLY/LBZ/LMM?

Pre-formed, direct-fit replacement for factory feed and return hoses; No cutting or fabricating universal hose required; FKM fluoroelastomer inner tube for chemical resistance; Single-braid aramid reinforcement for high-temperature stability; Outer CSM layer resists heat, ozone, and weather; Includes CP3 feed hose, return hose, and four hose clamps

What are the specifications of the DmaxStore CP3 Injection Pump Hose Kit 01-10 GM 6.6L Duramax LB7/LLY/LBZ/LMM?

4-layer SAE 30R9 construction; -30°F to 257°F rating; Four hose clamps included

SKU #: DMAX-6066+DMAX-6067 MPN #: DMAX-6066+DMAX-6067

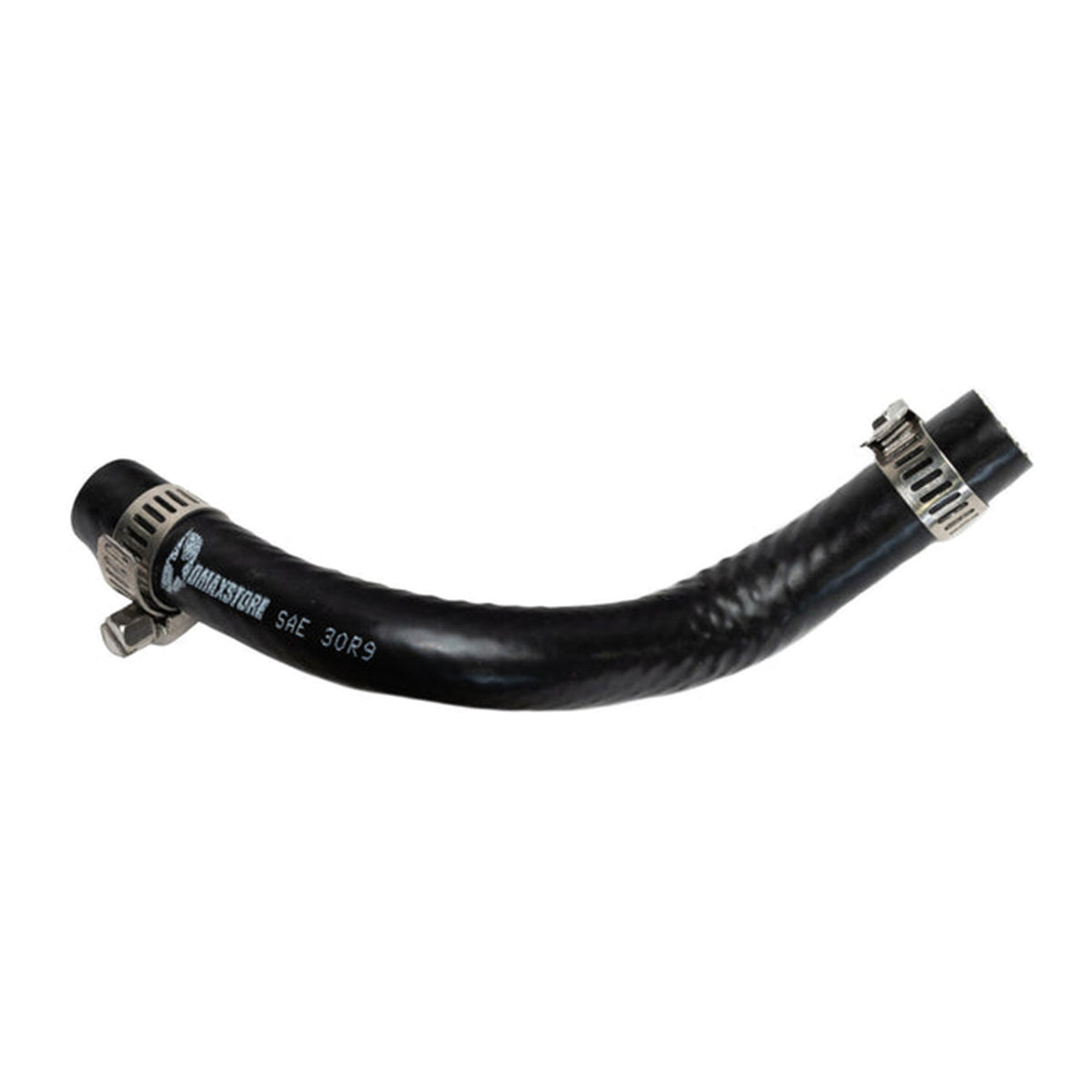

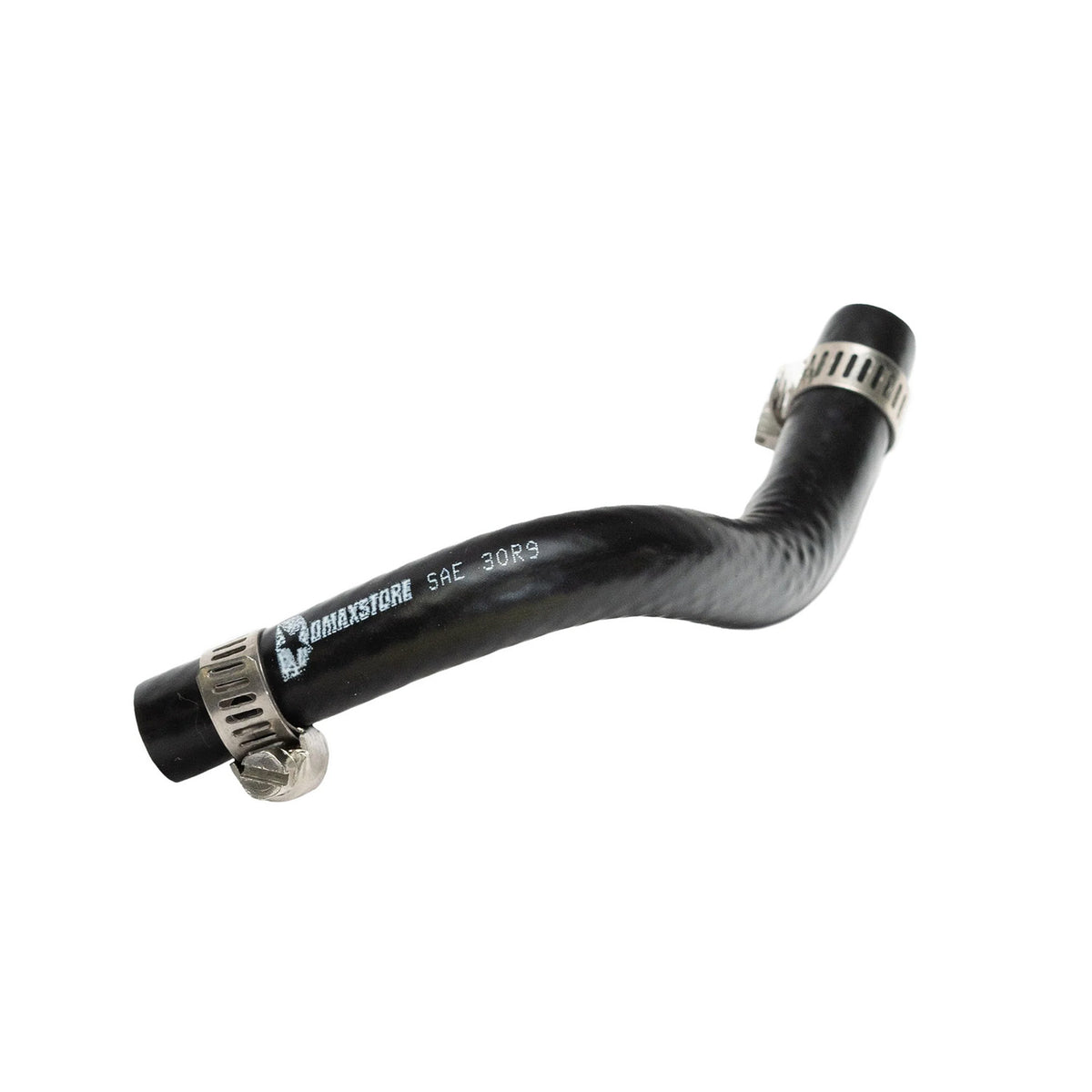

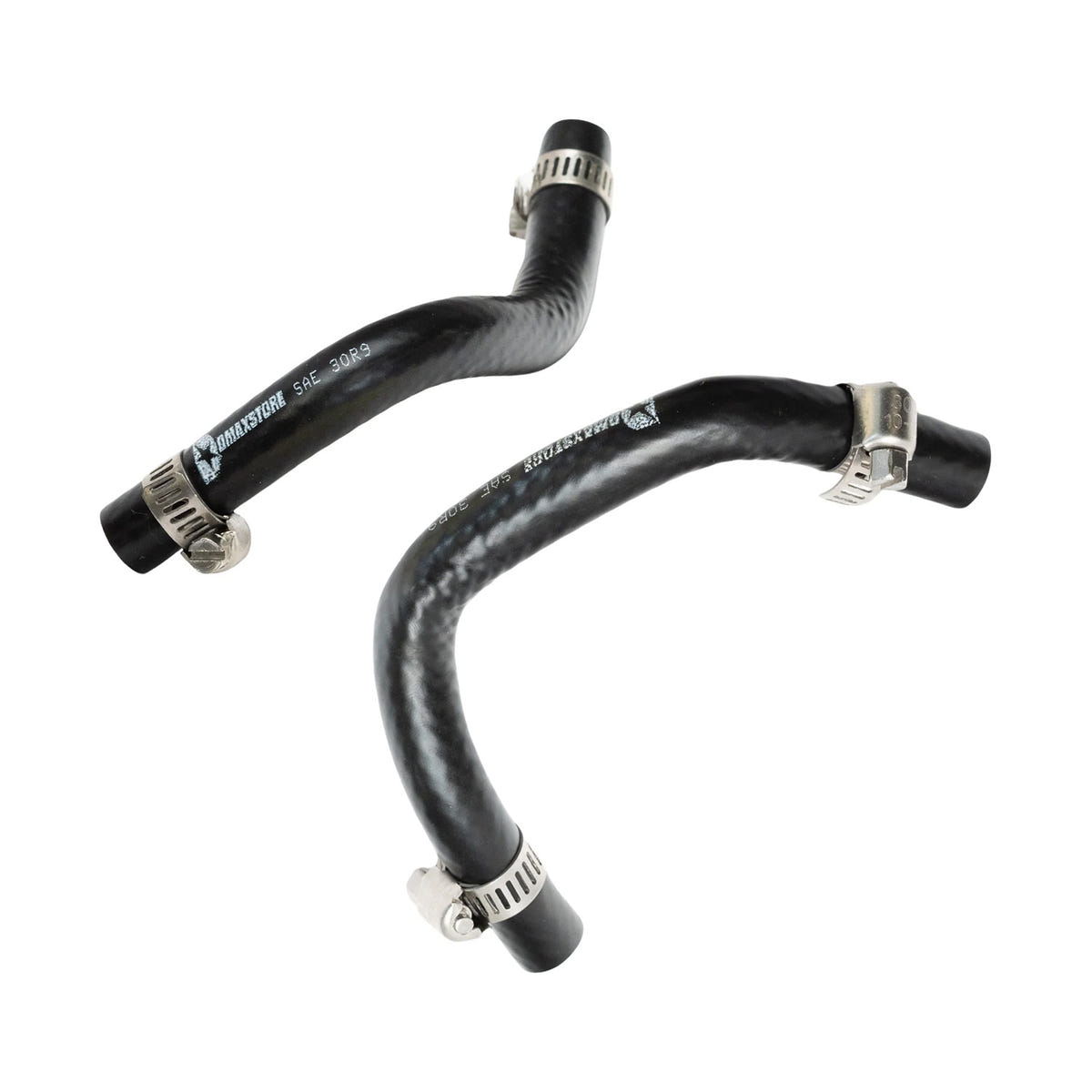

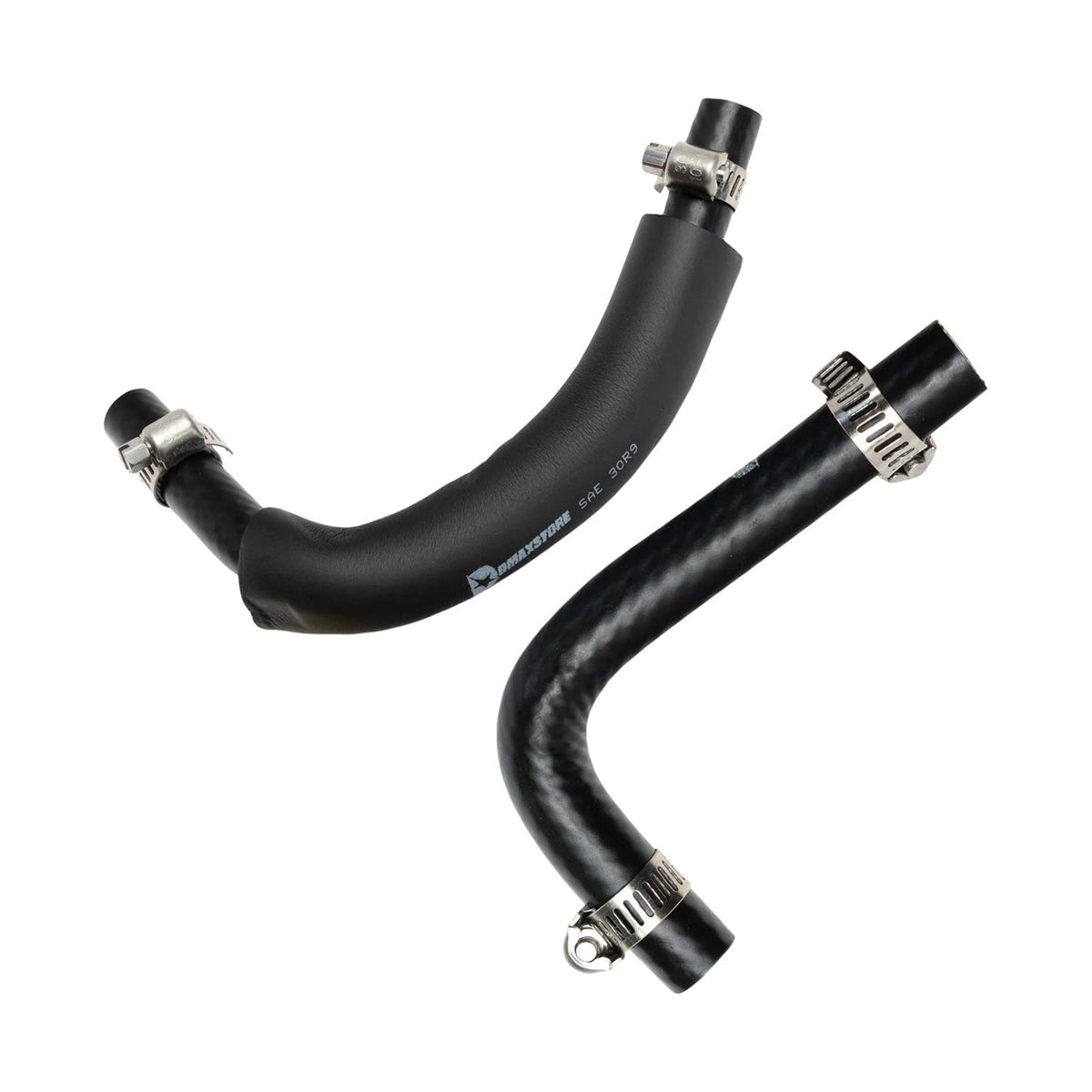

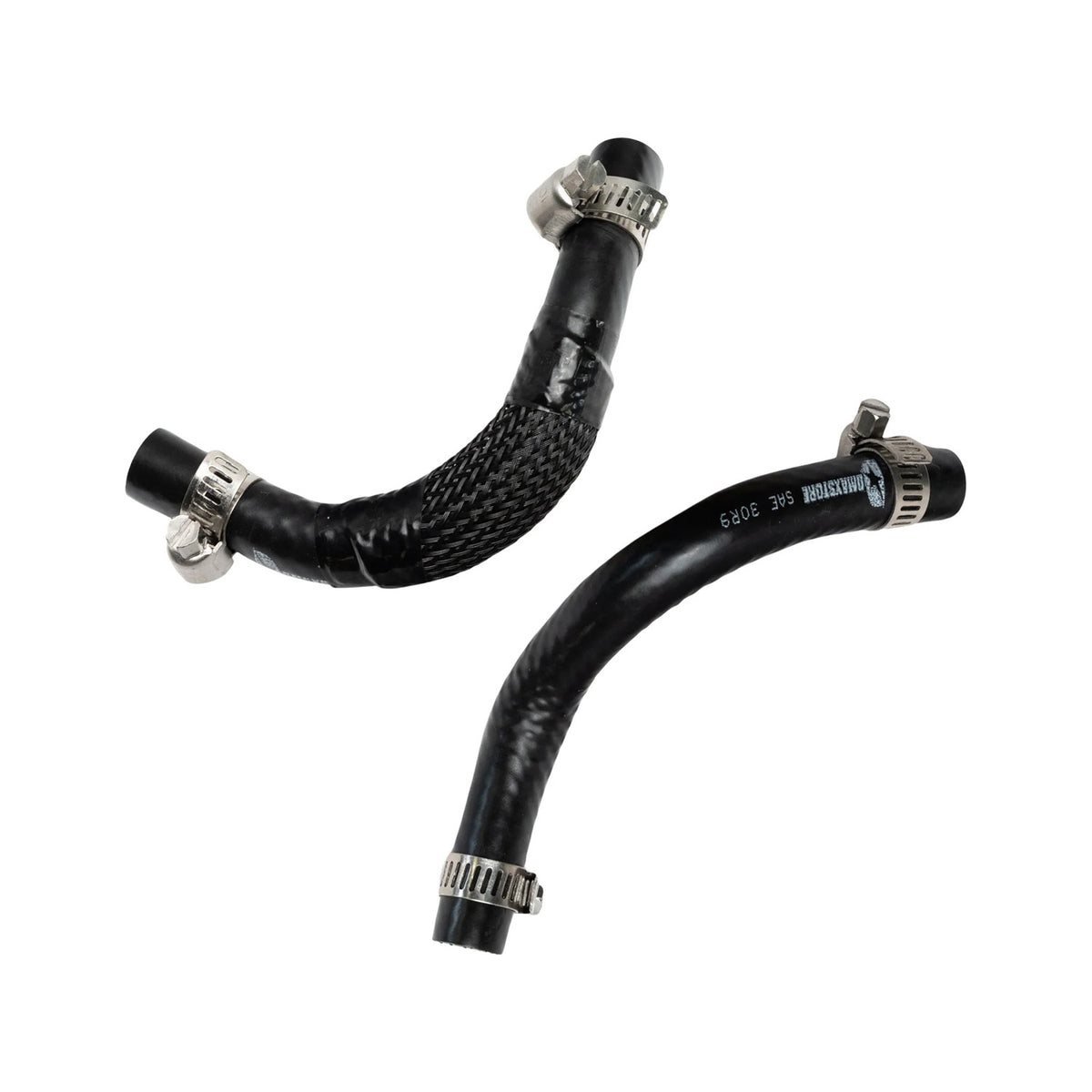

DmaxStore CP3 Injection Pump Hose Kit 01-10 GM 6.6L Duramax LB7/LLY/LBZ/LMM

$50.99

Get 50 points in loyalty rewards

DmaxStore CP3 Injection Pump Hose Kit 01-10 GM 6.6L Duramax LB7/LLY/LBZ/LMM

Description Overview

Replace cracked, aging CP3 injection pump hoses before a small fuel leak turns into a bigger problem with the DmaxStore CP3 Injection Pump Hose Kit. Designed as a direct-fit replacement for the factory feed and return hoses, these pre-formed lines are an ideal upgrade when replacing a CP3 injection pump, fuel pressure regulator, or servicing the fuel system. The kits cover 2001–2004 LB7, 2004.5–2005 LLY, and 2006–2010 LBZ/LMM Duramax applications, providing the correct hose configuration for each generation without having to cut or fabricate a universal fuel hose. Built to handle the heat, fuel, and demanding conditions around the injection pump, these hoses use a 4-layer SAE 30R9 construction rated from -30°F to 257°F and compatible with diesel and biodiesel. The construction uses an FKM fluoroelastomer inner tube for chemical resistance, CSM cover material, single-braid aramid reinforcement for high-temperature stability, and an outer CSM layer for resistance to heat, ozone, and weather. Each application-specific kit includes the CP3 feed hose, CP3 return hose, and four hose clamps.

Product photos may not match the selected option. Please confirm your choice before adding to cart.

Enter your zip and we'll see if installation is available.

Request quotes from local installers at checkout
Compare options and choose the best fit for your install

Free Customer Loyalty Program

No Salesmen, Just Enthusiasts

Direct-fit replacement CP3 injection pump feed and return hose kit, pre-formed to the correct configuration for each generation using 4-layer SAE 30R9 construction.

Fits: 2001-2010 GM 6.6L Duramax LB7/LLY/LBZ/LMM
Brand: DMAXStore
Best for: Replacing a CP3 injection pump, fuel pressure regulator, or servicing the fuel system
Key features: Pre-formed, direct-fit replacement for factory feed and return hoses
No cutting or fabricating universal hose required
FKM fluoroelastomer inner tube for chemical resistance
Single-braid aramid reinforcement for high-temperature stability
Outer CSM layer resists heat, ozone, and weather
Includes CP3 feed hose, return hose, and four hose clamps
Key specs: 4-layer SAE 30R9 construction
-30°F to 257°F rating
Four hose clamps included

Summarized by AI from this product’s description and specs. Confirm fitment for your year, make and engine before ordering.

Replace cracked, aging CP3 injection pump hoses before a small fuel leak turns into a bigger problem with the DmaxStore CP3 Injection Pump Hose Kit. Designed as a direct-fit replacement for the factory feed and return hoses, these pre-formed lines are an ideal upgrade when replacing a CP3 injection pump, fuel pressure regulator, or servicing the fuel system. The kits cover 2001–2004 LB7, 2004.5–2005 LLY, and 2006–2010 LBZ/LMM Duramax applications, providing the correct hose configuration for each generation without having to cut or fabricate a universal fuel hose.

Built to handle the heat, fuel, and demanding conditions around the injection pump, these hoses use a 4-layer SAE 30R9 construction rated from -30°F to 257°F and compatible with diesel and biodiesel. The construction uses an FKM fluoroelastomer inner tube for chemical resistance, CSM cover material, single-braid aramid reinforcement for high-temperature stability, and an outer CSM layer for resistance to heat, ozone, and weather. Each application-specific kit includes the CP3 feed hose, CP3 return hose, and four hose clamps.

Vehicle Fitment

2001-2010 GM 6.6L Duramax LB7/LLY/LBZ/LMM
