What are the key features of the Diode Dynamics SS10 3-in-1 LED Chase Light with Brake & Reverse Light?

Programmable chase light with 20 selectable strobing patterns; SafetyStrobe brake light with 3 programmable modes; Integrated high-power reverse light for backing up visibility; Optional vehicle signal activation for factory lighting integration; IP69K-rated construction resists weather, dust, and high-pressure washing; Made in the USA with globally sourced materials

What are the specifications of the Diode Dynamics SS10 3-in-1 LED Chase Light with Brake & Reverse Light?

Raw Lumens: White 960 / Red 220 / Amber 220; Intensity: White 650cd / Red 125cd / Amber 450cd; Color Temperature: 6000K; Beam Angle: 80° x 50° flood; Power: White 4W / Red 2.5W / Amber 4W; Operating Voltage: 9–16V; Operating Temperature: -40°C to 85°C; Product Weight: 2.9 lbs

SKU #: DIO-DD8931 MPN #: DD8931

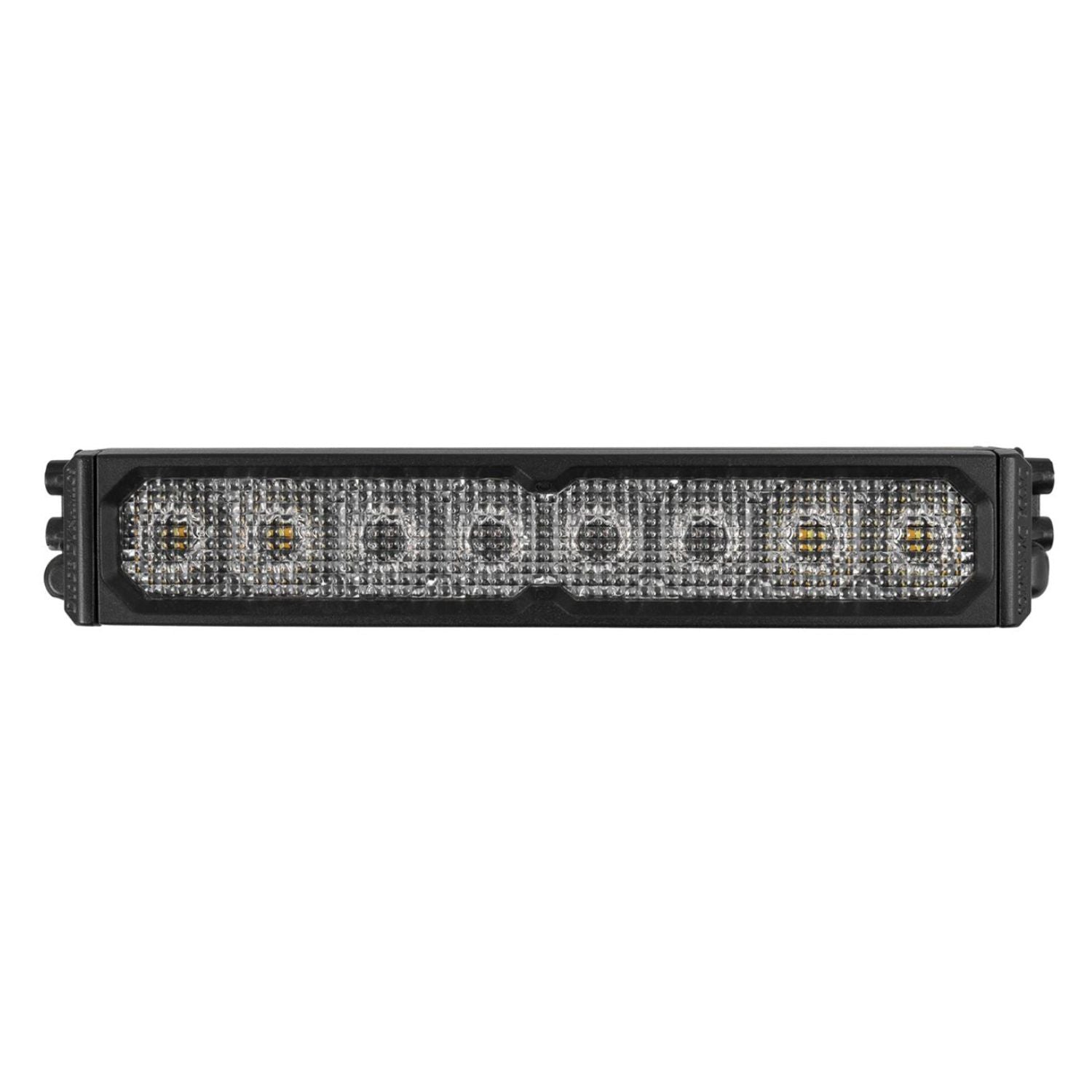

Diode Dynamics SS10 3-in-1 LED Chase Light with Brake & Reverse Light

Name: Diode Dynamics SS10 3-in-1 LED Chase Light with Brake & Reverse Light
Brand: Diode Dynamics
Price: 299.95 USD
Availability: InStock

$299.95

Get 299 points in loyalty rewards

Diode Dynamics programmable LED chase light bar

Waterproof LED chase light with brake and reverse functions

Diode Dynamics SS10 rear LED safety light

Universal 3-in-1 LED chase light with brake and reverse light

Description Overview

Whether you're backing up at night, driving through dust on the trail, or just want to make your truck more visible and safer, the Diode Dynamics SS10 LED Chase Light is a versatile 3-in-1 lighting solution designed to improve visibility and safety on and off the road. Combining a programmable amber chase light, high-output red brake light, and powerful white reverse light into one compact package, the SS10 helps your vehicle stand out in dusty trails, low-light conditions, and while backing up. SmartTap programming makes it easy to select from 20 chase light patterns and three brake light modes using the included magnet tool. Built for demanding environments, the SS10 features advanced TIR optics for maximum light output, a durable IP69K-rated aluminum housing, and adjustable mounting brackets for flexible installation on bed racks, roll bars, trailers, and other custom applications. Engineered and manufactured in the USA using globally sourced materials, the SS10 delivers reliable performance backed by Diode Dynamics' Limited Lifetime Warranty. IMPORTANT NOTE: This is a universal auxiliary LED light that requires custom installation and wiring. The reverse light can optionally be wired to activate automatically when the vehicle is shifted into reverse.

Enter your zip and we'll see if installation is available.

Request quotes from local installers at checkout
Compare options and choose the best fit for your install

Free Customer Loyalty Program

No Salesmen, Just Enthusiasts

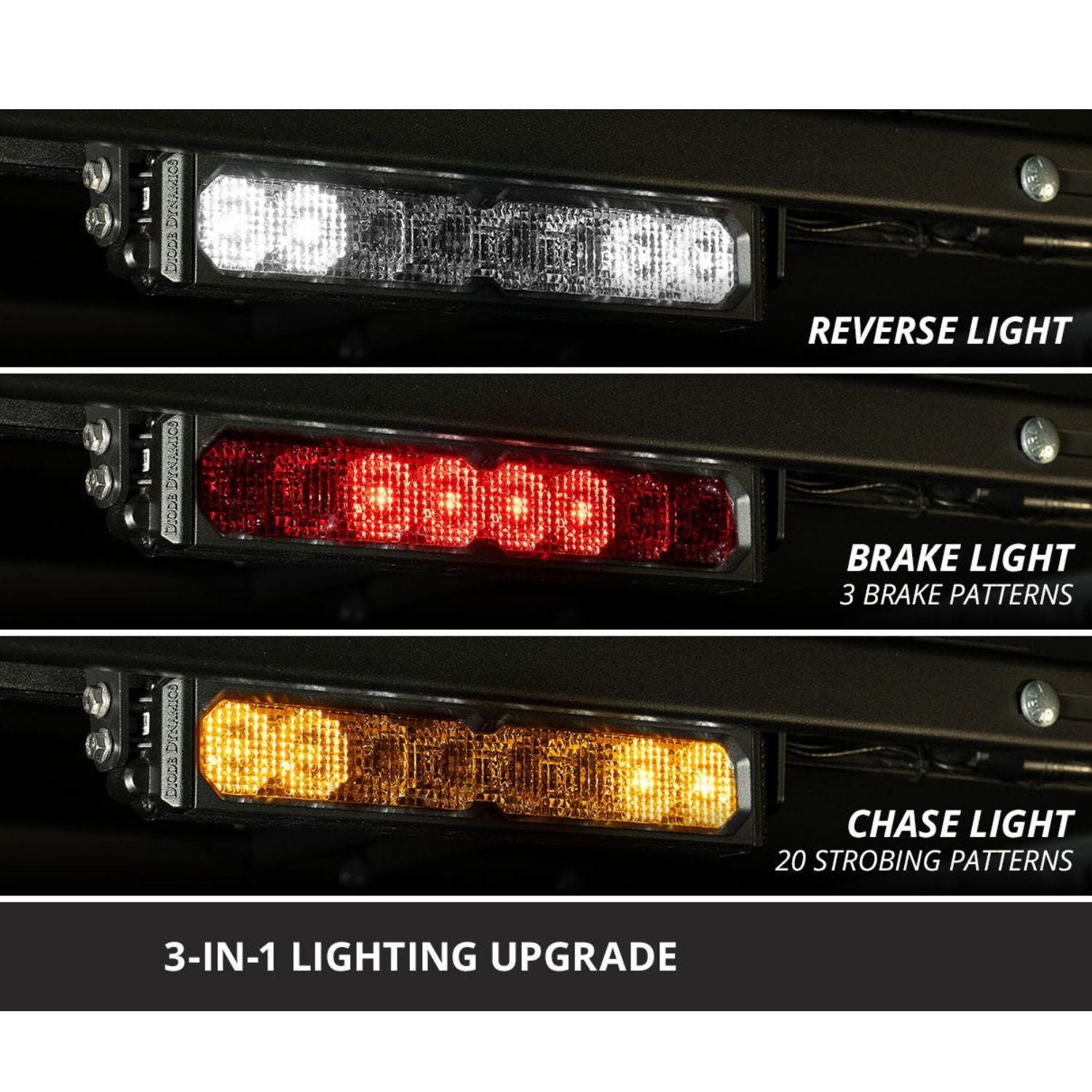

The Diode Dynamics SS10 is a 3-in-1 LED chase light combining a programmable amber chase light, red brake light, and white reverse light in one compact housing.

Fits: Universal Fitment
Brand: Diode Dynamics
Best for: adding rear visibility and safety lighting for trucks, UTVs, and off-road rigs
Key features: Programmable chase light with 20 selectable strobing patterns
SafetyStrobe brake light with 3 programmable modes
Integrated high-power reverse light for backing up visibility
Optional vehicle signal activation for factory lighting integration
IP69K-rated construction resists weather, dust, and high-pressure washing
Made in the USA with globally sourced materials
Key specs: Raw Lumens: White 960 / Red 220 / Amber 220
Intensity: White 650cd / Red 125cd / Amber 450cd
Color Temperature: 6000K
Beam Angle: 80° x 50° flood
Power: White 4W / Red 2.5W / Amber 4W
Operating Voltage: 9–16V
Operating Temperature: -40°C to 85°C
Product Weight: 2.9 lbs
Important: This is a universal auxiliary LED light that requires custom installation and wiring.

Whether you're backing up at night, driving through dust on the trail, or just want to make your truck more visible and safer, the Diode Dynamics SS10 LED Chase Light is a versatile 3-in-1 lighting solution designed to improve visibility and safety on and off the road. Combining a programmable amber chase light, high-output red brake light, and powerful white reverse light into one compact package, the SS10 helps your vehicle stand out in dusty trails, low-light conditions, and while backing up. SmartTap programming makes it easy to select from 20 chase light patterns and three brake light modes using the included magnet tool.

Built for demanding environments, the SS10 features advanced TIR optics for maximum light output, a durable IP69K-rated aluminum housing, and adjustable mounting brackets for flexible installation on bed racks, roll bars, trailers, and other custom applications. Engineered and manufactured in the USA using globally sourced materials, the SS10 delivers reliable performance backed by Diode Dynamics' Limited Lifetime Warranty.

IMPORTANT NOTE: This is a universal auxiliary LED light that requires custom installation and wiring. The reverse light can optionally be wired to activate automatically when the vehicle is shifted into reverse.

Manuals and Guides

INSTALL INSTRUCTIONS

Vehicle Fitment

Universal Fitment

WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov

FEATURES & BENEFITS:

Programmable chase light with 20 selectable strobing patterns for improved rear visibility
SafetyStrobe brake light offers 3 programmable modes for added safety and customization
Integrated high-power reverse light improves visibility when backing up
Optional vehicle signal activation allows seamless integration with factory lighting functions
IP69K-rated construction withstands extreme weather, dust, and high-pressure washing
Made in the USA with global materials for trusted quality and durability

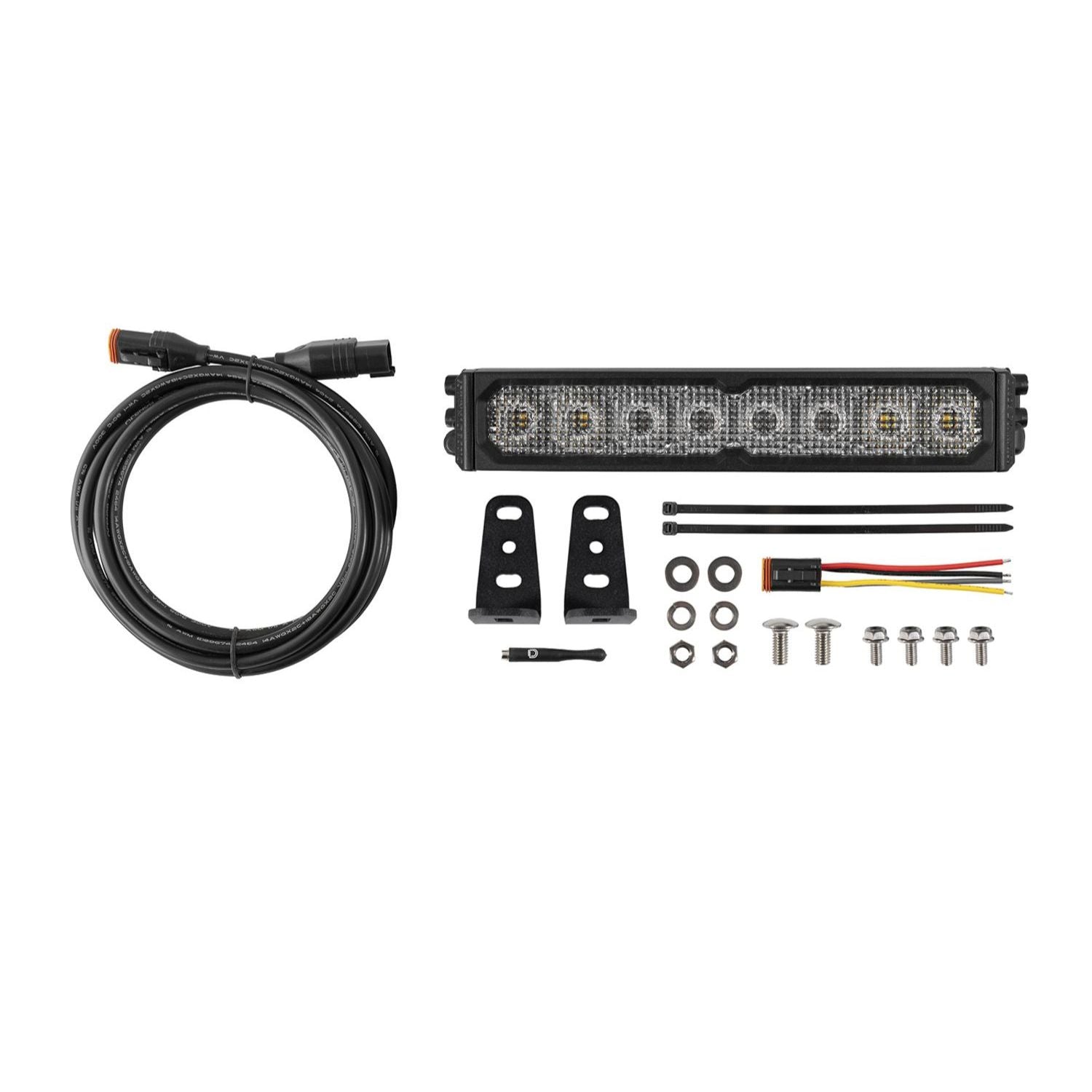

KIT INCLUDES:

(1) SS10 LED Chase Light Bar
(1) magnet tool
(1) 3m DT extension wire
(2) zip ties
Mounting brackets included
Mounting hardware included
Quantity: One (1)

SPECIFICATIONS:

Raw Lumens: White: 960, Red: 220, Amber: 220
Intensity (cd): White: 650, Red: 125, Amber: 450
Color Temperature: 6000K
Beam Angle: Flood, 80° x 50°
Power: White: 4W, Red: 2.5W, Amber: 4W
Operating Voltage: 9–16V
Current (amps @ 12.8V): White: 0.3A, Red: 0.2A, Amber: 0.3A
Wire Size: 18AWG
Polarity: Polarity specific
Operating Temperature: -40°C to 85°C (-40°F to 185°F)
Connector: Deutsch DT input
Driver Features: Constant current
Materials: FR4 PCB, polycarbonate lens, rubber gasket, A360 aluminum casting
Cooling: Passive pin-fin heatsink
Compliance Ratings: SAE J575 durability test, SAE J1957 center high mounted stop lamp
Intrusion Rating: IP69K waterproof and high-pressure resistant
Product Weight: 2.9 lbs
