CNC Fabrication Billet Universal Fuel Sump With Integrated Return

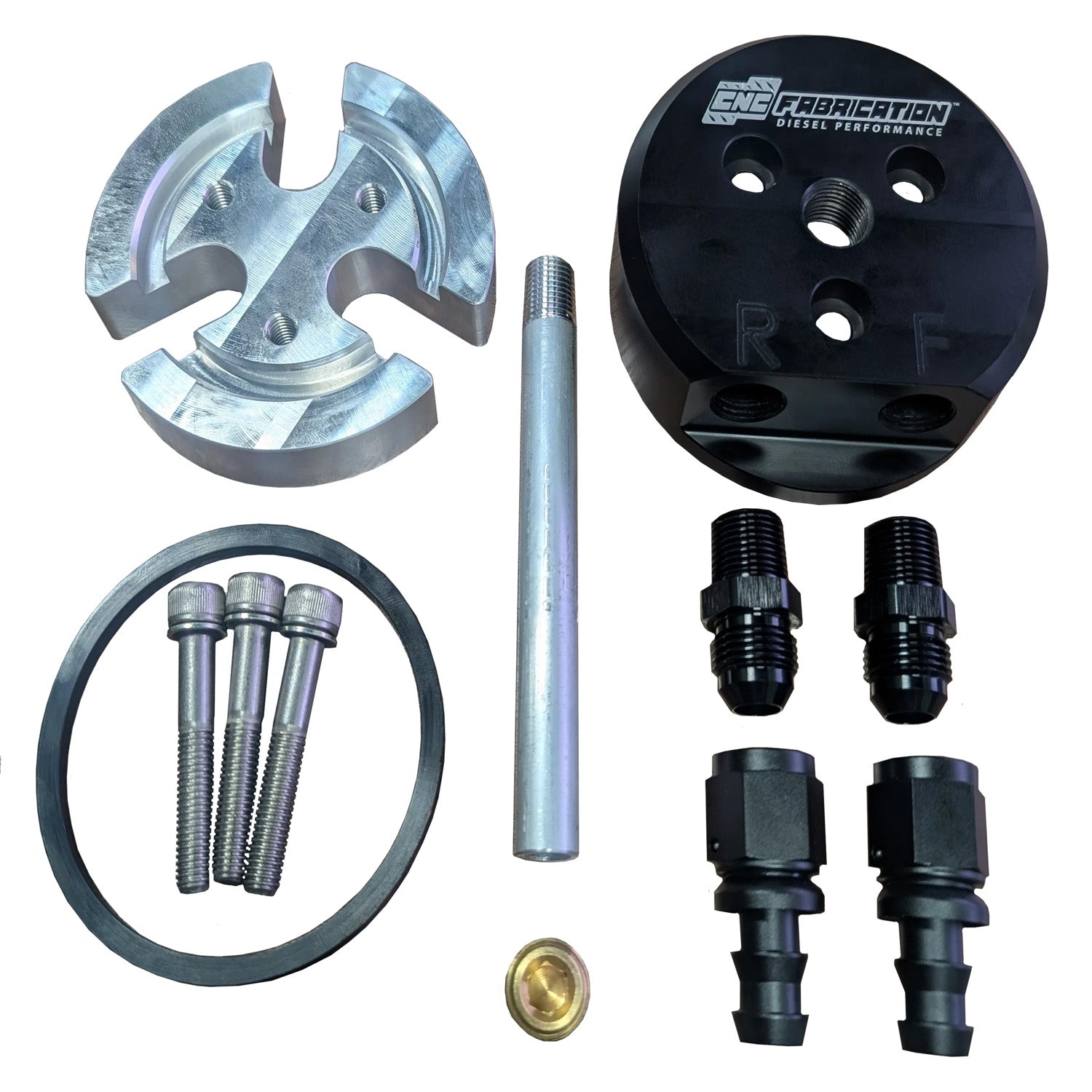

Are you upgrading to a high-performance lift pump? Don't let a restrictive factory fuel pickup hold your system back. The CNC Fab Billet Universal Fuel Sump with an integrated return is designed to deliver a consistent, unrestricted fuel supply while eliminating the need to route the return line back through the top of the fuel tank or modify the filler neck. Pulling fuel directly from the bottom of the tank helps prevent fuel starvation at low tank levels, supports higher fuel demand, and significantly reduces installation time. Whether you're building a tow rig, race truck, or daily driver, this sump is an easy way to maximize the performance and reliability of your aftermarket fuel system. Precision CNC-machined from T6061 billet aluminum, this universal fuel sump is built to withstand the demands of high-performance diesel applications. Its innovative clamp-in O-ring sealing system creates a secure, leak-free installation while requiring only a single 2-1/4-inch hole in the fuel tank. The high-flow feed outlet can supply even the largest lift pumps, while the integrated return and built-in drain port simplify plumbing and future maintenance. Complete with installation hardware, fittings, and a return tube, this kit delivers a durable, professional-grade solution built for years of dependable service.
