SKU #: CS-DPT25-10-D MPN #: CS-DPT25-10-D

Carli Pintop 2.5 System Lift Kit 10-13 Ram 2500/3500 4WD

$4,153.00
Get 4153 points in loyalty rewards
☆☆☆☆☆ (0)
Description
The Carli Pintop 2.5 System is one of the most popular suspension upgrades for Dodge Ram 2500/3500 diesel owners who want their truck to ride better everywhere. Think of it as the Backcountry system turned up a notch. By pairing added lift with Carli-tuned 2.5″ King remote reservoir shocks, the Pintop delivers a smoother, more controlled ride with significantly improved bottom-out resistance! Tuned in-house for real-world diesel use, the Pintop offers one of the best ride-quality-per-dollar setups Carli makes. Expect 2.5″–3″ of front lift and 1″–2″ of rear lift, along with increased suspension travel over stock. Whether you daily drive, tow, or explore dirt roads on the weekend, this system simply works. Important: The Pintop is a modular system. While the Base Kit installs on its own, it must be paired with a rear leaf spring option and a sway bar option to form a complete system and achieve proper lift height and full ride-quality benefits. Required Base Kit Includes Linear-Rate Coils Carli Tuned King 2.5" Remote Reservoir Pintop Shock Package with Reservoir Mounts & Limit Straps, Stainless Shafts Track Bar Sway Bar Options Increased suspension travel alters sway bar geometry. Correcting it improves stability, body control, and articulation while preventing binding. Torsion Sway Bar - 3" Lift: Best bang-for-the-buck ride improvement; allows freer suspension movement without sacrificing control. Fits 0–3″ front lift. Requires removal of electronic sway bar on Power Wagons. Adjustable Stainless Sway Bar Endlinks: 17-4 stainless construction with 1/2″ FK bearings for long-term durability. Replaces weak factory ball-and-socket links. For 2010–2013 Rams, verify 10mm or 12mm sizing. Rear Leaf Spring Options Rear leaf springs support vehicle weight, set ride height, improve ride quality, reduce axle wrap, and maintain proper suspension travel. Diesel Full Progressive Leaf Spring Kit - 1" Lift: Provides 1″–2″ rear lift with a slight rear-high stance, softens initial spring rate, reduces axle wrap and wheel hop, and allows up to 15″ of travel. Light ¾-ton payload capacity. Fits 4″ axle tubes. Diesel Full Progressive Leaf Spring Kit - 1" Lift HD: Designed for constant 1,500 lb loads, maintains improved ride quality, reduces axle wrap, and allows up to 15″ of travel. Fits 4.0″ axle tubes. Diesel Full Progressive Add-a-Pack, 1" Lift, 4.0" Axle Diameter": Replaces the lower overload spring for smoother spring progression, adds 1″ of rear lift, keeps tires planted, and includes U-bolts and center pins. Fits select Ram 2500/3500 diesel applications (not compatible with factory air-assist). Optional Upgrades   Fabricated Leaf Spring Shackles: Reduce rear stiffness and improve articulation; 1/4″ steel construction with greasable, rebuildable bushings. Compatible with factory and Carli springs. Long Travel Airbags (1″–2″ Rear Lift): Support heavy loads without sacrificing ride quality; adjustable up to 2,000 lbs per bag at 100 psi while maintaining full suspension travel. Ram Extended Control Arms: Billet 6061 aluminum arms that re-center the front axle on 3″ systems, improve steering stability, and provide clearance for up to 37″ tires. Low Mount Steering Stabilizer – Stainless: Direct bolt-in upgrade for T-style steering that reduces wobble and corrects right-tire pull; adjustable and compatible with an optional differential guard. High Mount Steering Stabilizer – T-Style Lifted: Improves steering control on leveled and lifted trucks; not compatible with factory Power Wagon sway bars. Opposing Steering Stabilizer Kit – T-Style Lifted: Dual opposing stabilizers correct all radial pull and include a differential guard for maximum steering control.
Customizations
Carli Sway Bar Options (0)Optional
Carli Stainless Sway Bar Endlinks for 94-13 Dodge Ram 2500 and 3500
$277.00
Carli Torsion Sway Bar for 03-13 Dodge Ram 2500 and 3500
$875.00
Carli Rear Leaf Options (0)Optional

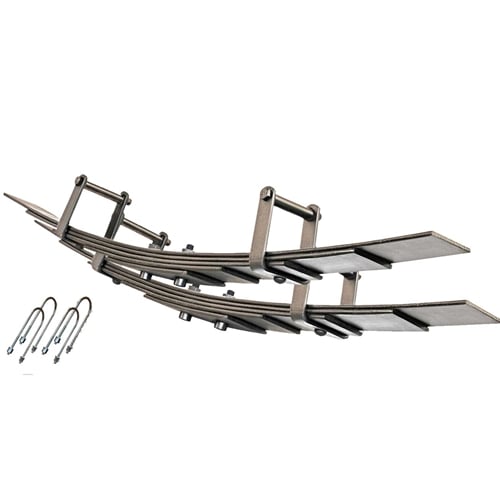

Carli Suspension Progressive 5 Leaf Add-A-Pack Leaf Springs 1" Rear Lift for 03-18 Dodge Ram 2500 and 3500
From $505.00
Carli 1" Rear Lift Full Progressive Leaf Spring Pack 03 13 Dodge Ram 2500/3500
$1,465.00
Carli 1" Rear Lift Full Replacement Heavy Duty Leaf Spring Pack for 03-13 Dodge Ram 2500 and 3500
$2,149.00
Carli Torsion Sway Bar for 03-13 Dodge Ram 2500 and 3500
$875.00

The Carli Pintop 2.5 System is one of the most popular suspension upgrades for Dodge Ram 2500/3500 diesel owners who want their truck to ride better everywhere. Think of it as the Backcountry system turned up a notch. By pairing added lift with Carli-tuned 2.5″ King remote reservoir shocks, the Pintop delivers a smoother, more controlled ride with significantly improved bottom-out resistance!

Tuned in-house for real-world diesel use, the Pintop offers one of the best ride-quality-per-dollar setups Carli makes. Expect 2.5″–3″ of front lift and 1″–2″ of rear lift, along with increased suspension travel over stock. Whether you daily drive, tow, or explore dirt roads on the weekend, this system simply works.

Important: The Pintop is a modular system. While the Base Kit installs on its own, it must be paired with a rear leaf spring option and a sway bar option to form a complete system and achieve proper lift height and full ride-quality benefits.

Required

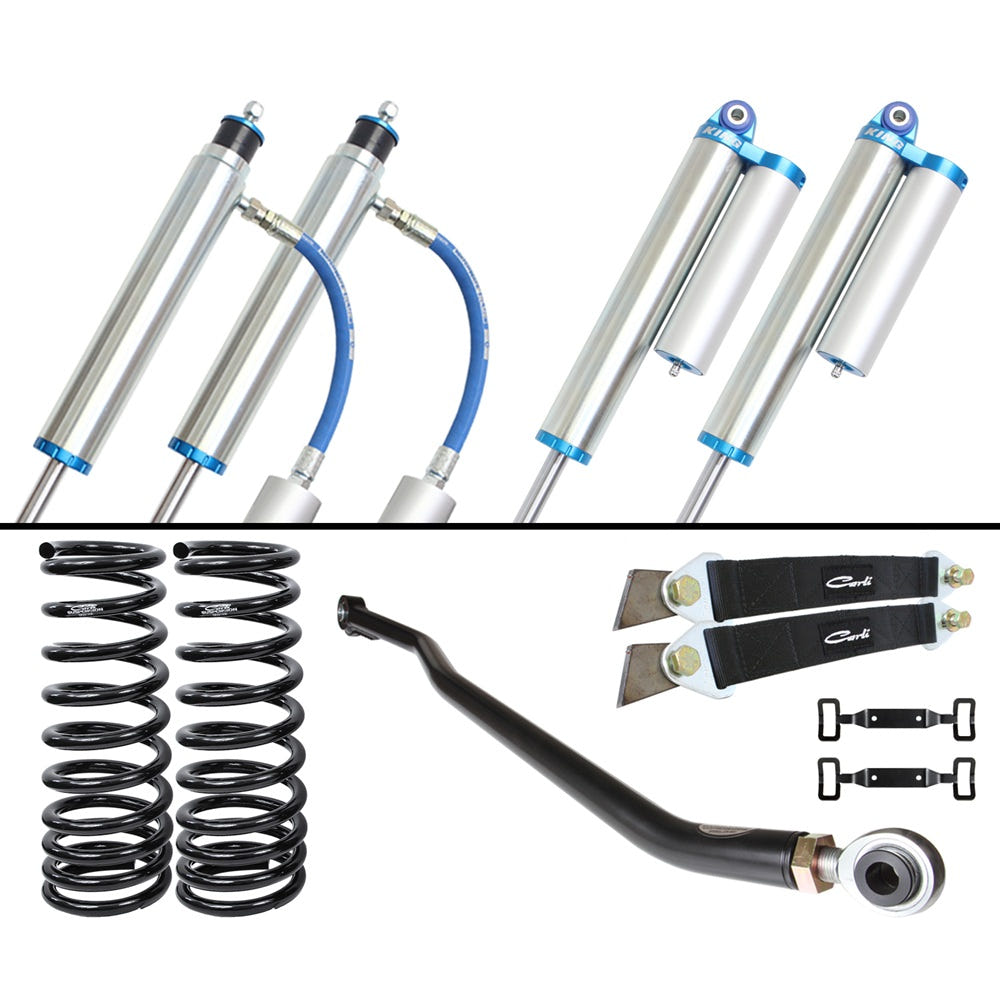

Base Kit Includes

  • Linear-Rate Coils
  • Carli Tuned King 2.5" Remote Reservoir Pintop Shock Package with Reservoir Mounts & Limit Straps, Stainless Shafts
  • Track Bar


Sway Bar Options

Increased suspension travel alters sway bar geometry. Correcting it improves stability, body control, and articulation while preventing binding.

  • Torsion Sway Bar - 3" Lift: Best bang-for-the-buck ride improvement; allows freer suspension movement without sacrificing control. Fits 0–3″ front lift. Requires removal of electronic sway bar on Power Wagons.
  • Adjustable Stainless Sway Bar Endlinks: 17-4 stainless construction with 1/2″ FK bearings for long-term durability. Replaces weak factory ball-and-socket links. For 2010–2013 Rams, verify 10mm or 12mm sizing.


Rear Leaf Spring Options

Rear leaf springs support vehicle weight, set ride height, improve ride quality, reduce axle wrap, and maintain proper suspension travel.

  • Diesel Full Progressive Leaf Spring Kit - 1" Lift: Provides 1″–2″ rear lift with a slight rear-high stance, softens initial spring rate, reduces axle wrap and wheel hop, and allows up to 15″ of travel. Light ¾-ton payload capacity. Fits 4″ axle tubes.
  • Diesel Full Progressive Leaf Spring Kit - 1" Lift HD: Designed for constant 1,500 lb loads, maintains improved ride quality, reduces axle wrap, and allows up to 15″ of travel. Fits 4.0″ axle tubes.
  • Diesel Full Progressive Add-a-Pack, 1" Lift, 4.0" Axle Diameter": Replaces the lower overload spring for smoother spring progression, adds 1″ of rear lift, keeps tires planted, and includes U-bolts and center pins. Fits select Ram 2500/3500 diesel applications (not compatible with factory air-assist).


Optional Upgrades



  • Fabricated Leaf Spring Shackles: Reduce rear stiffness and improve articulation; 1/4″ steel construction with greasable, rebuildable bushings. Compatible with factory and Carli springs.
  • Long Travel Airbags (1″–2″ Rear Lift): Support heavy loads without sacrificing ride quality; adjustable up to 2,000 lbs per bag at 100 psi while maintaining full suspension travel.
  • Ram Extended Control Arms: Billet 6061 aluminum arms that re-center the front axle on 3″ systems, improve steering stability, and provide clearance for up to 37″ tires.
  • Low Mount Steering Stabilizer – Stainless: Direct bolt-in upgrade for T-style steering that reduces wobble and corrects right-tire pull; adjustable and compatible with an optional differential guard.
  • High Mount Steering Stabilizer – T-Style Lifted: Improves steering control on leveled and lifted trucks; not compatible with factory Power Wagon sway bars.
  • Opposing Steering Stabilizer Kit – T-Style Lifted: Dual opposing stabilizers correct all radial pull and include a differential guard for maximum steering control.
Vehicle Fitment
2010-2013 Ram 2500/3500
WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov
KIT CONTENTS:
  • Front Lift: 3.0″
  • Rear Lift: 1″–2″
  • Front Travel: 10″
  • Rear Travel: 10.6″
  • Shock Diameter: 2.5″
  • Tire Fitment: 37″ x 12.5″
About Carli Suspension
CARLI SUSPENSION KITS, SYSTEMS, AND COMPONENTS

Yeah, we know Sage Carli can launch a full sized truck over nearly any obstacle. If you are into Baja racing, everyone knows by now that Carli Suspension is the name to go with. What you may not realize is that Carli has a suspension kit for your needs too. You probably don't care anything about having your expensive truck go air born, but you do want the best performance out of your suspension for your application. Carli Starter and Commuter 2.0 systems are designed to give you the best possible street manners compared to any other system on the market while providing ample room for the larger tires you want. Potholes disappear, you find yourself building speed on corners and washboard, and that's just when you are on the way to work. Now imagine heading out to feed the cows WITHOUT hitting your head on the headliner. Imagine coming back from your hunting trip WITHOUT needing a trip to the chiropractor. Take another look at Carli Suspension. It's not all about Baja. It's about YOUR truck and what you do with it. Stop by, we'll give you a ride and show you what you're missing. Just bring the checkbook and permission from the boss! One ride and you'll be hooked!

CARLI KITS

The entire engineering philosophy behind Carli aims to offer the real world Dodge Ram and Ford SuperDuty a suspension system that drastically increases the street drive of the vehicle while offering incredible off-road characteristics. So far, Sage Carli's suspension systems are the only option available where you don't have to compromise.

Carli products are designed to meet the expectations of both the daily street driver and the most extreme avid off road enthusiast. From the urban streets to the most remote places, Carli products will far exceed all your expectations. The easiest way to put this into perspective is that Carli truly builds suspension systems for the enthusiast....the person who truly LOVES their truck and wants to upgrade it with the most thought out, tasteful upgrades on the market. No, this type of individual isn't going to head to Napa to pickup a new track bar. They're going to research the best possible track bar on the market and go that route. Carli Suspension is truly a brand for enthusiasts, featuring products that are built by enthusiasts. Just watch any of Carli Suspension's videos and you'll understand why they have such a passion for their products.

Stock production trucks are built mainly to keep costs down. From a truck enthusiast's point of view these standards simply are not acceptable. From people looking to get a better ride with a more aggressive stance to people looking to get some serious off road performance, Carli understands the needs of these enthusiasts. This is epitomized by the ever growing list of satisfied customers. Carli Suspensions relentless pursuit of producing the best performing suspension systems is something that can be felt every time a customer drives their truck. Carli wouldnt have it any other way.

CARLI COMPONENTS

You know, its not always about a complete suspension. In fact, some of our best selling Carli products are things like a track bar, Carli ball joints, shocks, coil springs, and more. Maybe you've got a clunk in your front end that has been nailed down to being from a worn out track bar bushing and you did your research (mentioned above) and found out that the best track bar for your Ram or Ford is from Carli, so you buy that one. Or maybe you want a better ride, but only want to replace the coil springs for now. No problem. Sure, Carli is centered around their entire systems, but nearly all of their components can be used interchangeably on a stock height truck or one with an existing leveling or lift kit. We do our best to make note of any fitment requirements on each product page, but if you have any questions, please feel free to reach out and ask, we're happy to help.

Here at Diesel Power Products we only want to sell the best and lets face it, the stock Ram and Ford suspension needs help. Your stock suspension system is designed to be adequate and nothing more. Carli not only makes the ride of your truck better, it makes it safer. Whether you are towing a trailer on the interstate or doing a little off-road adventure, we will attest that you'll be more than satisfied by upgrading to Carli.
