SKU #: CS-DHYDRO-03-F MPN #: CS-DHYDRO-03-F

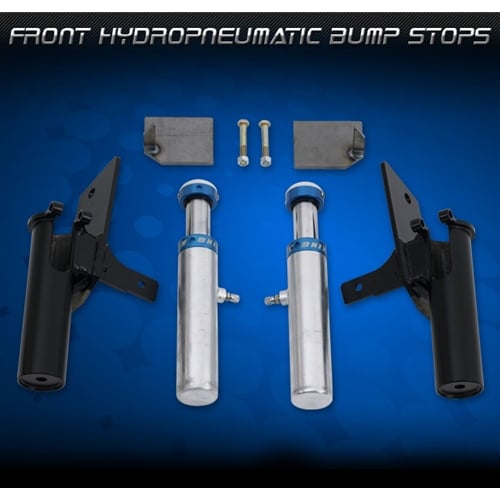

Carli Front Hydro-Pneumatic Bump Stop Package 03-13 Ram 2500 / 03-12 Ram 3500

$1,142.00
Get 1142 points in loyalty rewards
Description
This is the FIRST hydraulic bump stop on the market for a Dodge Ram. Carli's front bump stop kit does not reduce wheel travel. Only the final 2.5" of travel will utilize the bump stops. The bump stops act as a secondary suspension system. This system was designed to protect your truck from those unforeseen hits when pushing the limits of the suspension.All of the energy used to compress the bump stop is dissipated as heat thus preventing the suspension from bottoming out , leaving everything still in place on your dash. Also, the rebound of the bump stop is designed to extend at a slower rate which will keep from forcing the axle back up, which would cause the suspension to bounce back. By slowing down the last couple of inches of compression travel, you reduce the amount of stored energy that needs to be controlled on the rebound side. This will help maintain control of the vehicle when off-roading at speed. The hydro-pneumatic bump stops offer "position sensitive" high-speed compression dampening. When you take a big hit and stroke the shock piston through the travel and the bumpstop engages, it dramatically increases the compression dampening in the last 2.5 inches of travel, offering substantial bottom out protection. Low speed dampening is unaffected, and here's why; you can compress the bump stop slowly to full up travel. The bump stops are designed with low flow pistons and are valved (tuned) to absorb high shaft speed impacts, yet still allowing the axle to articulate slowly to full bump without resting on a fully extended bump stop.
lift height option

Enter your zip and we'll see if installation is available.

  • Request quotes from local installers at checkout
  • Compare options and choose the best fit for your install
This is the FIRST hydraulic bump stop on the market for a Dodge Ram. Carli's front bump stop kit does not reduce wheel travel. Only the final 2.5" of travel will utilize the bump stops. The bump stops act as a secondary suspension system. This system was designed to protect your truck from those unforeseen hits when pushing the limits of the suspension.

All of the energy used to compress the bump stop is dissipated as heat thus preventing the suspension from bottoming out , leaving everything still in place on your dash. Also, the rebound of the bump stop is designed to extend at a slower rate which will keep from forcing the axle back up, which would cause the suspension to bounce back. By slowing down the last couple of inches of compression travel, you reduce the amount of stored energy that needs to be controlled on the rebound side. This will help maintain control of the vehicle when off-roading at speed.

The hydro-pneumatic bump stops offer "position sensitive" high-speed compression dampening. When you take a big hit and stroke the shock piston through the travel and the bumpstop engages, it dramatically increases the compression dampening in the last 2.5 inches of travel, offering substantial bottom out protection. Low speed dampening is unaffected, and here's why; you can compress the bump stop slowly to full up travel. The bump stops are designed with low flow pistons and are valved (tuned) to absorb high shaft speed impacts, yet still allowing the axle to articulate slowly to full bump without resting on a fully extended bump stop.
Vehicle Fitment
2003-2013 Dodge Ram 2500 4x4|2003-2012 Dodge Ram 3500 4x4|2006-2008 Dodge Ram 1500 Megacab 4x4
WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov
FEATURES & BENEFITS:
  • Engages the last 2.5" of Travel Stroke

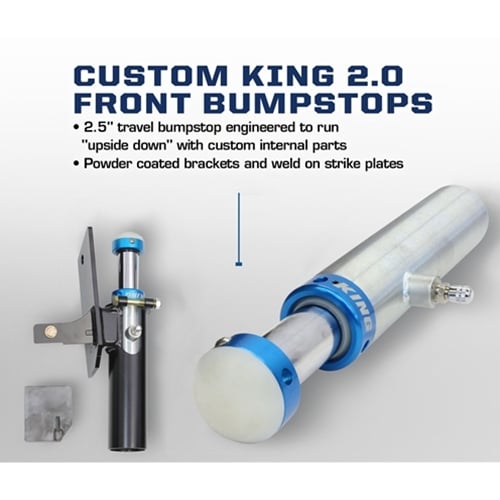

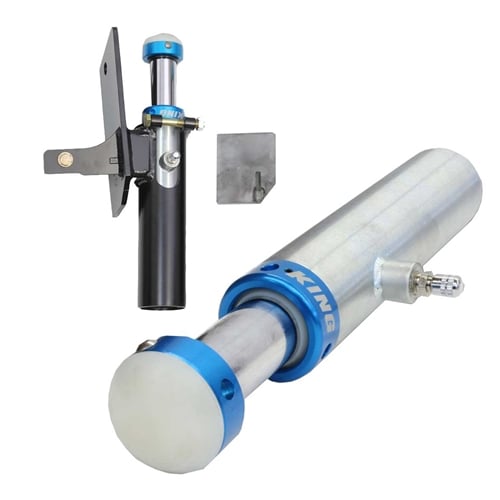

  • Carli Specific, Inverted 2.0" King Bump Stops
  • Compatible with Carli's suspensions systems, or even stock applications
  • Creates a position sensitive compression zone
About Carli Suspension
CARLI SUSPENSION KITS, SYSTEMS, AND COMPONENTS

Yeah, we know Sage Carli can launch a full sized truck over nearly any obstacle. If you are into Baja racing, everyone knows by now that Carli Suspension is the name to go with. What you may not realize is that Carli has a suspension kit for your needs too. You probably don't care anything about having your expensive truck go air born, but you do want the best performance out of your suspension for your application. Carli Starter and Commuter 2.0 systems are designed to give you the best possible street manners compared to any other system on the market while providing ample room for the larger tires you want. Potholes disappear, you find yourself building speed on corners and washboard, and that's just when you are on the way to work. Now imagine heading out to feed the cows WITHOUT hitting your head on the headliner. Imagine coming back from your hunting trip WITHOUT needing a trip to the chiropractor. Take another look at Carli Suspension. It's not all about Baja. It's about YOUR truck and what you do with it. Stop by, we'll give you a ride and show you what you're missing. Just bring the checkbook and permission from the boss! One ride and you'll be hooked!

CARLI KITS

The entire engineering philosophy behind Carli aims to offer the real world Dodge Ram and Ford SuperDuty a suspension system that drastically increases the street drive of the vehicle while offering incredible off-road characteristics. So far, Sage Carli's suspension systems are the only option available where you don't have to compromise.

Carli products are designed to meet the expectations of both the daily street driver and the most extreme avid off road enthusiast. From the urban streets to the most remote places, Carli products will far exceed all your expectations. The easiest way to put this into perspective is that Carli truly builds suspension systems for the enthusiast....the person who truly LOVES their truck and wants to upgrade it with the most thought out, tasteful upgrades on the market. No, this type of individual isn't going to head to Napa to pickup a new track bar. They're going to research the best possible track bar on the market and go that route. Carli Suspension is truly a brand for enthusiasts, featuring products that are built by enthusiasts. Just watch any of Carli Suspension's videos and you'll understand why they have such a passion for their products.

Stock production trucks are built mainly to keep costs down. From a truck enthusiast's point of view these standards simply are not acceptable. From people looking to get a better ride with a more aggressive stance to people looking to get some serious off road performance, Carli understands the needs of these enthusiasts. This is epitomized by the ever growing list of satisfied customers. Carli Suspensions relentless pursuit of producing the best performing suspension systems is something that can be felt every time a customer drives their truck. Carli wouldnt have it any other way.

CARLI COMPONENTS

You know, its not always about a complete suspension. In fact, some of our best selling Carli products are things like a track bar, Carli ball joints, shocks, coil springs, and more. Maybe you've got a clunk in your front end that has been nailed down to being from a worn out track bar bushing and you did your research (mentioned above) and found out that the best track bar for your Ram or Ford is from Carli, so you buy that one. Or maybe you want a better ride, but only want to replace the coil springs for now. No problem. Sure, Carli is centered around their entire systems, but nearly all of their components can be used interchangeably on a stock height truck or one with an existing leveling or lift kit. We do our best to make note of any fitment requirements on each product page, but if you have any questions, please feel free to reach out and ask, we're happy to help.

Here at Diesel Power Products we only want to sell the best and lets face it, the stock Ram and Ford suspension needs help. Your stock suspension system is designed to be adequate and nothing more. Carli not only makes the ride of your truck better, it makes it safer. Whether you are towing a trailer on the interstate or doing a little off-road adventure, we will attest that you'll be more than satisfied by upgrading to Carli.
