Name: Carli 5.5" Lift Pathfinder 2.5 Suspension System 20-22 Ford F-250/F-350 SuperDuty
Brand: Carli Suspension
Price: 4659.0 USD
Availability: InStock

Introducing, Carli Suspension's Pathfinder System that finally removes all strain from your daily drive but inspires you to venture beyond the tarmac. If you want a suspension that delivers in all conditions, look no further than Carli Pathfinder!

This system delivers a controlled and predictable ride for light to moderate off-road use, though it won’t stay as composed as the Carli's Pintop over aggressive, high-speed terrain. On the road, however, the Pathfinder stands out. Small and medium imperfections are absorbed with ease, creating a supple, comfortable ride that doesn’t require an aggressive driving style to feel its benefits. It’s the perfect choice for drivers who value daily comfort, but want their suspension to come alive when venturing off the pavement.

This kit is equipped with Carli-SPEC 2.5” aluminum-bodied shocks finished with a hard-anodized coating for superior corrosion and scratch resistance. On top of that you get Multi-rate Coils, Brake Lines and Other Accessories, Bump Stops, and a Track Bar. Just like all Carli lift kits, each component is given a sleek, premium look right out of the box; not only are they amazingly well-built they look it as well!

To complete your package, add on your choice of Sway Bar End Links and Rear Leaf Spring Options. The truck will sit 4.5” higher in the front and have more wheel travel thanks to the taller, Progressive Rate Coil Springs. Radius Arm Drop Brackets reset the pivot point and keep the travel linear for the best ride while Sway Bar Links or Drop Brackets reset the sway bar engagement point. Included Bump Stop Drops protect the shocks from over-compressing, the Adjustable Track Bar centers the front axle and Stainless Brake Lines firm up braking and ensure there is enough line for the newfound travel.

REAR LEAF SPRING OPTIONS

This system is designed to be paired with a rear leaf spring upgrade to achieve the proper stance.

Add-a-Pack

Replaces the stiff overload leaf with a pack of 6 progressive leafs for a smoother ride
Maintains original load carrying capacity
Rear will be even with the front or just slightly lower when paired with the 2.5″ front suspension system

Full Progressive Leaf Spring Kit

Replaces stock 5 leaf design with a 12 leaf progressive design for a smoother ride
Only a slight reduction from a standard 3/4-ton load capacity
Rear will be 0.5" higher than front when paired with the 2.5″ front suspension system

HD Full Progressive Leaf Spring Kit

For the customer that constantly has a +1,000lb load in their bed
Rear will be 1.0" higher than front when paired with the 2.5″ front suspension system
With an empty bed, these will lift the rear more than stated and ride very rigid

OPTIONAL UPGRADES:

Leaf Spring Shackle Option

Factory rear shackles are strong but can make the ride stiff and bouncy. Carli’s shackles are made from thick steel and have serviceable bushings that let the rear suspension move smoothly, reduce axle wrap and wheel hop.

Fabricated Leaf Spring Shackle: Made from strong 1/4" steel, greasable and rebuildable for long life, provides a far better ride than the factory shackle, and fits both factory and Carli springs

Long Travel Airbags Option

Long Travel Airbags let you carry heavy loads or tow without losing the smooth ride. They support the rear suspension, reduce sag under weight, and keep the ride comfortable while maintaining proper suspension travel for off-road or daily driving.

Long Travel Airbags : The Long Travel Airbags support up to 12″ of suspension travel, restore full payload on Carli 4.5″–5.5″ systems, are adjustable up to 2,000 lbs per bag at 100 psi, and can be used manually or with an onboard air system for 2017–22 F250/F350 4x4 trucks with 4.0″ axle tubes.

Carrier Bearing Drop

The Carrier Bearing Drop lowers the driveshaft carrier to prevent vibration and keep your rear suspension running smoothly on lifted trucks.

Carrier Bearing Drop: Carrier Bearing Drop lowers the carrier on 2-piece driveshafts to prevent take-off shudder and driveline vibration, and includes stackable 3/8" shims to accommodate 1"-4" of rear lift.

Low Mount Steering Stabilizer with Diff Guard

Minimize steering wheel feedback and maximize control
Adjustable nitrogen pressure and custom tuned valves for larger tires
Includes differential guard and clamp
Optimized for Carli 2.5″ systems

Vehicle Fitment

2020 - 2022 Ford F-250/F-350 SuperDuty

WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov

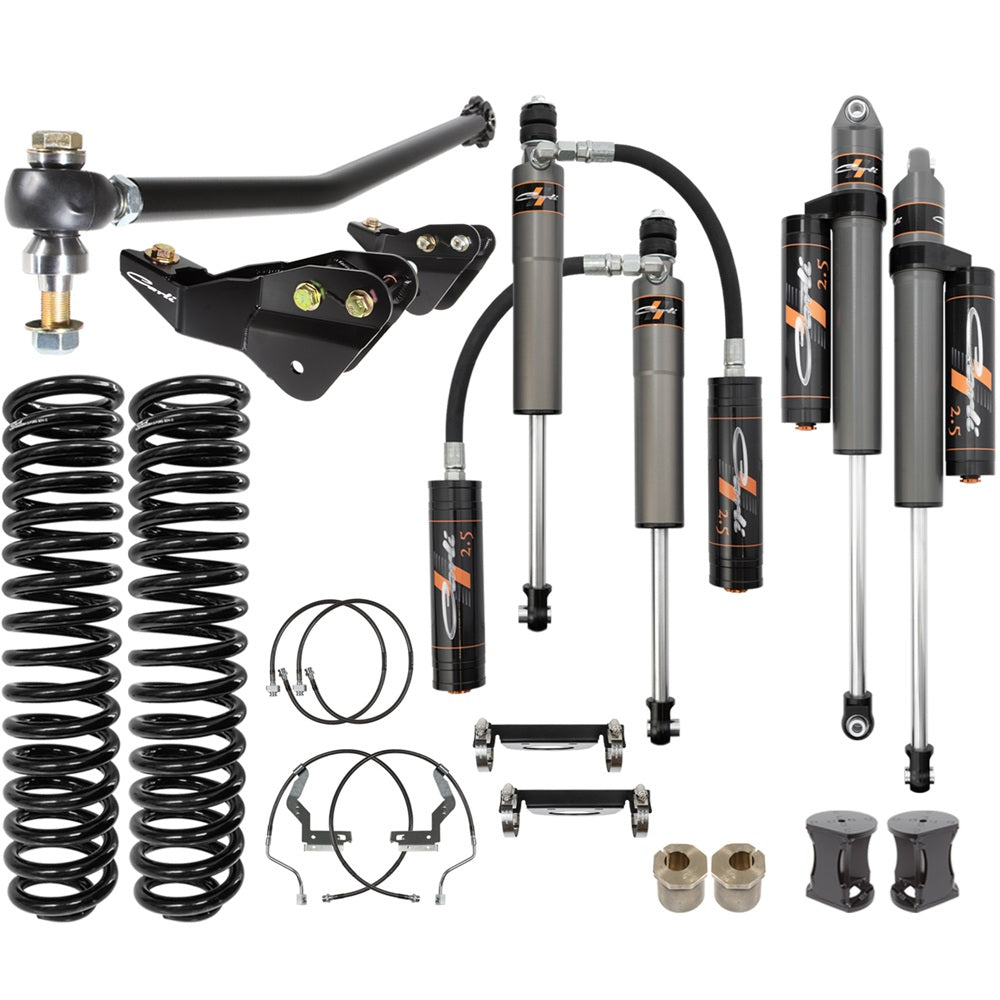

COMPONENTS:

Multi-Rate Coils

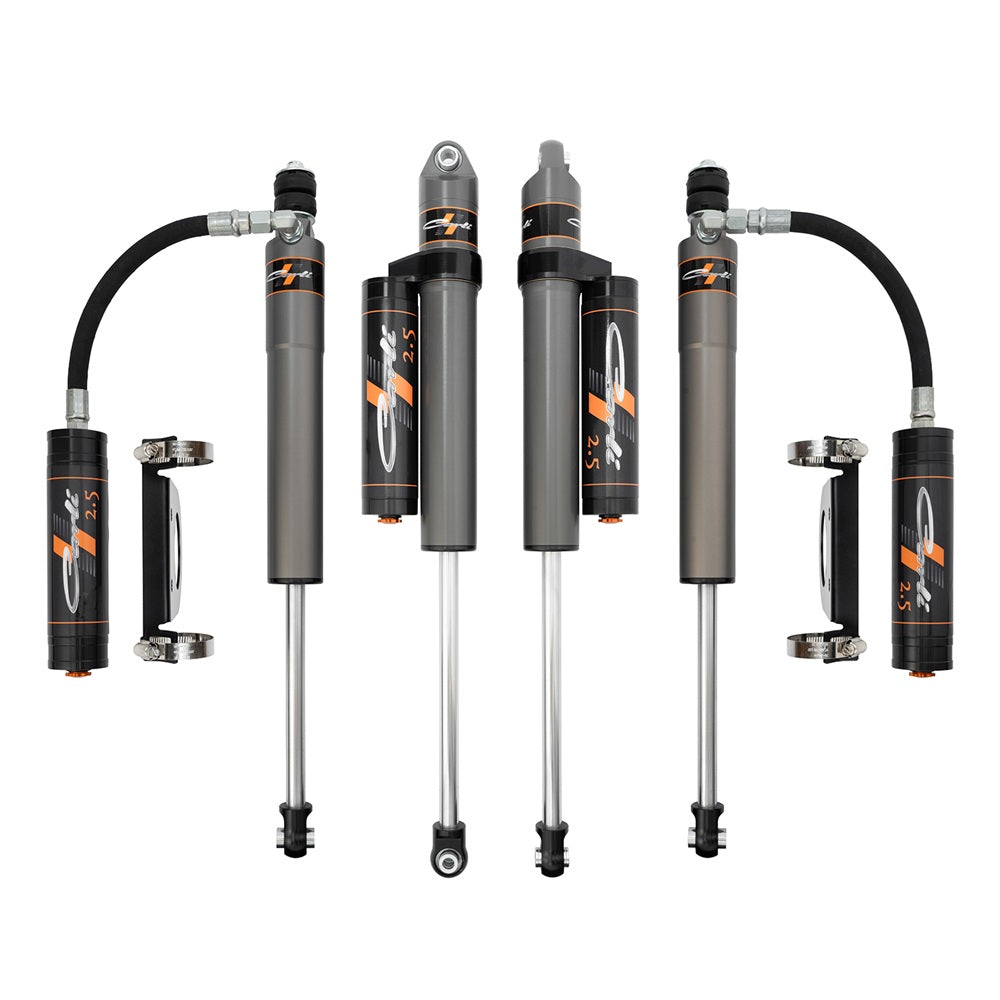

Carli Custom Tuned Carli-SPEC 2.5" Remote Reservoir Shocks & Reservoir Mounts
High Clearance Bump Stop Drops, Front

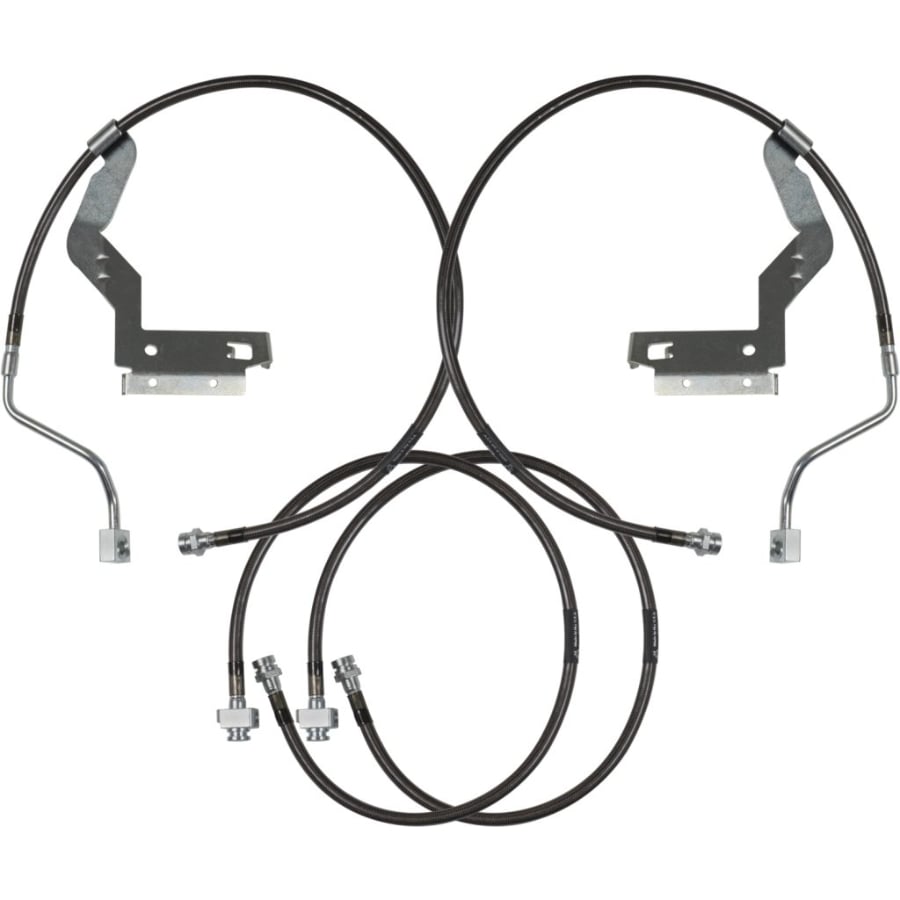

Brake Lines
Radius Arm Drops
1° Caster Shims
Track Bar

About Carli Suspension

CARLI SUSPENSION KITS, SYSTEMS, AND COMPONENTS

Yeah, we know Sage Carli can launch a full sized truck over nearly any obstacle. If you are into Baja racing, everyone knows by now that Carli Suspension is the name to go with. What you may not realize is that Carli has a suspension kit for your needs too. You probably don't care anything about having your expensive truck go air born, but you do want the best performance out of your suspension for your application. Carli Starter and Commuter 2.0 systems are designed to give you the best possible street manners compared to any other system on the market while providing ample room for the larger tires you want. Potholes disappear, you find yourself building speed on corners and washboard, and that's just when you are on the way to work. Now imagine heading out to feed the cows WITHOUT hitting your head on the headliner. Imagine coming back from your hunting trip WITHOUT needing a trip to the chiropractor. Take another look at Carli Suspension. It's not all about Baja. It's about YOUR truck and what you do with it. Stop by, we'll give you a ride and show you what you're missing. Just bring the checkbook and permission from the boss! One ride and you'll be hooked!

CARLI KITS

The entire engineering philosophy behind Carli aims to offer the real world Dodge Ram and Ford SuperDuty a suspension system that drastically increases the street drive of the vehicle while offering incredible off-road characteristics. So far, Sage Carli's suspension systems are the only option available where you don't have to compromise.

Carli products are designed to meet the expectations of both the daily street driver and the most extreme avid off road enthusiast. From the urban streets to the most remote places, Carli products will far exceed all your expectations. The easiest way to put this into perspective is that Carli truly builds suspension systems for the enthusiast....the person who truly LOVES their truck and wants to upgrade it with the most thought out, tasteful upgrades on the market. No, this type of individual isn't going to head to Napa to pickup a new track bar. They're going to research the best possible track bar on the market and go that route. Carli Suspension is truly a brand for enthusiasts, featuring products that are built by enthusiasts. Just watch any of Carli Suspension's videos and you'll understand why they have such a passion for their products.

Stock production trucks are built mainly to keep costs down. From a truck enthusiast's point of view these standards simply are not acceptable. From people looking to get a better ride with a more aggressive stance to people looking to get some serious off road performance, Carli understands the needs of these enthusiasts. This is epitomized by the ever growing list of satisfied customers. Carli Suspensions relentless pursuit of producing the best performing suspension systems is something that can be felt every time a customer drives their truck. Carli wouldnt have it any other way.

CARLI COMPONENTS

You know, its not always about a complete suspension. In fact, some of our best selling Carli products are things like a track bar, Carli ball joints, shocks, coil springs, and more. Maybe you've got a clunk in your front end that has been nailed down to being from a worn out track bar bushing and you did your research (mentioned above) and found out that the best track bar for your Ram or Ford is from Carli, so you buy that one. Or maybe you want a better ride, but only want to replace the coil springs for now. No problem. Sure, Carli is centered around their entire systems, but nearly all of their components can be used interchangeably on a stock height truck or one with an existing leveling or lift kit. We do our best to make note of any fitment requirements on each product page, but if you have any questions, please feel free to reach out and ask, we're happy to help.

Here at Diesel Power Products we only want to sell the best and lets face it, the stock Ram and Ford suspension needs help. Your stock suspension system is designed to be adequate and nothing more. Carli not only makes the ride of your truck better, it makes it safer. Whether you are towing a trailer on the interstate or doing a little off-road adventure, we will attest that you'll be more than satisfied by upgrading to Carli.
