Name: Carli 2.5" Leveling Suspension System 17-19 Ford 6.7L Powerstroke
Brand: Carli Suspension
Price: 1223.0 USD
Availability: InStock

Sure, you could add a simple spacer on top of your coils to level our your SuperDuty, but wouldn't you rather actually improve the ride quality while also getting that level stance you're after? If so, check out this Leveling Kit from Carli Suspension.

The Super Duty Leveling System is designed for people seeking the best on-road ride quality on a budget. Utilizing the Signature Series shocks, Carli developed a tune that delivers all around comfort and ride quality designed for on-road, in town, highway, and towing/hauling. Unlike most of Carli's suspension systems, the Leveling System was tuned with 20", factory wheels on factory Michelin tires given many in the entry level, 2.5" lift market want the most bang for their buck and will continue to run the factory wheels and tires.

CARLI LEVELING SUSPENSION SYSTEM COMPONENTS

The truck will sit 2.5" higher in the front and have more wheel travel thanks to the lighter rate Carli Coil Springs. Extended, Stainless Brake Lines firm up braking and ensure there is enough line for the newfound travel. The front sway bar geometry will also receive an upgrade with your choice of Sway Bar Drop Brackets (more economical option that maintains the factory sway bar end links) or a set of Extended Sway Bar End Links, a FAR more robust option. The replacement End Links are the only option that is compatible with a snow plow bracket. To round off the front end, you'll also receive Caster Shims to tighten the steering. Carli recommends adding an Adjustable Track Bar to center the front axle. However, for those that do not wish to, as part of the kit, you will receive High-Clearance Bump Stop Drop to keep the springs clear from contacting the factory bump stop given the slight drivers side shift of a leveled Super Duty without an adjustable track bar.

SWAY BAR DROP BRACKET SPECIFICATIONS:

Corrects sway bar geometry in Carli leveling suspensions

SWAY BAR END LINKS SPECIFICATIONS:

Extended length to accommodate leveled trucks
17-4 stainless steel, greasable and fully rebuildable
Excellent articulation
Only works on Carli leveling lifts

NO SWAY BAR OPTION NOTES:
Diesel Power Products and Carli strongly suggest the use of either options available. These options are designed to work flawlessly with the rest of your kit and, are the best way to go. However, we understand you may already have the necessary provisions and/or products to use with this kit so we give you the option to not include any sway bar drop or Torsion Sway Bar provisions.

LEAF SPRING SHACKLE SPECIFICATIONS:

Much of the jarring ride of the Super Duty rear can be attributed to the factory vulcanized bushings in the leaf spring pack and shackle. The factory shackle is very strong BUT the design is not conducive to a smooth ride. The Carli shackle is constructed of 1/4″ American cold-rolled steel. The mid-length gusset ensures no deflection while the serviceable bushings offer a far superior ride to the bind of the factory bushings

Greasable and rebuildable
Far better ride than factory shackle
1/4" steel construction
Fits factory and Carli springs

The front will sit level to the rear and payload is maintained as the rear springs are unaltered in this system. The rear shocks are shared with the Commuter 2.0" system as they're tuned around a modified factory spring pack. The rear will be more controlled and planted. This system can be upgraded to a Commuter System with the addition of a rear Add-a-Pack and Adjustable Track Bar.

WHEEL AND TIRE FITMENT

On their 2.5" Ford Systems, Carli recommends 17"-18" wheels, no more than 9" wide with 5.5" of backspacing with Carli Fabricated Radius Arms or 5" Backspace with factory arms; 5" will require a bit more trimming. Tires, 37x12.5" will fit with some trimming; 35" will likely fit without trimming. The more rubber, the better the small bump compliance will be at proper inflation pressures. The ride will firm up as you go larger in wheel diameter.

IMPORTANT NOTES:

WHEELS: Carli Recommends a 17"-18" Wheel, no more than 9" wide with 5"-5.5" of Backspacing on Leveling Systems
TIRES: 35", E-Rated Tire Fitment is Recommended. Recommended unloaded Tire Pressure 45F/40R.
RECOMMENDED CONFIGURATION: Carli Leveling Systems are Designed and Tested on Vehicles with 17"-18" Wheels with 35", E-Rated Tires. Stock wheels and tires or running a larger wheel diameter will result in a stiffer ride.

Manuals and Guides

INSTALL INSTRUCTIONS

Vehicle Fitment

2017-2019 Ford 6.7L Powerstroke 4x4

WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov

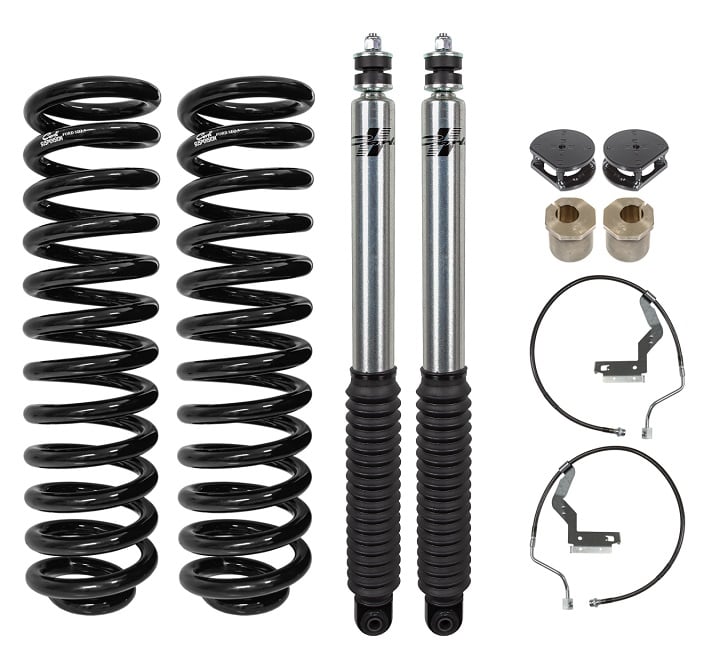

COMPONENTS:

2.5" Lift, Linear Rate Coil Springs
Carli Custom Tuned Signature Series Front Shock Package
Front Brake Lines
Caster Correction Shims
High Clearance Bump Stop Drops (Front)
Your Choice of Sway Bar Drop Brackets or Replacement End Links

KEY FEATURES:

Improved Handling
Improved Control
Level Stance
Geometrically Correct

About Carli Suspension

CARLI SUSPENSION KITS, SYSTEMS, AND COMPONENTS

Yeah, we know Sage Carli can launch a full sized truck over nearly any obstacle. If you are into Baja racing, everyone knows by now that Carli Suspension is the name to go with. What you may not realize is that Carli has a suspension kit for your needs too. You probably don't care anything about having your expensive truck go air born, but you do want the best performance out of your suspension for your application. Carli Starter and Commuter 2.0 systems are designed to give you the best possible street manners compared to any other system on the market while providing ample room for the larger tires you want. Potholes disappear, you find yourself building speed on corners and washboard, and that's just when you are on the way to work. Now imagine heading out to feed the cows WITHOUT hitting your head on the headliner. Imagine coming back from your hunting trip WITHOUT needing a trip to the chiropractor. Take another look at Carli Suspension. It's not all about Baja. It's about YOUR truck and what you do with it. Stop by, we'll give you a ride and show you what you're missing. Just bring the checkbook and permission from the boss! One ride and you'll be hooked!

CARLI KITS

The entire engineering philosophy behind Carli aims to offer the real world Dodge Ram and Ford SuperDuty a suspension system that drastically increases the street drive of the vehicle while offering incredible off-road characteristics. So far, Sage Carli's suspension systems are the only option available where you don't have to compromise.

Carli products are designed to meet the expectations of both the daily street driver and the most extreme avid off road enthusiast. From the urban streets to the most remote places, Carli products will far exceed all your expectations. The easiest way to put this into perspective is that Carli truly builds suspension systems for the enthusiast....the person who truly LOVES their truck and wants to upgrade it with the most thought out, tasteful upgrades on the market. No, this type of individual isn't going to head to Napa to pickup a new track bar. They're going to research the best possible track bar on the market and go that route. Carli Suspension is truly a brand for enthusiasts, featuring products that are built by enthusiasts. Just watch any of Carli Suspension's videos and you'll understand why they have such a passion for their products.

Stock production trucks are built mainly to keep costs down. From a truck enthusiast's point of view these standards simply are not acceptable. From people looking to get a better ride with a more aggressive stance to people looking to get some serious off road performance, Carli understands the needs of these enthusiasts. This is epitomized by the ever growing list of satisfied customers. Carli Suspensions relentless pursuit of producing the best performing suspension systems is something that can be felt every time a customer drives their truck. Carli wouldnt have it any other way.

CARLI COMPONENTS

You know, its not always about a complete suspension. In fact, some of our best selling Carli products are things like a track bar, Carli ball joints, shocks, coil springs, and more. Maybe you've got a clunk in your front end that has been nailed down to being from a worn out track bar bushing and you did your research (mentioned above) and found out that the best track bar for your Ram or Ford is from Carli, so you buy that one. Or maybe you want a better ride, but only want to replace the coil springs for now. No problem. Sure, Carli is centered around their entire systems, but nearly all of their components can be used interchangeably on a stock height truck or one with an existing leveling or lift kit. We do our best to make note of any fitment requirements on each product page, but if you have any questions, please feel free to reach out and ask, we're happy to help.

Here at Diesel Power Products we only want to sell the best and lets face it, the stock Ram and Ford suspension needs help. Your stock suspension system is designed to be adequate and nothing more. Carli not only makes the ride of your truck better, it makes it safer. Whether you are towing a trailer on the interstate or doing a little off-road adventure, we will attest that you'll be more than satisfied by upgrading to Carli.

Video

Diesel Talk | Carli Suspension Kits Explained

Tyler from Carli Suspension sits down with Tyler from Diesel Power Products to explain the differences between Carli’s various suspension kits. From the entry-level Commuter system to the mid-tier Backcountry, and all the way to the high-performance Dominator kit, youll get a detailed look at what each option offers. Whether youre after improved street comfort, off-road capability, or a suspension that can handle it all, this breakdown will help you choose the right kit for your build.
