SKU #: CS-FLVL-COM-CS-05-PAP MPN #: CS-FLVL-COM-CS-05-PAP

Carli 2.5" Commuter Leveling Suspension System 05-07 Ford F-250/F-350 SuperDuty 4WD

$2,055.00
Get 2055 points in loyalty rewards
☆☆☆☆☆ (0)
Description
The Commuter 2.0 Suspension System from Carli is about leveling your truck the RIGHT way. It's designed for people seeking the best on-road ride quality and low-speed trail driving. Utilizing Carli SPEC 2.0″ diameter shocks tuned for all-around comfort and ride quality while driving in town, on the highway, towing, or hauling. Carli SPEC 2.0 boasts an aluminum body, hardened steel shaft, and full rebuild-ability. The shocks contain premium 5WT oil to balance lubricity, consistent damping and the widest available range in temperature variation. Your truck will sit 2.5” higher in the front and have more wheel travel thanks to the taller, lighter rate coil springs. To accommodate the additional travel, the kit contains improved brake lines, an adjustable track bar, and caster adjusters to improve on the stock handling. REAR LEAF SPRING OPTIONS This system is designed to be paired with a rear leaf spring upgrade to achieve the proper stance. Add-a-Pack Replaces the stiff overload leaf with a pack of 6 progressive leafs for a smoother ride Maintains original load carrying capacity Rear will be even with the front or just slightly lower when paired with the 2.5″ front suspension system Full Progressive Leaf Spring Kit Replaces stock 5 leaf design with a 12 leaf progressive design for a smoother ride Only a slight reduction from a standard 3/4-ton load capacity Rear will be 0.5" higher than front when paired with the 2.5″ front suspension system HD Full Progressive Leaf Spring Kit For the customer that constantly has a +1,000lb load in their bed Rear will be 1.0" higher than front when paired with the 2.5″ front suspension system With an empty bed, these will lift the rear more than stated and ride very rigid OPTIONAL UPGRADES: Upgraded Radius Arms Heavy duty design replaces flimsy stock arms Stainless steel spherical joint for longevity and bind free cycling Adjustable caster correction from 0.5° to 2.5° Adds 1/2″ of tire clearance to allow 37″ tires when running near-stock backspacing of 5.5″ Low Mount Steering Stabilizer with Diff Guard Minimize steering wheel feedback and maximize control Adjustable nitrogen pressure and custom tuned valves for larger tires Includes differential guard and clamp Optimized for Carli 2.5″ systems IMPORTANT NOTES: WHEELS: Carli recommends a 17"-18" wheel, no more than 9" wide with 5" - 5.5" of backspacing TIRES: 35", E-rated tire is recommended. Tire pressure 45psi front, 40psi rear RECOMMENDED CONFIGURATION: Carli leveling systems are designed and tested on vehicles with 17"-18" wheels with 35", E-rated tires. Running stock wheels and tires or a larger wheel diameter will result in a stiffer ride. ADD-A-PACKS: Super-Duties equipped with a factory 3-5/8" block will require the 2" factory block (Part numbers 7C3Z-5598-L, and 7C3Z-5598-K) to achieve a level stance. Fits 3.5″ axle tube. FULL LEAF SPRING KITS: Full leaf spring kits require NO BLOCKS to achieve a proper stance. HIGH MOUNT STEERING STABILIZER: Works on leveled and lifted trucks ONLY. Will NOT work with Dropped Pitman Arms NO LEAF SPRING OPTION NOTES: Diesel Power Products and Carli strongly suggest the use of either options available. These options are designed to work flawlessly with the rest of your kit and, are the best way to go. However, we understand you may already have the necessary provisions and/or products to use with this kit so we give you the option to not include any leaf spring provisions.
Select Shock Valving
Choose add-ons

The Commuter 2.0 Suspension System from Carli is about leveling your truck the RIGHT way. It's designed for people seeking the best on-road ride quality and low-speed trail driving. Utilizing Carli SPEC 2.0″ diameter shocks tuned for all-around comfort and ride quality while driving in town, on the highway, towing, or hauling. Carli SPEC 2.0 boasts an aluminum body, hardened steel shaft, and full rebuild-ability. The shocks contain premium 5WT oil to balance lubricity, consistent damping and the widest available range in temperature variation. Your truck will sit 2.5” higher in the front and have more wheel travel thanks to the taller, lighter rate coil springs. To accommodate the additional travel, the kit contains improved brake lines, an adjustable track bar, and caster adjusters to improve on the stock handling.

REAR LEAF SPRING OPTIONS

This system is designed to be paired with a rear leaf spring upgrade to achieve the proper stance.

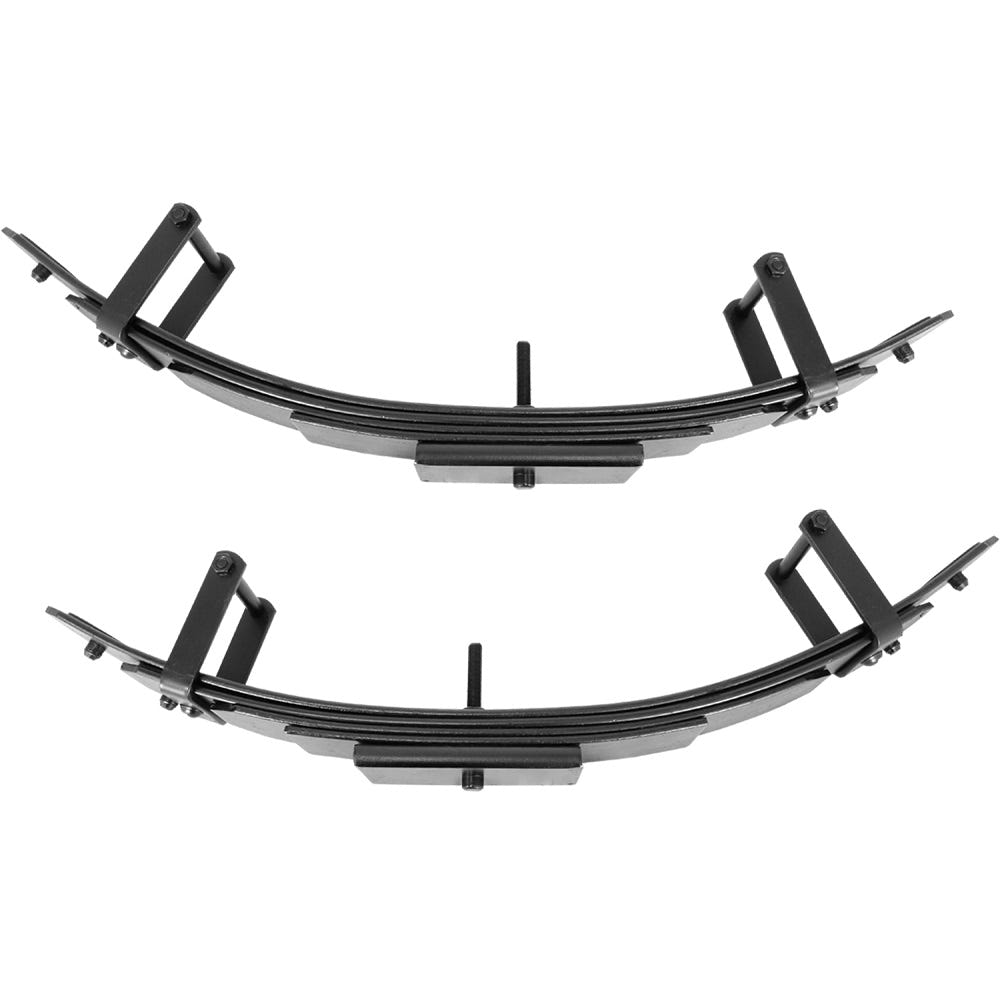

Add-a-Pack

  • Replaces the stiff overload leaf with a pack of 6 progressive leafs for a smoother ride
  • Maintains original load carrying capacity
  • Rear will be even with the front or just slightly lower when paired with the 2.5″ front suspension system

Full Progressive Leaf Spring Kit

  • Replaces stock 5 leaf design with a 12 leaf progressive design for a smoother ride
  • Only a slight reduction from a standard 3/4-ton load capacity
  • Rear will be 0.5" higher than front when paired with the 2.5″ front suspension system

HD Full Progressive Leaf Spring Kit

  • For the customer that constantly has a +1,000lb load in their bed
  • Rear will be 1.0" higher than front when paired with the 2.5″ front suspension system
  • With an empty bed, these will lift the rear more than stated and ride very rigid

OPTIONAL UPGRADES:

Upgraded Radius Arms

  • Heavy duty design replaces flimsy stock arms
  • Stainless steel spherical joint for longevity and bind free cycling
  • Adjustable caster correction from 0.5° to 2.5°
  • Adds 1/2″ of tire clearance to allow 37″ tires when running near-stock backspacing of 5.5″

Low Mount Steering Stabilizer with Diff Guard

  • Minimize steering wheel feedback and maximize control
  • Adjustable nitrogen pressure and custom tuned valves for larger tires
  • Includes differential guard and clamp
  • Optimized for Carli 2.5″ systems

IMPORTANT NOTES:

  • WHEELS: Carli recommends a 17"-18" wheel, no more than 9" wide with 5" - 5.5" of backspacing
  • TIRES: 35", E-rated tire is recommended. Tire pressure 45psi front, 40psi rear
  • RECOMMENDED CONFIGURATION: Carli leveling systems are designed and tested on vehicles with 17"-18" wheels with 35", E-rated tires. Running stock wheels and tires or a larger wheel diameter will result in a stiffer ride.
  • ADD-A-PACKS: Super-Duties equipped with a factory 3-5/8" block will require the 2" factory block (Part numbers 7C3Z-5598-L, and 7C3Z-5598-K) to achieve a level stance. Fits 3.5″ axle tube.
  • FULL LEAF SPRING KITS: Full leaf spring kits require NO BLOCKS to achieve a proper stance.
  • HIGH MOUNT STEERING STABILIZER: Works on leveled and lifted trucks ONLY. Will NOT work with Dropped Pitman Arms
NO LEAF SPRING OPTION NOTES:
  • Diesel Power Products and Carli strongly suggest the use of either options available. These options are designed to work flawlessly with the rest of your kit and, are the best way to go. However, we understand you may already have the necessary provisions and/or products to use with this kit so we give you the option to not include any leaf spring provisions.
Vehicle Fitment
2005 - 2007 Ford F-250/F-350 SuperDuty 4X4
WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov

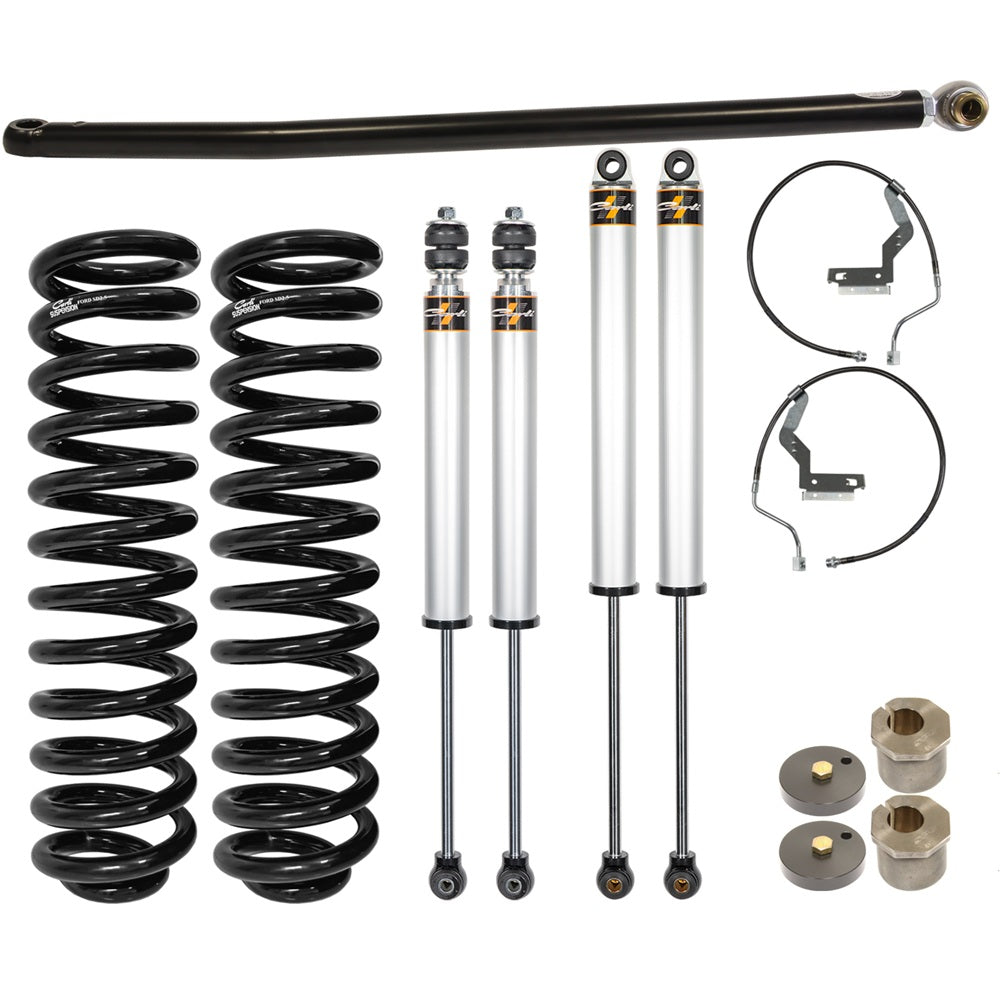

COMPONENTS:

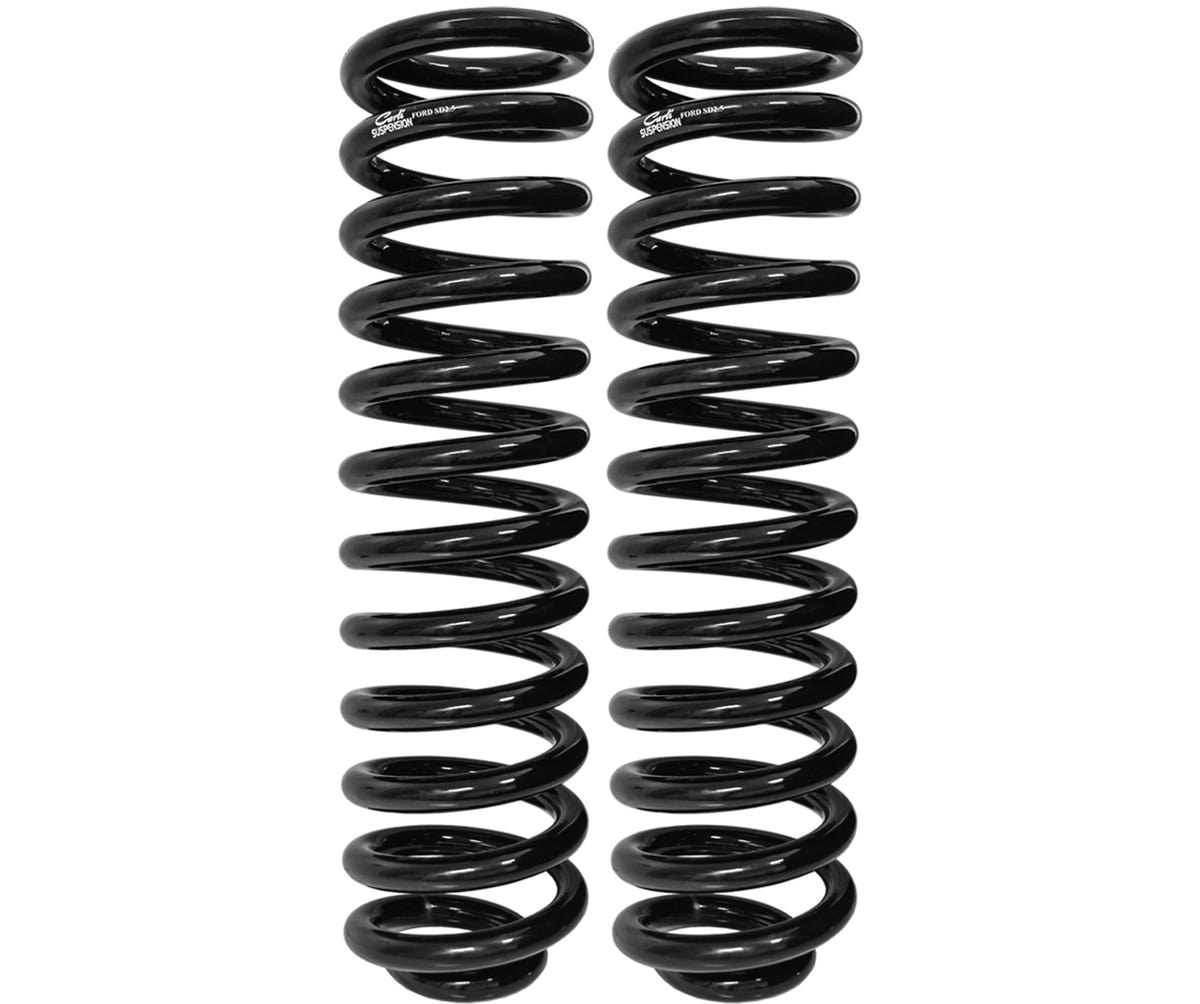

  • 2.5" Lift Linear Rate Coil Springs

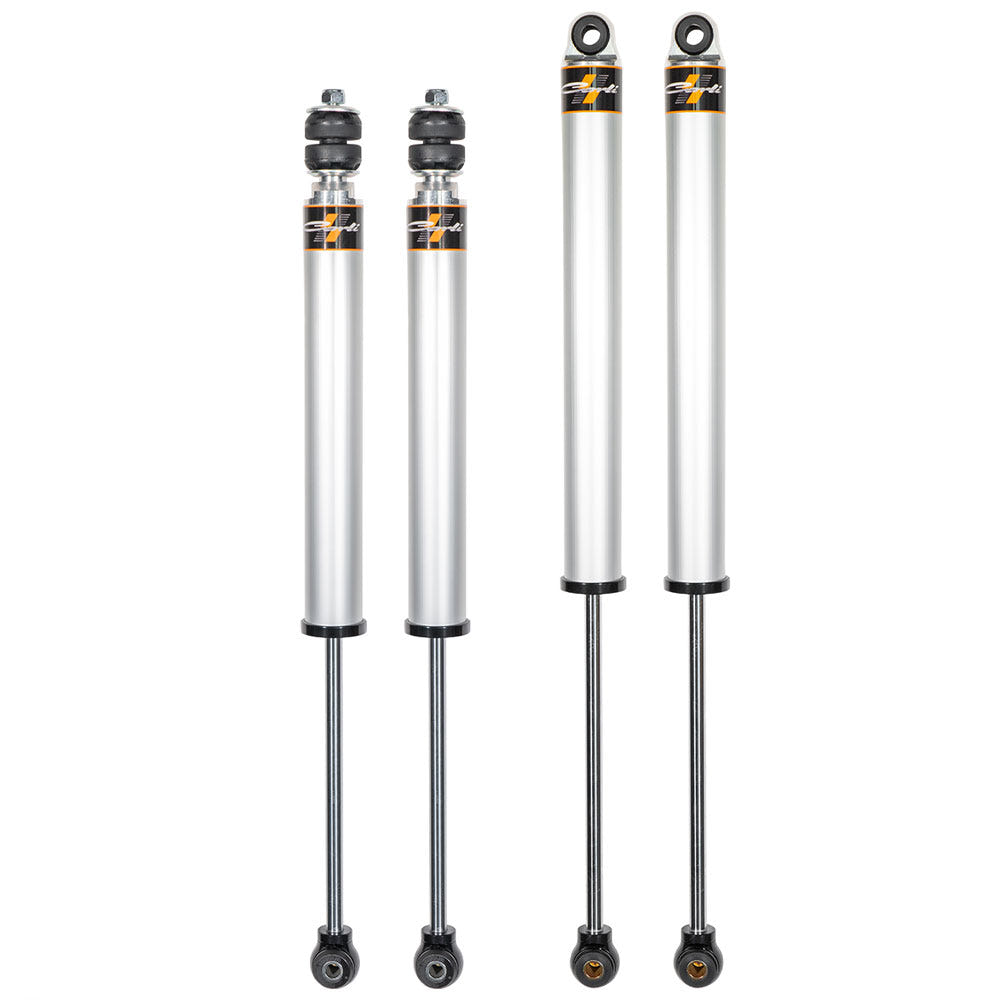

  • Carli SPEC 2.0" IFP Shocks, Front and Rear
  • Front Bump Stop Drops

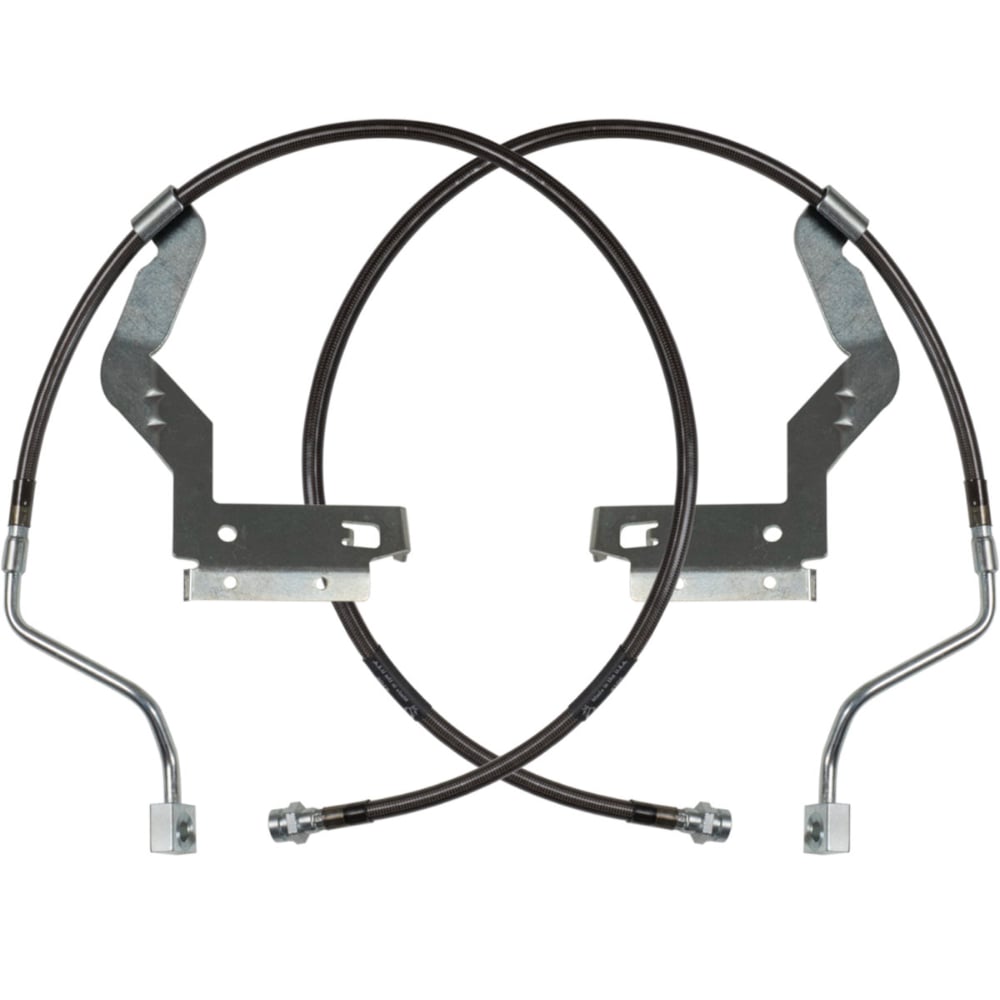

  • Brake Lines

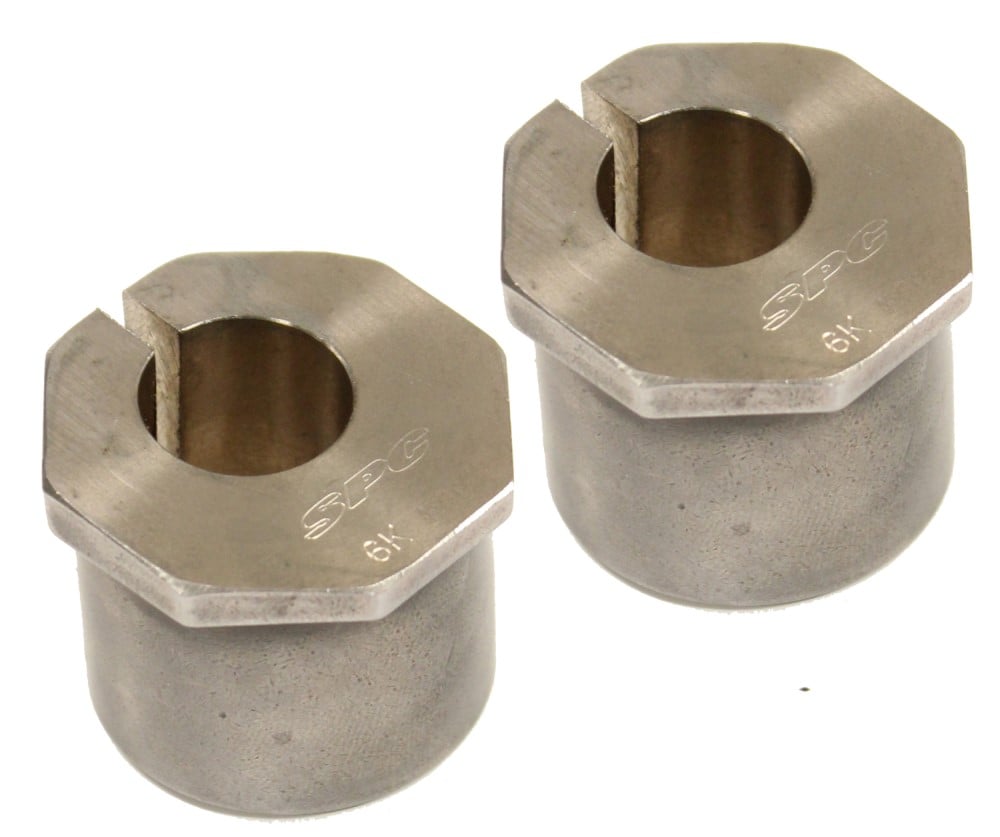

  • 2° Caster Shims

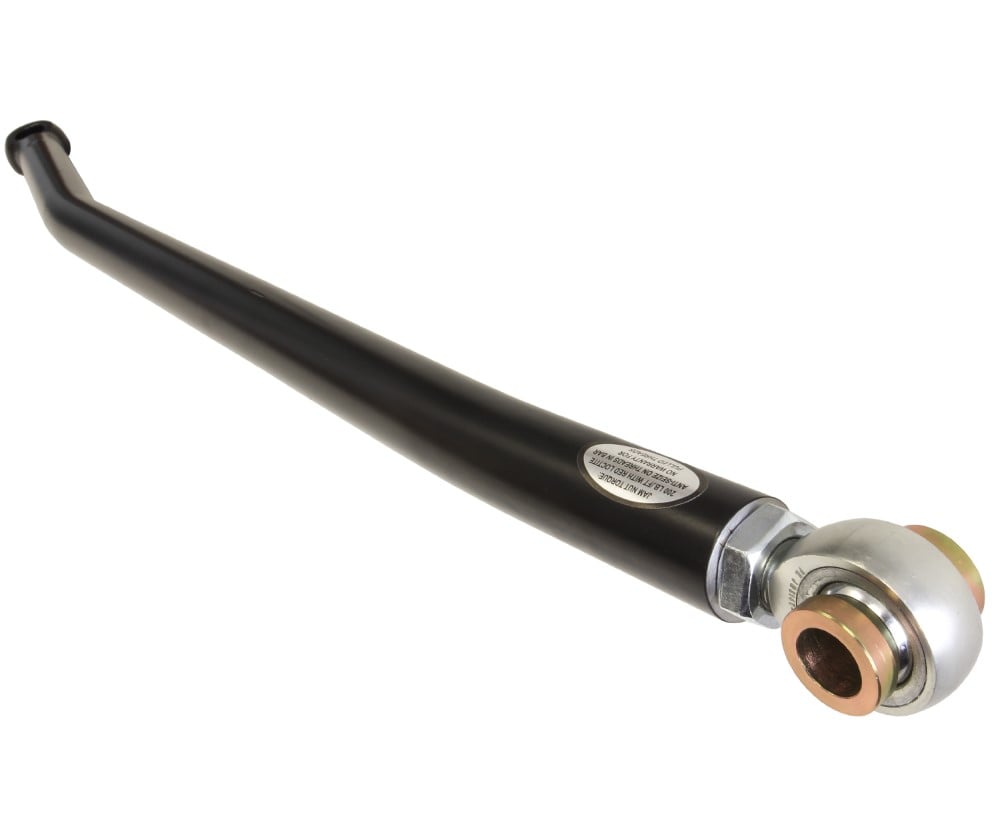

  • Track Bar
