SKU #: CP-CPS200329
MPN #: CPS200329

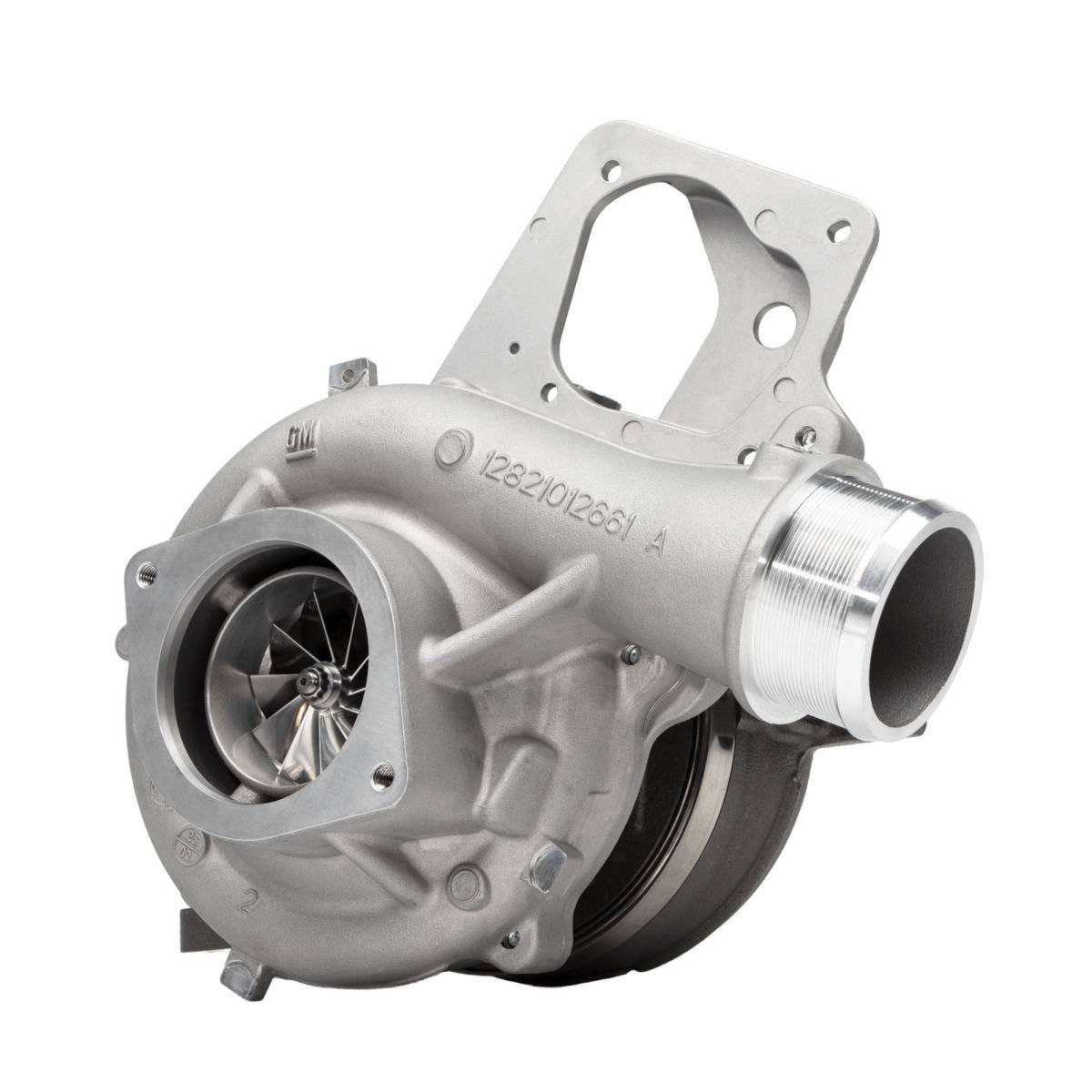

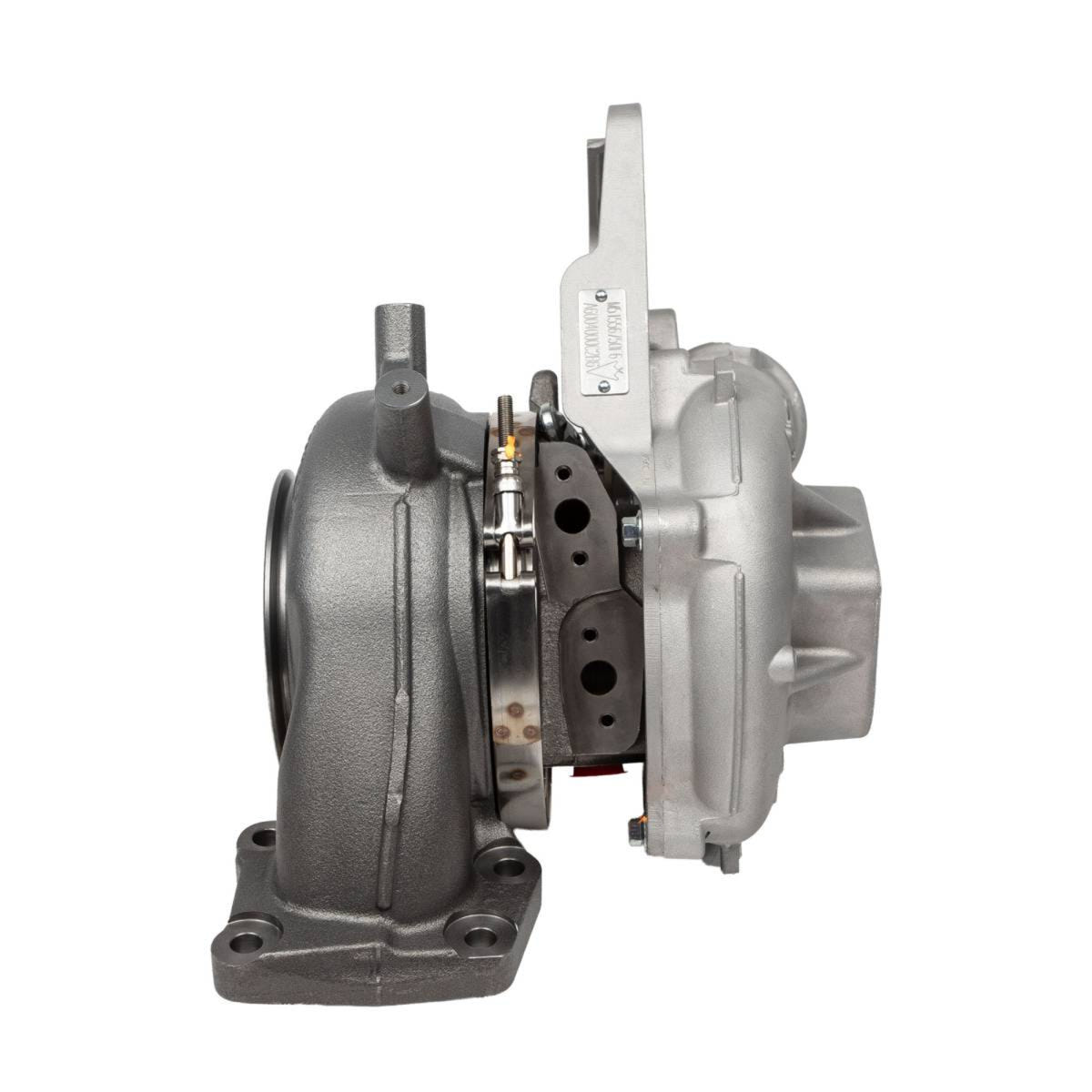

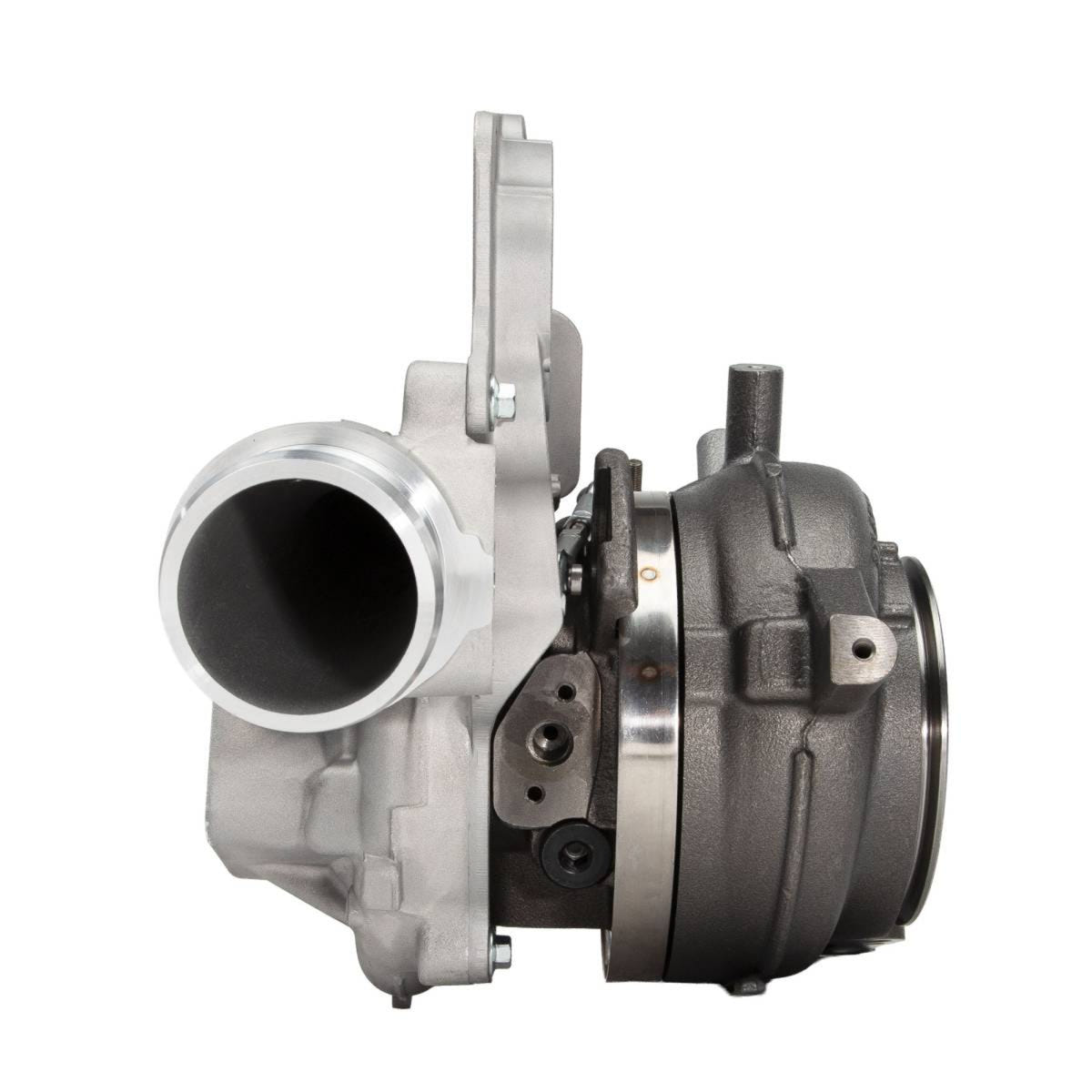

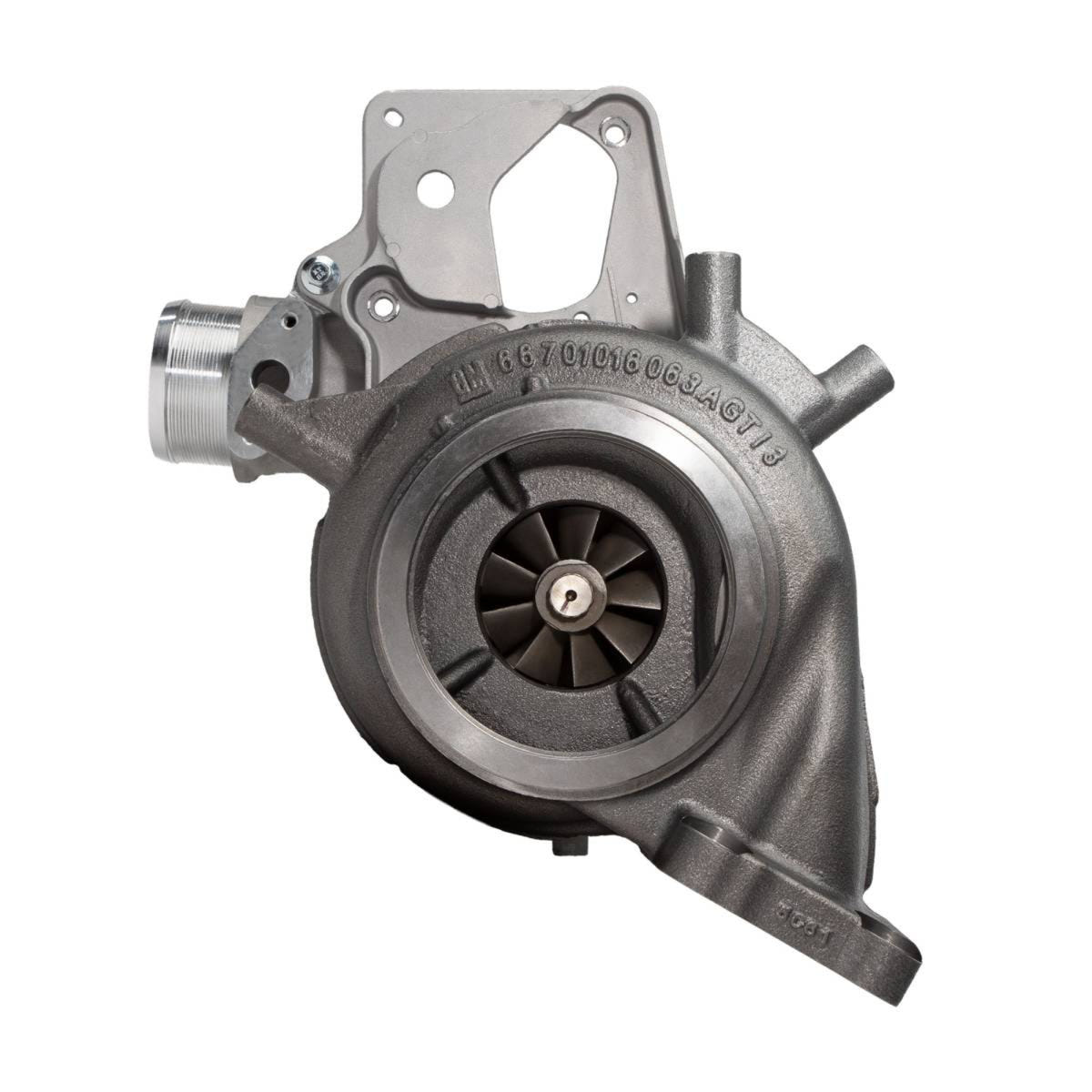

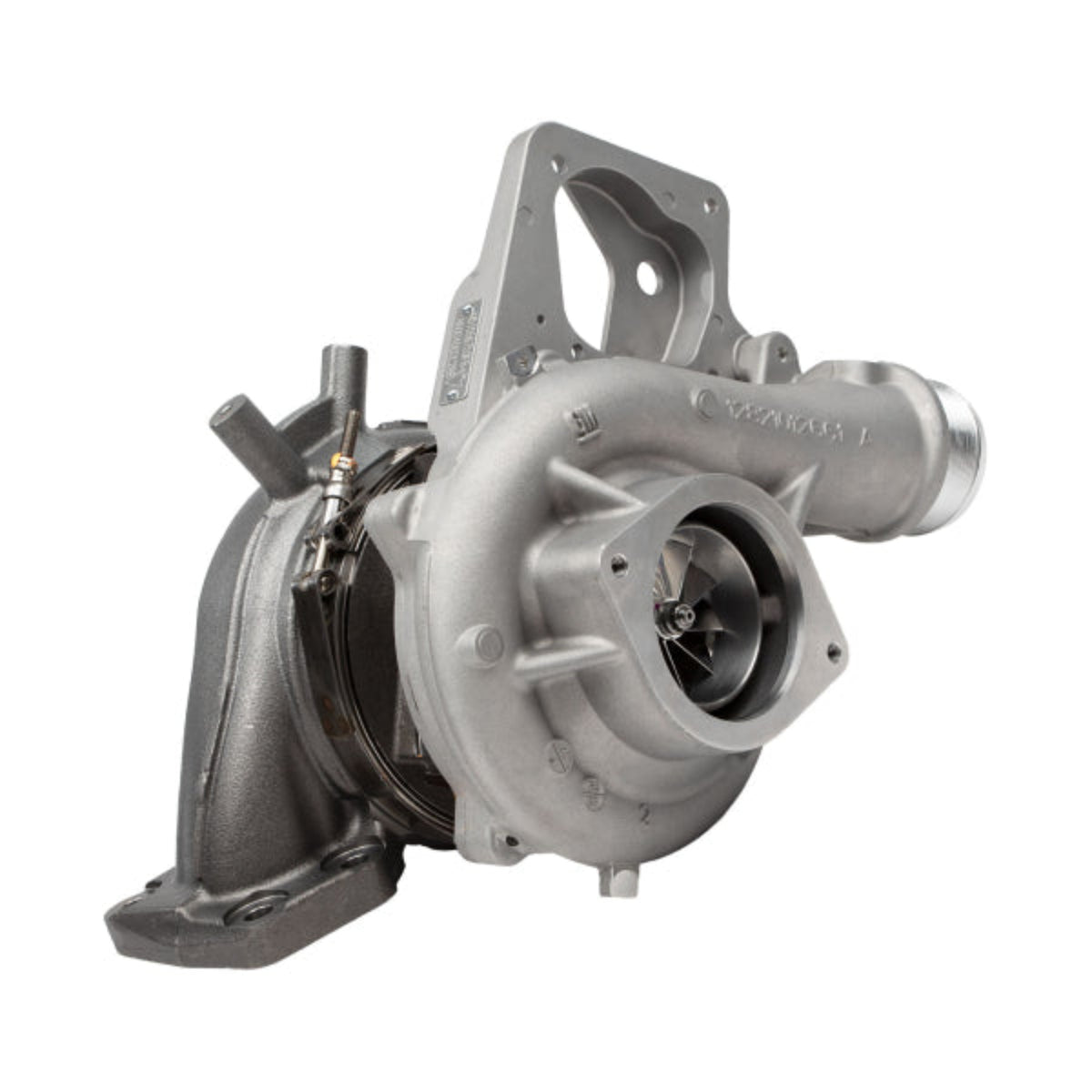

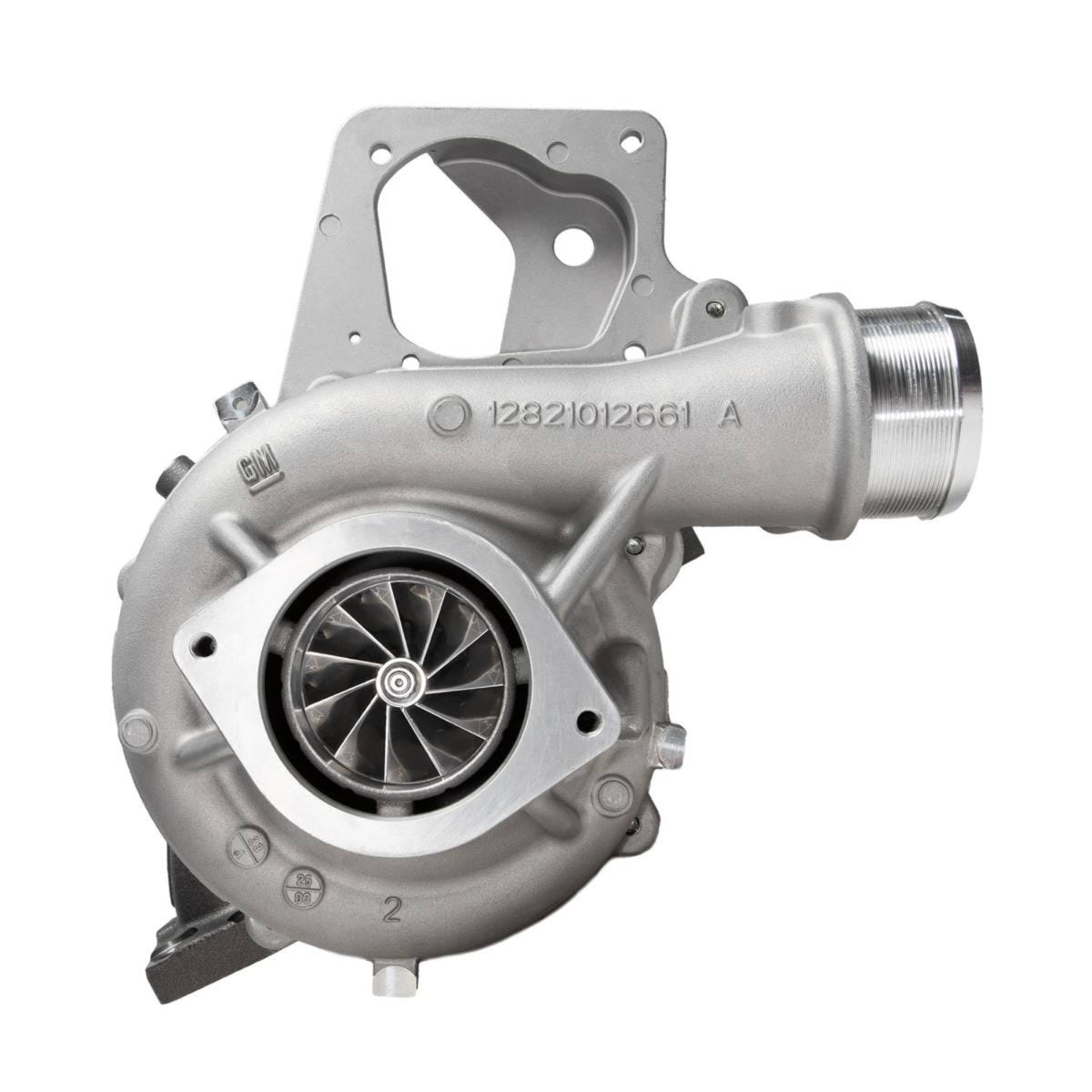

Calibrated Power Stealth Mach 2 67/66 Drop In Turbo 24-26 GM 6.6L Duramax L5P
Description
The DuramaxTuner Stealth Mach 2 67/66 Drop-In Turbo is built for 2024–2026 6.6L L5P Duramax owners who want to take their truck’s performance to the next level without sacrificing everyday drivability. With airflow capable of supporting up to 750 horsepower, this turbo provides the capacity needed for a serious performance build while maintaining the responsive feel expected from a daily-driven diesel. Whether you're looking for stronger high-RPM power, better exhaust gas temperature control under heavy loads, or a turbo that can keep up with upgraded fueling, the Stealth Mach 2 delivers a substantial step up from the factory setup.
At the heart of this upgrade is a 67mm, 11-blade extended-tip billet compressor wheel made from 2618 aluminum alloy, paired with a larger 66.4mm, 9-blade turbine wheel constructed from 713C nickel alloy. The upgraded turbine features thicker blades for increased heat tolerance and a more aggressive blade design to improve exhaust energy capture, reduce drive pressure, and help control EGTs under demanding conditions. A custom vane cage accommodates the larger turbine, while the lightweight rotating assembly is precision-balanced in-house to maintain quick spool-up comparable to the factory turbo. These upgrades work together to provide increased airflow and performance without the lag commonly associated with larger turbochargers.
Designed as a direct-fit replacement for compatible 24-26 L5P Trucks, the Stealth Mach 2 retains the factory variable-geometry operation and exhaust brake functionality. It is capable of supporting up to approximately 625 rear-wheel horsepower with stock emissions equipment and basic supporting modifications, with higher output possible in properly equipped competition builds. The turbo comes with brand-new components, eliminating the need for a core exchange, and includes a 12-month warranty. Tuning must retain the factory minimum and maximum vane-position tables to help prevent excessive boost and exhaust pressure that could damage the turbo or engine.
Enter your zip and we'll see if installation is available.
- Request quotes from local installers at checkout
- Compare options and choose the best fit for your install
About WrenchConnected
WrenchConnected is an independent installation marketplace operating in partnership with Diesel Power Products.
How it works
After checkout, we route your vehicle info and part SKU to verified installation shops near you. Local installers review the job and submit competitive bids; you pick the shop you want based on price, reviews, and availability. Your name and email stay private until you select an installer.
Pricing
You pay for the bid from your preferred shop. The full amount is shown before you confirm — installers cannot add charges without your written consent. Payments are processed securely by Stripe.
Your privacy
During bidding, shops see only your service ZIP code, vehicle year/make/model, and the part SKU — not your name, email, or address. Only the shop you select receives your contact details after payment. We never sell your personal information.
More detail at wrenchconnected.com.
FEATURES & BENEFITS:
- Airflow capable of supporting up to 750HP
- Compressor and turbine wheel durability upgrades
- Custom Billet compressor wheel
- Turbine Wheel and Nozzle Ring Upgrades

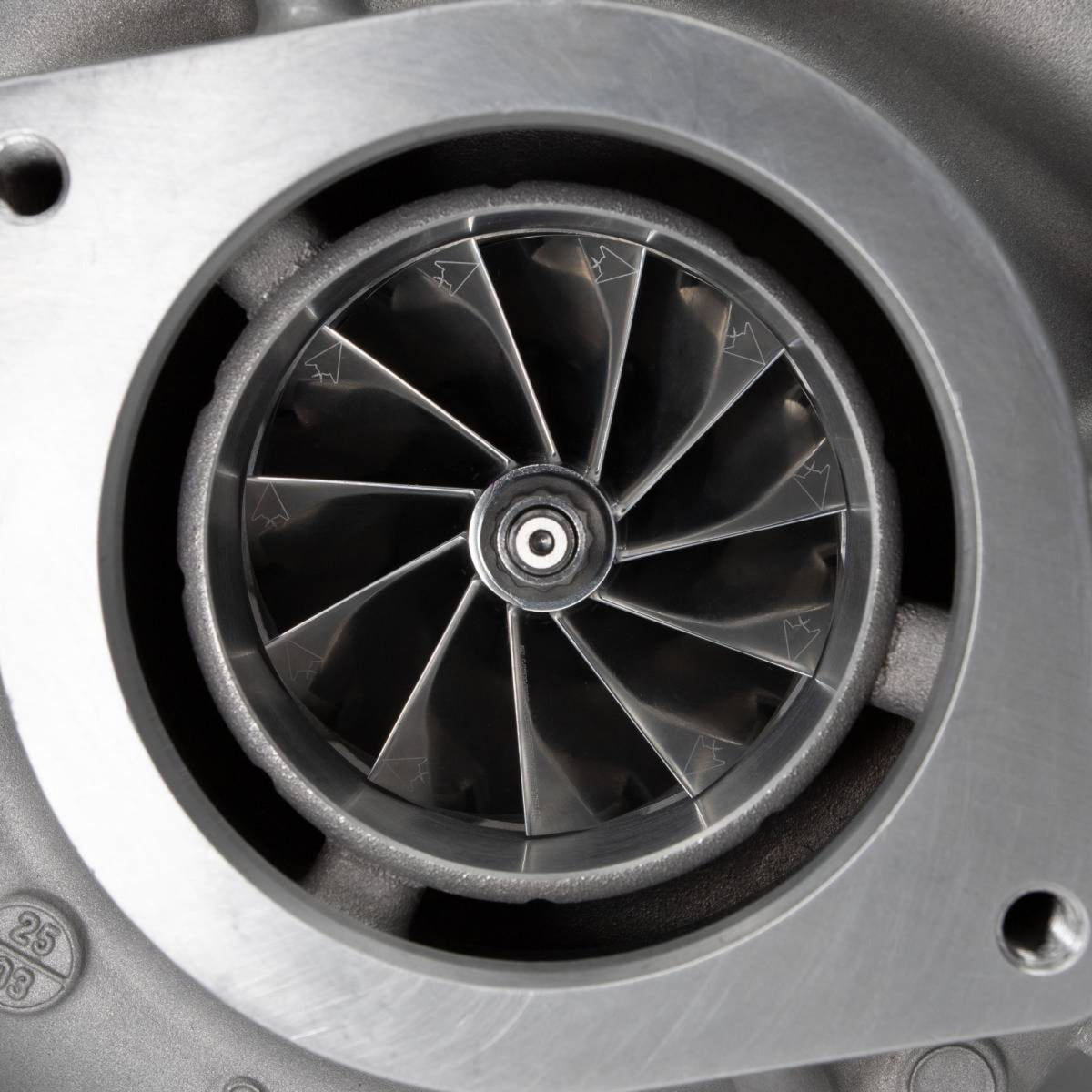

- 67mm - 11 Blade Extended Tip Billet 2618 Aluminum Alloy Compressor Wheel

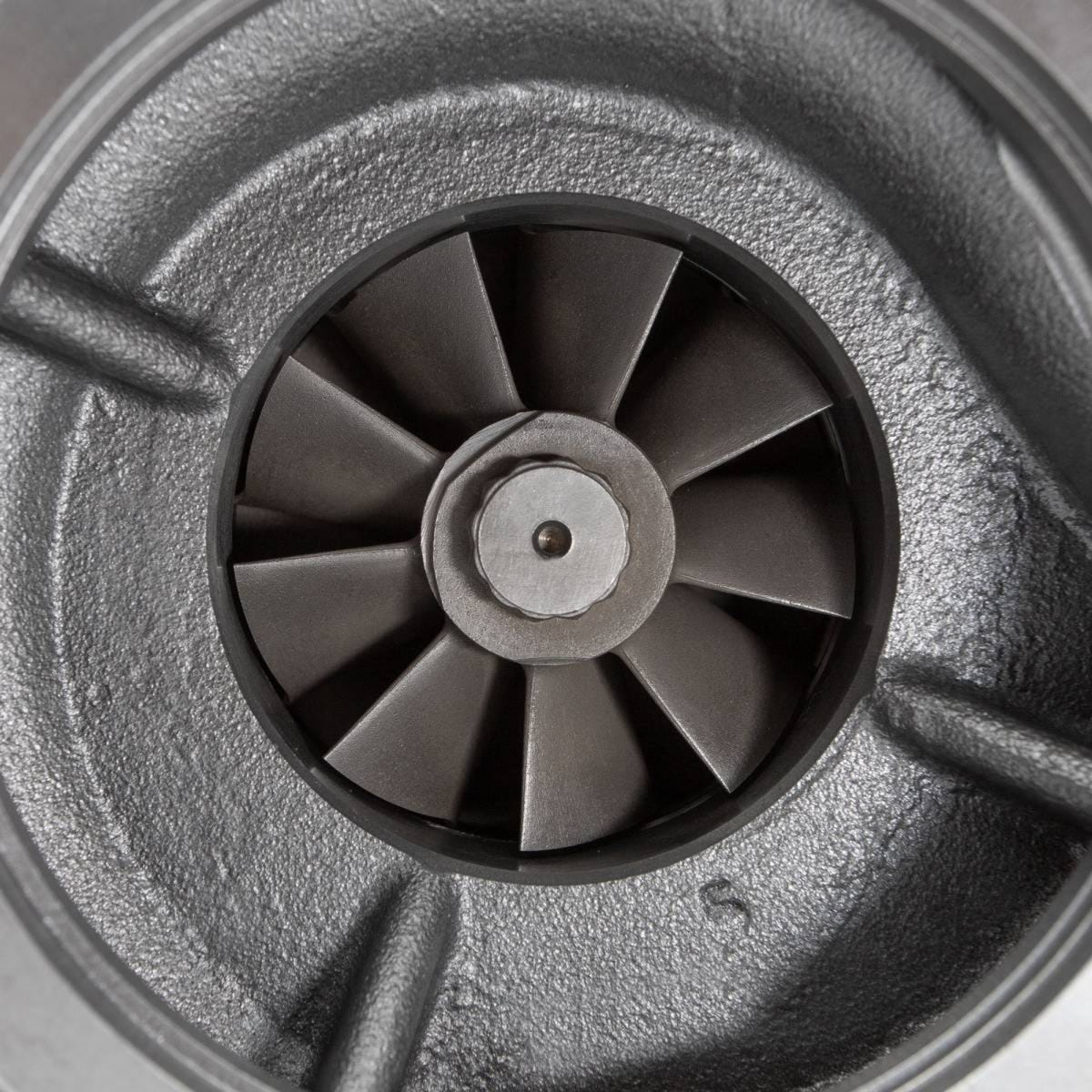

- 66.4mm - 9 Blade 713C - Nickel Alloy Turbine Wheel
- 11mm Vane Height for Max Spool Up
- Major top end EGT control
- Designed to prevent surge even while towing
- Retain your factory exhaust brake
- Easy to tune and no tuning required
- Brand New Parts
About Calibrated Power
Calibrated Power, often referred to as Cummins Tuner, is at the pinnacle of the custom tuning business. From trucks, to agriculture equipment, and even some gas engine applications, this team knows how to massage and finesse an ECM to maximize the true potential of your power plant. Truly, whether your truck spends its time towing a fifth wheel and you are looking to maximize the fuel economy and gain some extra pulling power, they can deliver exactly what you're after. Or on the other end of the spectrum, if you've got a fire breathing, compound turbo, dual CP3 equipped dedicated race machine, they can ensure you get the most out of all of your ancillary equipment to get you to the end of the track before the competition.
Utilizing such equipment as EFILive and the Smarty MM3, you can rest assured that their breadth of knowledge will deliver major results that the factory tuning simply cannot deliver. If you want the best, go with tuning from Calibrated Power.
Utilizing such equipment as EFILive and the Smarty MM3, you can rest assured that their breadth of knowledge will deliver major results that the factory tuning simply cannot deliver. If you want the best, go with tuning from Calibrated Power.
