What are the key features of the BulletProof Diesel FICM Power Supply 03-07 Ford 6.0L Powerstroke?

Upgraded circuit board that resists overheating; Military grade electrical components; All-billet, black anodized aluminum case with heat fins; Includes billet inspection cover with o-ring; Available in 4-phase or 6-phase versions; 6-phase version has user selectable 53 or 58 volt output; No need to reprogram

What are the specifications of the BulletProof Diesel FICM Power Supply 03-07 Ford 6.0L Powerstroke?

53 or 58 volts (6-phase); 48 volts standard

Are there any important fitment notes for the BulletProof Diesel FICM Power Supply 03-07 Ford 6.0L Powerstroke?

This is the power supply only and requires swapping out the power supply on your FICM; Torx bit tools are required; confirm pin layout as this is only available in a 4-pin configuration.

Quick Ship

SKU #: BPD-90201080_BK MPN #: 90201080_BK

BulletProof Diesel FICM Power Supply 03-07 Ford 6.0L Powerstroke

$675.95

Get 675 points in loyalty rewards

BulletProof Diesel FICM Power Supply 03 07 Ford 6.0L Powerstroke

Description Overview

The FICM (Fuel Injection Control Module) found on 6.0 Powerstroke equipped SuperDuties have developed somewhat of a bad name due to failure of the circuit board. While many manufacturers offer refurbished units with a higher voltage, most commonly 58, they're not addressing other failure points. Trust on BulletProof to deliver you a rock solid, dependable replacement with other ancillary advantages. The 4- and 6-phase versions of the BulletProof FICM power supply feature a much thicker, vibration-resistant printed circuit board, military grade electrical components, a full board heat-sink and strong circuit board construction. While the 4-phase version is a greatly improved upgrade of the 4-phase OEM power supply, the 6-phase version of the BulletProof FICM features two additional circuits that share the work load with the other four. The improved circuitry and upgraded components - combined with additional circuits - means this power supply is worthy of the name Bullet Proof Diesel. The 6-phase version of the board has user selectable settings to increase the voltage output to either 53 or 58 volts, up from the standard 48 volts. The BulletProof FICM does NOT need to be programmed because this product is JUST the power supply portion of the FICM, not the entire FICM. The entire FICM consists of two parts: the logic board and the power supply. The logic board seldom fails and it is the part with the programming on board. The power supply half of the FICM fails 9/10 times (according to Ford) and this portion of the FICM does not need to be programmed. Early testing results have revealed unexpected positive side effects. These side effects experienced by other customers include increased fuel economy, faster starting, overall performance increases, better cold driveability and the overcoming of fuel injector stiction. IMPORTANT NOTES: Torx bit tools are required for this job This BulletProof FICM is the POWER SUPPLY ONLY. This product will require you to swap out your power supply on your FICM. This is easy to do and is explained in the installation manual available. Please confirm pin layout (4-pin versus 7-pin) as this power supply is only available in a 4-pin configuration. 6 Phase option includes user selectable voltage output (53 or 58 volts).

Phase Options

Product photos may not match the selected option. Please confirm your choice before adding to cart.

Enter your zip and we'll see if installation is available.

Request quotes from local installers at checkout
Compare options and choose the best fit for your install

Free Customer Loyalty Program

No Salesmen, Just Enthusiasts

This is the power supply portion of the FICM for 6.0L Powerstroke trucks, built with a stronger circuit board and military grade components for reliable operation.

Fits: 2003-2007 6.0L Ford Powerstroke
Brand: BulletProof Diesel
Best for: Replacing a failed FICM power supply
Key features: Upgraded circuit board that resists overheating
Military grade electrical components

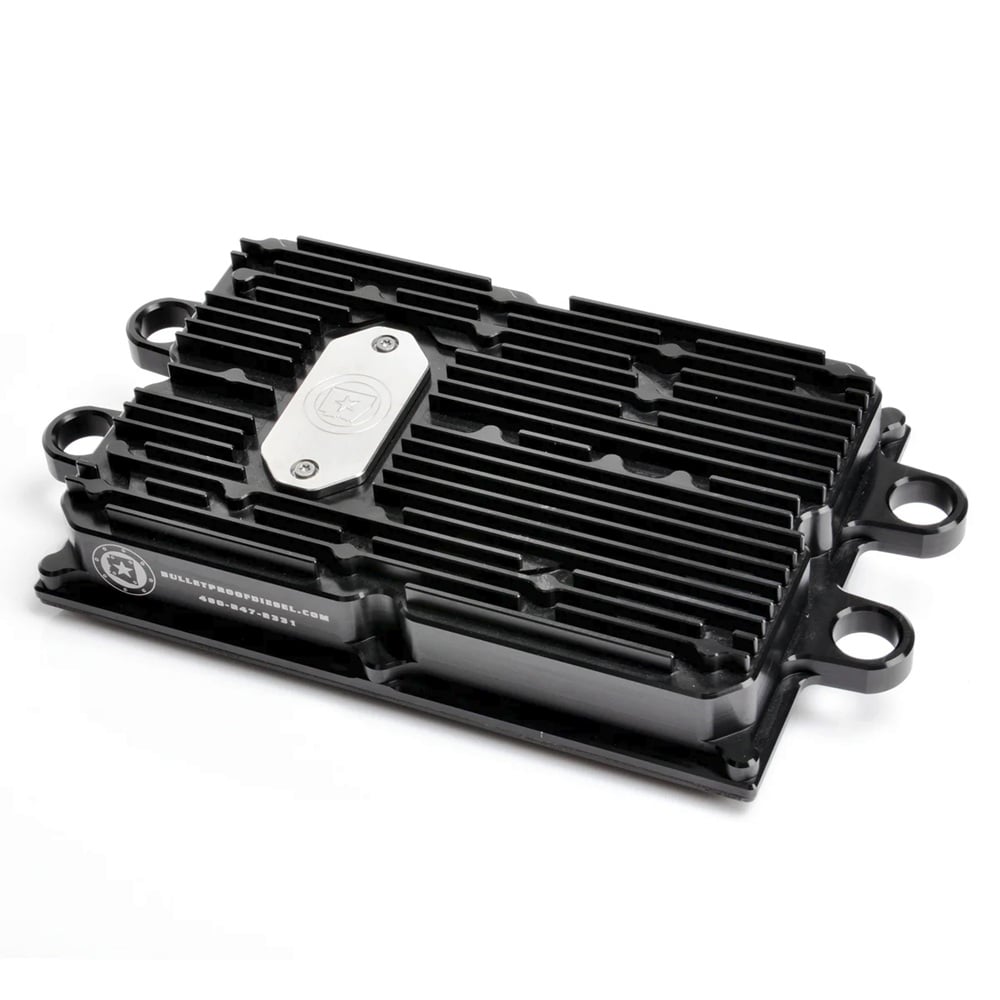

All-billet, black anodized aluminum case with heat fins
Includes billet inspection cover with o-ring
Available in 4-phase or 6-phase versions
6-phase version has user selectable 53 or 58 volt output
No need to reprogram
Key specs: 53 or 58 volts (6-phase)
48 volts standard
Important: This is the power supply only and requires swapping out the power supply on your FICM; Torx bit tools are required; confirm pin layout as this is only available in a 4-pin configuration.

The FICM (Fuel Injection Control Module) found on 6.0 Powerstroke equipped SuperDuties have developed somewhat of a bad name due to failure of the circuit board. While many manufacturers offer refurbished units with a higher voltage, most commonly 58, they're not addressing other failure points. Trust on BulletProof to deliver you a rock solid, dependable replacement with other ancillary advantages.

The 4- and 6-phase versions of the BulletProof FICM power supply feature a much thicker, vibration-resistant printed circuit board, military grade electrical components, a full board heat-sink and strong circuit board construction. While the 4-phase version is a greatly improved upgrade of the 4-phase OEM power supply, the 6-phase version of the BulletProof FICM features two additional circuits that share the work load with the other four. The improved circuitry and upgraded components - combined with additional circuits - means this power supply is worthy of the name Bullet Proof Diesel.

The 6-phase version of the board has user selectable settings to increase the voltage output to either 53 or 58 volts, up from the standard 48 volts.

The BulletProof FICM does NOT need to be programmed because this product is JUST the power supply portion of the FICM, not the entire FICM. The entire FICM consists of two parts: the logic board and the power supply. The logic board seldom fails and it is the part with the programming on board. The power supply half of the FICM fails 9/10 times (according to Ford) and this portion of the FICM does not need to be programmed.

Early testing results have revealed unexpected positive side effects. These side effects experienced by other customers include increased fuel economy, faster starting, overall performance increases, better cold driveability and the overcoming of fuel injector stiction.

IMPORTANT NOTES:

Torx bit tools are required for this job
This BulletProof FICM is the POWER SUPPLY ONLY. This product will require you to swap out your power supply on your FICM. This is easy to do and is explained in the installation manual available.
Please confirm pin layout (4-pin versus 7-pin) as this power supply is only available in a 4-pin configuration.
6 Phase option includes user selectable voltage output (53 or 58 volts).

NOT LEGAL FOR SALE OR USE IN CALIFORNIA

Vehicle Fitment

2003-2007 6.0L Ford Powerstroke

WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov

FEATURES & BENEFITS:

Upgraded circuit board that is stronger and alleviates component overheating
High quality, military grade electrical compononts
All-billet, Black anodized aluminum case with additional heat fins to better dissipate heat
Includes billet inspection cover with o-ring for better look and seal
Available in both a 4-phase or 6-phase version
6 phase version features user selectable setting of 53 or 58 volts
No need to reprogram (saving a trip to the dealer)

About BulletProof Diesel

BulletProof Diesel is a company that started out trying to solve a problem, the 6.0L Ford Powerstroke's inherent issues with the EGR (Exhaust Gas Recirculator) Cooler. The first product by Bulletproof was the upgraded EGR cooler and soon to follow were the EGR deletes and upgraded oil cooler. The company has positioned itself as the premier manufacturer of "6.0L fix-it parts."
