SKU #: BM-70397
MPN #: 70397

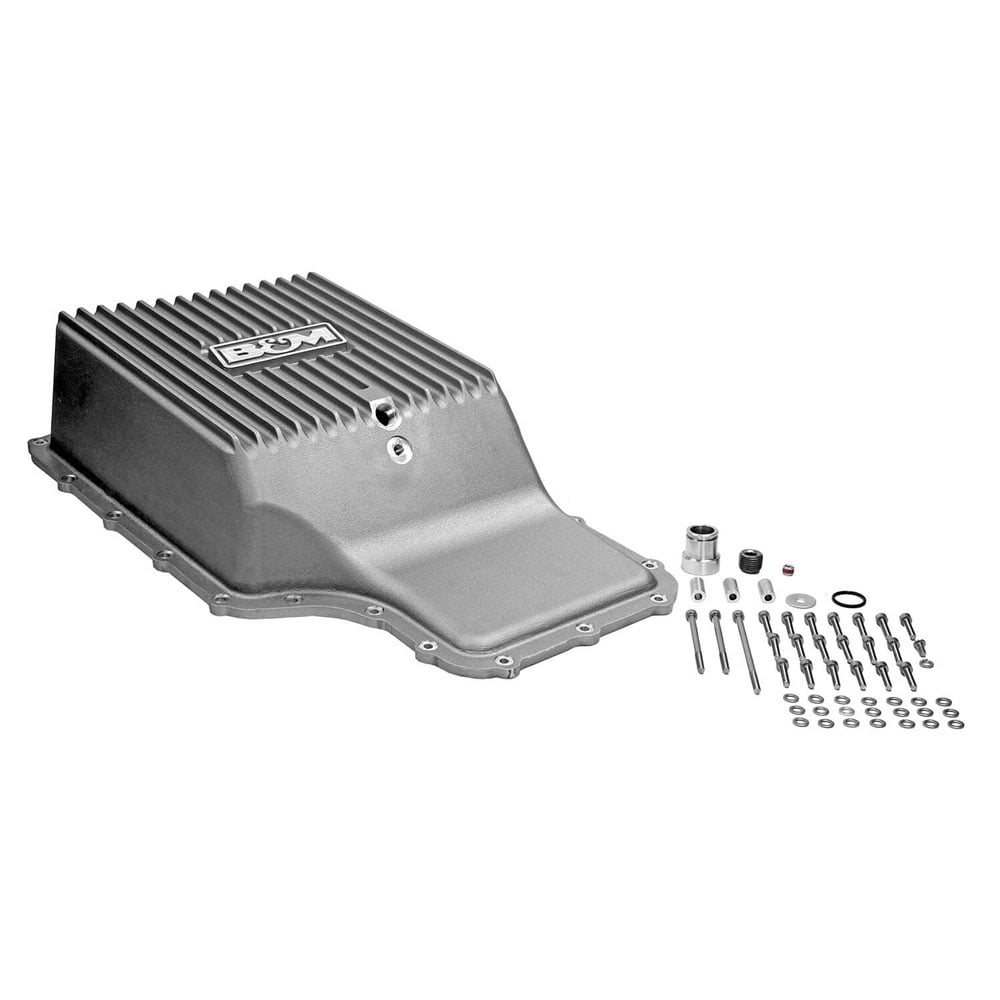

B&M HI-Tek Deep Transmission Pan 11-19 Ford 6.7L Powerstroke
Description
The B&M Hi-Tek deep transmission pans are constructed from A356-T6 hardened aluminum and are cast with thick internal and external fins adding additional strength and increased cooling properties. The deep pan design increases fluid capacity by 3.67 quarts over the stock O.E. (original equipment) pan. All these features combine to help dissipate heat quicker, netting lower transmission and fluid temperatures, prolonging transmission life. Other features for this popular pan include a drain port with magnetic drain plug for clean and easy servicing. Also includes 1/8-inch npt (national pipe thread) temperature sensor port for easily adding a temp gauge to monitor transmission temperatures while daily driving, towing or racing. Includes detailed instructions for easy installation.
Enter your zip and we'll see if installation is available.
- Request quotes from local installers at checkout
- Compare options and choose the best fit for your install
About WrenchConnected
WrenchConnected is an independent installation marketplace operating in partnership with Diesel Power Products.
How it works
After checkout, we route your vehicle info and part SKU to verified installation shops near you. Local installers review the job and submit competitive bids; you pick the shop you want based on price, reviews, and availability. Your name and email stay private until you select an installer.
Pricing
You pay for the bid from your preferred shop. The full amount is shown before you confirm — installers cannot add charges without your written consent. Payments are processed securely by Stripe.
Your privacy
During bidding, shops see only your service ZIP code, vehicle year/make/model, and the part SKU — not your name, email, or address. Only the shop you select receives your contact details after payment. We never sell your personal information.
More detail at wrenchconnected.com.
FEATURES & BENEFITS:
- Drain Port with Magnetic Drain Plug for Easy Servicing
- Durable A356 T6 Hardened Aluminum Construction Provides Strength and Light Weight
- Temperature Sensor Port Provides Simple Gauge Installations
- Additional 3.67-Quart Fluid Capacity adds Increased Cooling Properties
- Finned Design for Added Strength and Cooling
- Includes Filter Extension and Hardware for an Easy Installation
- Natural Finish with a Custom B&M Logo
- Lifetime Limited Warranty
- Over 65 Years of B&M Quality
SPECS:
- Additional Fluid Capacity (qts) - 3.67
- Bolt Coun - 19
- Bolt/Studs Included - Yes

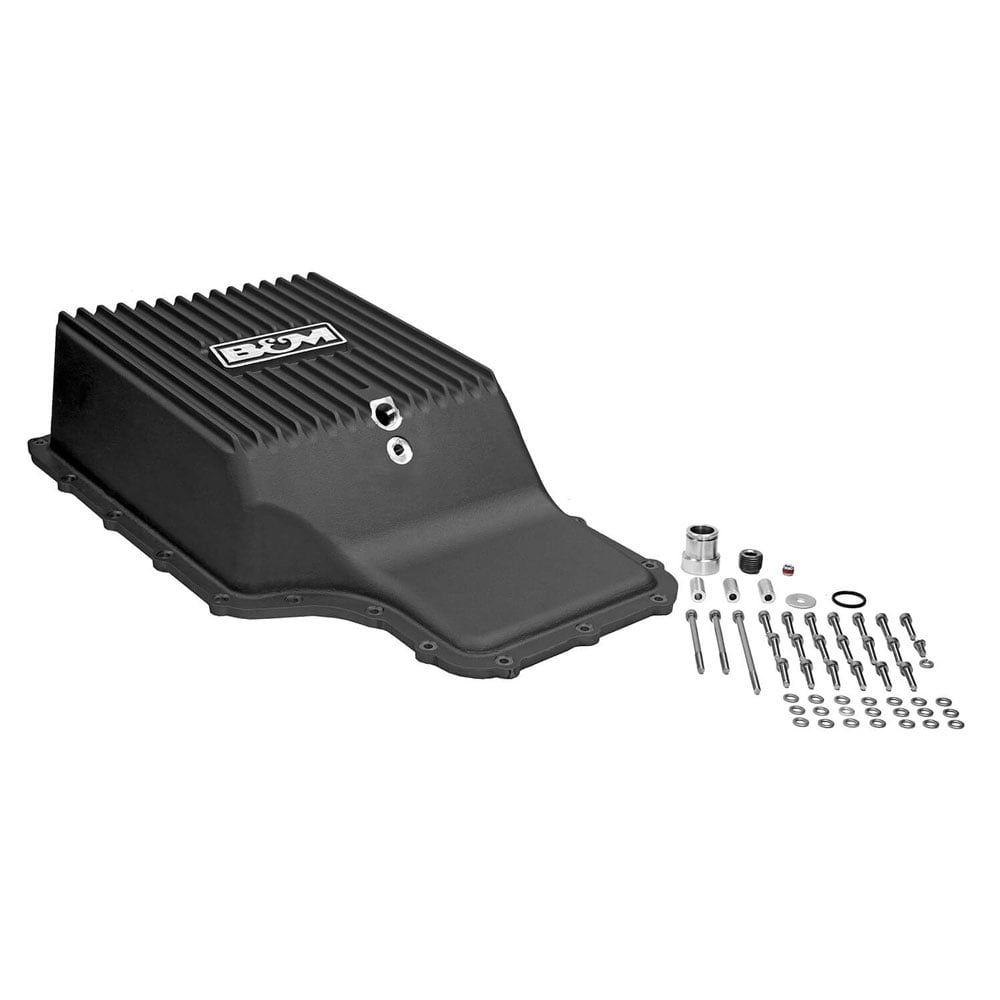

- Color/Finish - Natural or Black
- Drain Plug Included - Yes
- Drain Plug Type - Magnetic
- Emission Code - 5
- Gasket Included - No
- Material - A356.0-T6 Aluminum
- Product Type - Automatic Transmission Pans
- Temp Sensor Port - Yes
- Transmission - 6R140
- Transmission Type - Automatic
