What are the key features of the BHP BEHIND Roll Pan 2.5 inch Hidden Receiver Hitch 94-02 Ram 2500/3500?

Hidden behind roll pan for a smooth custom rear-end look; Forward hitch position improves trailer weight distribution; 20,000 lb weight carrying capacity for demanding towing; 2,000 lb maximum tongue weight for heavy trailer loads; Class 4+ receiver for serious towing, hauling, and truck pulling; SAE J684-05 certified to recognized hitch performance standards; Heavy-duty steel construction for strength and durability; Black powder-coated finish resists corrosion, salt, and wear; Bolt-in installation with all necessary mounting hardware, no welding required

What are the specifications of the BHP BEHIND Roll Pan 2.5 inch Hidden Receiver Hitch 94-02 Ram 2500/3500?

2.5-inch receiver; 20,000 lb weight carrying capacity; 2,000 lb maximum tongue weight; SAE J684-05 certified; Positions receiver nearly 8 inches forward of factory location

SKU #: BHP-BHP10036 MPN #: BHP10036

BHP BEHIND Roll Pan 2.5 inch Hidden Receiver Hitch 94-02 Ram 2500/3500

Name: BHP BEHIND Roll Pan 2.5 inch Hidden Receiver Hitch 94-02 Ram 2500/3500
Brand: Big Hitch Products
Price: 549.0 USD
Availability: InStock

$549.00

Get 549 points in loyalty rewards

BHP BEHIND Roll Pan 2.5 inch Hidden Receiver Hitch 94-02 Ram 2500/3500

Description Overview

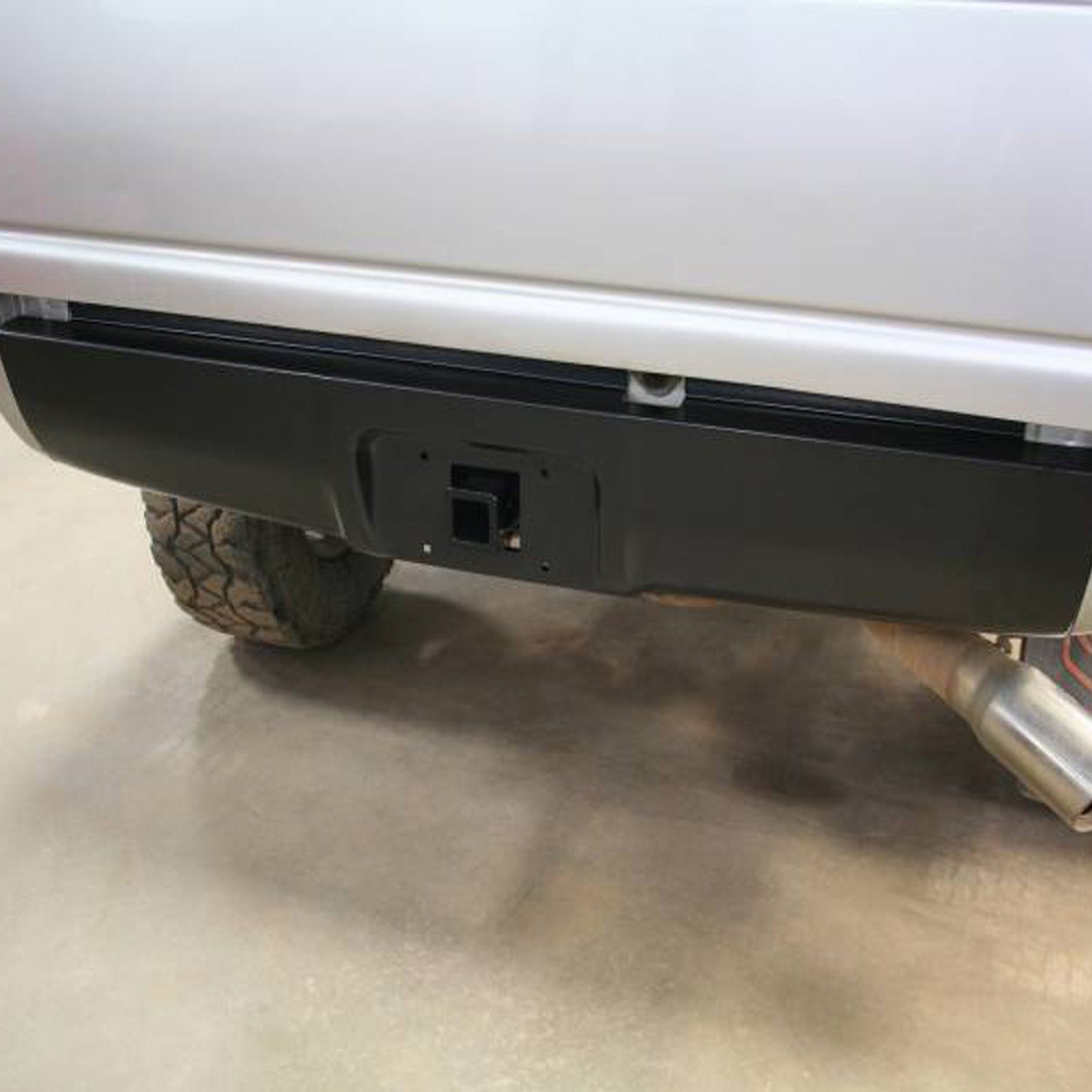

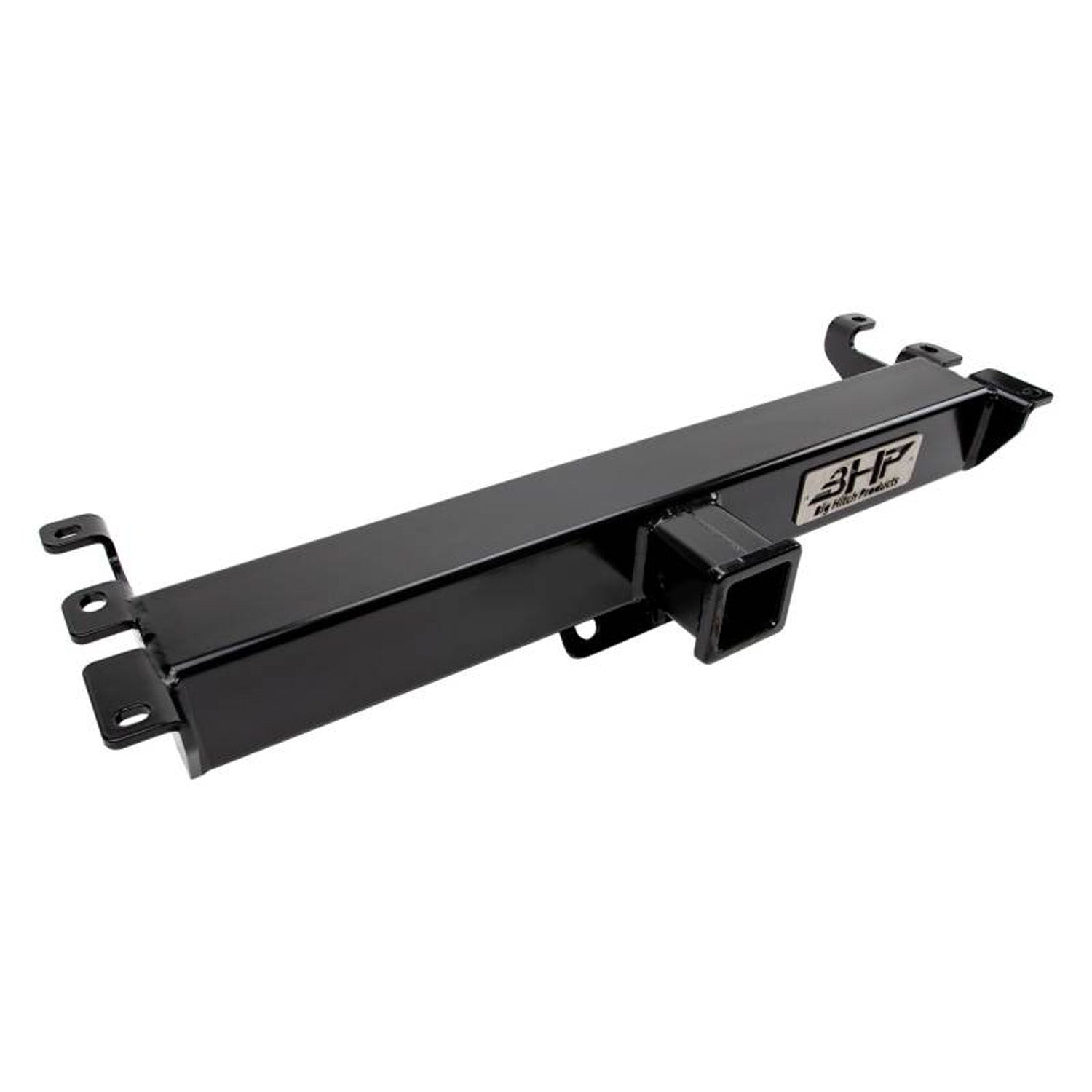

Building a clean 2nd Gen Ram without giving up heavy-duty towing? The Big Hitch Products Behind Roll Pan 2.5-Inch Hidden Receiver Hitch is designed specifically for 1994-2002 Dodge Ram 2500/3500 trucks, allowing you to retain full towing capability while achieving the smooth, custom appearance of a roll pan. By completely hiding the receiver behind the roll pan, the hitch stays out of sight until needed, providing access through the license plate opening for a clean look that doesn't compromise functionality. It's an excellent choice for tow rigs, pulling trucks, and custom street builds alike. Constructed from heavy-duty steel and finished with a durable black powder coat, this Class 4+ receiver is engineered for demanding towing applications. The 2.5-inch receiver is SAE J684-05 certified and rated for up to 20,000 pounds of weight-carrying capacity, with a 2,000-pound maximum tongue weight. Its bolt-in design includes all required mounting hardware and requires no welding, although minor frame trimming and hole enlargement may be necessary depending on the application. By positioning the receiver nearly 8 inches farther forward than the factory location, it also improves weight distribution while towing.

Enter your zip and we'll see if installation is available.

Request quotes from local installers at checkout
Compare options and choose the best fit for your install

Free Customer Loyalty Program

No Salesmen, Just Enthusiasts

A hidden receiver hitch that mounts behind the roll pan, hiding a Class 4+ receiver rated for 20,000 lb weight-carrying capacity while keeping a clean rear-end look.

Fits: 1994-2002 Ram 2500/3500
Brand: Big Hitch Products
Best for: Heavy-duty towing with a smooth, custom rear-end appearance
Key features: Hidden behind roll pan for a smooth custom rear-end look
Forward hitch position improves trailer weight distribution
20,000 lb weight carrying capacity for demanding towing
2,000 lb maximum tongue weight for heavy trailer loads
Class 4+ receiver for serious towing, hauling, and truck pulling
SAE J684-05 certified to recognized hitch performance standards
Heavy-duty steel construction for strength and durability
Black powder-coated finish resists corrosion, salt, and wear
Bolt-in installation with all necessary mounting hardware, no welding required
Key specs: 2.5-inch receiver
20,000 lb weight carrying capacity
2,000 lb maximum tongue weight
SAE J684-05 certified
Positions receiver nearly 8 inches forward of factory location
Important: Minor frame trimming and hole enlargement may be necessary depending on the application.

Building a clean 2nd Gen Ram without giving up heavy-duty towing? The Big Hitch Products Behind Roll Pan 2.5-Inch Hidden Receiver Hitch is designed specifically for 1994-2002 Dodge Ram 2500/3500 trucks, allowing you to retain full towing capability while achieving the smooth, custom appearance of a roll pan. By completely hiding the receiver behind the roll pan, the hitch stays out of sight until needed, providing access through the license plate opening for a clean look that doesn't compromise functionality. It's an excellent choice for tow rigs, pulling trucks, and custom street builds alike.

Constructed from heavy-duty steel and finished with a durable black powder coat, this Class 4+ receiver is engineered for demanding towing applications. The 2.5-inch receiver is SAE J684-05 certified and rated for up to 20,000 pounds of weight-carrying capacity, with a 2,000-pound maximum tongue weight. Its bolt-in design includes all required mounting hardware and requires no welding, although minor frame trimming and hole enlargement may be necessary depending on the application. By positioning the receiver nearly 8 inches farther forward than the factory location, it also improves weight distribution while towing.

Vehicle Fitment

1994-2002 Ram 2500/3500

WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov

Features & Benefits

Hidden Behind Roll Pan Design – Maintains a smooth custom rear-end appearance while preserving towing capability.
Forward Hitch Position – Moves the receiver nearly 8 inches forward to improve trailer weight distribution.
20,000 lb. Weight Carrying Capacity – Built for demanding towing and hauling applications.
2,000 lb. Maximum Tongue Weight – Supports heavy trailer loads with confidence.
Class 4+ Receiver – Designed for serious towing, hauling, and truck pulling.
SAE J684-05 Certified – Tested to meet recognized trailer hitch performance standards.
Heavy-Duty Steel Construction – Provides exceptional strength and long-term durability.
Black Powder-Coated Finish – Helps resist corrosion, road salt, and everyday wear.

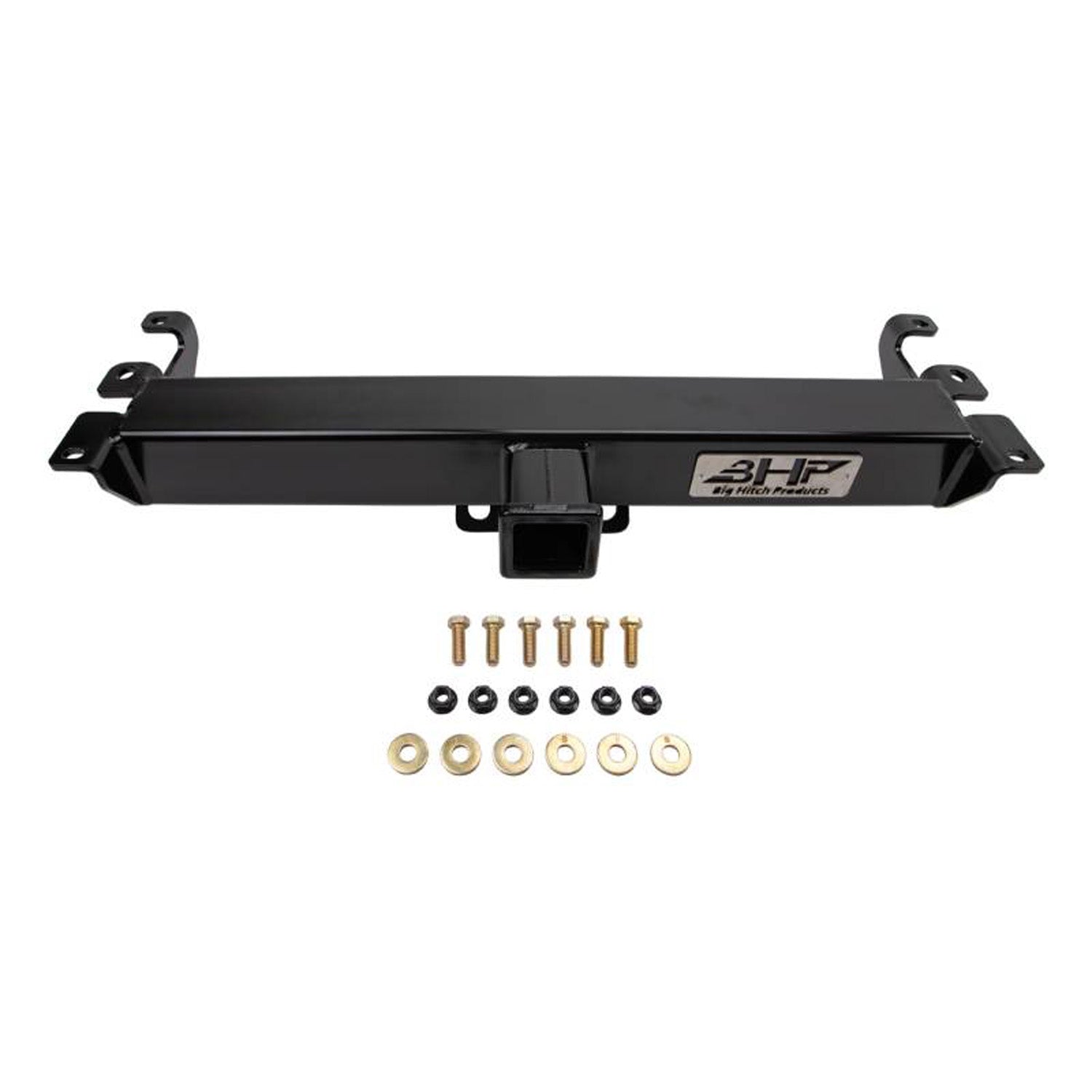

Bolt-In Installation – Includes all necessary mounting hardware with no welding required.
Fits 1994-2002 Dodge Ram 2500 & 3500 – Compatible with both short-bed and long-bed models.

About Big Hitch Products

Big Hitch Products manufactures premium aftermarket truck accessories designed to enhance the appearance and functionality of pickups. Best known for their high-quality steel and urethane roll pans, along with a variety of truck-specific exterior upgrades, their products are engineered to deliver precise fitment, durable construction, and a clean, custom look. Built with truck enthusiasts in mind, Big Hitch Products combines quality materials and thoughtful design to create accessories that install seamlessly and stand up to everyday use. Whether you're restoring a classic pickup or customizing a modern truck, Big Hitch Products offers dependable solutions that help achieve a sleek, professional finish without compromising durability.
