SKU #: BDS-133903 MPN #: BDS133903

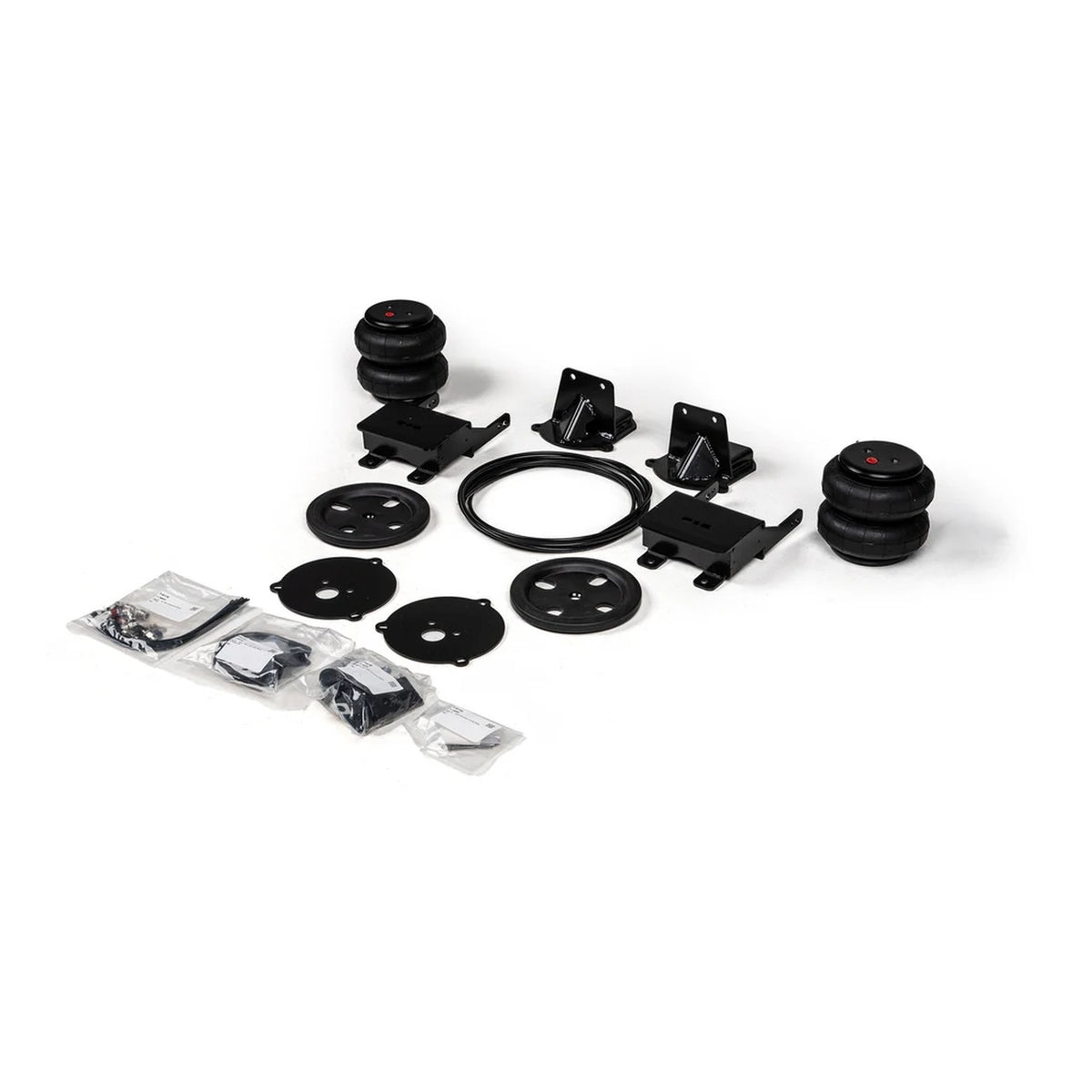

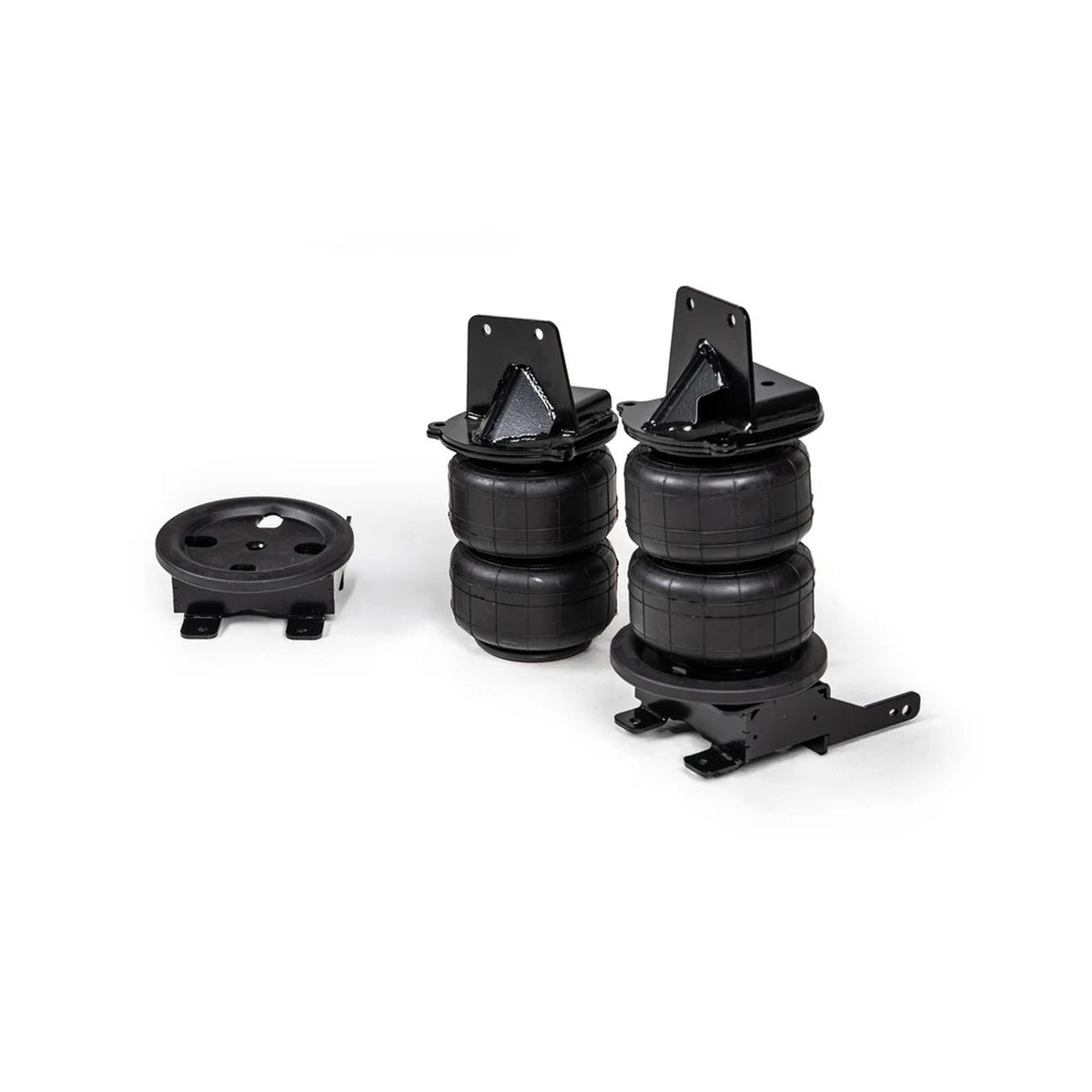

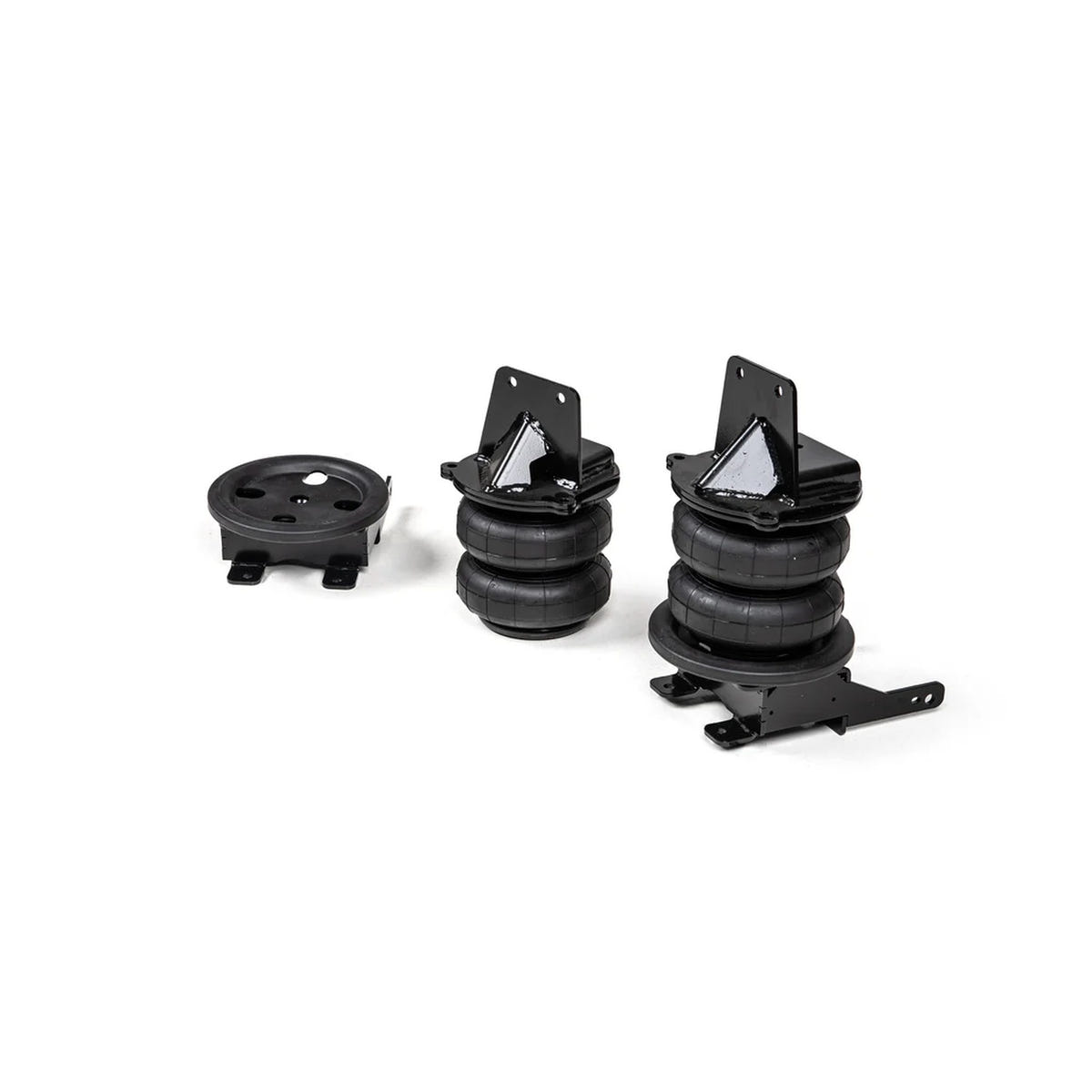

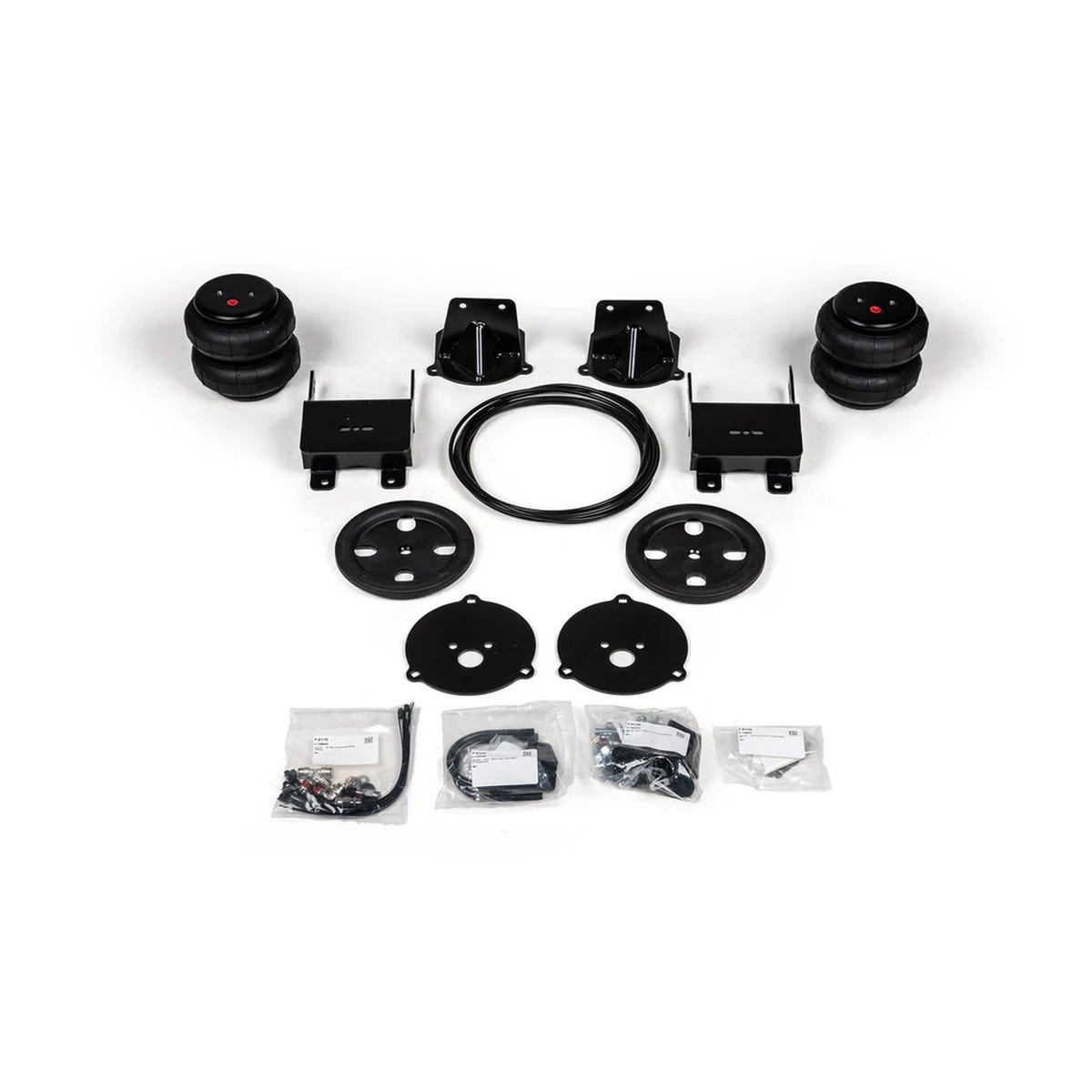

BDS Performance Towing Air Suspension Load Leveling Kit 0-4" Lift 15-26 Ford F-150 3.0L Powerstroke

$449.95

Get 449 points in loyalty rewards

BDS Performance Towing Air Suspension Load Leveling Kit 0-4" Lift 15-26 Ford F-150 3.0L Powerstroke

Description

Take control of heavy loads and towing duties with the BDS Performance Towing Air Suspension Load Leveling Upgrade Kit for 2015–2026 Ford F-150 4WD trucks with 6 inches of lift. Designed as an upgrade to compatible BDS suspension systems, this kit adds heavy-duty air springs to provide additional rear load support and help keep your truck level and stable when towing or hauling. Unlike traditional air spring systems that can restrict suspension movement, the BDS Performance Towing system features a rubber-isolated lower air spring mount with an innovative design that allows the axle to separate from the air spring at full suspension extension. This helps maintain maximum suspension droop while protecting the air spring components during off-road driving and uneven terrain. The heavy-duty air springs operate from 0–125 PSI and can safely operate at 0 PSI when the truck is unloaded. This provides additional suspension support when you need it while allowing the truck to maintain a smooth, factory-like ride when additional load support isn't required. The system is also compatible with all in-bed hitches and wheel and tire combinations. Installation is straightforward on trucks equipped with the required current BDS rear lift blocks. The kit includes DOT-approved air fittings, DOT air brake line, a tee fitting, and dual inflation valves for convenient pressure adjustment. For even easier pressure management, BDS recommends pairing the system with the BDS129006 onboard compressor and BDS133802 Ford F-150 mounting bracket.

FEATURES & BENEFITS:

Designed for 2015–2026 Ford F-150 4WD trucks with 3–4 inches of lift
Helps level and stabilize the truck when towing or hauling
Heavy-duty air springs operate from 0–125 PSI
Can safely operate at 0 PSI when unloaded
Rubber-isolated stamped steel cradle helps maintain maximum suspension droop travel
Helps protect air spring components during off-road use and uneven terrain
Works with all in-bed hitches
Compatible with all wheel and tire combinations
Robust air springs with steel rolled-crimp end caps
DOT-approved air fittings
DOT air brake line
Included tee fitting connects both air springs to a single fill point
Dual inflation valves included
Easy installation
Engineered, tested, and manufactured by BDS Suspension in Coldwater, Michigan
