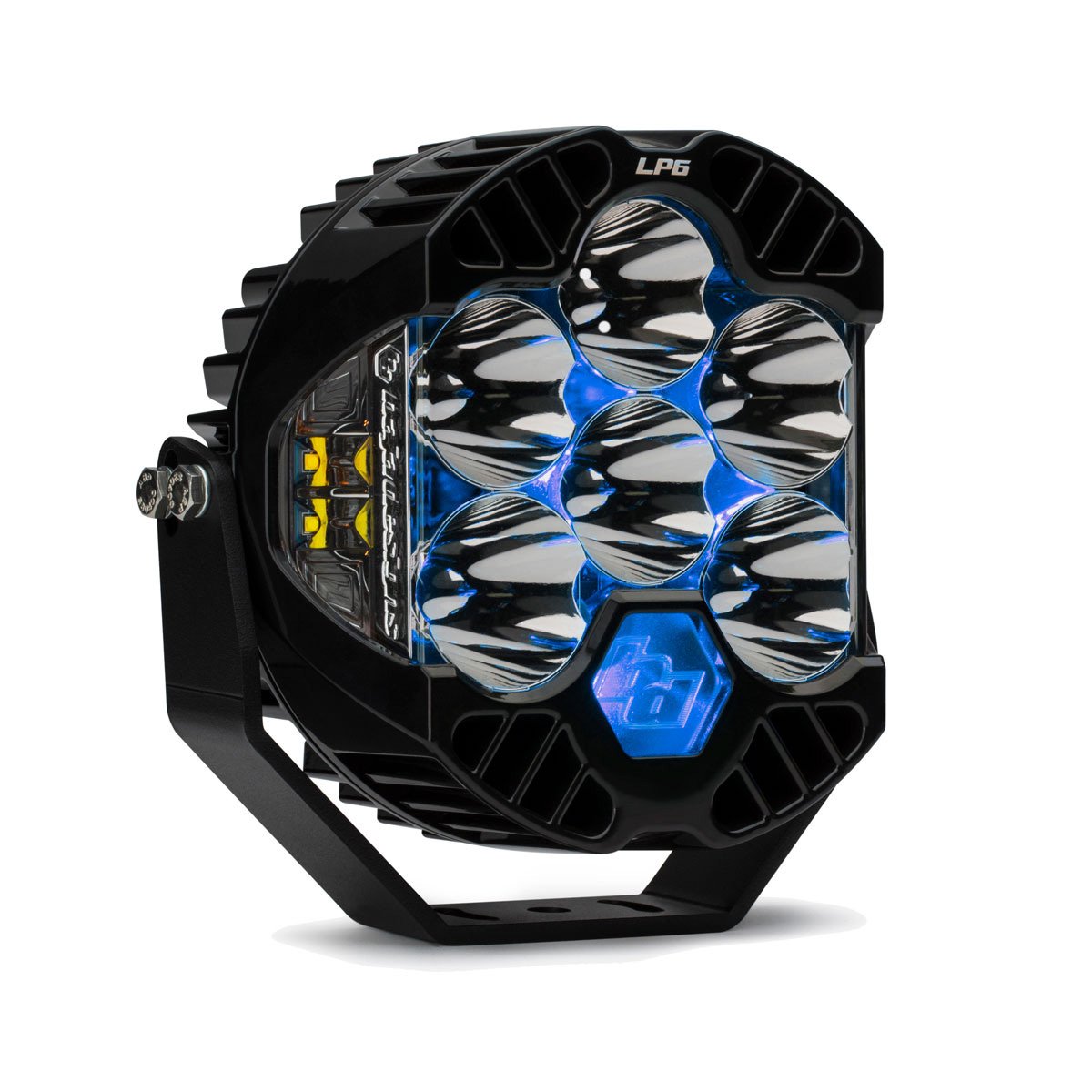

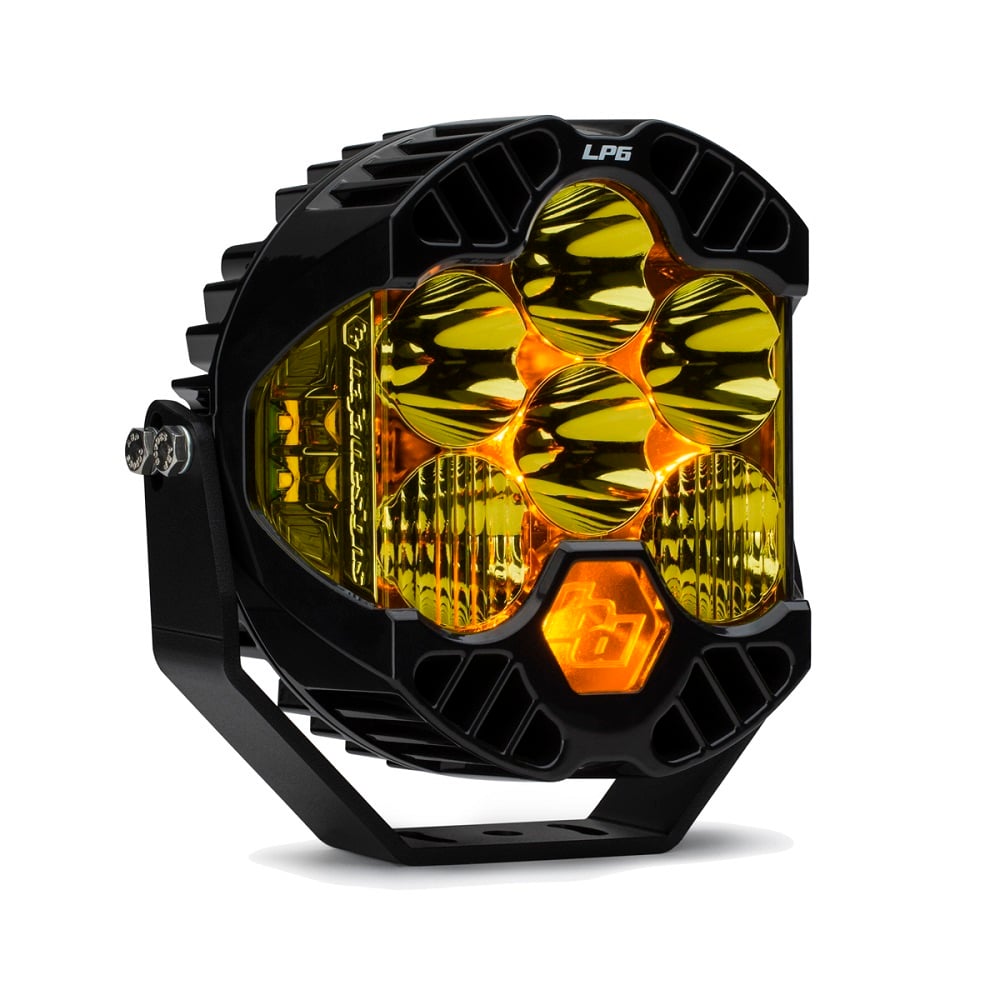

Baja Designs 6" LP6 Pro Off-Road LED Light
Description
Overview
Experience the commanding brilliance of the Baja Designs LP6 Pro, a 6-inch powerhouse radiating a staggering 11,225 total lumens. Unleashing a 200-degree spread of radiant LED light, courtesy of our patented Integrated Peripheral Technology (IPT), this light source is engineered for unparalleled performance.
Maintaining peak illumination efficiency, the LP6 incorporates our exclusive Direct Ducted Cooling (DDC) technology. This innovative feature channels air seamlessly from the front of the housing to the rear heat sinks, significantly enhancing cooling capacity and overall performance.
Adaptable to various scenarios, the LP6 Pro offers a colored daytime running light, low power, and high-power mode, effortlessly meeting all your lighting requirements.Tailor your lighting setup with multiple patterns available for the LP6 Pro. The Driving/Combo pattern ensures maximum trail coverage with a blend of 42-degree driving and 8-degree spot optics, catering to both near-field and distance lighting needs (Lighting Zones 1, 2, 3). The Spot pattern, featuring a longer and narrower 8-degree beam focus, extends visibility down the trail or road, especially when paired with additional wide cornering or driving/combo auxiliary lights (Lighting Zones 4 & 5).

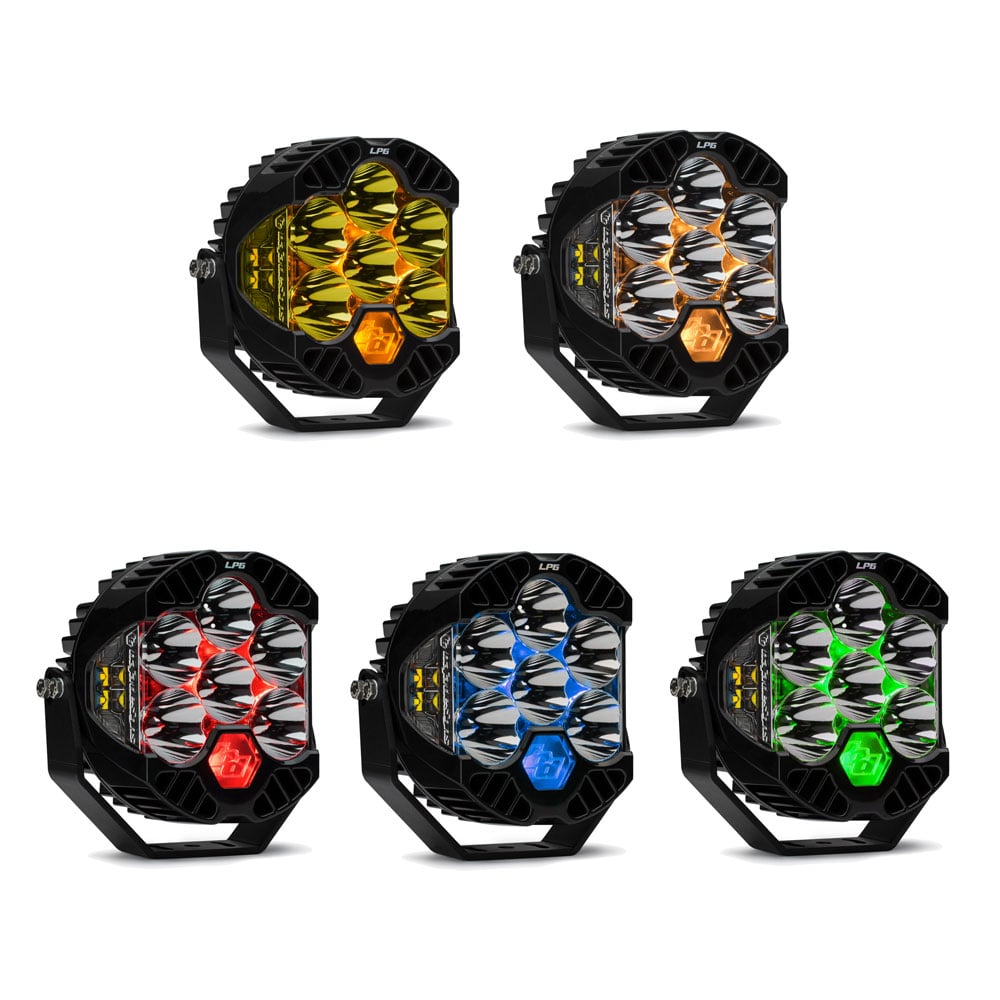

For those seeking a touch of personalization, the LP6 Pro introduces backlight options in red, blue, or green, complementing the original amber. Elevate your vehicle's appearance for shows, photo shoots, or wherever you want to captivate attention with the LP6 Pro's customizable backlight options.
Enter your zip and we'll see if installation is available.
- Request quotes from local installers at checkout
- Compare options and choose the best fit for your install
About WrenchConnected
WrenchConnected is an independent installation marketplace operating in partnership with Diesel Power Products.
How it works
After checkout, we route your vehicle info and part SKU to verified installation shops near you. Local installers review the job and submit competitive bids; you pick the shop you want based on price, reviews, and availability. Your name and email stay private until you select an installer.
Pricing
You pay for the bid from your preferred shop. The full amount is shown before you confirm — installers cannot add charges without your written consent. Payments are processed securely by Stripe.
Your privacy
During bidding, shops see only your service ZIP code, vehicle year/make/model, and the part SKU — not your name, email, or address. Only the shop you select receives your contact details after payment. We never sell your personal information.
More detail at wrenchconnected.com.
A high-performance off-road LED light producing 11,225 total lumens with a 200-degree light spread for extreme visibility.
- Fits
- Universal Fitment
- Brand
- Baja Designs Offroad LED Lights
- Best for
- Off-road auxiliary lighting in extreme conditions
- Key features
- Replaceable lenses and optics (uService Technology)
- ClearView Multiform Optics direct light precisely
- Waterproof, rain proof, submersible (MoistureBlock Technology)
- LED driven at 100% (CopperDrive)
- 5000K daylight temperature reduces driver fatigue
- Lifetime warranty
- Direct Ducted Cooling channels air to rear heat sinks
- Colored daytime running light with low/high power modes
- Customizable backlight options in red, blue, or green
- Key specs
- 11,225 total lumens
- 200-degree light spread
- 42-degree driving optic
- 8-degree spot optic
- 5000K color temperature
- Important
- These do not include a complete wiring harness or switch; lights sold individually.
FEATURES & BENEFITS:
- uService Technology Replaceable Lenses and Optics
- ClearView Multiform Optics All the light, right where you need it.
- MoistureBlock Technology Waterproof, Rain Proof, Submersible
- CopperDrive Only LED driven at 100%
- 5000K Daylight Temperature Less Driver Fatigue, Natural Color
- Lifetime Warranty
- These do not include a comlete wiring harness or switch
- Lights sold individually
SPECIFICATIONS:
- Forward Projecting Lumens: 8,600 Utilizing 6 LEDs
- Forward Projecting Wattage/Amps: 90W / 6.5A
- Integrated Peripheral Technology (IPT) Lumens:1,700
- Integrated Peripheral Technology (IPT) Wattage/Amp: 4.14W / 0.3A
- Delivers 200 Degrees of Total Usable Light
- Features Direct Ducted Cooling to Cool Light
- Driving/Combo Light Pattern
- Weight: 4.2lbs
- Dimensions: 6.5" Height / 6.5" Width / 3.2" Depth
- LED Life Expectancy: 49,930 Hours
- Front Lens: Hardcoated Polycarbonate
- Housing: Hard Anodized Machined Aluminum
- Bezel: Aluminum
- Hardware Bracket Material: Stainless Steel
- Exceeds MIL-STD810G (Mil-Spec Testing)
- Built-In Over voltage Protection
- IP69K (Waterproof, Submersible to 9ft)
- IK10 Compliant (Mechanical Impact Testing)
About Baja Designs Offroad LED Lights
If youre looking for the best and brightest 12 volt LED offroad lights and LED light bars on the market, look no further than a Baja Designs light bar or set of pods.
When youre shopping for LED lights, youre going to find prices that swing like a pendulum for what is seemingly a similar product, such as a 50 single row offroad LED light bar. You may find it for as low as $100 and as high as $2000, so, whats the difference?
Unbeknownst to many, quite a bit. Baja Designs CopperDrive LED management system uses a next generation circuit board and driver technology to safely run high powered LEDs at 100% power. Four levels of thermal management transfer LED heat up to 3000% more efficiently and provide an extra layer of vibration isolation, creating the highest performing and longest lasting LED light on the market. And what does this mean to you? In short, it means youll get a light that shines brighter with a more consistent beam pattern under the harshest of conditions for years to come. Whether youre looking at a pair of their Baja Designs Squadron lights for a solid set of LED offroad flood lights, an OnX Six light bar (an incredibly bright LED light bar), or their newest LP9 to be used as a set of LED offroad flood lights or spot lights, you can rest assured youre getting the best and brightest LED lights on the market.
Video
DIESEL TALK | BAJA DESIGNS LP6!
Looking to upgrade your off-road lighting? In this episode, we're taking a look at the Baja Designs LP6 Pro and why it's one of the most popular lights for trucks, Jeeps, and off-road builds.
With over 11,000 lumens of output, the LP6 Pro delivers incredible visibility whether you're exploring trails, overlanding, or driving dark backroads. Its combination of spot and driving optics provides excellent distance and wide-angle coverage, while Baja Designs' Direct Ducted Cooling technology helps keep the lights performing at their best.
The LP6 Pro also features customizable backlighting, multiple beam patterns, and the durability Baja Designs is known for, making it a premium lighting upgrade for any adventure.
