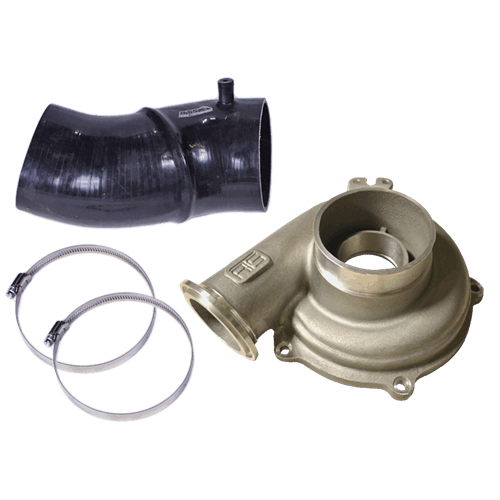

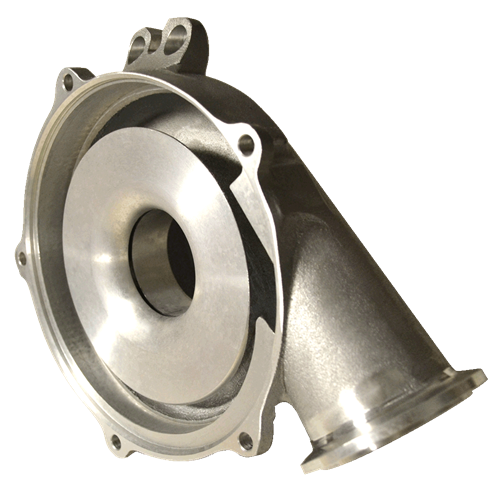

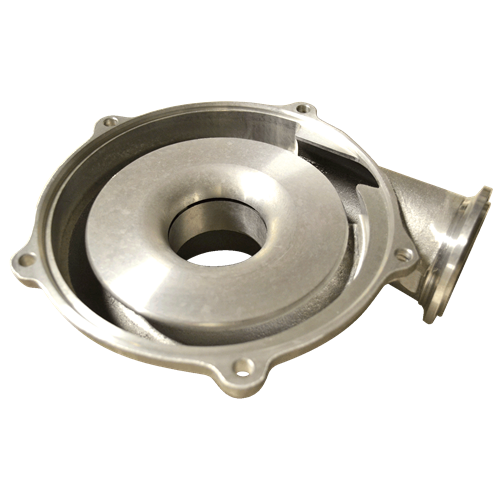

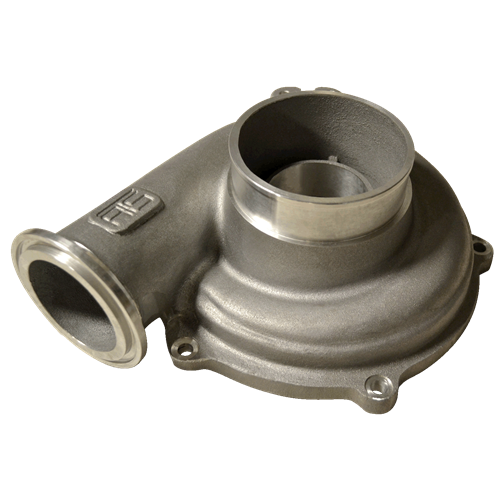

ATS 2029013228 Ported Shroud Compressor Housing 99.5-03 Powerstroke

Name: ATS 2029013228 Ported Shroud Compressor Housing 99.5-03 Powerstroke
Brand: ATS Diesel Performance
Price: 479.99 USD
Availability: InStock
Rating: 4.3 (3 reviews)

$479.99

Get 479 points in loyalty rewards

ATS 2029013228 Ported Shroud Compressor Housing 99.5-03 Powerstroke

Description

Eliminate compressor surge and provide additional airflow to your 7.3L! Owners of many "modified" 99.5+ 7.3L Powerstroke Diesel Trucks have experienced a condition called Compressor Surge. Surge occurs when the pressure on the discharge side of the compressor exceeds the capability of the turbocharger to continue to move air. A temporary "stall" of the intake airflow occurs until the pressure in the discharge side drops and airflow continues in the "forward" direction again. If the cause of the stall (combination of load, throttle position, etc.) still exists, it will occur again and again. This is called "Pumping" or "Surge" , and will emit a "whoosh whoosh whoosh" sound from the intake tube between the turbo and air filter. Surge may also show up on your boost gauge as a fluctuating needle. Compressor Surge can be very damaging to a turbocharger due to the tremendous thrust load changes on the compressor wheel and shaft. The ATS Ported Shroud Compressor Housing is designed to increase your turbo life by eliminating the damaging effect of compressor surge. The ATS Ported Shroud Compressor Housing is designed with a 4" intake (stock is 3") and exclusive Inducer Bleed Ring. Utilizing a 4" intake results in a 13% increase in choke flow, allowing more air to flow into the compressor wheel. Inducer Bleed acts to broaden the range of the compressor wheel, smooth out air flow, and eliminate turbo compressor surge. While the ATS Ported Shroud Compressor Housing may cost more than other methods of fixing Compressor Surge (like a new compressor wheel), changing to the ATS housing doesn't require removal of the turbo or balancing of the rotating assembly. The savings in removal/installation time, downtime and the labor cost of turbo assembly balancing make the ATS Ported Shroud Compressor Housing an excellent choice for solving your compressor surge problem. FEATURES & BENEFITS: Enlarged 4" inlet flows better with OEM wheel than merely upgrading the compressor wheel Increased turbo life Eliminates compressor surge 4" intake and exclusive inducer bleed ring 13% increase in airflow Smoother exit airflow Increased efficiency and performance

Enter your zip and we'll see if installation is available.

Request quotes from local installers at checkout
Compare options and choose the best fit for your install

Free Customer Loyalty Program

No Salesmen, Just Enthusiasts

Eliminate compressor surge and provide additional airflow to your 7.3L! Owners of many "modified" 99.5+ 7.3L Powerstroke Diesel Trucks have experienced a condition called Compressor Surge. Surge occurs when the pressure on the discharge side of the compressor exceeds the capability of the turbocharger to continue to move air. A temporary "stall" of the intake airflow occurs until the pressure in the discharge side drops and airflow continues in the "forward" direction again. If the cause of the stall (combination of load, throttle position, etc.) still exists, it will occur again and again. This is called "Pumping" or "Surge" , and will emit a "whoosh whoosh whoosh" sound from the intake tube between the turbo and air filter. Surge may also show up on your boost gauge as a fluctuating needle.

Compressor Surge can be very damaging to a turbocharger due to the tremendous thrust load changes on the compressor wheel and shaft. The ATS Ported Shroud Compressor Housing is designed to increase your turbo life by eliminating the damaging effect of compressor surge. The ATS Ported Shroud Compressor Housing is designed with a 4" intake (stock is 3") and exclusive Inducer Bleed Ring. Utilizing a 4" intake results in a 13% increase in choke flow, allowing more air to flow into the compressor wheel. Inducer Bleed acts to broaden the range of the compressor wheel, smooth out air flow, and eliminate turbo compressor surge. While the ATS Ported Shroud Compressor Housing may cost more than other methods of fixing Compressor Surge (like a new compressor wheel), changing to the ATS housing doesn't require removal of the turbo or balancing of the rotating assembly. The savings in removal/installation time, downtime and the labor cost of turbo assembly balancing make the ATS Ported Shroud Compressor Housing an excellent choice for solving your compressor surge problem.

FEATURES & BENEFITS:

Enlarged 4" inlet flows better with OEM wheel than merely upgrading the compressor wheel
Increased turbo life
Eliminates compressor surge
4" intake and exclusive inducer bleed ring
13% increase in airflow
Smoother exit airflow
Increased efficiency and performance

NOT LEGAL FOR SALE OR USE IN CALIFORNIA

Vehicle Fitment

1999.5-2003 7.3L Ford Powerstroke
