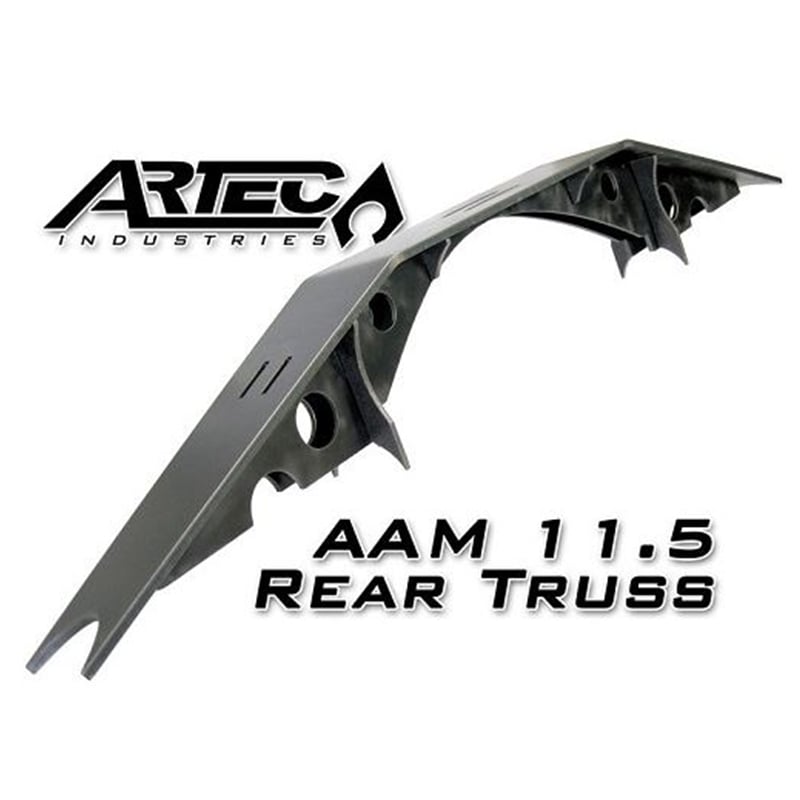

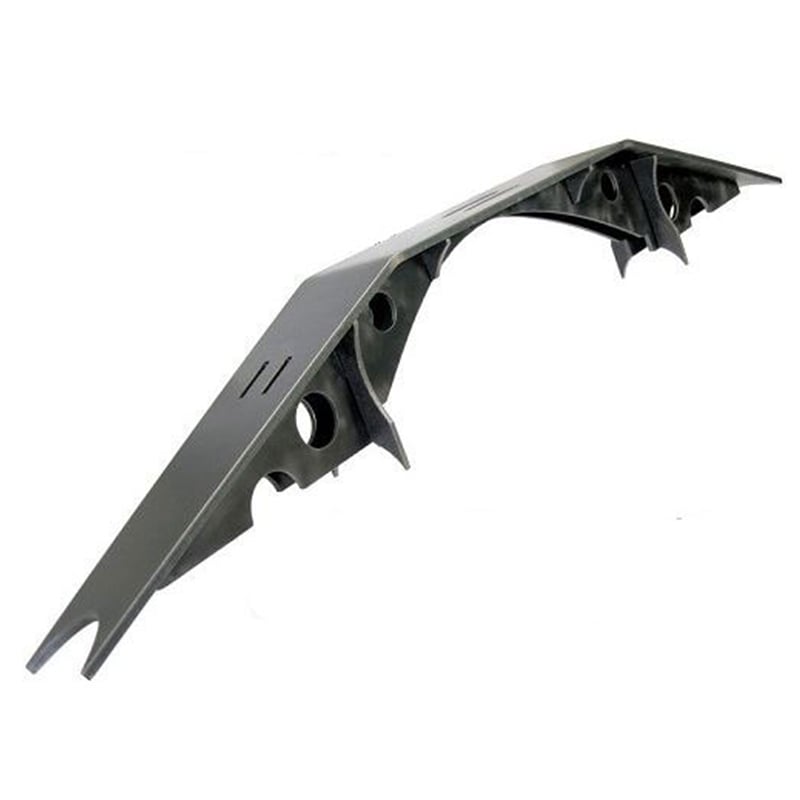

Artec Industries TR1101 AAM 11.5 Axle Truss 3.5" Housing

Name: Artec Industries TR1101 AAM 11.5 Axle Truss 3.5" Housing
Brand: Artec Industries
Price: 399.99 USD
Availability: InStock

$399.99

Get 399 points in loyalty rewards

Artec Industries TR1101 AAM 11.5 Axle Truss 3.5" Housing

Description

Yes, it is possible to bend the American Axle 11.5. While most are typically only concerned with the 9.25, because of its immediate tendency to bending when subjected to the slightest abuse, the 11.5 can still be destroyed with only slightly more abuse. But that's not the ONLY reason to mount up this truss. This heavy duty truss system is designed to take serious abuse and reinforce your entire axle while also providing a flat surface to mount your upper links. The 3/8" thick truss top and 1/4" thick gussets incorporates a unique design to strengthen both the axle and the link mounting surface. This truss allows for a selection of pinion angles from 7 to 20 degrees. Any more or less and some trimming may be required. This truss fits AAM 11.5 axles with a 3.5" axle tubes and centered differential. Overall length on this truss is about 53 inches.

Enter your zip and we'll see if installation is available.

Request quotes from local installers at checkout
Compare options and choose the best fit for your install

Free Customer Loyalty Program

No Salesmen, Just Enthusiasts

Yes, it is possible to bend the American Axle 11.5. While most are typically only concerned with the 9.25, because of its immediate tendency to bending when subjected to the slightest abuse, the 11.5 can still be destroyed with only slightly more abuse. But that's not the ONLY reason to mount up this truss.

This heavy duty truss system is designed to take serious abuse and reinforce your entire axle while also providing a flat surface to mount your upper links. The 3/8" thick truss top and 1/4" thick gussets incorporates a unique design to strengthen both the axle and the link mounting surface. This truss allows for a selection of pinion angles from 7 to 20 degrees. Any more or less and some trimming may be required. This truss fits AAM 11.5 axles with a 3.5" axle tubes and centered differential. Overall length on this truss is about 53 inches.

Vehicle Fitment

Centered AAM 11.5 with 3.5" Axle Tubes

WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov

Features include:

3/8" thick mild steel truss top and 1/4" mild steel gussets. Precision CNC cut and bent for great fitment.*
Truss is low profile allowing link joints to be mounted with ideal geometry - about 9 inches from the axle centerline.
Truss spans entire length of axle for complete reinforcement of the axle tubes - not just for mounting links.
Truss is reinforced using interlocked 1/4 thick gussets for maximum strength and easy assembly.
Overall low profile design means your axle is stronger, sleaker, easier to fit into any vehicle, and less likely to interfere with vehicle components.

IMPORTANT NOTE:

This truss is very form fitting to the contours of the casting. Due to variances in casting of this axle over the years, some trimming may be necessary on the truss and non-essential parts of the casting.
This kit requires general welding and fabrication skills. Welding should only be done by a competent welder. Artec Industries implies no guarantees or warranties and is not liable for improper installation.
Some grinding and fitment may be required when installing this kit. Every axle varies slightly and some fabrication may be required.
