SKU #: JKS-JSPEC169KFP MPN #: JKS-JSPEC169KFP

JKS 2.5" Lift Kit J-Krawl 20-23 Jeep Wrangler JL 3.0L EcoDiesel 4 Door

$3,425.90

Get 3425 points in loyalty rewards

JKS 2.5" Lift Kit J-Krawl for 20-23 Jeep Wrangler JL 3.0L EcoDiesel 4 Door

Description

From hardcore rock crawling to high-speed desert, the J-Krawl System brings a level of performance and adaptability that makes it the go to package for many Jeep enthusiasts. These systems build on the base systems and add comments for a full overhaul of the factory suspension to maximum articulation, strength and allow for adaptability. Components include J-Flex upper and lower control arms, Jspec dual rate coil springs, an adjustable front track bar, a rear track bar bracket, quicker disconnect front sway bar end links, and bump stop extensions. J-Krawl builds off Jeep's factory suspension mounting points and upgrades everything front to rear. Adaptability is important for fine tuning suspension geometry. J-Krawl delivers. Dial in front caster, rear pinion and overall vehicle wheelbase. Take your Jeep's off-road performance and strength to the next level. It should be noted that an aftermarket front driveshaft is strongly recommended due to potential additional travel. SHOCK OPTIONS: Fox 2.0 IFP Performance Shocks - Custom valved for this kit, the Fox 2.0 IFP offers a more durable shock design that is rebuildable with better bottom out resistance. Fox 2.5 Elite Series Shocks - The FOX 2.5 Performance Elite Series Shocks with DSC adjustment can deliver next level performance with easy adjustment to dial in high-speed/low-speed compression damping for improved performance across off terrains. FOX 3.0 Factory Race Series IBP shocks - These race proven shocks have internal bypass technology along with DSC adjustment on the recirculating reservoirs to meet the extreme performance needs when charging offroad while to deliver next level performance with easy adjustment to dial in high-speed/low-speed compression damping for improved performance across off terrains. IMPORTANT NOTES: Factory wheels cannot be reinstalled without wheel spacers HD front springs recommended for applications with aftermarket winch/bumper combo HD rear springs recommended for applications with rear mounted full size spare tire Front aftermarket driveshaft strongly recommended due to additional travel capability

Enter your zip and we'll see if installation is available.

Request quotes from local installers at checkout
Compare options and choose the best fit for your install

Free Customer Loyalty Program

No Salesmen, Just Enthusiasts

From hardcore rock crawling to high-speed desert, the J-Krawl System brings a level of performance and adaptability that makes it the go to package for many Jeep enthusiasts. These systems build on the base systems and add comments for a full overhaul of the factory suspension to maximum articulation, strength and allow for adaptability. Components include J-Flex upper and lower control arms, Jspec dual rate coil springs, an adjustable front track bar, a rear track bar bracket, quicker disconnect front sway bar end links, and bump stop extensions. J-Krawl builds off Jeep's factory suspension mounting points and upgrades everything front to rear. Adaptability is important for fine tuning suspension geometry. J-Krawl delivers. Dial in front caster, rear pinion and overall vehicle wheelbase. Take your Jeep's off-road performance and strength to the next level. It should be noted that an aftermarket front driveshaft is strongly recommended due to potential additional travel.

SHOCK OPTIONS:

Fox 2.0 IFP Performance Shocks - Custom valved for this kit, the Fox 2.0 IFP offers a more durable shock design that is rebuildable with better bottom out resistance.

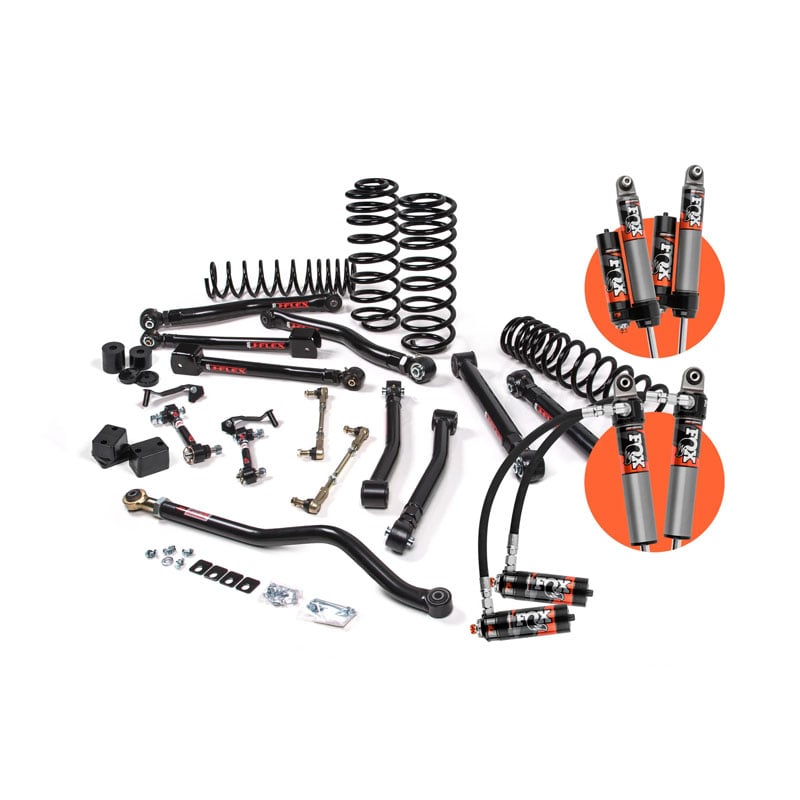

Fox 2.5 Elite Series Shocks - The FOX 2.5 Performance Elite Series Shocks with DSC adjustment can deliver next level performance with easy adjustment to dial in high-speed/low-speed compression damping for improved performance across off terrains.

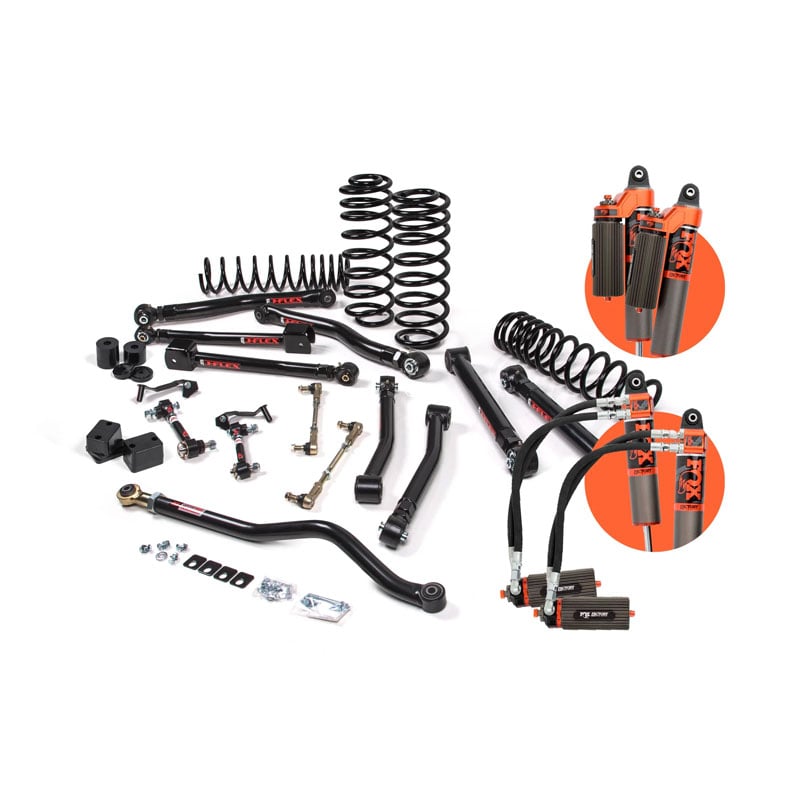

FOX 3.0 Factory Race Series IBP shocks - These race proven shocks have internal bypass technology along with DSC adjustment on the recirculating reservoirs to meet the extreme performance needs when charging offroad while to deliver next level performance with easy adjustment to dial in high-speed/low-speed compression damping for improved performance across off terrains.

IMPORTANT NOTES:

Factory wheels cannot be reinstalled without wheel spacers
HD front springs recommended for applications with aftermarket winch/bumper combo
HD rear springs recommended for applications with rear mounted full size spare tire
Front aftermarket driveshaft strongly recommended due to additional travel capability

Vehicle Fitment

2020>Jeep>Gladiator JT 3.0L EcoDiesel|2021>Jeep>Gladiator JT 3.0L EcoDiesel|2022>Jeep>Gladiator JT 3.0L EcoDiesel|2023>Jeep>Gladiator JT 3.0L EcoDiesel

WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov

FEATURES & BENEFITS:

Front Adjustable Track Bar and Rear Track Bar Bracket to correct axle positioning under vehicle.
Front Sway Bar Quicker Disconnects and Rear Sway Bar Links for increased off-road articulation.
Front/Rear Bump Stop Extensions to properly limit suspension up travel.
Front/Rear J-Flex Upper Control Arms to add strength and adjustability.
Front/Rear J-Flex Lower Control Arms to add strength and adjustability.

KIT COMPONENTS:

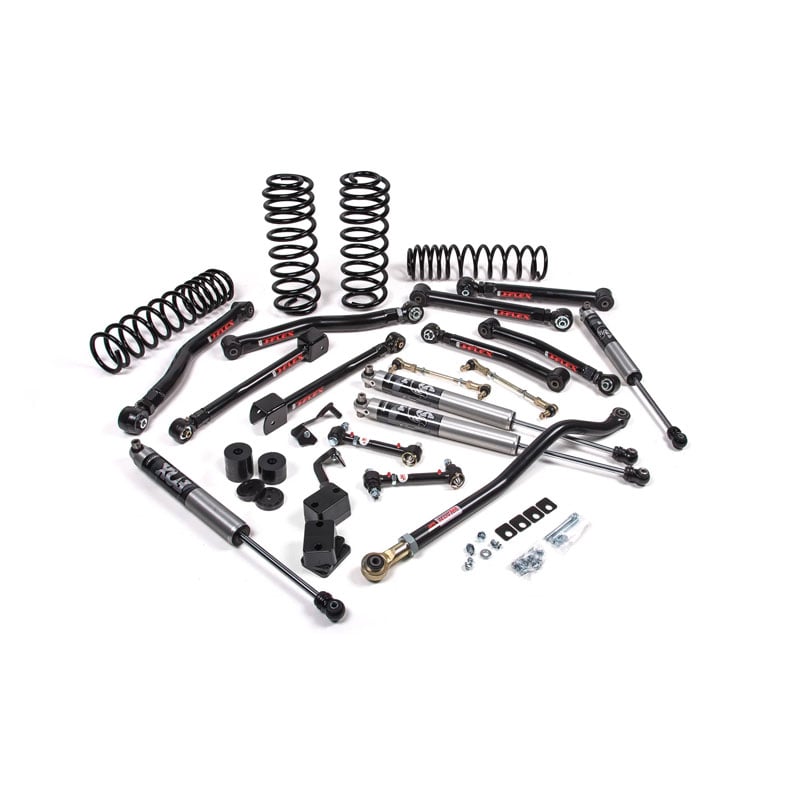

JSPEC1312 (x1) J-Krawl Main Box Kit
JKS1616 (x1) Adjustable Front UCA
JKS1625 (x1) Front Lower J-Flex Control Arm Kit
JKS1666 (x1) Rear Adjustable UCA
JKS1661 (x1) Rear Adjustable LCA
JSPEC1252 (x1) 2.5in Front Coil Spring Kit - HD
JSPEC1259 (x1) 2.5in Rear Coil Spring Kit - STD
Front Shocks (Pair)
Rear Shocks (Pair)

About JKS Manufacturing

Since 1989, JKS Manufacturing has developed some of the worlds most widely used and respected products for Jeep vehicles. It all started when they pioneered the original Quick Disconnect brand of quick-release sway bar disconnects. Since then, their product range has expanded to include such favorites as the ACOS line of height-adjustable coil spring spacers, and perhaps their most advanced creation to date, J-Spec Suspension systems including the JK Front Coilover Conversion.

JKS is proud of the fact that they continue to manufacture all of their products right here in the USA, using only premium grade materials and state-of-the-art machinery. You can always rely on JKS products to provide unquestionable benefits to vehicle performance. From cushioning hard suspension impacts off-road, to restoring the geometry of your suspension for safer and more predictable handling on-road, our products improve the experience of owning and operating a Jeep vehicle.

And because JKS products take advantage of Original Equipment components and technology whenever possible, vehicle drivability and reliability are not compromised. Discover why recreational and competitive Jeep enthusiasts around the world insist upon JKS products to improve vehicle performance, reliability and versatility. It's no coincidence that those who know Jeep performance best choose JKS products for their own vehicles.
