Whether you're chasing better towing power, compensating for oversized tires, or just trying to quiet down some howling coming from the rear end, your ring and pinion gears are doing a lot more than you might think. These unsung heroes inside your axle are responsible for translating engine torque into usable power at the wheels. Get the gear ratio wrong, and your truck either struggles or wastes fuel. Neglect a worn-out set, and you’ll end up shelling out for a full differential rebuild.
In this guide, we’re breaking down exactly what a ring and pinion setup does, how to tell when it’s time for a replacement, how to pick the right ratio for your build, and what to watch for during install. Whether you're upgrading for performance or just replacing a bad set, understanding your ring and pinion gears is one of the smartest moves you can make as a diesel owner.
Why Your Ring and Pinion Deserve More Attention
Most diesel owners don’t think about their ring and pinion until there’s a problem. Maybe you hear a high-pitched whine from the rear. Maybe your truck feels sluggish after a tire upgrade. Or maybe you’re towing heavy and notice your transmission downshifting more than usual. These are all signs your gearing might be working against you, not with you.
The ring and pinion aren’t flashy, but they directly impact how hard your truck works and how well it performs. Whether you're correcting for larger tires, chasing better fuel economy, or trying to keep EGTs in check while towing, understanding your gear ratio and drivetrain setup can save you from unnecessary wear and wasted power.

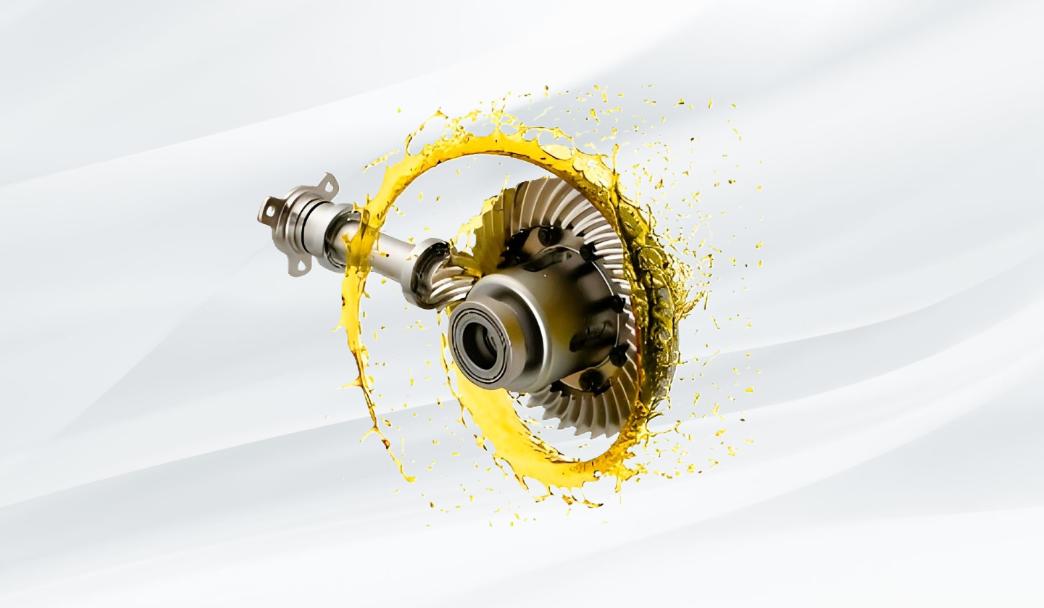

What Is a Ring and Pinion?
The ring and pinion gear set sits inside your axle housing and defines your final drive ratio (the number that determines how many times the driveshaft must spin to turn the wheels once). This gearing directly affects torque delivery, throttle response, and highway RPM. The pinion gear connects to the driveshaft and drives the ring gear, which is bolted to the differential carrier. Together, they translate engine power into usable motion at the wheels.
What does a ring and pinion do?
A ring and pinion set takes rotational force from the driveshaft and delivers it to the axles through the differential. Along the way, it adjusts that power based on the gear ratio. Lower ratios multiply torque for towing or off-road power. Higher ratios favor fuel economy at cruising speeds. It's one of the most important mechanical links between your engine and the pavement.
The pinion gear
The pinion gear is the smaller, faster-spinning gear connected to the driveshaft. It meshes with the ring gear and initiates the power transfer into the differential. Its tooth count helps determine your gear ratio, and its position and angle are critical for proper gear contact and quiet operation.
The ring gear
The ring gear is the large, round gear bolted to the differential case. It rotates the carrier and axle shafts when driven by the pinion. Because it handles the final stage of torque before it hits the wheels, proper alignment and tooth engagement with the pinion are essential to prevent wear or failure.
What type of gears are ring and pinion?
The ring and pinion are spiral bevel gears. This design was chosen for its strength and smooth engagement. The curved, angled teeth maintain constant contact as they rotate, which reduces noise and allows for efficient power transfer from the driveshaft to the axles, even under heavy load.
Understanding Gear Ratio for Ring and Pinion
Your gear ratio is what tells you how hard your truck works to turn the wheels. It’s defined by the relationship between the ring gear and pinion gear — specifically, how many times the pinion turns to spin the ring gear once. That number plays a big role in everything from low-end torque to highway RPMs.
If you've changed tire size, added power, or haul heavy loads regularly, your factory gear ratio might not be doing you any favors. Choosing the right ring and pinion ratio helps your truck stay in the powerband, protect your transmission, and run more efficiently overall.
What is a ring and pinion ratio?
The ring and pinion gear ratio is calculated by dividing the number of teeth on the ring gear by the number of teeth on the pinion gear. For example, a 4.10 gear ratio means the pinion rotates 4.10 times for every one rotation of the ring gear.
Higher numerical ratios (like 4.56 or 4.88) deliver more torque to the wheels — great for towing or crawling. Lower ratios (like 3.42 or 3.73) reduce engine RPM at cruising speeds, which can help fuel economy.
Ring and pinion ratio chart
Here’s a general guide to how common ratios stack up. These aren’t one-size-fits-all, but they’ll give you a solid starting point:
|
Gear Ratio |
Best For |
|
3.42–3.73 |
Daily driving, fuel economy |
|
4.10–4.30 |
Mixed driving, mild towing |
|
4.56–4.88 |
Heavy towing, off-road performance |
|
5.13+ |
Large tires, low-speed crawling |
Want to dive deeper? Check out this blog post on gear ratio and tire size for more information.
How gear ratio affects performance and towing
Your gear ratio controls how your truck applies power. A higher ratio increases torque at the wheels, helping you get moving with heavy loads or large tires, but it also pushes your engine to rev higher at highway speeds. A lower ratio drops cruising RPM, improving fuel efficiency and reducing engine wear, but at the cost of low-end grunt.
If your truck feels like it's constantly downshifting on hills or bogging down when towing, odds are your gear ratio isn't optimized for your setup. Swapping in the right ring and pinion gears can restore power, improve drivability, and take strain off your drivetrain.
Signs of Worn Ring and Pinion Gears
Your ring and pinion won’t fail quietly. Whether you’re hauling, commuting, or wheeling off-road, there are a few clear signs that your gear set might be on its last legs.
How do I know if my ring and pinion are bad?
The most common giveaway is noise: a whining or howling sound that changes with speed, especially under load or while coasting. You might also notice vibration, gear chatter, or even metal flakes in your differential fluid. If the noise is getting worse or the wear is visible on the gear teeth, it’s time for a replacement before you start losing drivability.
What happens if a pinion gear goes bad?
If the pinion gear is damaged or out of alignment, it won’t mesh cleanly with the ring gear. That leads to uneven wear, excessive backlash, and eventually gear failure. A worn pinion can destroy the ring gear, take out bearings, and leave you with a trashed differential. Possibly leaving you stranded. Catching the issue early can save you from a much more expensive repair.
Choosing the Right Ring and Pinion Gears for Your Build
Not all ring and pinion sets are the same. Your gear choice needs to match your axle, drivetrain goals, and how you use your truck day to day. Whether you’re regearing for larger tires, better towing, or just restoring factory performance, picking the right setup is key to getting the results you want without wasting money.
Matching gear sets to your axle and truck
Before you can choose a ratio, you need to know what axle you’re working with. Common diesel axles include Dana 60, Dana 80, AAM 11.5", and Ford Sterling 10.25" or 10.5". Each one has specific gear fitments, carrier breaks, and spline counts. Don’t assume all 4.10 gears are interchangeable. Always match the ring and pinion to your exact axle make and model.
What to consider before upgrading ring and pinion gears
Upgrading your ring and pinion gears can dramatically improve your truck’s power delivery, fuel efficiency, and overall drivability, especially if you’re running oversized tires. But it’s not a decision to rush.
Before choosing a new gear ratio, consider:
- Tire size: Larger tires change your effective gear ratio, which can cause sluggish acceleration and overwork your transmission.
- Transmission type: Trucks with older 4–6 speed transmissions benefit more dramatically from re-gearing than those with newer 8–10 speed setups, but even modern transmissions can feel underpowered with the wrong ratio.
- Driving style: Daily drivers, towing rigs, and off-road builds may all require different gear ratios to optimize performance.
- OEM vs aftermarket specs: Factor in your factory ratio, axle strength, and whether other upgrades (like axle shafts or lockers) are already planned.
Watch: Bigger Tires & Re-Gearing (Diesel Guide Ep. 1)
Curious how tire size, gear ratios, and drivetrain performance all tie together? In this Diesel Power Products original video, our team dives deep into how re-gearing affects everything from throttle response to fuel economy, plus real-world examples of why re-gearing is the #1 overlooked upgrade for diesel trucks and Jeeps.
Watch the full episode on YouTube
Moral of the story: If your truck feels sluggish after a tire upgrade, don’t just throw tuning at it. Gears are often the missing piece.
Best ring and pinion gear brands we recommend
At Diesel Power Products, we trust brands that have been proven on real builds, not just in the catalog. If you want premium performance and durability, check out Yukon Gear & Axle. For reliable, affordable upgrades,USA Standard Gear is a solid choice. And for off-road-focused setups,Revolution Gear & Axle delivers high-strength options that can take a beating.
Can You Install Ring and Pinion Gears Yourself?
Installing a ring and pinion set isn’t your average weekend job. It’s precision work that demands the right tools, real attention to detail, and a solid understanding of gear setup. Done right, you get smooth operation and long gear life. Done wrong, and you’ll be chasing noise, heat, and premature failure.
Tools and expertise needed for ring and pinion installation
Setting up a ring and pinion takes more than just turning wrenches, but if you're comfortable with drivetrain work, it's a job you can take on with the right tools and a little patience. You'll need a dial indicator, torque wrenches (both inch-pound and foot-pound), setup bearings, a bearing puller, and gear marking compound. Precision is key. You'll be adjusting pinion depth, setting backlash, and checking bearing preload, all within tight tolerances.
Get it wrong, and you’re risking gear whine, premature wear, or worse. Long-term studies confirm that improper mounting rigidity or lubrication can significantly accelerate gear and bearing failure, even when tooth contact looks fine on the surface. That’s why setup specs matter so much.
If you're new to gear setup, take your time, follow each step carefully, and don't hesitate to call in help or compare your work to a professional install. But if you're familiar with differentials and have the right equipment, this is absolutely something you can do in your own garage.
Ring and pinion pattern setup: what to look for
Your gear pattern tells you everything. After applying marking compound to the ring gear teeth, you’ll check the drive and coast patterns to make sure the gears are meshing properly. Ideal contact is centered and even across the face of the tooth. Too deep, too shallow, or off to one side means you need to revisit pinion depth or shim spacing. A clean pattern equals quiet operation and long life.
How to break in new ring and pinion gears
New gears need to be heat-cycled properly. After the initial install, drive gently for the first 15–20 miles, then let the axle cool completely. Repeat this process a few times, avoiding towing or high-speed runs during break-in. After 500 miles, change the gear oil to flush out any wear particles from the new setup. Skipping break-in shortens gear life and increases the chance of premature noise or wear.
Ready to Upgrade Your Ring and Pinion? Get the Right Gear Set for Your Diesel Truck
If your truck's performance isn’t where it should be — whether you're towing heavy, running oversized tires, or chasing better fuel efficiency — the right ring and pinion setup can make all the difference. Regearing isn’t just a repair. It’s one of the smartest upgrades you can make to match your axle ratio with how you actually use your truck.
At Diesel Power Products, we carry trusted gear brands like Yukon, Revolution, and USA Standard for every major diesel axle. Whether you’re looking to fix a failing set or dial in your build, we have the parts and the know-how to help you get it done right.
Shop ring and pinion gear sets now or contact our diesel experts. We’re here to help you spec the right setup the first time.
