BDS Suspension Recoil Traction Bars for 4.5in Axle 17-24 Ford SuperDuty
Description
Traditional traction or ladder bars are a great addition for those looking to gain needed traction to prevent against axle wrap and wheel hop. However, they also have a negative side effect in which they limit your suspension's ability to articulate, causing a degradation of performance when off road. That has all changed with the RECOIL Traction Bars!
BDS Suspension's RECOIL Traction Bars are a revolutionary spring loaded traction bar system engineered to improve traction and limit axle wrap without negatively affecting suspension travel or ride quality. These next generation RECOIL traction bars offer you the freedom to tune the spring tension for optimal performance on-road, off-road, towing, or competition pulling. These traction bars can be used on stock height or lifted trucks and work with both lift blocks and replacement leaf spring kits. They use a full floating design that won't bind up allowing the full range of wheel travel without limiting articulation.

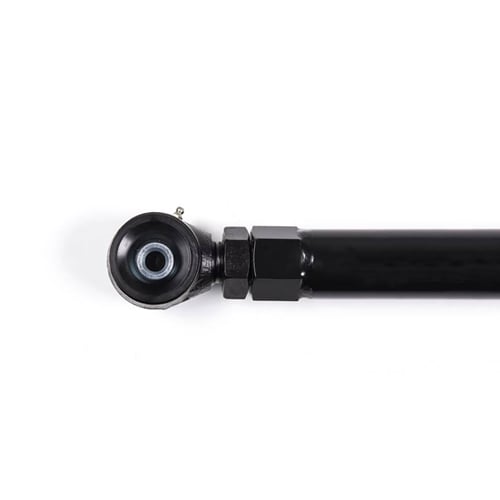

These RECOIL traction bars are built to the highest standards for the ultimate performance on and off-road. The bars are fabricated from 2" OD x 3/16" wall steel tubing with a threaded bung welded in toward the axle and a CNC machined end at the frame. The axle mount uses the tried and true BDS large forged flex end and jam nut to take whatever abuse you throw at it. Utilizing a forged housing with large 1-1/4" -12 threaded shank, a single sided snap ring and 1-piece flex ball, the flex ends are capable of up to 15-degrees of misalignment in either direction.

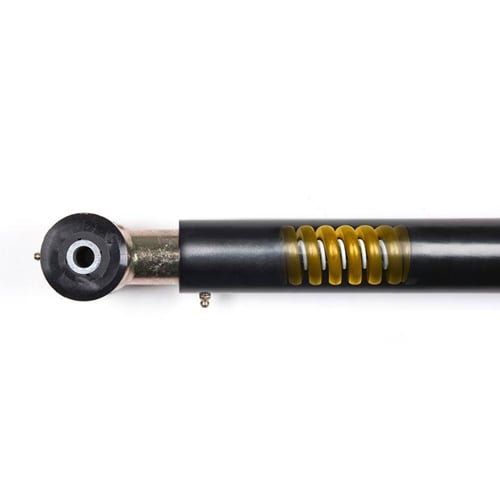

At the frame end the bar uses a durometer specific polyurethane bushing and free floats in the traction bar utilizing a pair of dual stage internal compression springs and UHMW polyurethane bearings. Both ends are greaseable and serviceable.

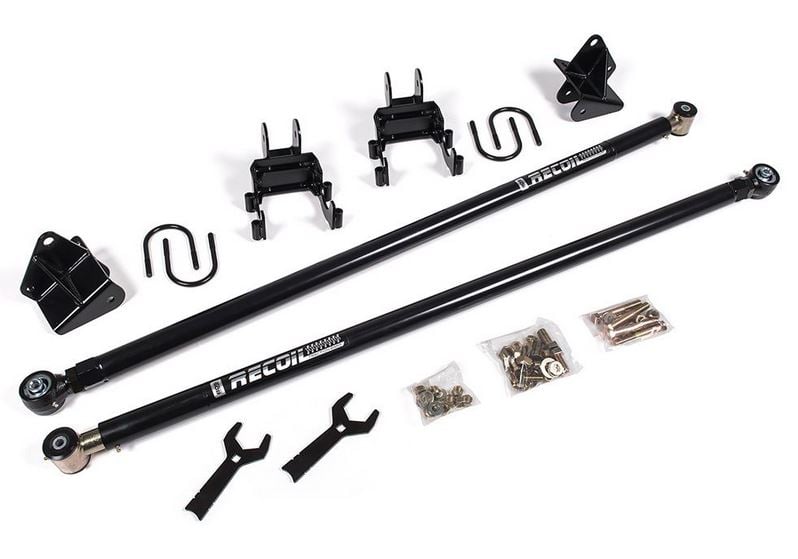

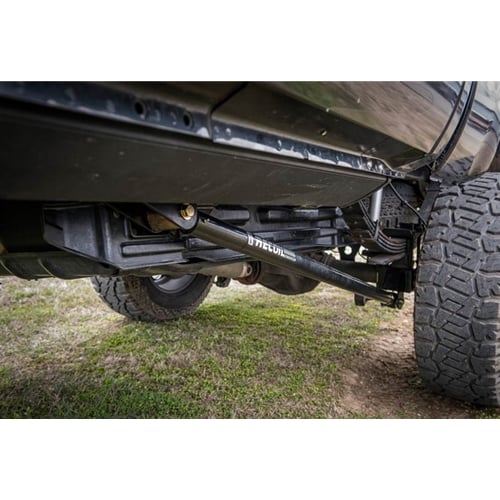

RECOIL Brackets | Vehicle Specific - Fully assembled the RECOIL traction bars are 55" long and mount to the vehicle using fabricated 1/4" steel brackets. Bracket kits are vehicle specific. The frame brackets install by drilling mounting holes for the brackets while the axle brackets install using a set of u-bolts. The traction bars and mounting brackets feature a durable gloss black powdercoat finish.
Adjustable Axle Wrap Control - These RECOIL traction bars are built to the highest standards featuring quick and easy adjustment while installed on the vehicle. To adjust spring tension, use the supplied spanner wrenches at the axle to loosen the jam nut. From there the main bar can be rotated to load or unload the springs at the frame side of the bar. Using the concave end of the wrench handle against the frame end check the location of the end of the main bar in relation to the notches on the wrench to verify the load on the springs, the shorter the distance the more loaded the springs are. Repeat this process on the other traction bar and use the wrenches to tighten down the jam nuts and you are ready to go!
Vehicle Requirements: 0-6 and 4.5" Diameter Axle Tubes
About BDS Suspension
BDS Suspension was started in 1996 by a business group who felt it was past time to create a suspension company that truly had the best interest of the off road consumer as its' foundation. With over 45 combined years experience with other major suspension companies, both buying and selling, the individuals that would make up the BDS name were frustrated by the lack of quality and the unwillingness to make things right by these 4x4 companies. So, they set out to create a suspension company that would be the best and made a list of the things they felt were not right and made it their mission to correct them.
One of the most important of these wrongs they were looking to right were that of other companies warranties. Too often, the standard protocol was that a broken or damaged part from another manufacturer was denied warranty because of abuse or neglect. For BDS, its simple, if it breaks, they'll replace it, and that is the motto in which they have based their entire warranty off of. So, they welcome you, try and break it, if you do, they'll replace it and probably try to determine a way to increase the rigidity of the product to ensure it never happens again.
BDS LIFT KITSWhile most people whom have heard of BDS Suspension automatically think of "lift kits," that ony touches on the wide variety of suspension and steering related products that BDS offers. BDS understands that not everyone is after a complete lift kit, but still after the quality BDS products bring to the table. Some of our most popular products from BDS are replacement adjustable track bars and dual steering stabilizer kits that in many instances can be installed on a completely stock truck, or one that's leveled or lifted. Other popular "non lift kit" parts are leveling kits that include upgraded shocks, progressive rate coil springs, heavy duty control or radius arms, and even leaf springs.
When shopping for various BDS Suspension parts, we understand that all of the choices can be overwhelming! Shock options, dual steering stabilizers, replacement coil springs or spacers.....and the list goes on! As you're considering the right suspension upgrades for you and your truck, never hesitate to reach out to us for an honest opinion of what we'd recommend for your particular build and budget. Not everyone "needs" every option and we can help you weigh the benefits of each.
