SKU #: SYN-8730-03
MPN #: 8730-03

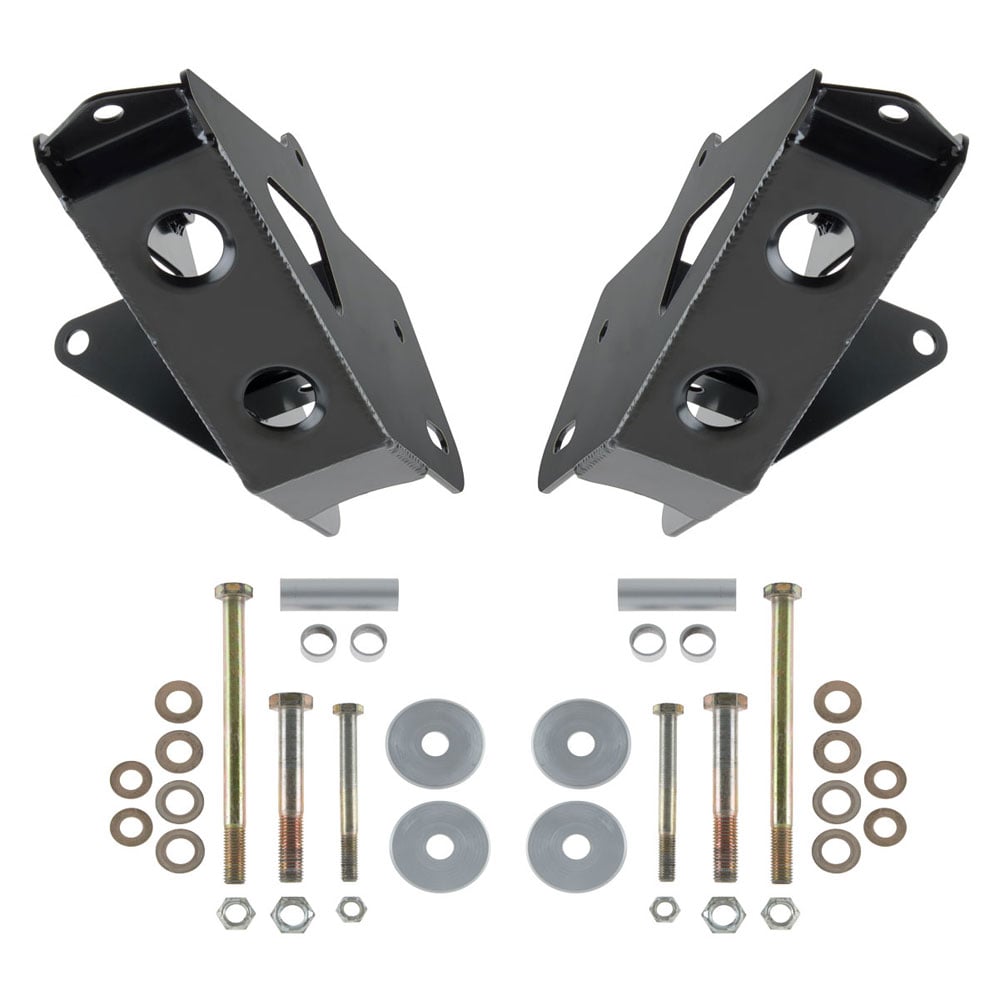

Synergy Front Radius Arm Drop Brackets 14-25 Ram 2500 / 13-24 Ram 3500
☆☆☆☆☆
(0)
This doesn't fit your
Fits your
2024 Chevrolet 3.0L Duramax
Description
On the 2014+ trucks, their front supsensions are a bit finicky. Changing one item in the configuration sets off an avalanche of many other components needing to be changed/upgraded. Many manufactures don't include radius arm drops in their lift kits and rely on caster adjustments to get your truck back into alignment spec. Problem is, you might be in alignment spec but your geometry is garbage causing the truck to have poor ride characteristics but tracking straight down the road. This is where updating your radius arm pivot points come into play. Synergy radius arm drop brackets improve ride quality by lowering the radius arm mounting locations at the frame to maintain factory front suspension geometry for leveled and lifted trucks. Flip-able cam spacers in the drop brackets allow the user to run the axle 1/2 inch forward for leveled trucks or 1-1/2 inches forward to clear larger tires and taller lifts.
IMPORTANT NOTES:
Designed to be used with 2.5 - 6 inch front lift springs.
Recommend having the truck aligned after installation.
Running the axle 1-1/2 inches forward may require a driveshaft spacer or lengthened driveshaft.
Running larger tires with the axle 1-1/2 inches forward will require an aftermarket front bumper or trimming of the stock bumper.
Running the axle 1-1/2 inches forward may require sway bar relocation brackets.
FEATURES & BENEFITS:
- Improved ride quality by maintaining factory suspension geometry at lifted ride heights.
- Adjustable axle placement for oversized tires and taller lifts.
- Drop brackets lower the front control arm mounting position 3 inches at the frame side.
- Maintains factory geometry on lifted vehicles. Bolt-on design allows installation with simple hand tools.
- CAD designed from heavy duty 3/16 inch steel plate and includes an integrated, crush resistant, grade 50 A-572 steel skid plate.
- Stainless steel flip-able cam spacers allow the axle to be located 1/2 inch forward or 1-1/2 inches forward to allow clearance for larger tires and taller lifts.
- Drop brackets do not need to be removed to service the drivetrain.
- Suspension components feature an abrasion-resistant powder coat finish for maximum durability and corrosion resistance.
