Longhorn Fab Shop Ultimate Series Bolt On Traction Bars 03-13 Ram 2500 | 03-18 Ram 3500 Long Bed

$1,067.66
Get 1067 points in loyalty rewards
Description
Tired of wheel hop issues in your 3rd and 4th generation Cummins? Even under stock power levels, you could experience axle wrap that can break driveshafts, pinion yokes, u-joints and wear out other suspension components. Longhorn Fab Shop has the answer. The Ultimate Series Traction Bars feature a massive 86" long, 2" OD steel bars that are twice the thickness of their standard bars. This kit replaces the factory u-bolts that are not strong enough to handle the torque and horsepower of modified engines. The professional grade brackets flip the u-bolts and adds a massive bottom axle plate that increases the strength of the rear end. Zero welding is required and comes with a lifetime warranty against breaking and bending. No matter the conditions, situation, or horsepower level, you break them, Longhorn will replace them. IMPORTANT NOTE:You must measure the distance from the top of the axle to the top of the leaf spring to determine the u-bolt length.
Tired of wheel hop issues in your 3rd and 4th generation Cummins? Even under stock power levels, you could experience axle wrap that can break driveshafts, pinion yokes, u-joints and wear out other suspension components. Longhorn Fab Shop has the answer. The Ultimate Series Traction Bars feature a massive 86" long, 2" OD steel bars that are twice the thickness of their standard bars. This kit replaces the factory u-bolts that are not strong enough to handle the torque and horsepower of modified engines. The professional grade brackets flip the u-bolts and adds a massive bottom axle plate that increases the strength of the rear end. Zero welding is required and comes with a lifetime warranty against breaking and bending. No matter the conditions, situation, or horsepower level, you break them, Longhorn will replace them.

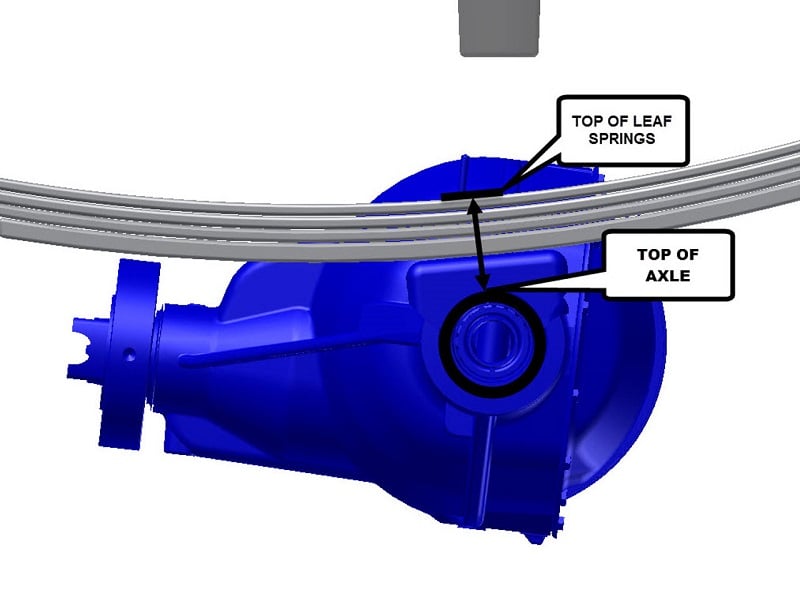

IMPORTANT NOTE:
  • You must measure the distance from the top of the axle to the top of the leaf spring to determine the u-bolt length.
TRACTION BAR FEATURES:

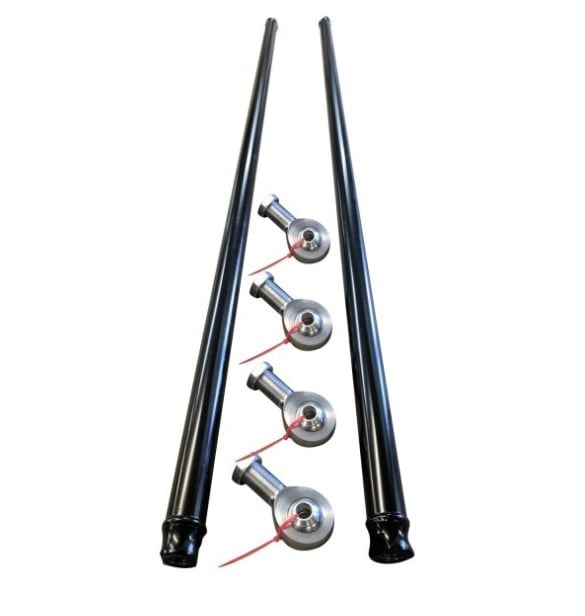

  • Massive 86" long x 2” OD steel bars are HEAVY DUTY and twice the thickness of our standard bars.
  • Comes standard with our professional grade brackets.
  • Length provides perfect functionality and looks.
  • NO welding required.
  • Installs with simple hand tools.
  • All Grade 8 hardware.
  • All brackets are laser cut and CNC bent to guarantee a perfect fit every time.
  • Turnbuckle design allows for easy alignment of heim joints and brackets.
  • Completely adjustable for suspension preloading without removing the bars.
  • Designed to take all of the abuse you can throw at them.

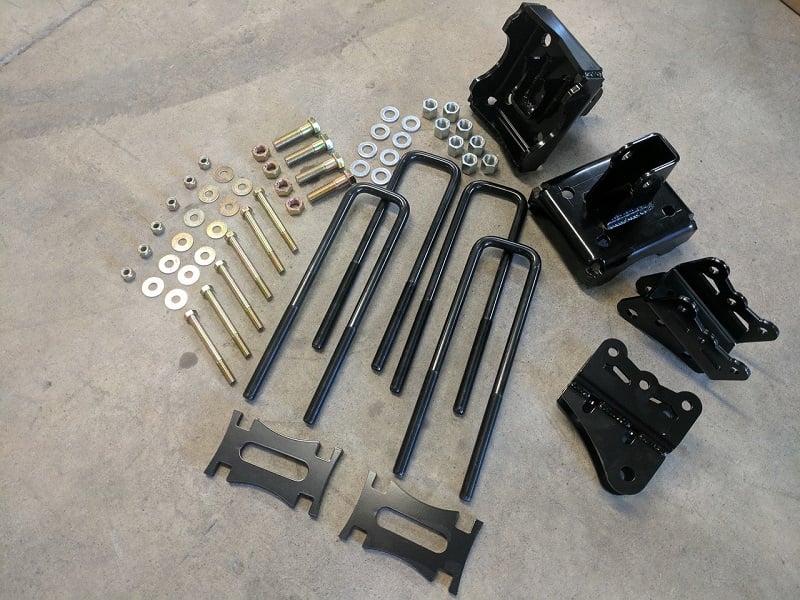

BRACKET FEATURES:
  • Designed to take all of the abuse that you can throw at the truck!

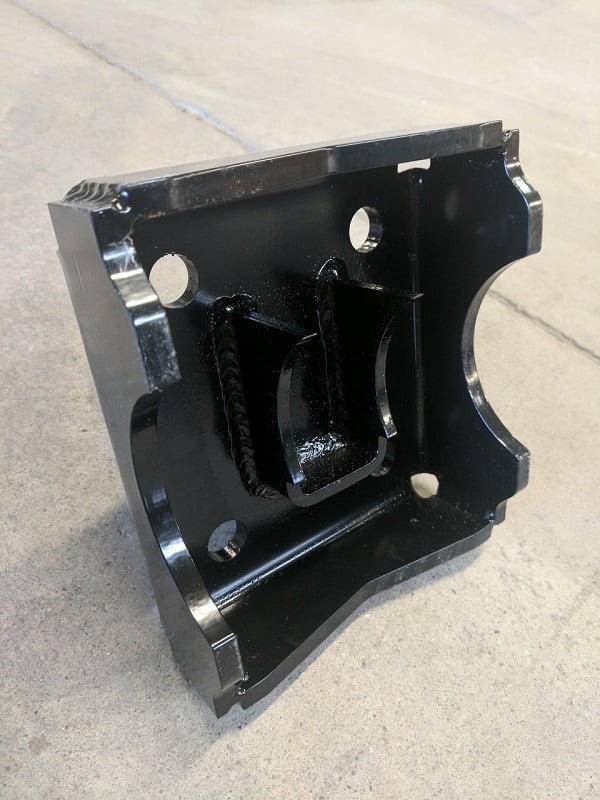

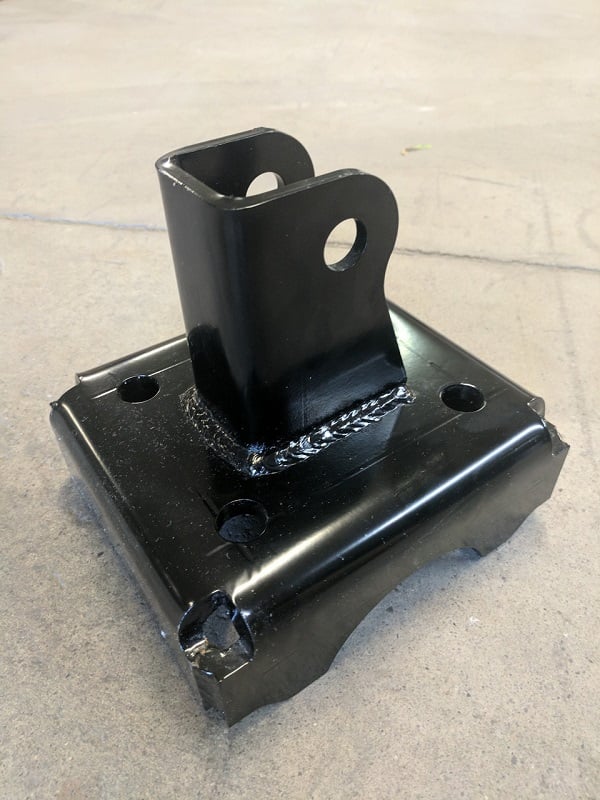

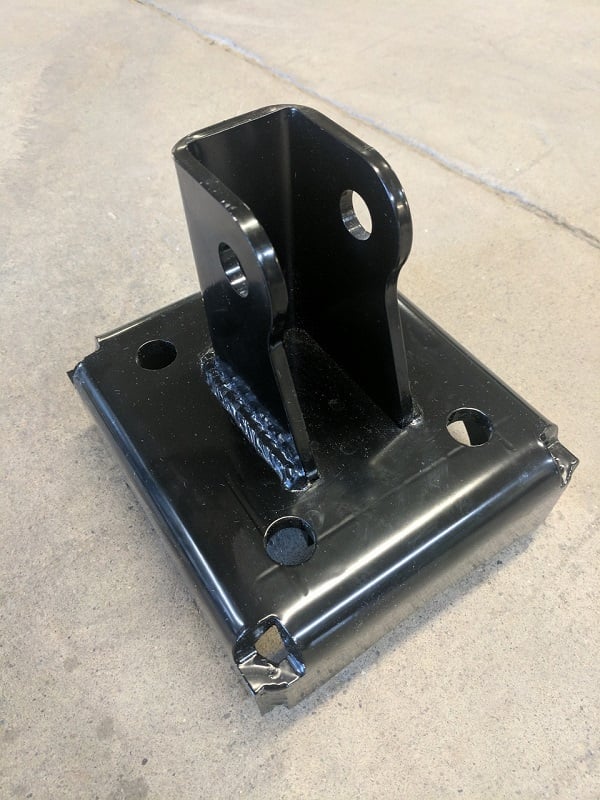

  • 3/8" Main bracket formed from a solid piece and welded for extra strength.
  • 1/2" Leaf spring top plate.
  • 3/4" U-bolts, nuts and washers
  • 1/4" Formed traction bar mount and bracket reinforcement.
  • Extra steel added where it needs it most to improve strength for the most demanding trucks!
  • NO welding required.
  • Installs with simple hand tools.
  • All Grade 8 hardware.
  • All brackets are laser cut and CNC bent to guarantee a perfect fit every time.
  • 1.825" Traction bar mount rod end width
  • 3/4" Through Bolts
About Longhorn Fab Shop
Longhorn Fab Shop has been building itself a reputation as being one of the premier manufacturer's for specialty Duramax products since they opened their doors. And while Duramax's may be LFS's specialty, by no means are GM's their limit! If you're after well built, custom products for your truck, such as traction bars, tie rod sleeves, and a host of other items, take the time to look over Longhorn's offerings as shown below, and you will not be disappointed!
