Zone Offroad D49 2" Adventure Series UCA Lift System 12-18 Ram 1500 4x4

Name: Zone Offroad D49 2" Adventure Series UCA Lift System 12-18 Ram 1500 4x4
Brand: Zone Offroad Suspension
SKU: ZON-D49
Price: 600.9 USD
Availability: InStock

$600.90

Get 600 points in loyalty rewards

Description

Level out your Ram 1500 the right way with this complete kit from Zone that includes heavy duty replacement upper control arms to ensure your truck is properly aligned, and can take a beating. This system is developed around the same boxed, fully welded, heavy duty upper control arms as in the 2006-11 system. The control arms are made from 1/8" steel and CNC-machined bushing and ball joint cups. The arms use OE rubber bushing and greaseable factory style ball joints for quiet, reliable and low maintenance operation. The new UCAs dwarf the factory arms and provide a larger range of motion via the new ball joint. The ball joint position is also adjusted compared to stock to keep it in a neutral position with 2-3" of lift. The UCAs are boxed separately (#D2301) and can be used with other leveling kit equipped trucks. In addition to the UCAs, the kit comes with strut top spacers that properly reposition and pitch the factory strut in order to gain lift without the chance of the strut rod rubbing on the factory upper isolator assembly (creating a squeak). The strut spacer works within the limits of the factory CV shaft so they do not bind at full suspension extension. The newer generation trucks have longer CV shafts than the 06-11 models, this allows Zone to run 2" of lift safely without a differential drop. While its possible to run a 35" tire with this system, the tire can rub the top of the inner fender under extreme compression. For that reason, Zone recommends a 33x12.50 tires on 17"+ wheels with 5" BS.

Free Customer Loyalty Program

No Salesmen, Just Enthusiasts

Level out your Ram 1500 the right way with this complete kit from Zone that includes heavy duty replacement upper control arms to ensure your truck is properly aligned, and can take a beating.

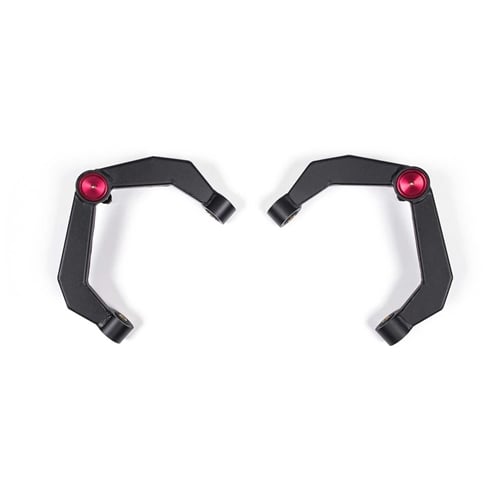

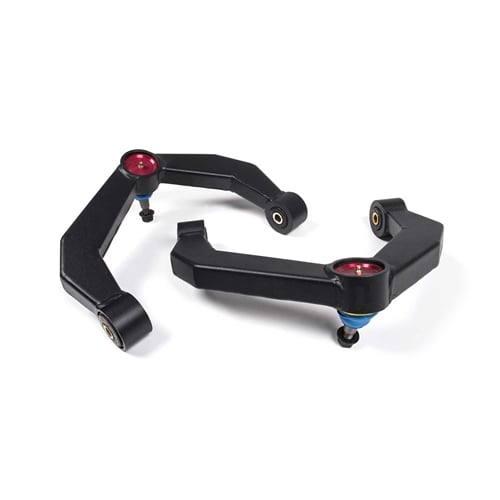

This system is developed around the same boxed, fully welded, heavy duty upper control arms as in the 2006-11 system. The control arms are made from 1/8" steel and CNC-machined bushing and ball joint cups. The arms use OE rubber bushing and greaseable factory style ball joints for quiet, reliable and low maintenance operation. The new UCAs dwarf the factory arms and provide a larger range of motion via the new ball joint. The ball joint position is also adjusted compared to stock to keep it in a neutral position with 2-3" of lift.

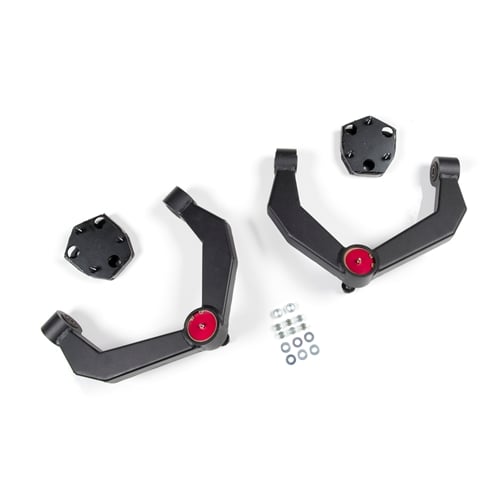

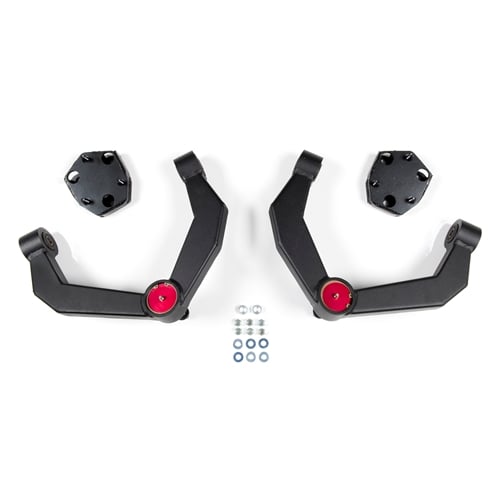

The UCAs are boxed separately (#D2301) and can be used with other leveling kit equipped trucks. In addition to the UCAs, the kit comes with strut top spacers that properly reposition and pitch the factory strut in order to gain lift without the chance of the strut rod rubbing on the factory upper isolator assembly (creating a squeak). The strut spacer works within the limits of the factory CV shaft so they do not bind at full suspension extension. The newer generation trucks have longer CV shafts than the 06-11 models, this allows Zone to run 2" of lift safely without a differential drop.

While its possible to run a 35" tire with this system, the tire can rub the top of the inner fender under extreme compression. For that reason, Zone recommends a 33x12.50 tires on 17"+ wheels with 5" BS.

Manuals and Guides

INSTALL INSTRUCTIONS

FEATURES & BENEFITS:

Upper strut spacer is pitched, offset, and rotated to ensure proper fitment and positioning with the factory strut
Powder-coated steel upper strut spacers for long lasting durability
Fully welded, heavy duty upper control arms that dwarf the factory arms.
CNC-machined UCA bushing and ball joint cups.

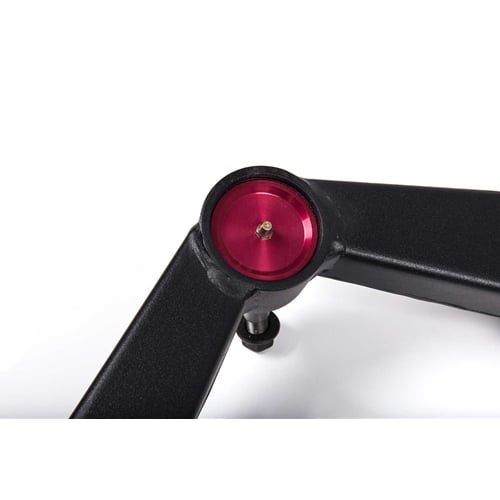

OE rubber bushings and greasable factory style ball joints for quiet, reliable, and low maintenance operation.
Improved UCA range of motion compared to stock arms
UCA ball joint position adjusted to keep arm in a neutral position with 2" of lift.
UCAs utilize replaceable ball joints - replacements are readily available from most auto parts stores when needed many miles down the road.
Avoids ball joint binding issue commonly known to occur on these models with spacer only type kits that use the factory UCAs
Detailed, easy to follow installation instructions included
No strut compressor required for installation
Limited Lifetime Warranty

QUICK SPECS:

Front Lift Height: 2
Front Lift Method: Upper Control Arms
Install Time Hrs: 3-4
Difficulty Level 1-5: 2
Wheel Size: 17"
Back Spacing: 5"
Max Tire Size: 33x12.50

About Zone Offroad Suspension

Zone Offroad Products was developed to bring you quality offroad products at the BEST VALUE in the industry.

Zone is an engineering & manufacturing division of Sport Truck USA, the same parent company that has brought you BDS and JKS, with over 20 years of experience serving offroad enthusiasts. And we will be the first to tell you that Zone's first intention when designing and building a suspension system is not to be the lowest price, thus cutting corners wherever possible, rather about building a complete system that will perform superbly, but at a price point nearly anyone can afford.

Zone offers numerous systems for nearly every application to perfectly suit the stance you're after whether it be a simple 2" leveling kit or a complete 8" suspension system. Browse through our selection of Zone Offroad, and as always, if you don't see what you're looking for or having trouble determining which kit is right for you, do not hesitate to give us a call and we would be happy to assist.
