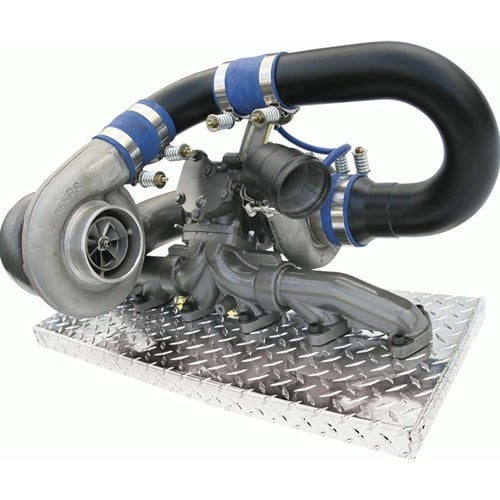

BD Super B / Towing Twin Turbos and Upgrade Kits 94-98 12V Dodge 5.9L Cummins 1045310P / 1045315
Description
You want more power, lower EGT's, and even better fuel economy (as long as you can manage to keep your foot from mashing the throttle)? Who doesn't?! Simply put, its easy to add fueling enhancements to your 12 valve, but you need to complement all of this fueling with airflow to ensure you're getting the power you're after. And the best way to maintain drivability when upgrading your airflow is through a set of compound chargers.If you already have the Super B (not Super B Special) single, and looking for even more air flow, you can now upgrade with your existing components to a set of Super B Twin Turbos by adding one of our Super B Twin Turbo Upgrade Kits complete with all necessary piping and second turbo! Or if you need a complete kit, we also offer the complete BD Super B TWIN TURBO kits for your 12 valve Cummins!
Designed in a joint engineering effort between BD Diesel Performance and BorgWarner Turbo Systems' AirWerks program, these turbo systems for the 5.9 liter Cummins engine flow enough air for racing applications, yet are responsive and durable enough for street and heavy towing applications. Plus, they're backed by a one year factory warranty!
Featuring BorgWarner's unique Extended Tip compressor wheel technology and low inertia, full-floating journal bearings, these turbos utilize BD's unique dual-volute turbine housing. This proven design utilizes low rpm exhaust pulses for improved turbine response, while the dual-action waste gate bleeds off turbine drive pressure from both volutes. BD's turbo systems also feature a heavy-duty waste gate actuator that prevents pre-mature opening caused by high exhaust pressure. You can even fine-tune your BD/AirWerks turbo for ambient temperature and barometric pressure changes using BD's adjustable waste gate control.
Put simply, you'll get more power, quicker response, cooler EGT's (Exhaust Gas Temperatures) and lower exhaust emissions with a BD/AirWerks turbocharger!

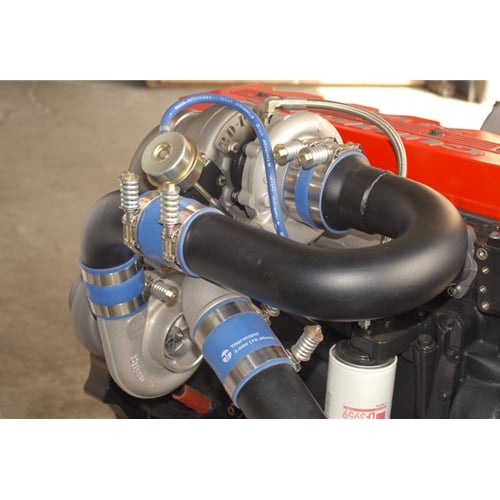

TWIN TURBO SYSTEMS are designed for high-powered '94-'07 5.9 liter Cummins applications without cylinder head modifications, the Super B twin can easily flow enough air for up to 575 rear wheel horsepower on diesel only. Add a BD Cool-It intercooler and a shot of nitrous oxide, and watch the power level climb! Great street and strip drivability, easy installation, and the factory oil coolers can be retained.
These kits are complete with all necessary intake and exhaust piping and oil drains. Head studs are recommended when running twin turbos. The 12mm ARP studs are fine with BD Twins. No head tapping required.
FEATURES & BENEFITS:
Forged Milled Billet Wheel on secondary turbo (Applicable on complete kits including two turbos)
Includes Turbine Blanket for Primary Turbo
Comp Wheel Low Pressures: 66mm 2.60in
Comp Wheel High Pressures: 58mm 2.28in
Stage-compounded AirWerks S300 turbochargers
High CFM yielding high power with low EGTs
Quick, low-rpm response
Broad power curve across the entire engine rpm range
Easily cool 575 rear wheel horsepower
Great towing and competition
Upgrade kits available for Super B Single
1190 CFM - 82.30 LBS/MN - 650 HP

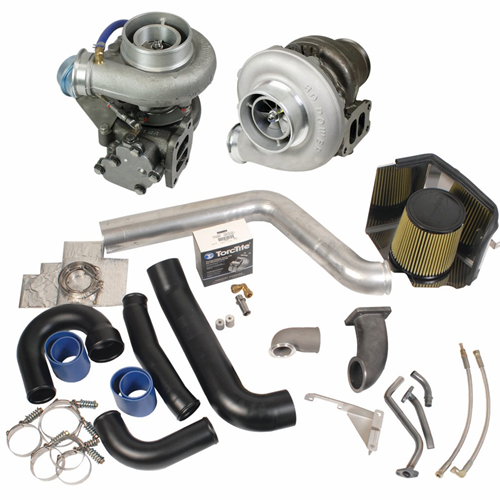

Turbos, Down Pipe, Piping, Air Box, Washable Air Filter, Heat Wrap, Clamps, Hoses, Oil Drains, Brackets and Hardware
Extended tip compressor wheel technology
